Toyota Cresta
1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan
Discontinued model
Data version 1997-06
Telephone & Mayday
10 part groups · 2 illustrations

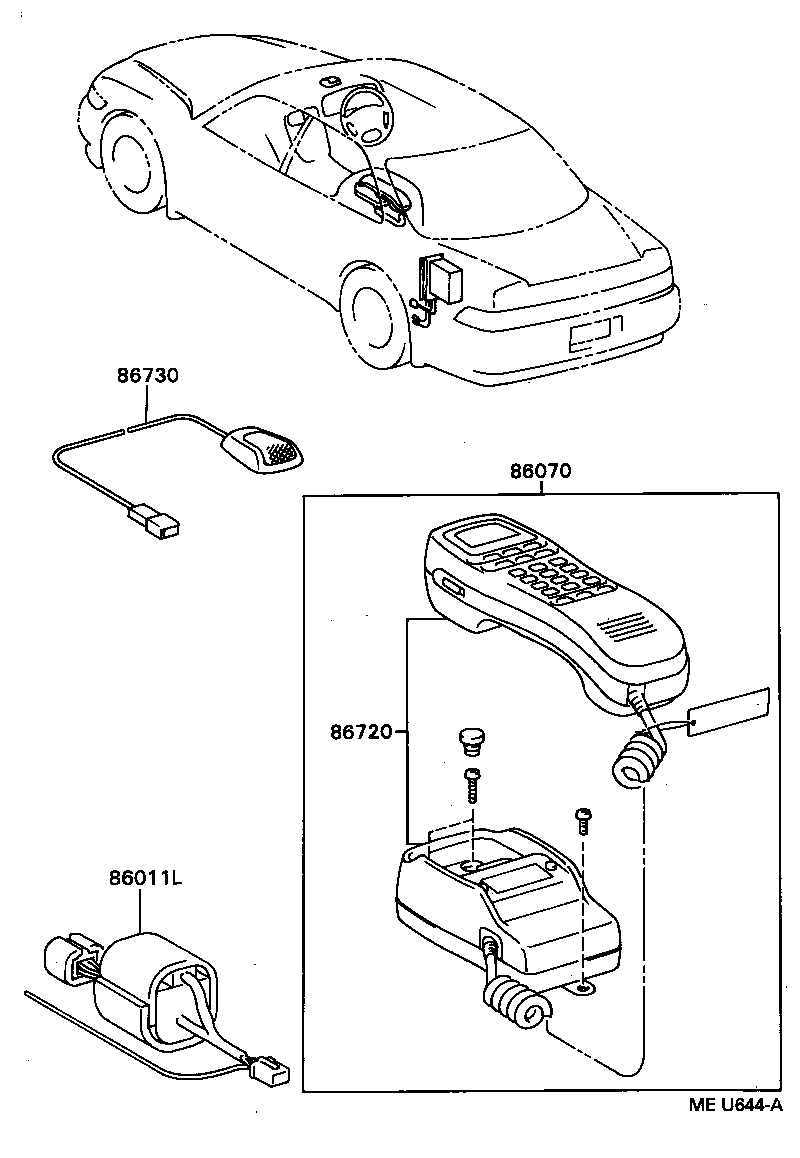

Part groups
| PNC | Description |
|---|---|
| 86011L | Filter, Noise |
| 86070 | Mobilephone & Accessory Assy |
| 86712 | Wire, Telephone |
| 86720 | Mobilephone Assy |
| 86723 | Wire, Mobilephone |
| 86725 | Battery, Mobilephone |
| 86726 | Cover, Mobilephone |
| 86726A | Cover, Mobilephone, NO.2 |
| 86726B | Cover, Mobilephone, NO.3 |
| 86730 | Microphone Assy, Telephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
