Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

13 part groups · 4 illustrations

Illustrations

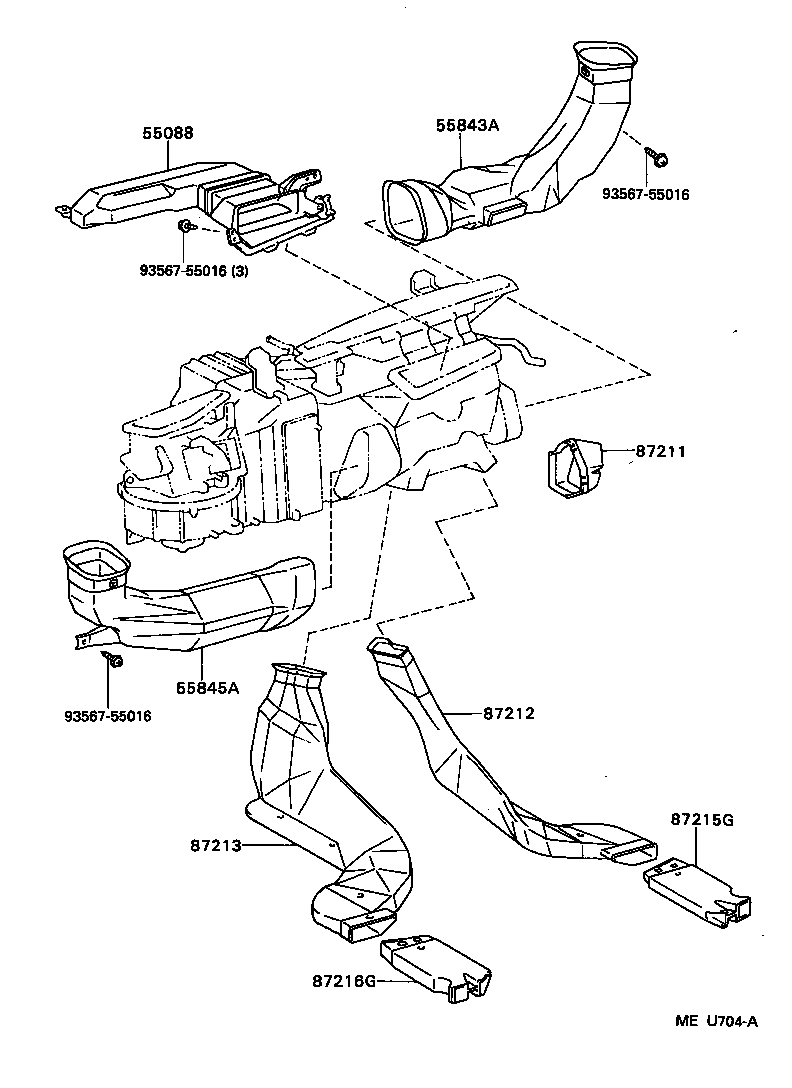

Figure MEU701B MEU701B 1992-10 → — Figure MEU702A MEU702A 1992-10 → — Figure MEU703 MEU703 1992-10 → — Figure MEU704A MEU704A 1992-10 → —

Part groups

PNCDescription
55088 Duct Sub-assy, Heater TO Register, NO.5
55843A Duct, Heater TO Register, NO.1
55845A Duct, Heater TO Register, NO.3
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55905A Knob, Heater Control
55905D Knob Sub-assy, Control
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215G Guide, Air Duct, Rear RH
87216G Guide, Air Duct, Rear LH
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
