Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

12 part groups · 3 illustrations

Illustrations

Figure MEU708B

MEU708B 1992-10 → —

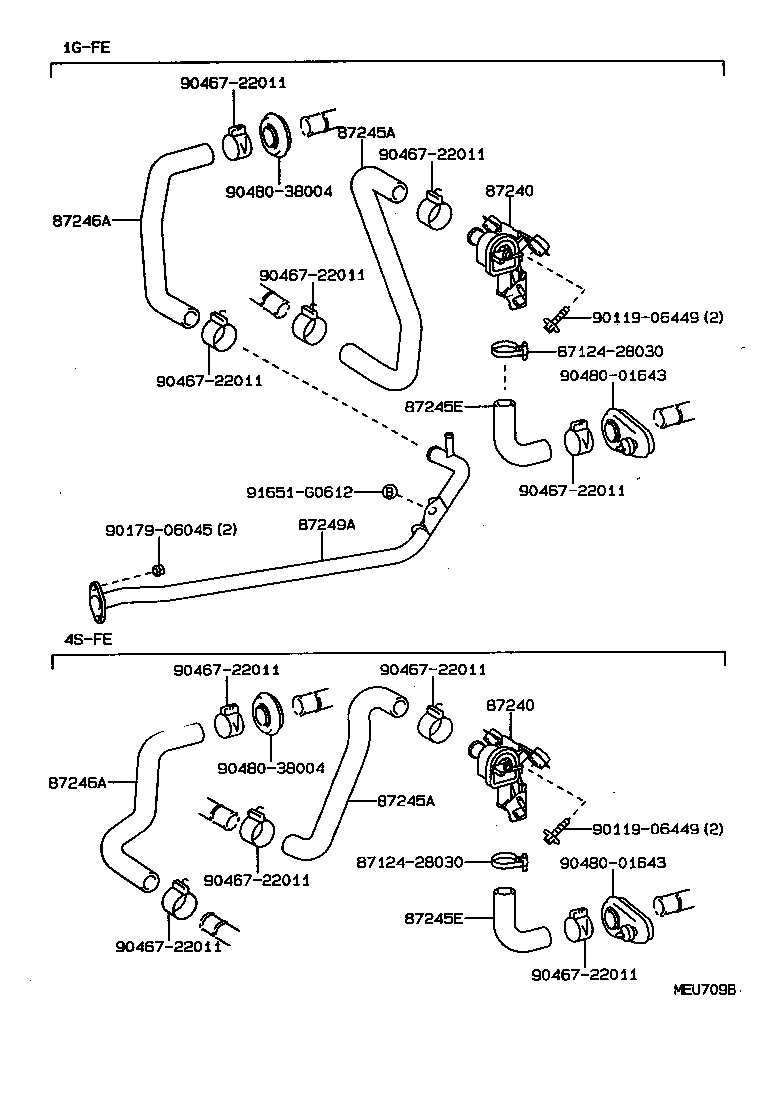

Figure MEU709B

MEU709B 1992-10 → —

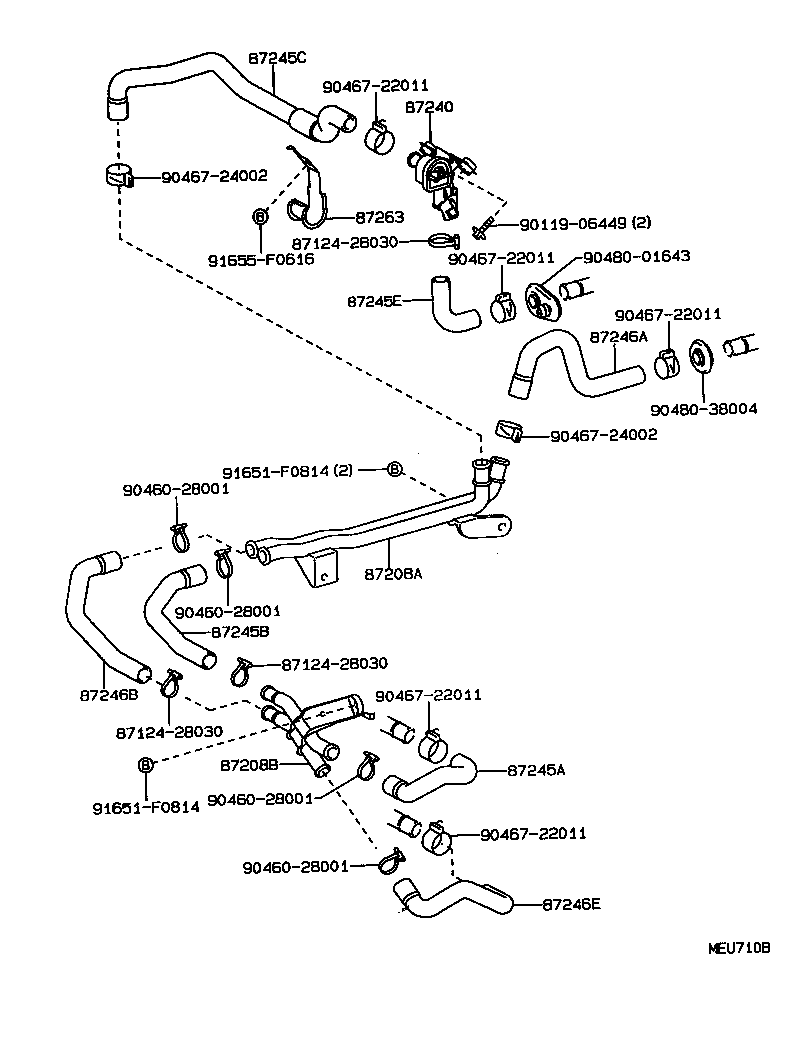

Figure MEU710B

MEU710B 1992-10 → —

Part groups

PNC	Description
87208A	Pipe Sub-assy, Heater Water, A
87208B	Pipe Sub-assy, Heater Water, B
87240	Valve Assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87245B	Hose, Heater Water, Inlet B
87245C	Hose, Heater Water ,Inlet C
87245E	Hose, Heater Water, Inlet E
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246E	Hose, Heater Water, Outlet E
87249A	Pipe, Heater Water Outlet, A
87263	Bracket, Heater Water Pipe, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
