Toyota Cresta

1992-10 → 1996-09 · chassis GX90,JZX9#,LX90,SX90 · catalogue 313170 · Japan

Discontinued model Data version 1997-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

13 part groups · 3 illustrations

Illustrations

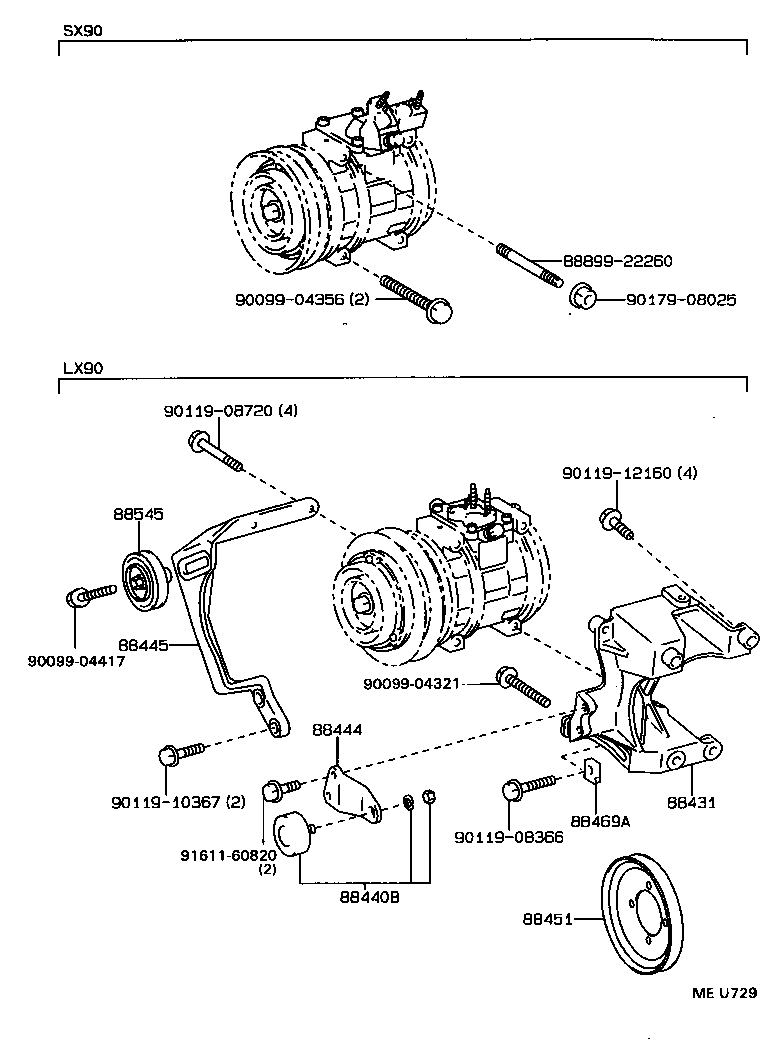

Figure MEU728 MEU728 1992-10 → — Figure MEU729 MEU729 1992-10 → — Figure MEU730 MEU730 1992-10 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88444 Bracket, Idle Pulley
88445 Bracket, Idle Pulley
88451 Pulley, Crankshaft
88469A Collar, Adjusting
88545 Pulley Assy, Idle
