Toyota Cresta

1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan

Discontinued model Data version 1998-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

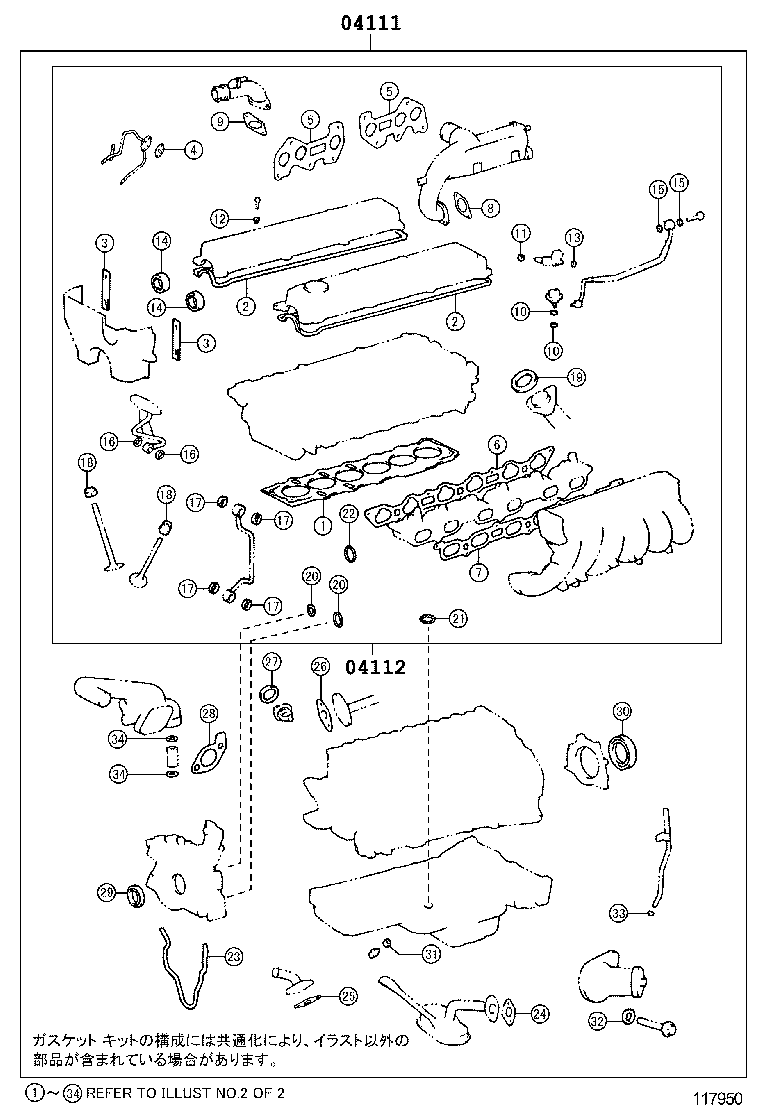

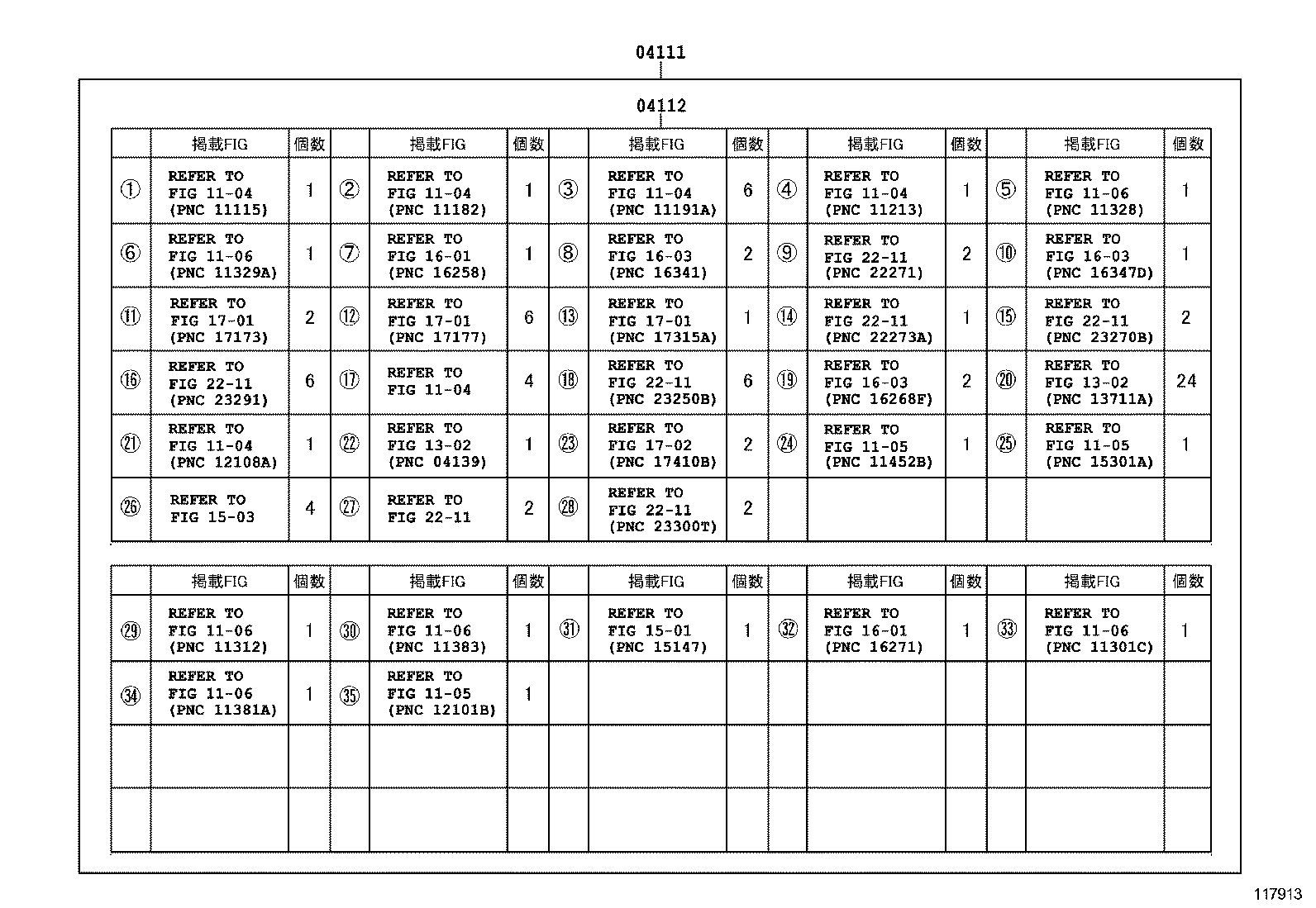

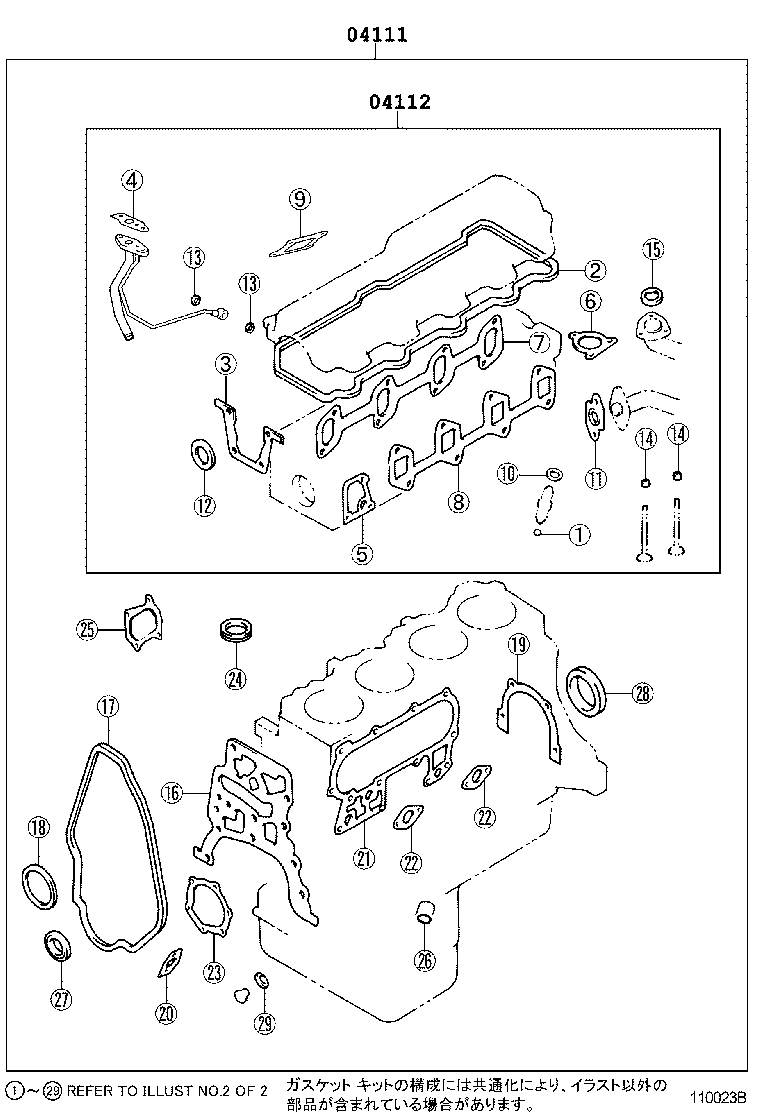

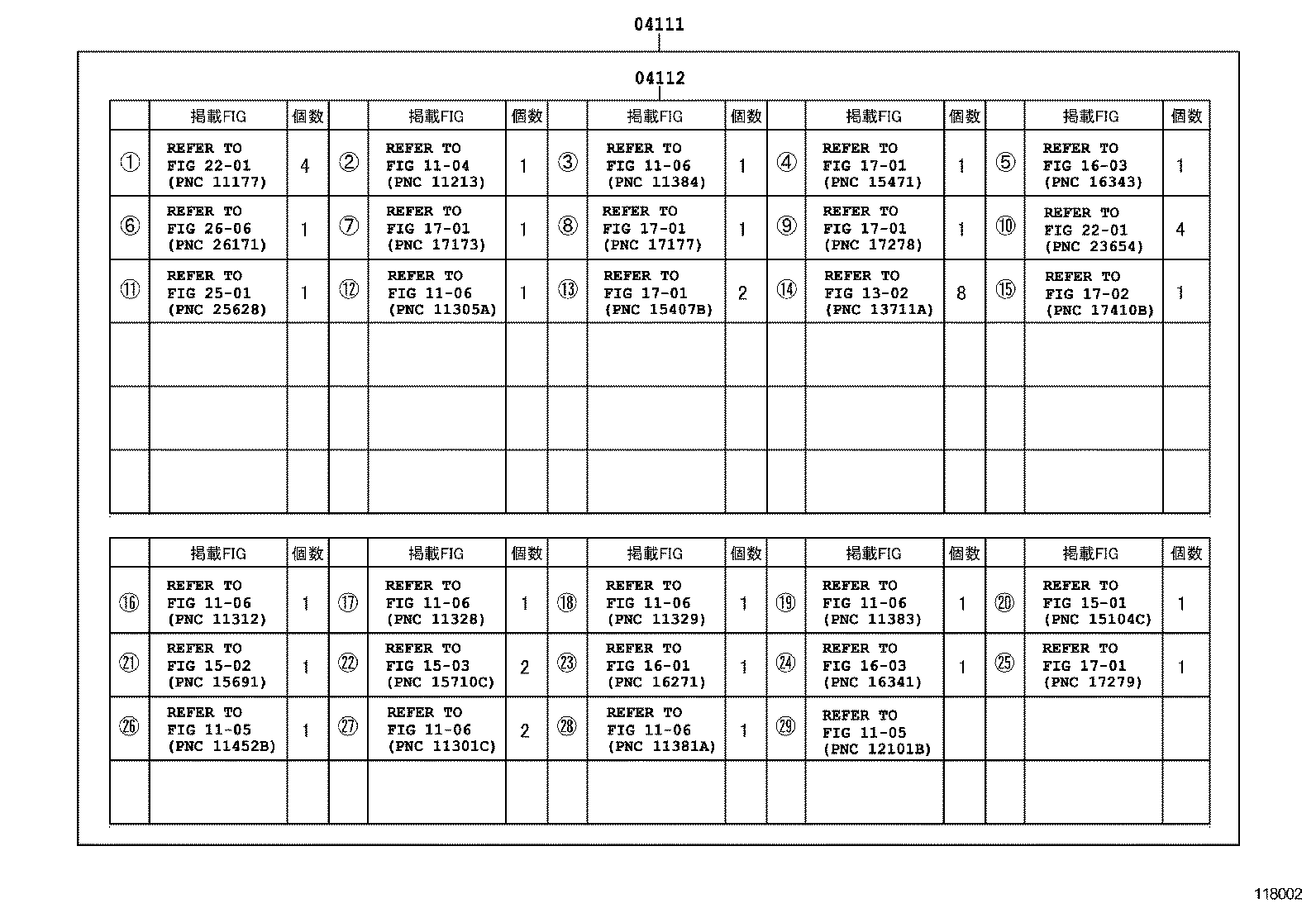

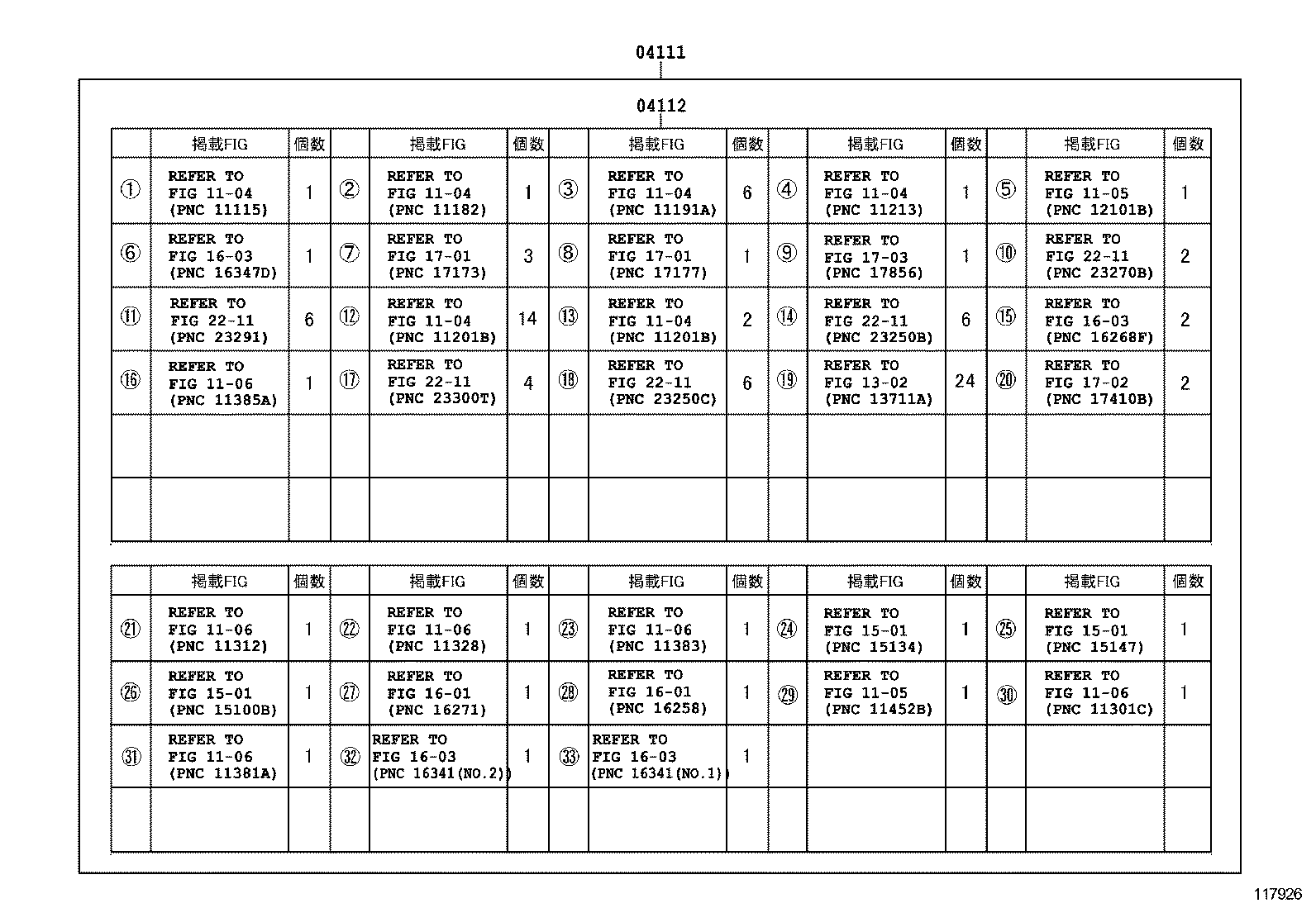

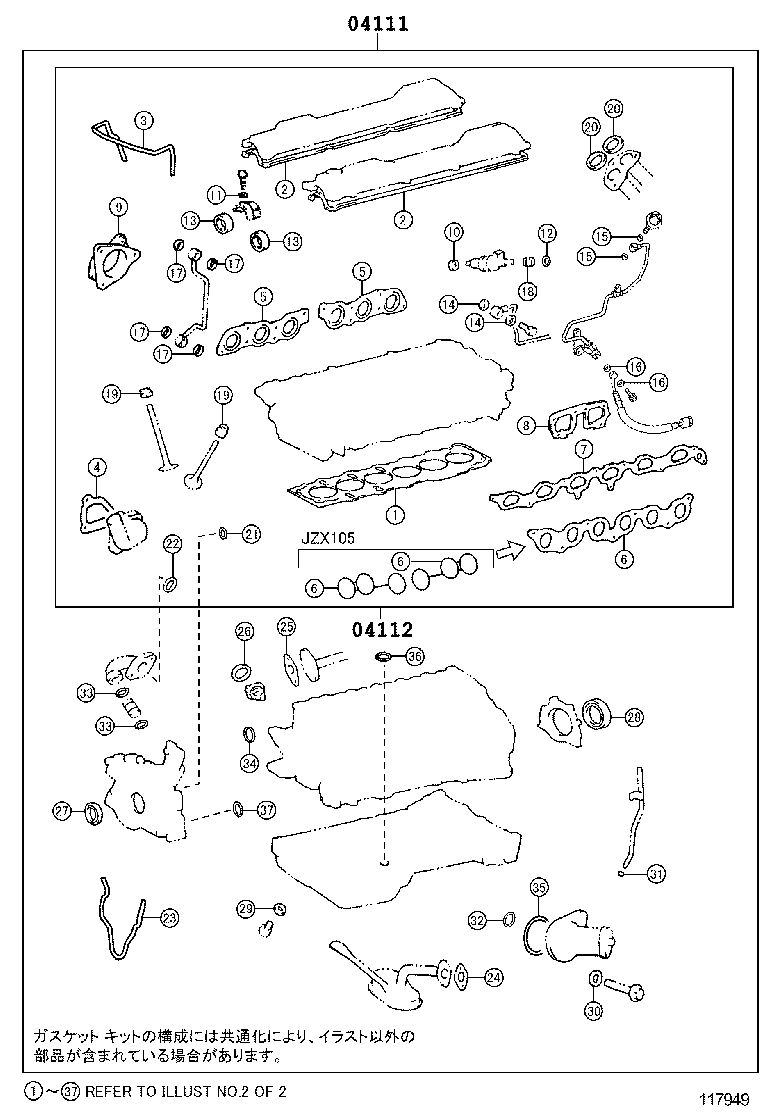

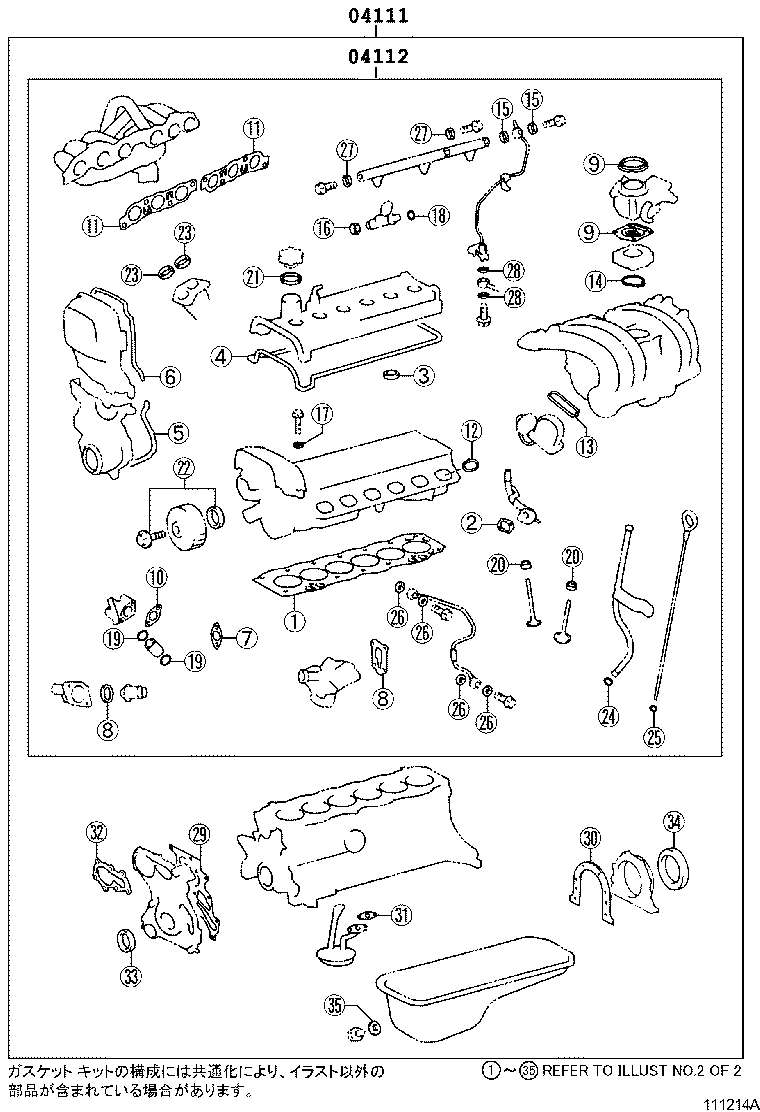

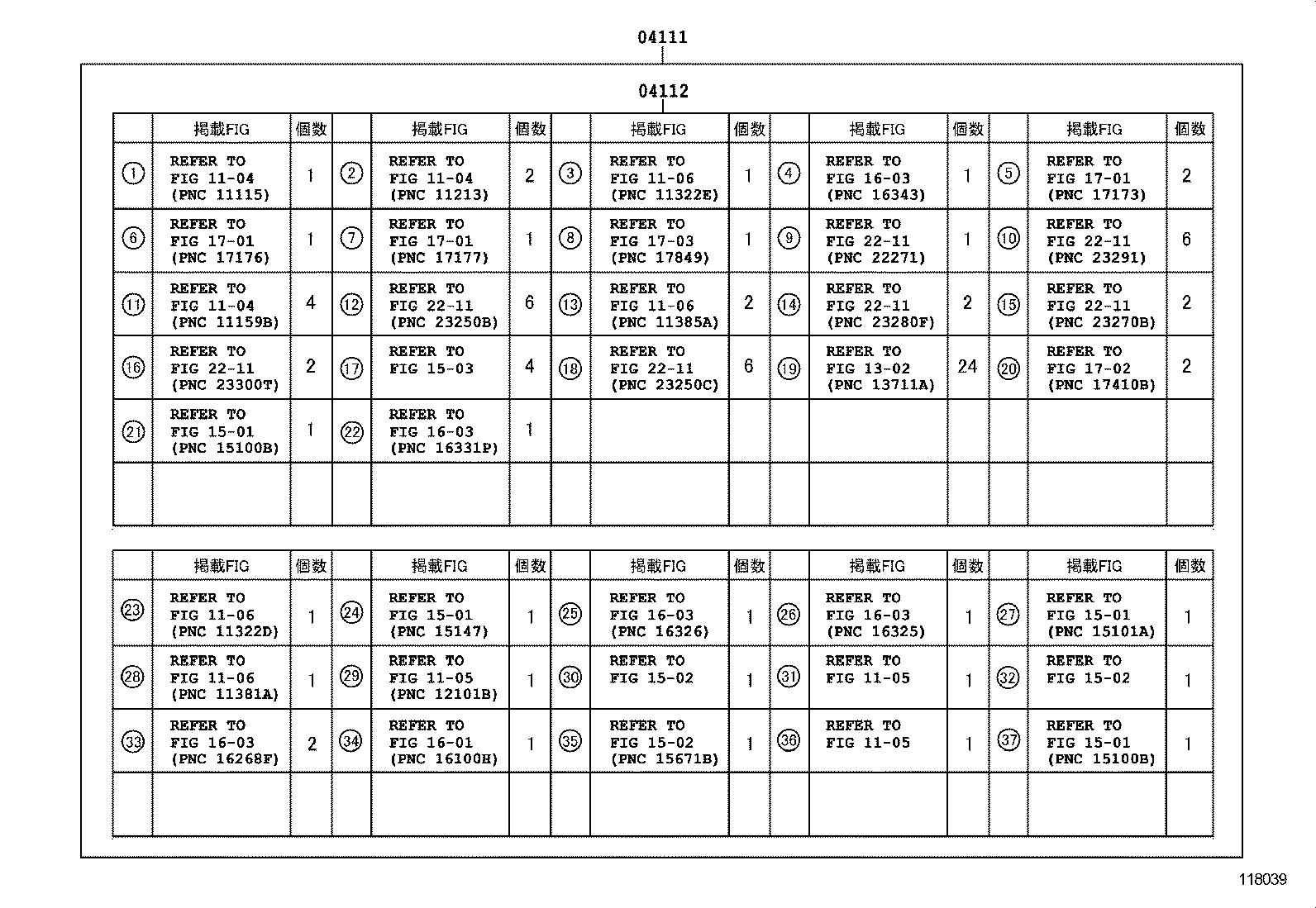

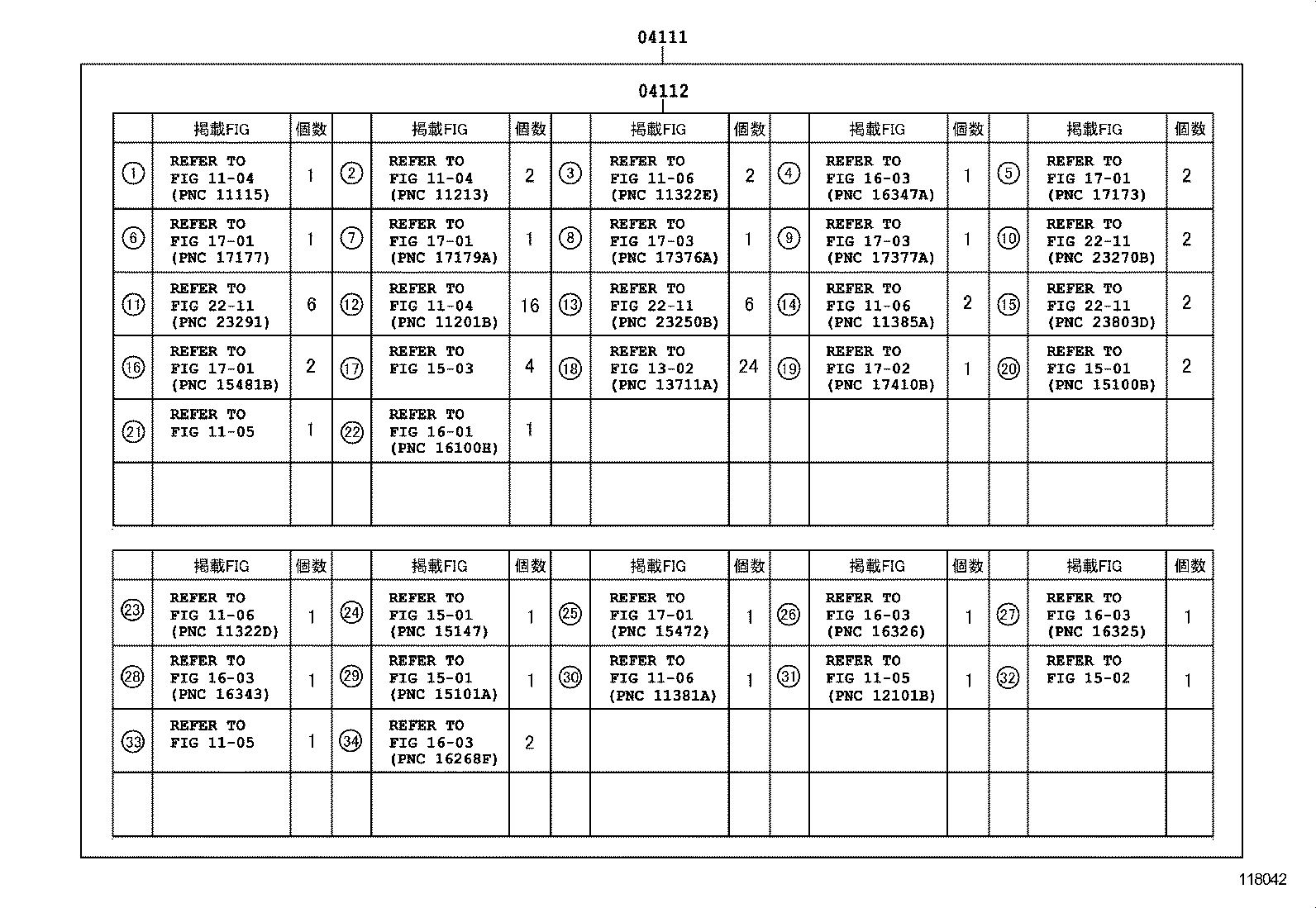

Figure 110176A 110176A 1996-09 → 1998-08 Figure 117926 117926 1996-09 → 1998-08 Figure 111214A 111214A 1998-08 → — Figure 117913 117913 1998-08 → — Figure 117949 117949 1996-09 → — Figure 117950 117950 1996-09 → — Figure 118039 118039 1996-09 → — Figure 118042 118042 1996-09 → — Figure 110023B 110023B 1996-09 → — Figure 118002 118002 1996-09 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
