Toyota Cresta

1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan

Discontinued model Data version 1998-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 5 illustrations

Illustrations

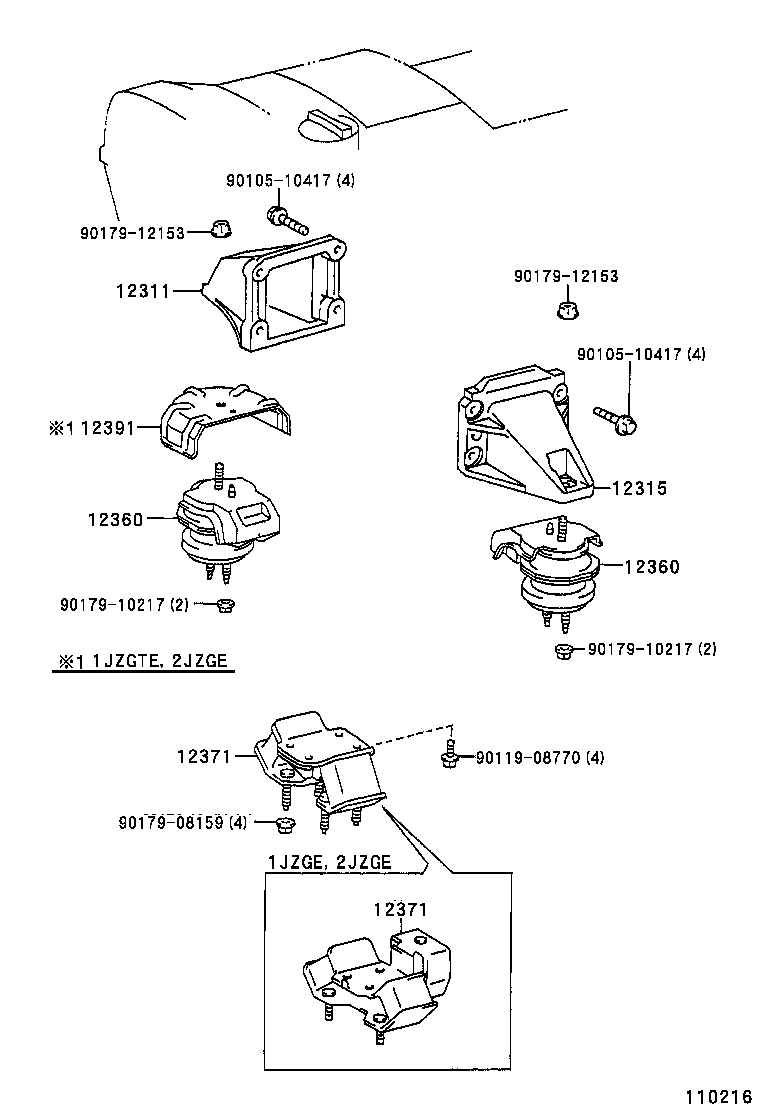

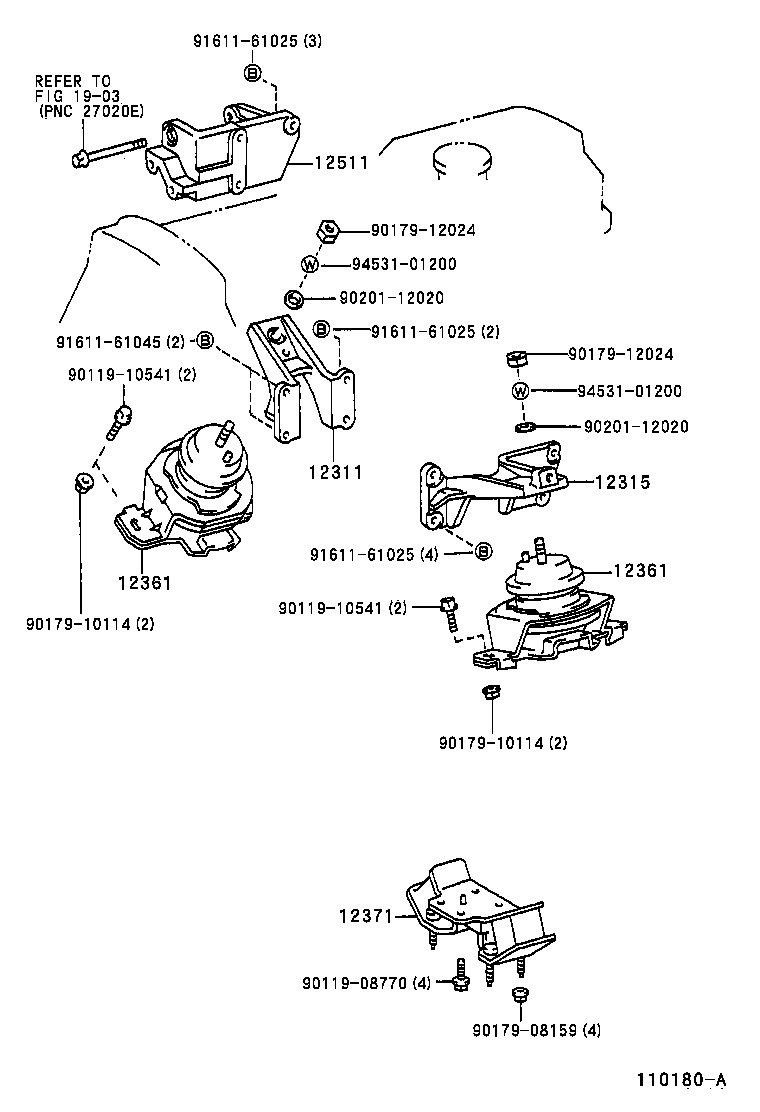

Figure 110184A 110184A 1996-09 → — Figure 111193 111193 1998-08 → — Figure 110216 110216 1996-09 → — Figure 110211A 110211A 1996-09 → — Figure 110180A 110180A 1996-09 → 1999-08

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12391 Insulator, Engine Mounting Front, Heat, RH
12511 Bracket, Alternator, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
