Toyota Cresta
1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan
Discontinued model
Data version 1998-08

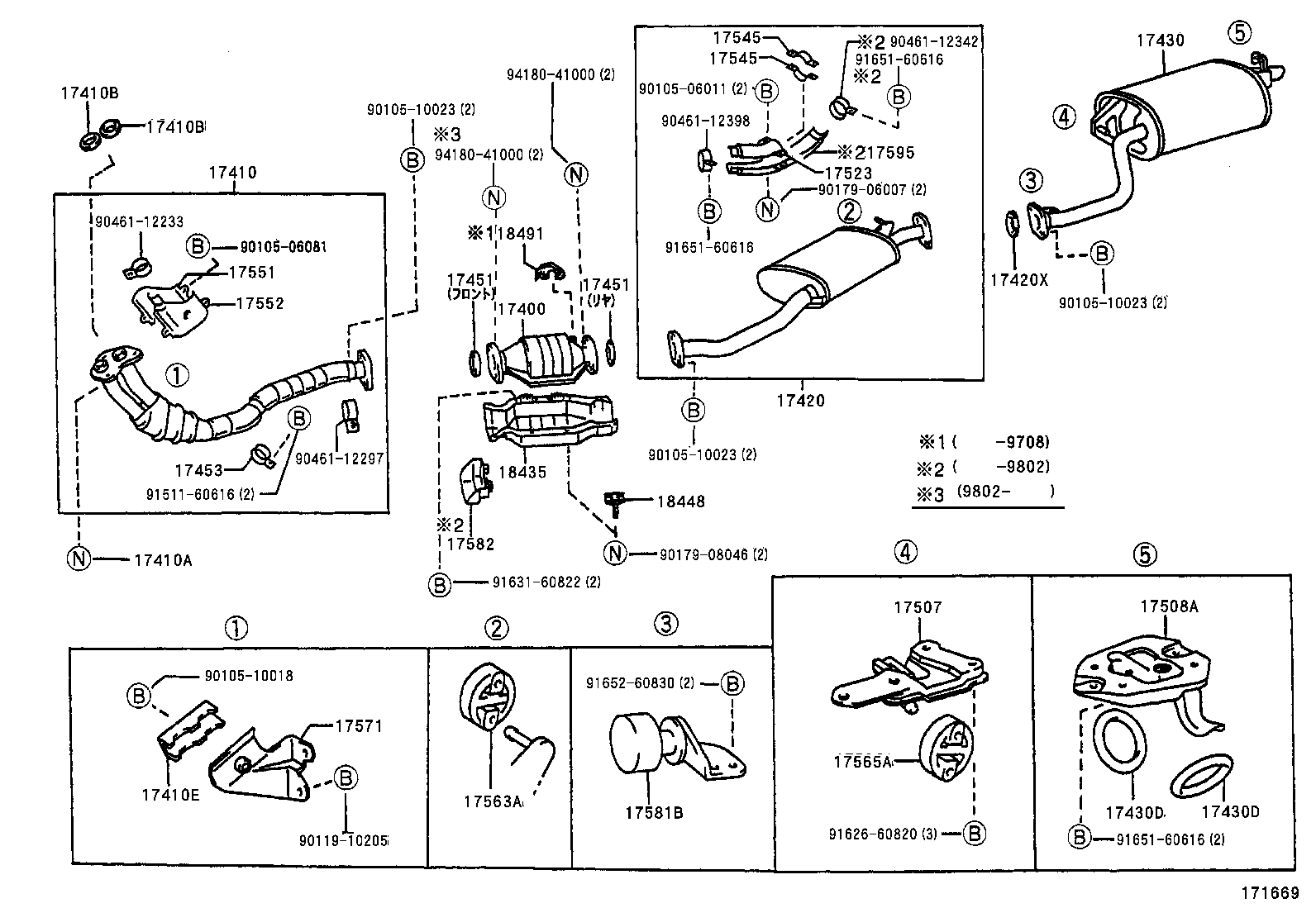

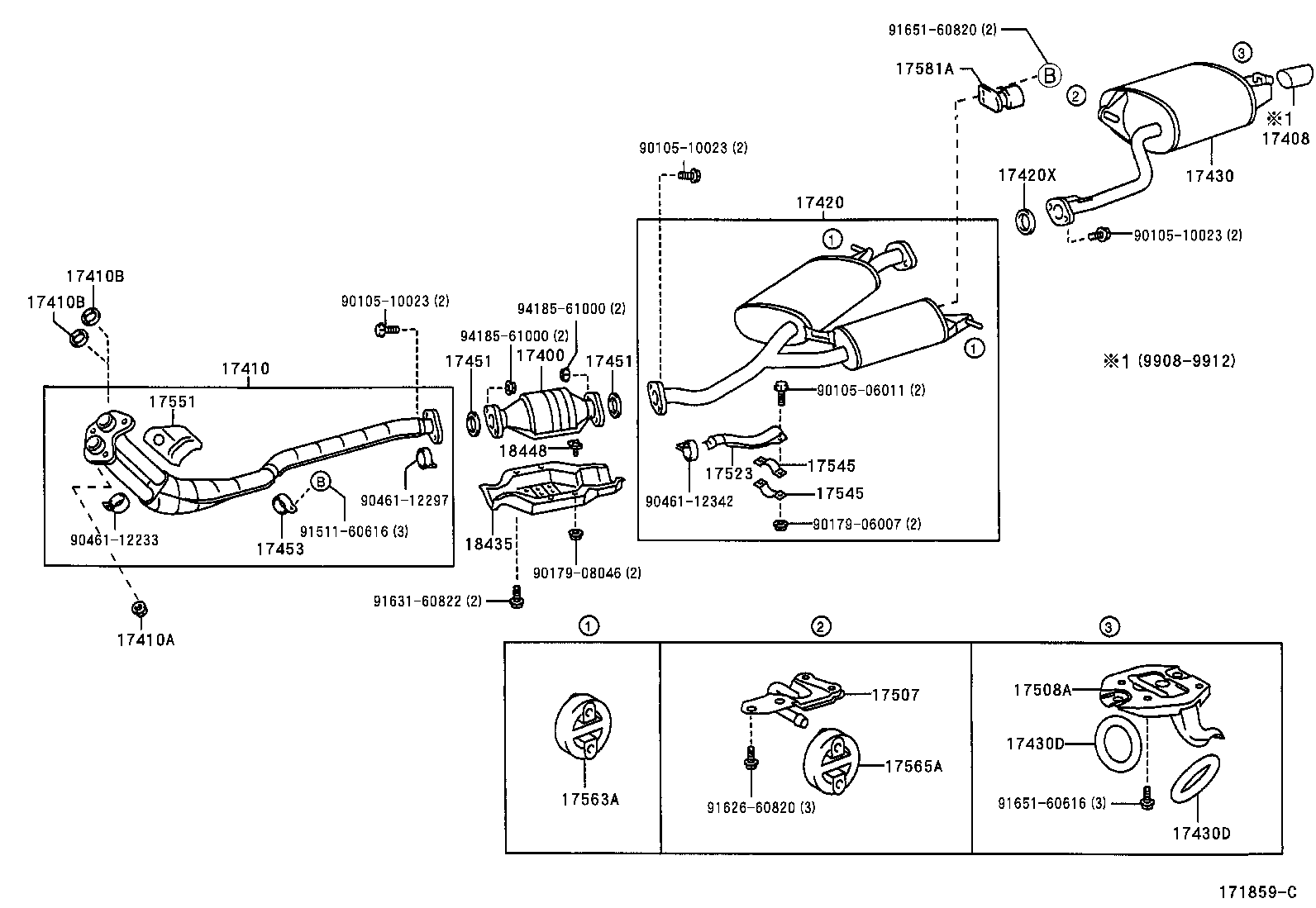

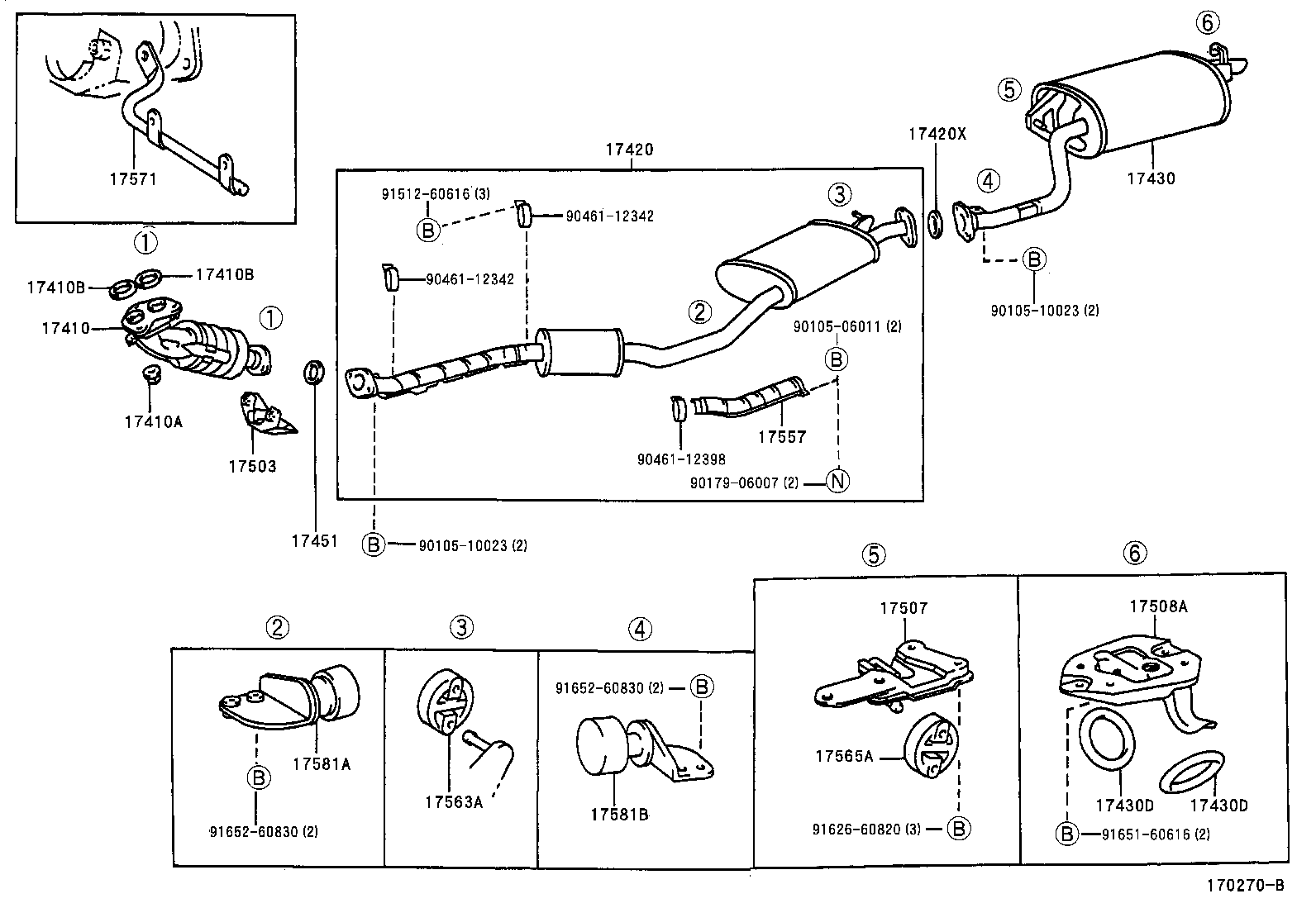

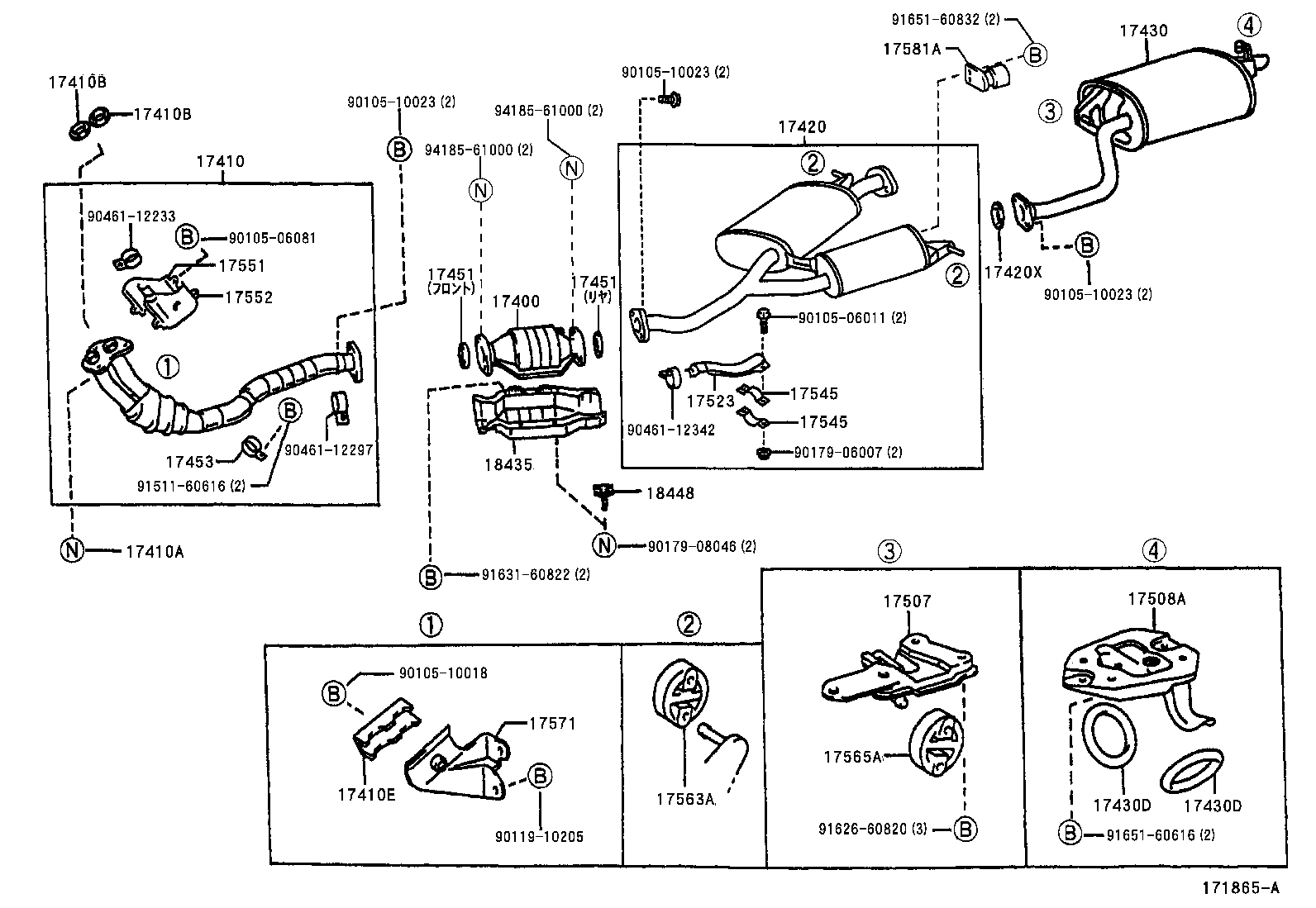

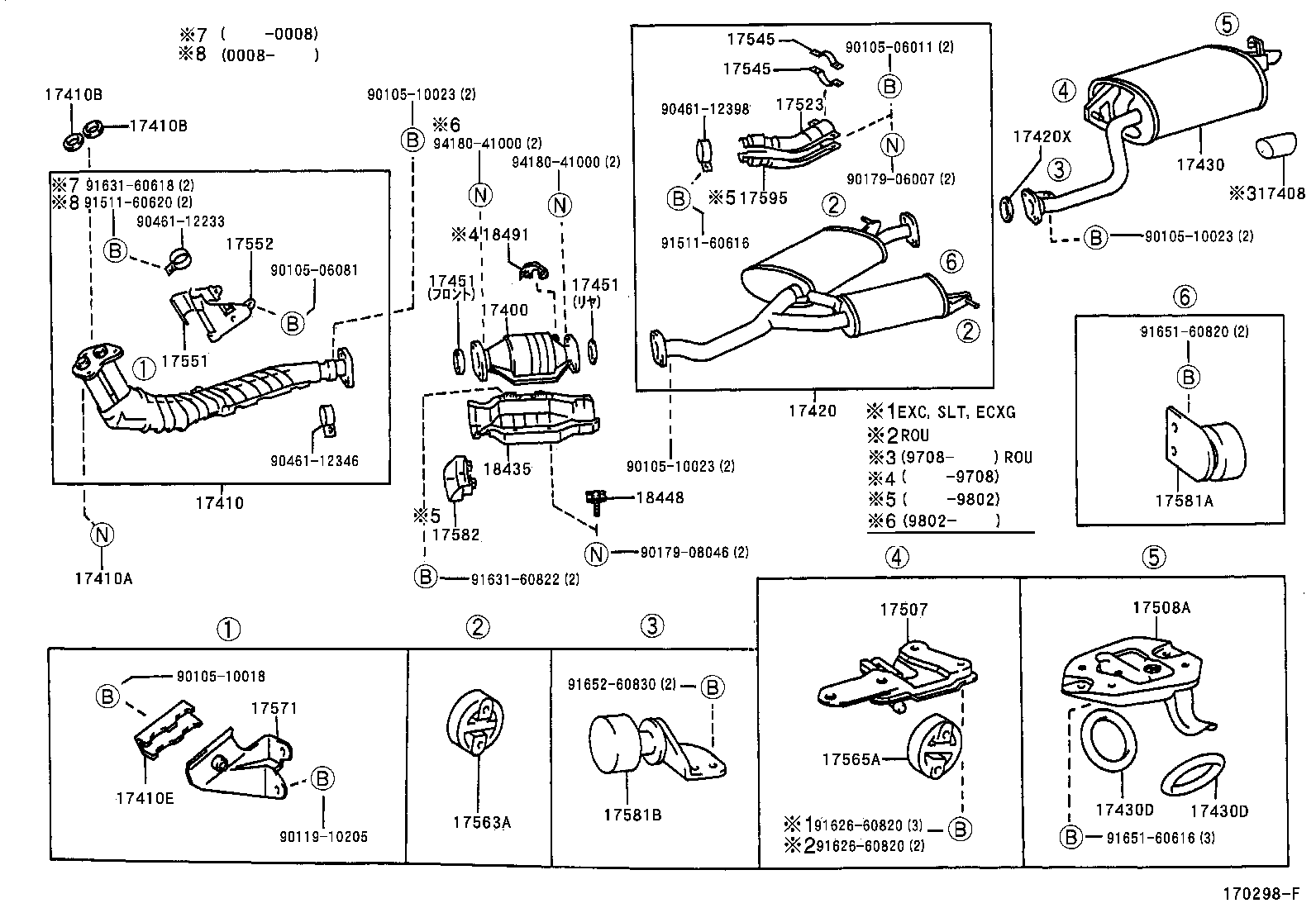

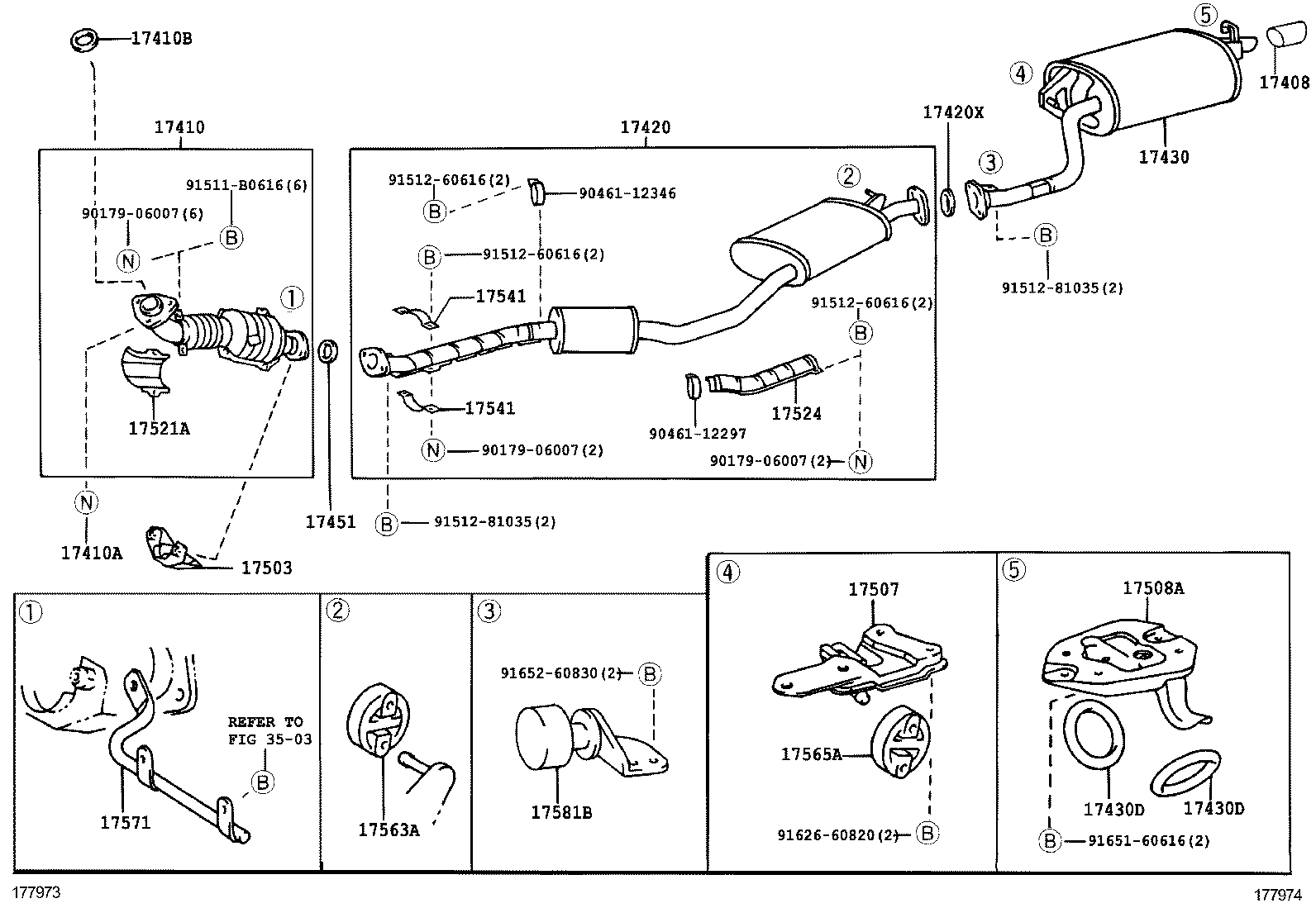

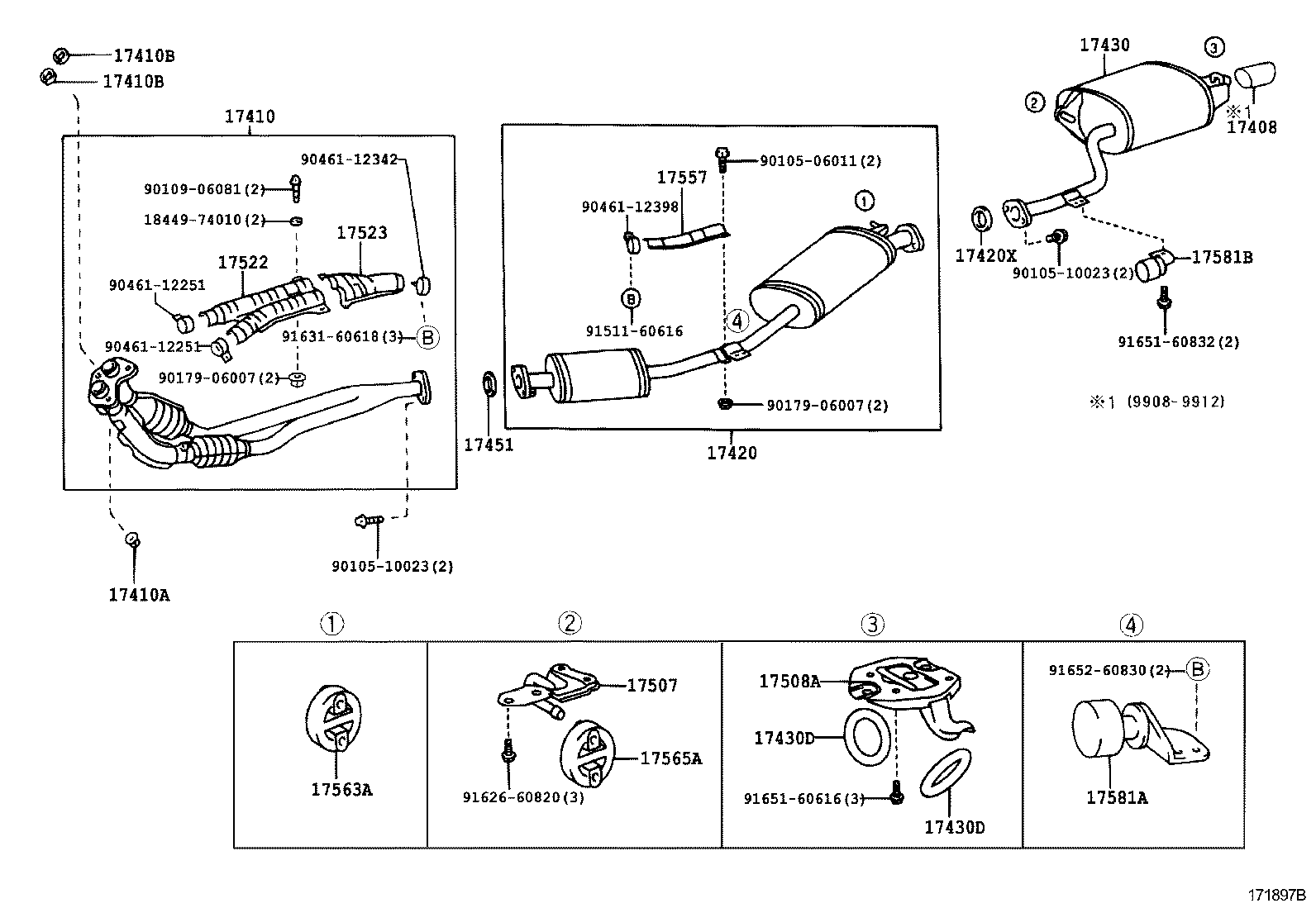

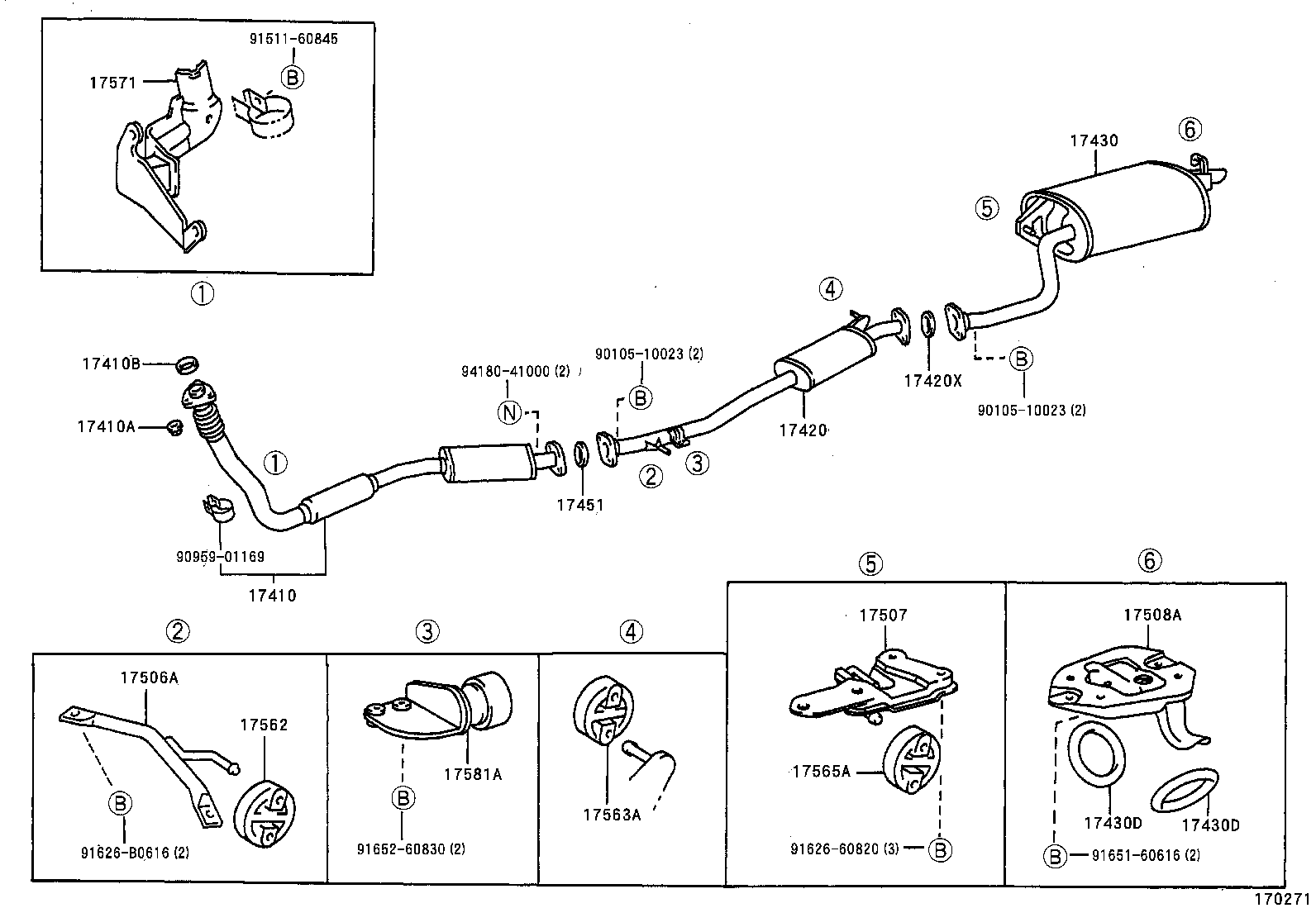

Exhaust Pipe
37 part groups · 9 illustrations
Part groups
| PNC | Description |
|---|---|
| 17400 | Converter Assy, W/Catalyst |
| 17408 | Baffle Sub Assy, Exhaust Tailpipe |
| 17410 | Pipe Assy, Exhaust, Front |
| 17410A | Nut, Exhaust Pipe Set Stud Bolt |
| 17410B | Gasket, Exhaust Pipe |
| 17410E | Clamp NO.1, Exhaust Pipe Front (FOR FRONT) |
| 17420 | Pipe Assy, Exhaust, Center |
| 17420X | Gasket, Exhaust Pipe, Center |
| 17430 | Pipe Assy, Exhaust, Tail |
| 17430D | Bolt OR Ring, Exhaust Tailpipe (FOR FRONT) |
| 17451 | Gasket, Exhaust Pipe |
| 17453 | Clamp, Exhaust Pipe, NO.2 |
| 17503 | Bracket Sub-assy, Catalytic Converter, Rear |
| 17506A | Bracket Sub-assy, Exhaust Pipe NO.1 Support |
| 17507 | Bracket Sub-assy, Exhaust Pipe NO.2 Support |
| 17508A | Bracket Sub-assy, Exhaust Pipe NO.3 Support |
| 17521A | Protector, Exhaust Pipe, Upper NO.1 |
| 17522 | Protector, Exhaust Pipe, Upper NO.2 |
| 17523 | Protector, Exhaust Pipe, Upper NO.3 |
| 17524 | Protector, Exhaust Pipe, Upper NO.4 |
| 17541 | Stay, Exhust Pipe Protector, NO.1 |
| 17545 | Stay, Exhaust Pipe Protector, NO.5 |
| 17551 | Insulator, Exhaust Pipe Heat, NO.1 |
| 17552 | Insulator, Exhaust Pipe Heat, NO.2 |
| 17557 | Insulator, Exhaust Pipe Heat, NO.7 |
| 17562 | Support, Exhaust Pipe, NO.2 |
| 17563A | Support, Exhaust Pipe, NO.3 |
| 17565A | Support, Exhaust Pipe, NO.4 |
| 17571 | Bracket, Exhaust Pipe Support, NO.1 |
| 17581A | Damper, Exhaust Pipe |
| 17581B | Damper, Exhaust Pipe, NO.2 |
| 17582 | Bracket, Catalytic Converter Support, Upper |
| 17593C | Protector, Exhaust Pipe, Lower NO.1 |
| 17595 | Protector, Exhaust Pipe, Lower NO.3 |
| 18435 | Protector, Catalytic Converter |
| 18448 | Bracket, Converter Protector, Center |
| 18491 | Flange, Thermosensor Inlet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
