Toyota Cresta
1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan
Discontinued model
Data version 1998-08

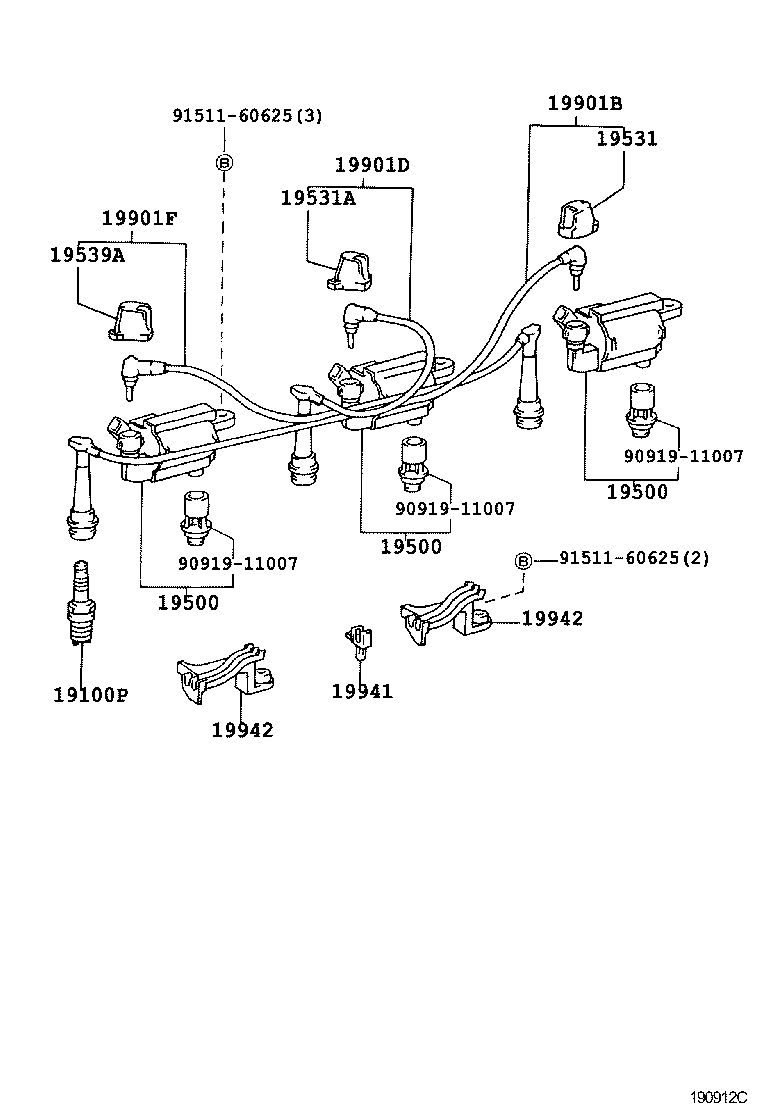

Ignition Coil & Spark Plug / Glow Plug
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 19100P | Plug, Spark |
| 19500 | Coil Assy, Ignition |
| 19531 | Holder, Resistive Cord, NO.1 |
| 19531A | Holder, Resistive Code, NO.3 |
| 19532 | Holder, Resistive Code, NO.2 |
| 19539 | Holder, Resistive Code, NO.4 |
| 19539A | Holder, Resistive Code, NO.5 |
| 19850 | Plug Assy, Glow |
| 19856 | Nut, Connecting(FOR GLOW PLUG) |
| 19856A | Grommet, Screw(FOR, GLOW PLUG CONNECTOR) |
| 19871 | Connector, Glow Plug NO.1 |
| 19871A | Bolt, Stud(FOR INTAKE MANIFOLD TO GLOW PLUG CONNECTOR NO.1) |
| 19901 | Cord Set, Coil & Spark, W/Resistive |
| 19901A | Cord, Coil Resistive |
| 19901B | Cord, Spark Plug Resistive, NO.1 |
| 19901C | Cord, Spark Plug Resistive, NO.2 |
| 19901D | Cord, Spark Plug Resistive, NO.3 |
| 19901E | Cord, Spark Plug Resistive, NO.4 |
| 19901F | Cord, Spark Plug Resistive, NO.5 |
| 19901G | Cord, Spark Plug Resistive, NO.6 |
| 19941 | Clamp, Resistive Cord, NO.1 |
| 19941A | Clamp(FOR RESISTIVE CORD) |
| 19942 | Clamp, Resistive Cord, NO.2 |
| 28622 | Insulator, Glow Plug Resistor, NO.1 |
| 28623 | Insulator, Glow Plug Resistor, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
