Toyota Cresta
1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan
Discontinued model
Data version 1998-08
Transaxle OR Transmission Assy & Gasket Kit (ATM)
5 part groups · 4 illustrations
Part groups

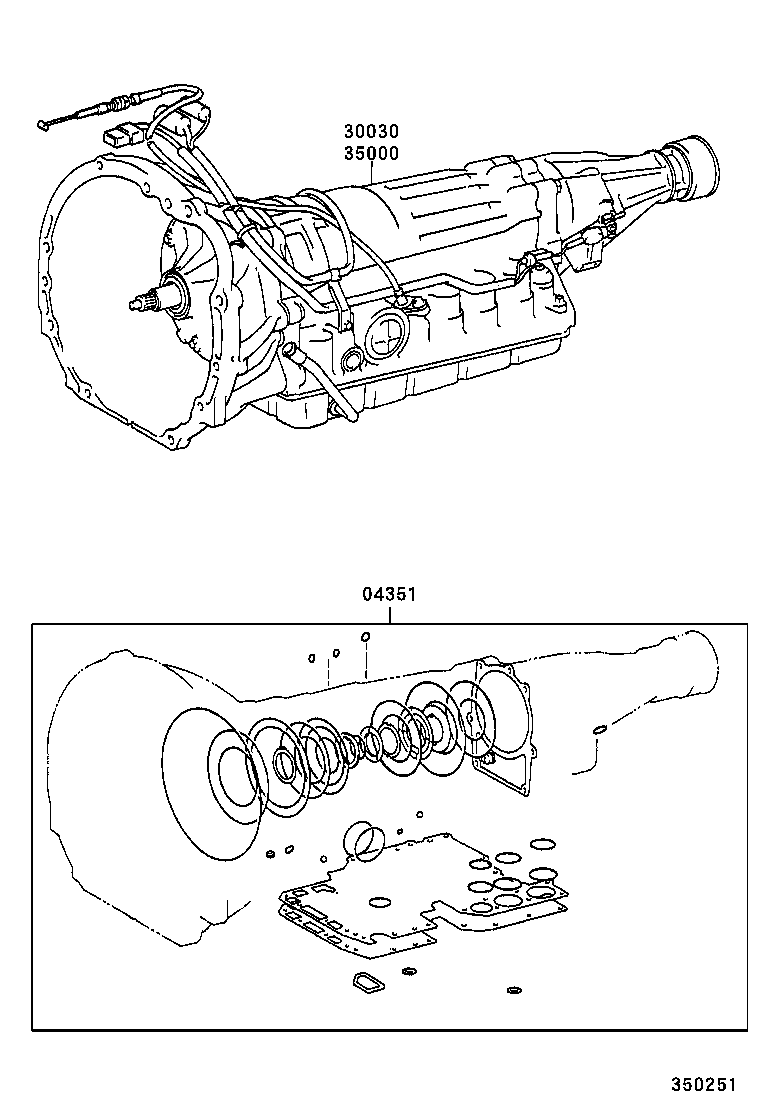

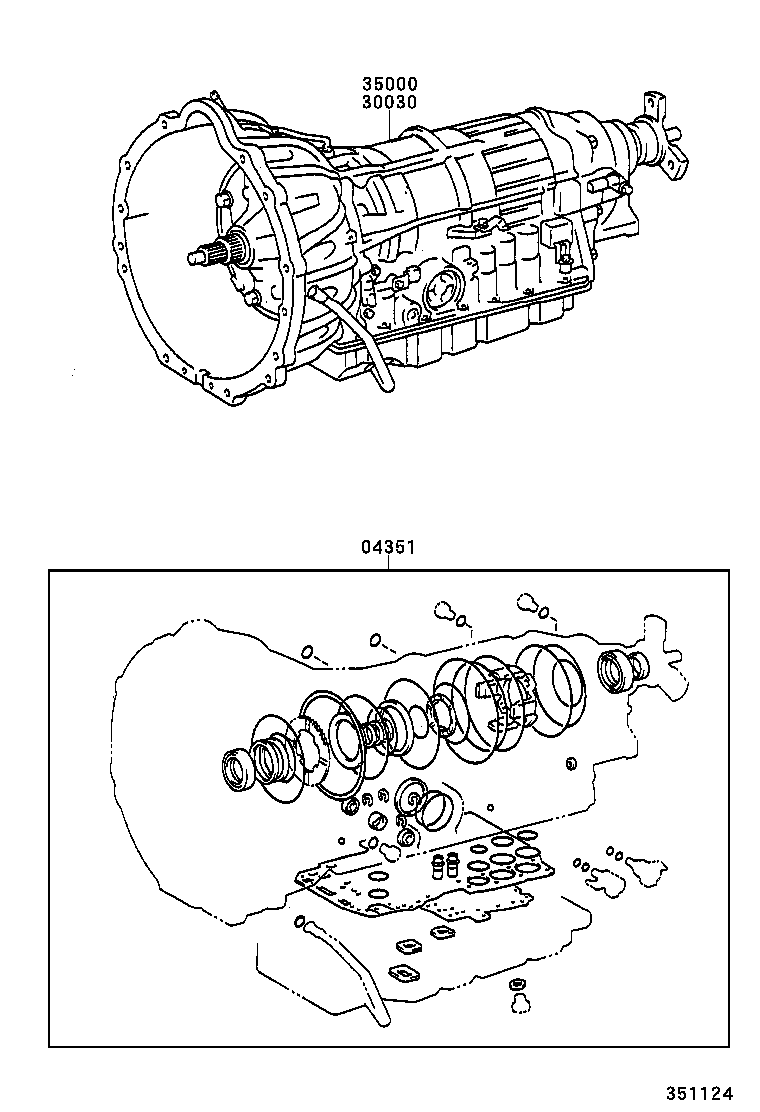

| PNC | Description |
|---|---|
| 04351 | Gasket Kit, Automatic Transmission Overhaul |
| 30030 | Transmission Assy, Rebuilt |

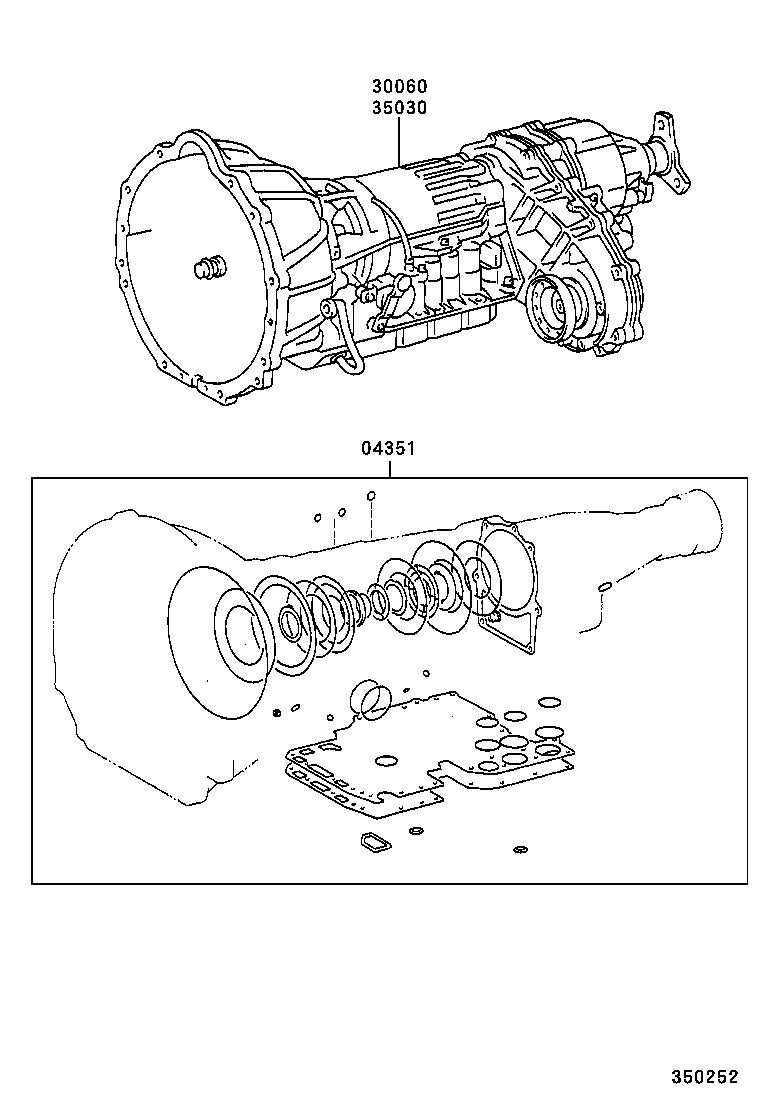

| 30060 | Transmission Assy, W/Transfer, Rebuilt |
| 35000 | Transmission Assy, Automatic |
| 35030 | Transmission Assy, Automatic W/Transfer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
