Toyota Cresta
1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan
Discontinued model
Data version 1998-08
Instrument Panel & Glove Compartment

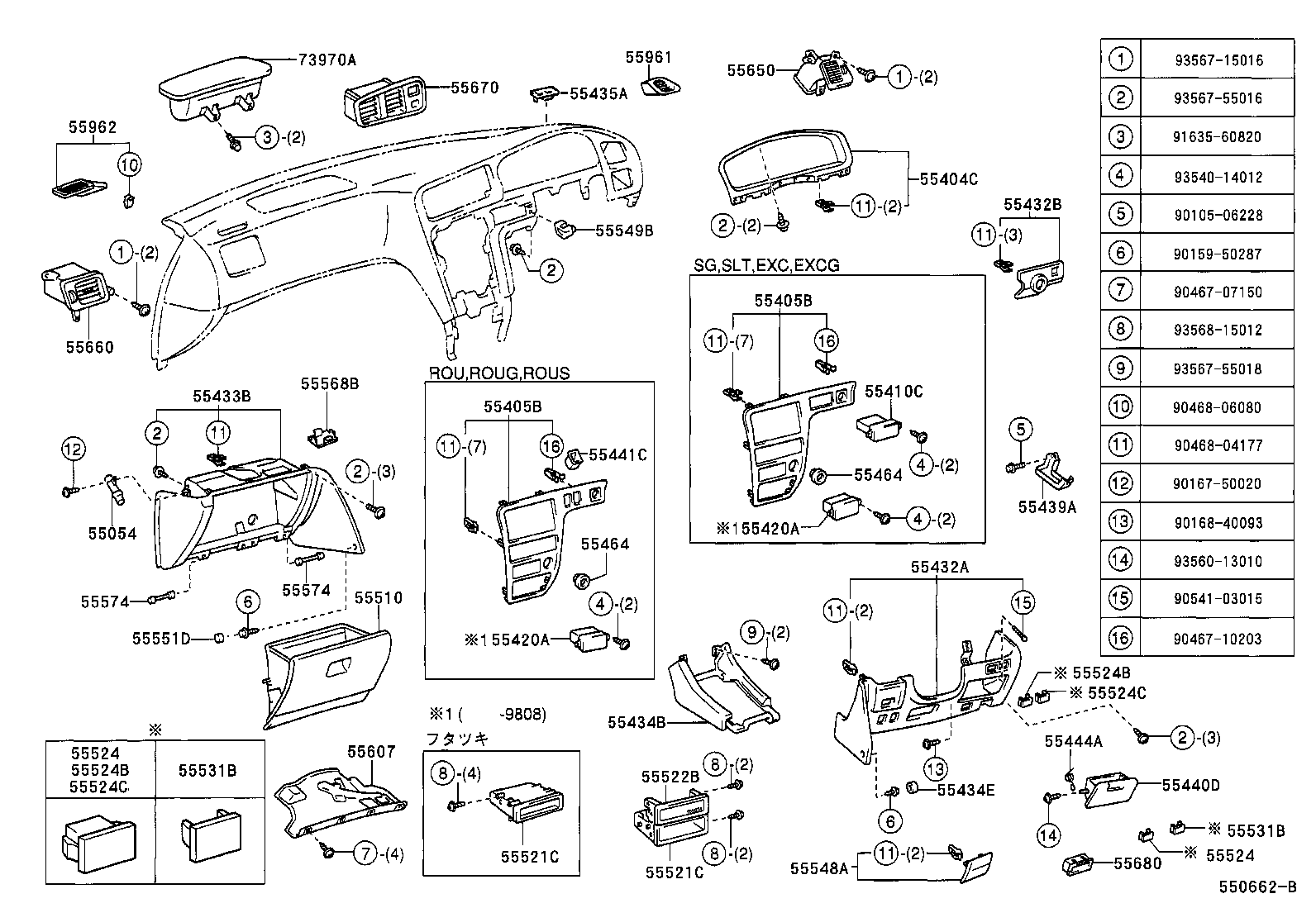

52 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55321B | Bracket, Instrument Panel, NO.1 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55366A | Bracket, Radio Mounting, NO.1 |
| 55367C | Bracket, Radio Tuner Mounting, NO.3 |
| 55368A | Bracket, Radio Mounting, NO.2 |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55375B | Bracket, Instrument Panel Lower Mounting, NO.2 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55410C | Panel Assy, Instrument Cluster Finish |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55432A | Panel, Instrument Panel Finish, Lower RH |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55434E | Cap |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55439A | Retainer, Instrument Panel Finish Panel, NO.3 |
| 55440D | Box Assy, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55444A | Spring, Instrument Panel Box |
| 55464 | Base, Cigarette Lighter |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55524 | Cover, Switch Bace Hole |
| 55524B | Cover, Switch Base Hole |
| 55524C | Cover, Switch Base Hole, NO.4 |
| 55531B | Cover, Choke Knob Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55551D | Cap, Glove Compartment Door |
| 55568B | Plate, Glove Compartment Door Finish |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680 | Register Assy, Instrument Panel, Lower NO.1 |
| 55950A | Nozzle Assy, Defroster |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
