Toyota Cresta
1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan
Discontinued model
Data version 1998-08

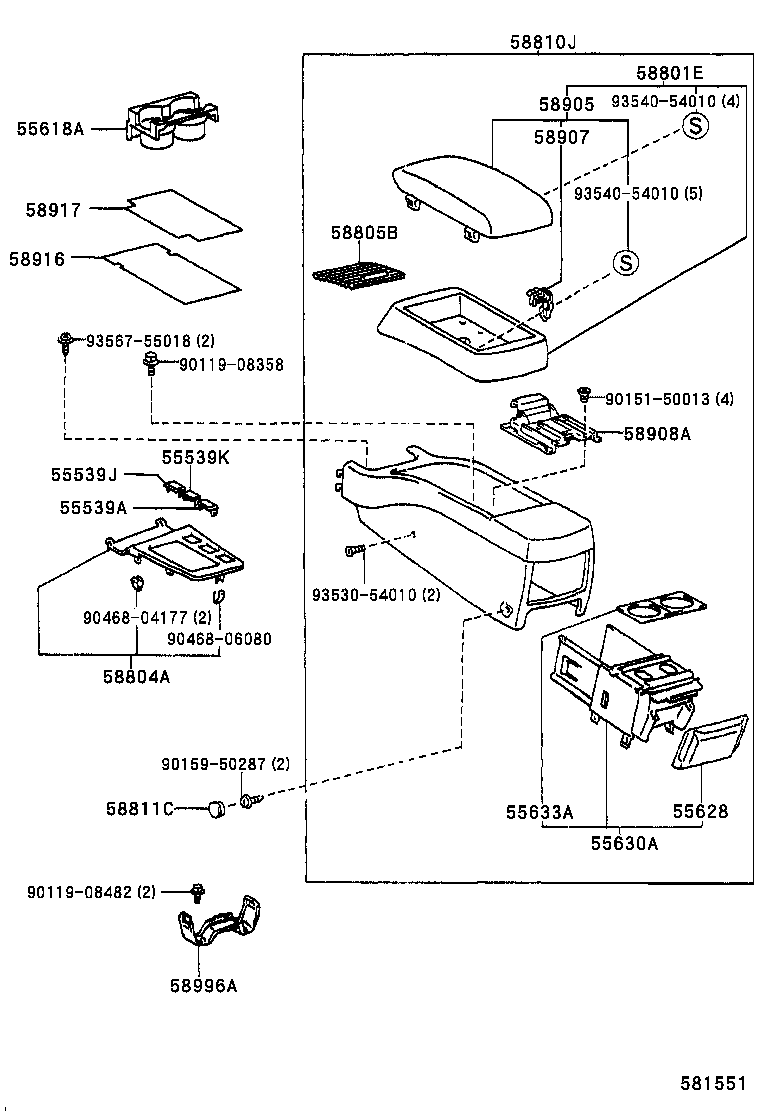

Console Box & Bracket
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55539A | Cover, Spare Switch Hole |
| 55539J | Cover, Spare Switch Hole |
| 55539K | Cover, Spare Switch Hole |
| 55618A | Holder, Console Box Cup |
| 55619F | Holder, Console Box Cup, NO.2 |
| 55620B | Holder, Instrument Panel Cup |
| 55628 | Knob, Console Box Cup Holder |
| 55630A | Holder, Rear Console Box, Cup |
| 55633A | Support, Instrument Panel Cup Holder, NO.1 |
| 58801E | Box Sub-assy, Console, Upper |
| 58804A | Panel Sub-assy, Console, Upper |
| 58805B | Panel Sub-assy, Console, Lower |
| 58808 | Cover Sub-assy, Shifting Hole |
| 58810J | Box Assy, Console |
| 58811C | Cap(FOR CONSOLE) |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58916 | Mat, Box Bottom |
| 58917 | Mat, Box Bottom, NO.2 |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
