Toyota Cresta
1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan
Discontinued model
Data version 1998-08

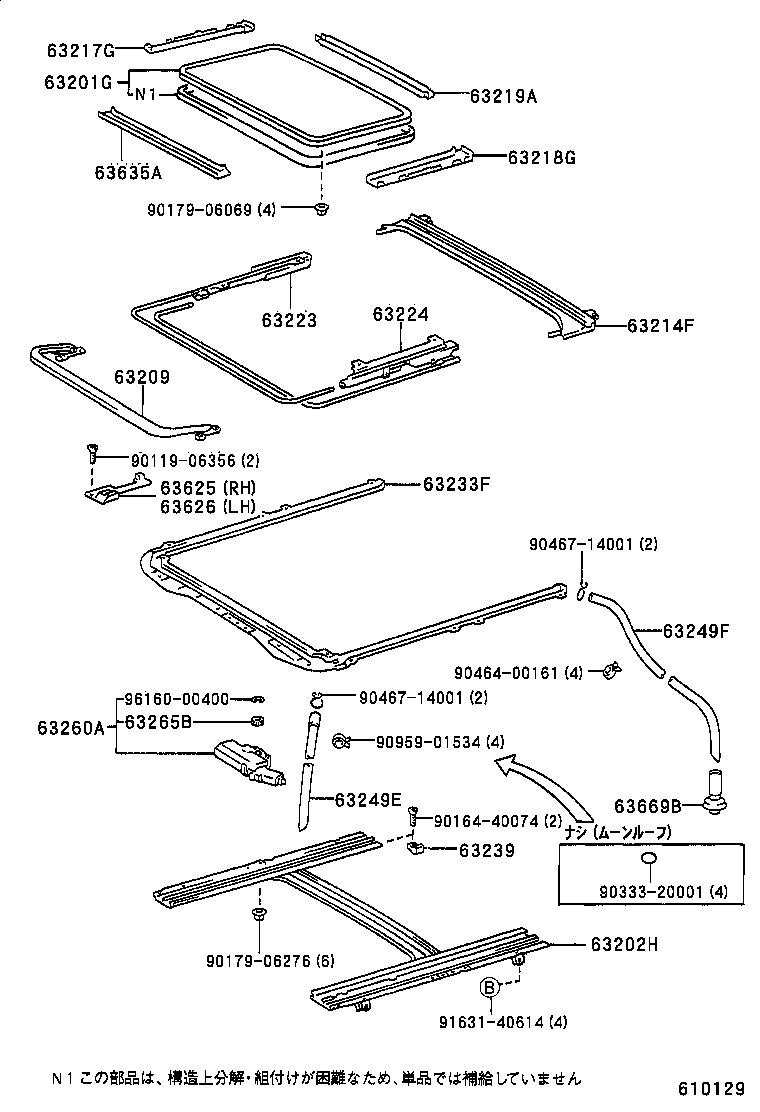

Roof Panel & Back Window Glass
44 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116A | Spacer, Windshield Glass |
| 61826G | Plate, Noise Control, NO.3 |
| 63102A | Panel Sub-assy, Windshield Header |
| 63103A | Reinforcement Sub-assy, Roof Panel |
| 63111 | Panel, Roof |
| 63118 | Support, Roof Panel, RH |
| 63119 | Support, Roof Panel, LH |
| 63126A | Damper, Windshield Header Panel |
| 63127B | Damper, Back Window Upper Freme |
| 63133A | Frame, Back Window, Upper |
| 63142A | Reinforcement, Roof Panel, NO.2 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63201G | Glass Sub-assy, Sliding Roof |
| 63202H | Rail Sub-assy, Slide Roof |
| 63209 | Panel Sub-assy, Roof Wind Deflector |
| 63214F | Channel, Roof Drip, Rear |
| 63217G | Garnish, Sliding Roof Side, RH |
| 63218G | Garnish, Sliding Roof Side, LH |
| 63219A | Garnish, Sliding Roof, Rear |
| 63223 | Cable, Sliding Roof Drive, RH |
| 63224 | Cable, Sliding Roof Drive, LH |
| 63233F | Frame, Removable Roof Housing |
| 63239 | Stopper, Sliding Roof Panel |
| 63249E | Hose, Sliding Roof Drain |
| 63249F | Hose, Sliding Roof Drain |
| 63260A | Gear Sub-assy, Sliding Roof Drive |
| 63265B | Gear, Sliding Roof Drive |
| 63431A | Bracket, Roof Inner Rack, NO.1 RH |
| 63435F | Seal, Roof Carrier, NO.1 |
| 63625 | Block, Sliding Roof Guide, RH |
| 63626 | Block, Sliding Roof Guide, LH |
| 63635A | Garnish, Sliding Roof, Front |
| 63669B | Grommet, Sliding Roof Drain |
| 64102C | Panel Sub-assy, Upper Back, Inner |
| 64125C | Bracket, Upper Back Panel, RH |
| 64126C | Bracket, Upper Back Panel, LH |
| 64194A | Pad, Back Panel Silencer, Upper |
| 64206F | Panel Sub-assy, Room Partition |
| 64211A | Strainer, Package Tray TO Floor, RH |
| 64212A | Strainer, Package Tray TO Floor, LH |
| 64321H | Bracket, Package Tray Trim |
| 64811 | Glass, Back Window |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
