Toyota Cresta
1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan
Discontinued model
Data version 1998-08

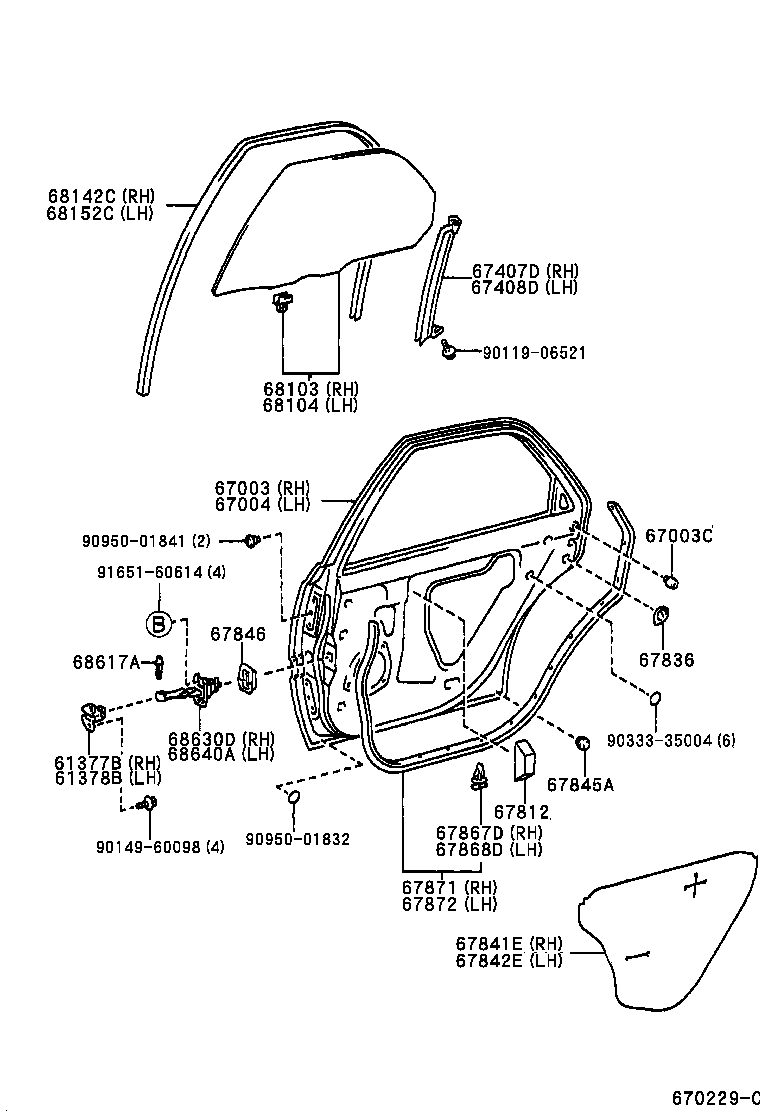

Rear Door Panel & Glass
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61377B | Bracket, Rear Door Check Arm, RH |
| 61378B | Bracket, Rear Door Check Arm, LH |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67407D | Guide Sub-assy, Rear Door Window, Rear RH |
| 67408D | Guide Sub-assy, Rear Door Window, Rear LH |
| 67487A | Garnish, Rear Door Rear Guide Bracket, RH |
| 67488A | Garnish, Rear Door Rear Guide Bracket, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67812 | Pad, Rear Door Silencer |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67845A | Sub-sheet, Rear Door Service Hole |
| 67846 | Seal, Rear Door Service Hole |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68617A | Pin, Rear Door Check |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
