Toyota Cresta

1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan

Discontinued model Data version 1998-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

12 part groups · 2 illustrations

Illustrations

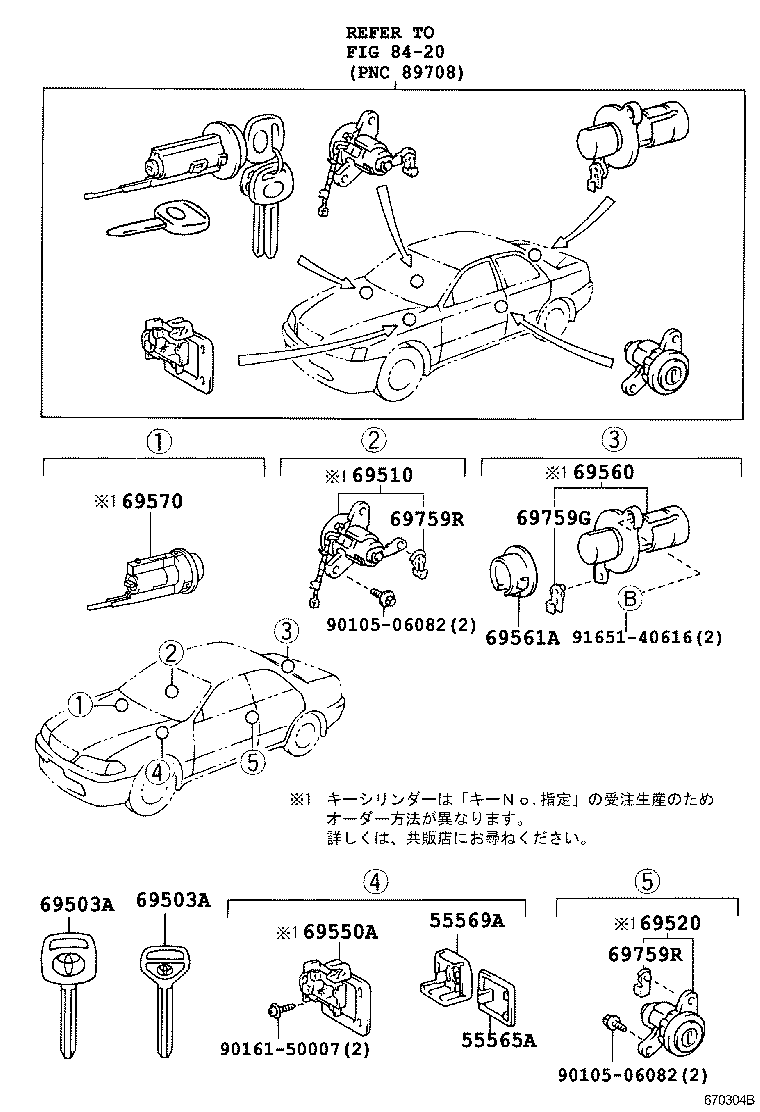

Figure 670241B 670241B 1996-09 → — Figure 670304B 670304B 1996-09 → —

Part groups

PNCDescription
55565A Handle, Glove Compartment Door Lock
55569A Cover, Glove Compartment Door Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69510 Cylinder Assy, Front Door Lock, RH
69520 Cylinder Assy, Front Door Lock, LH
69550A Cylinder Assy, Glove Compartment Door Lock
69560 Cylinder Assy, Back Door Lock
69561A Retainer, Luggage Compartment Lock Cylinder
69570 Cylinder Assy, Ignition Switch Lock
69759G Snap, Luggage Door Lock Cylinder
69759R Snap, Front Door Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
