Toyota Cresta
1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan
Discontinued model
Data version 1998-08

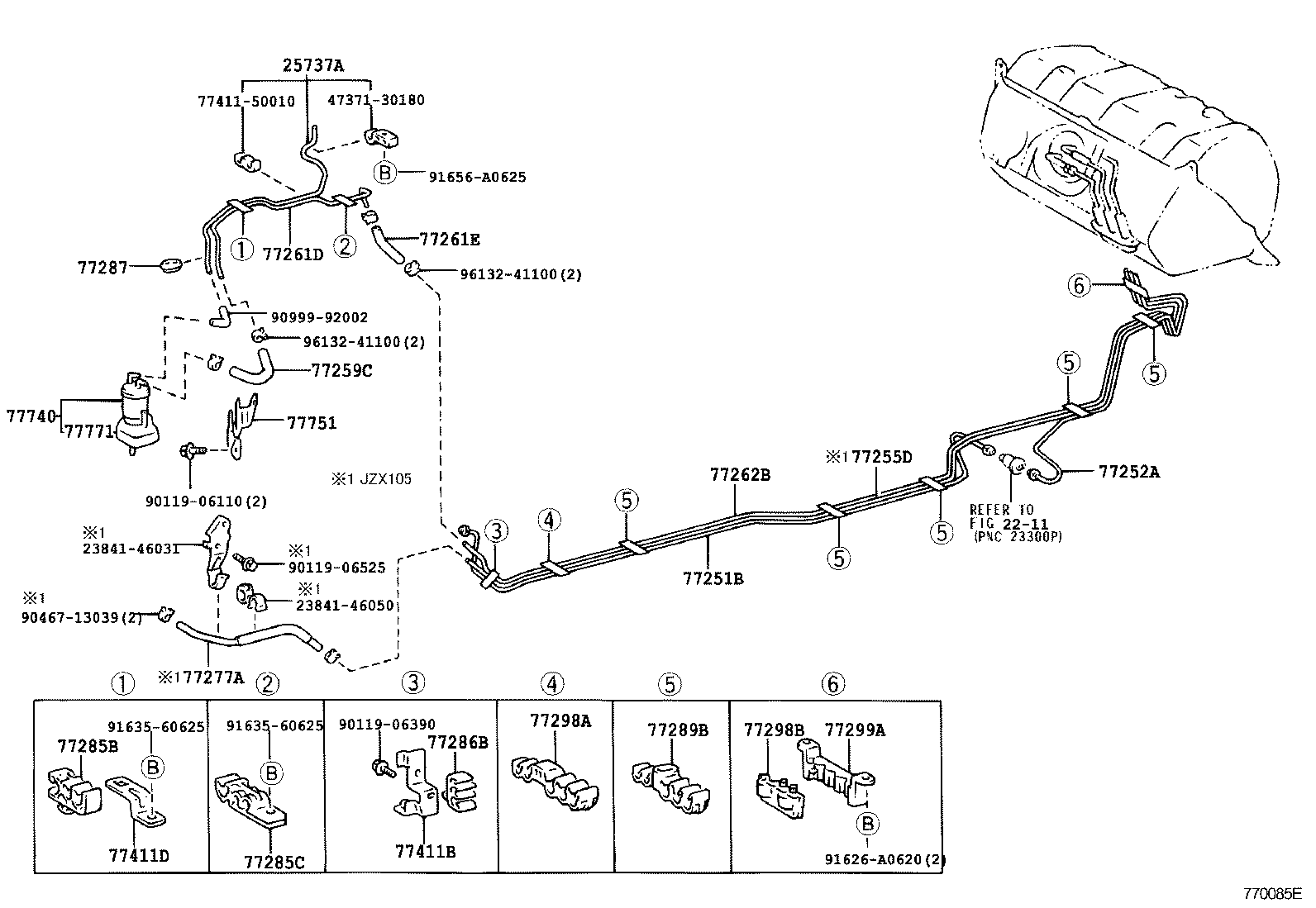

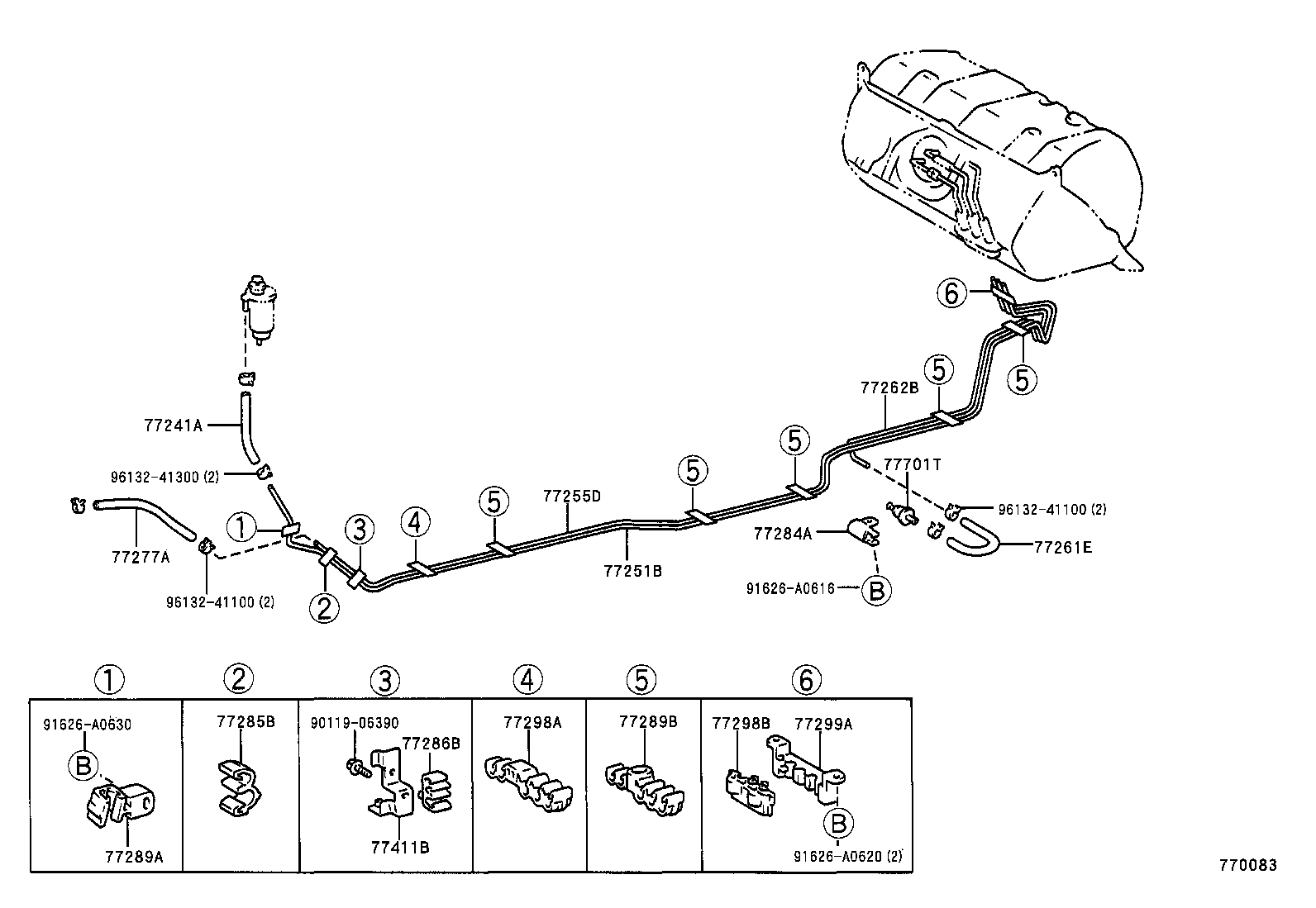

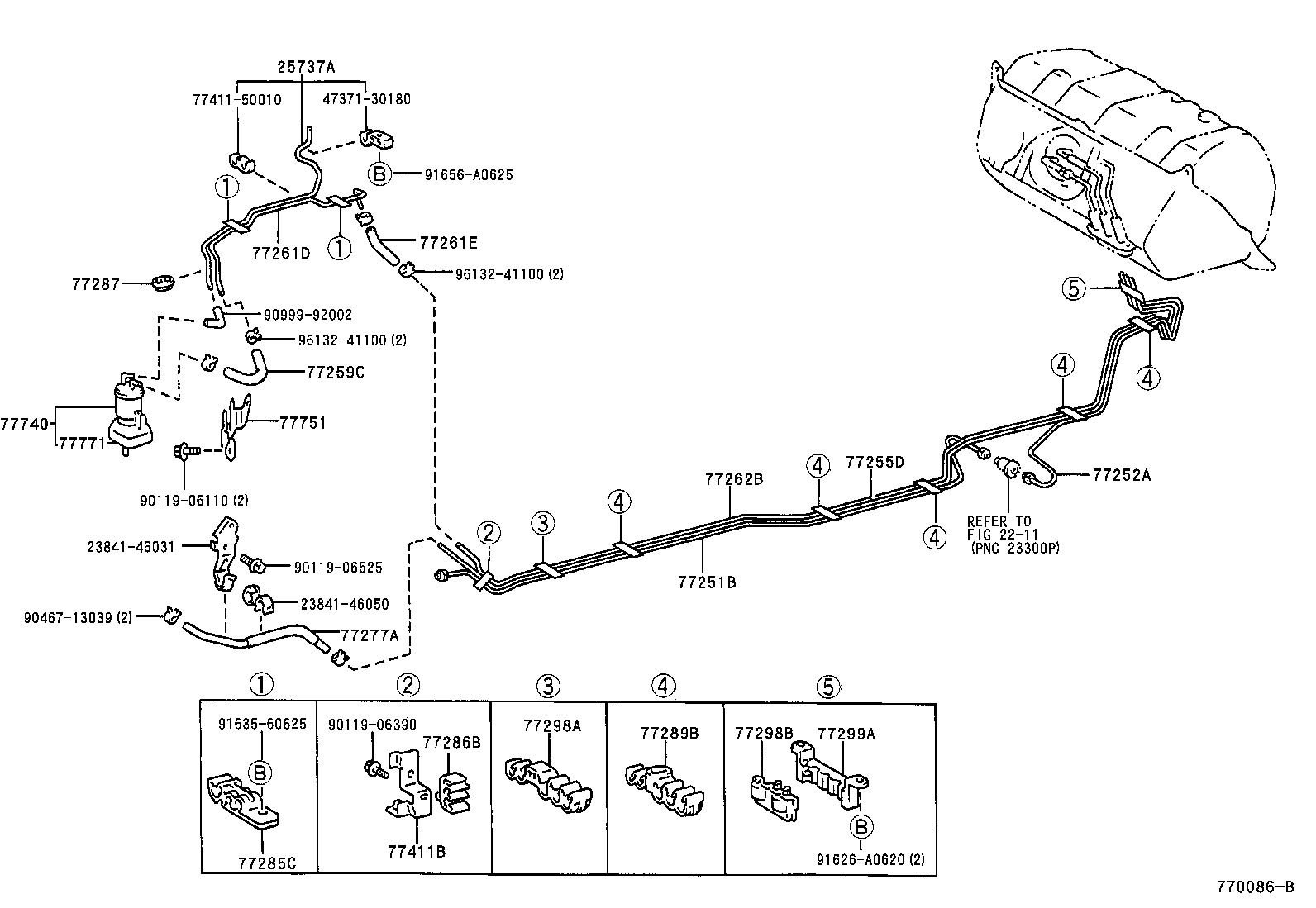

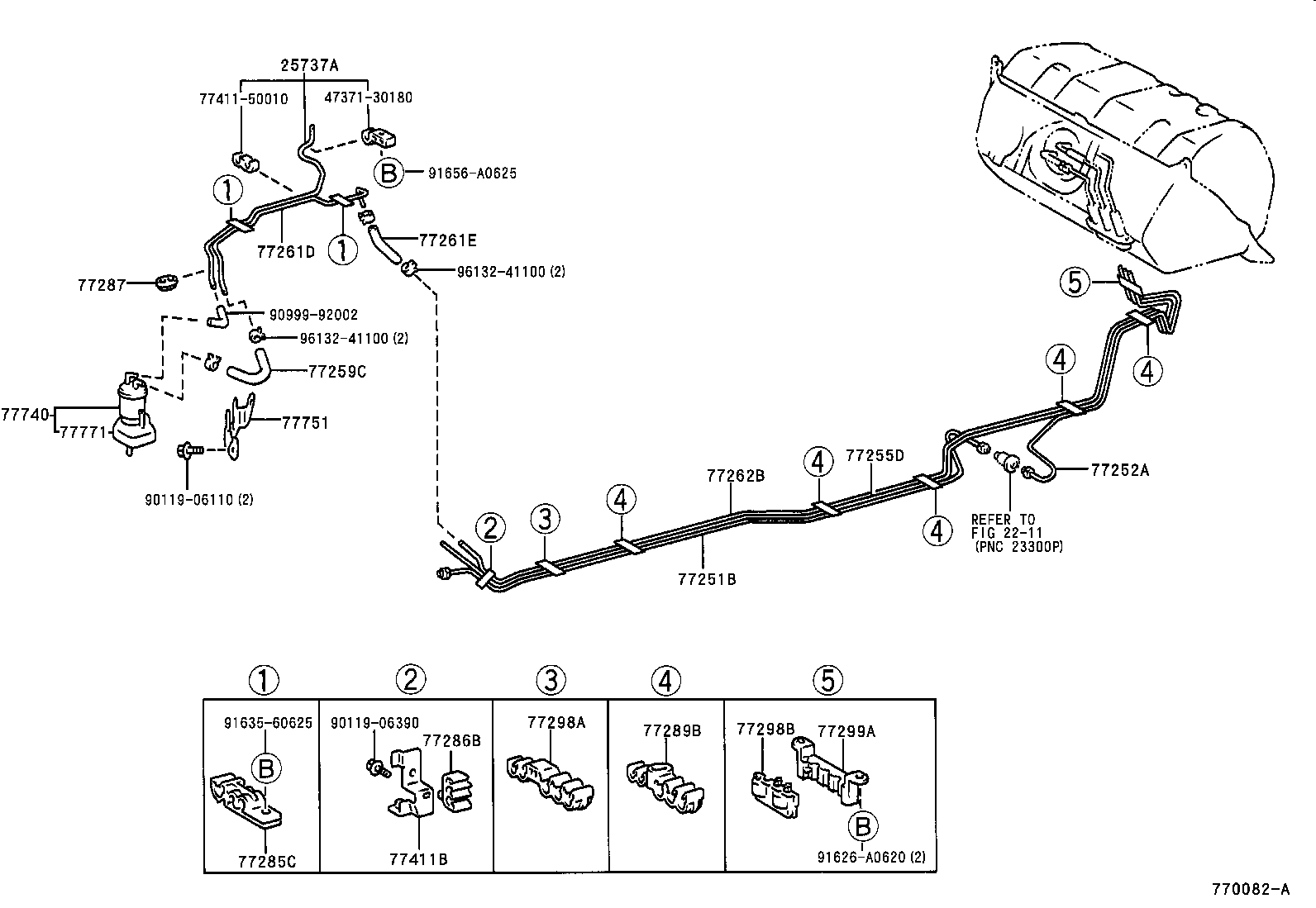

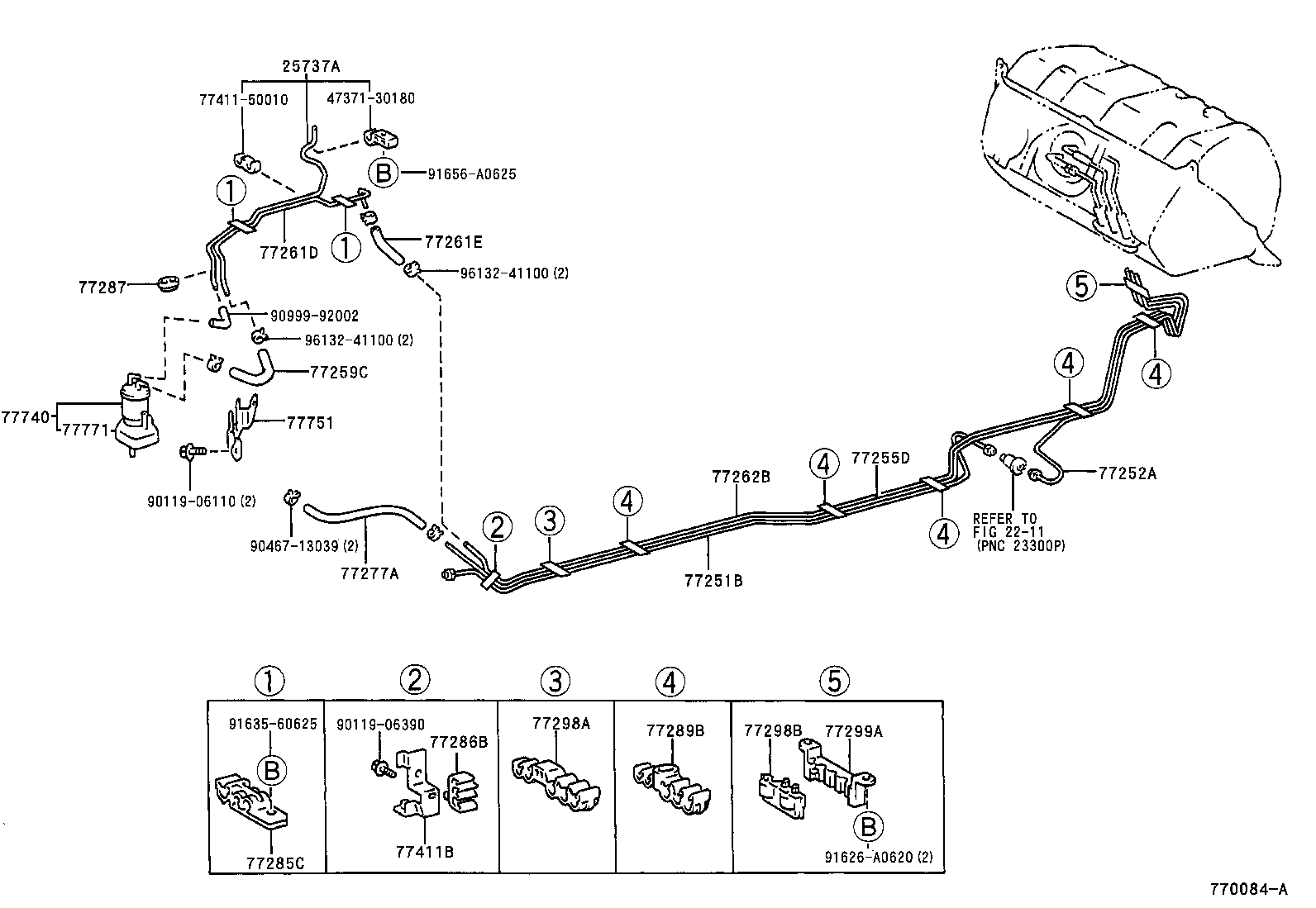

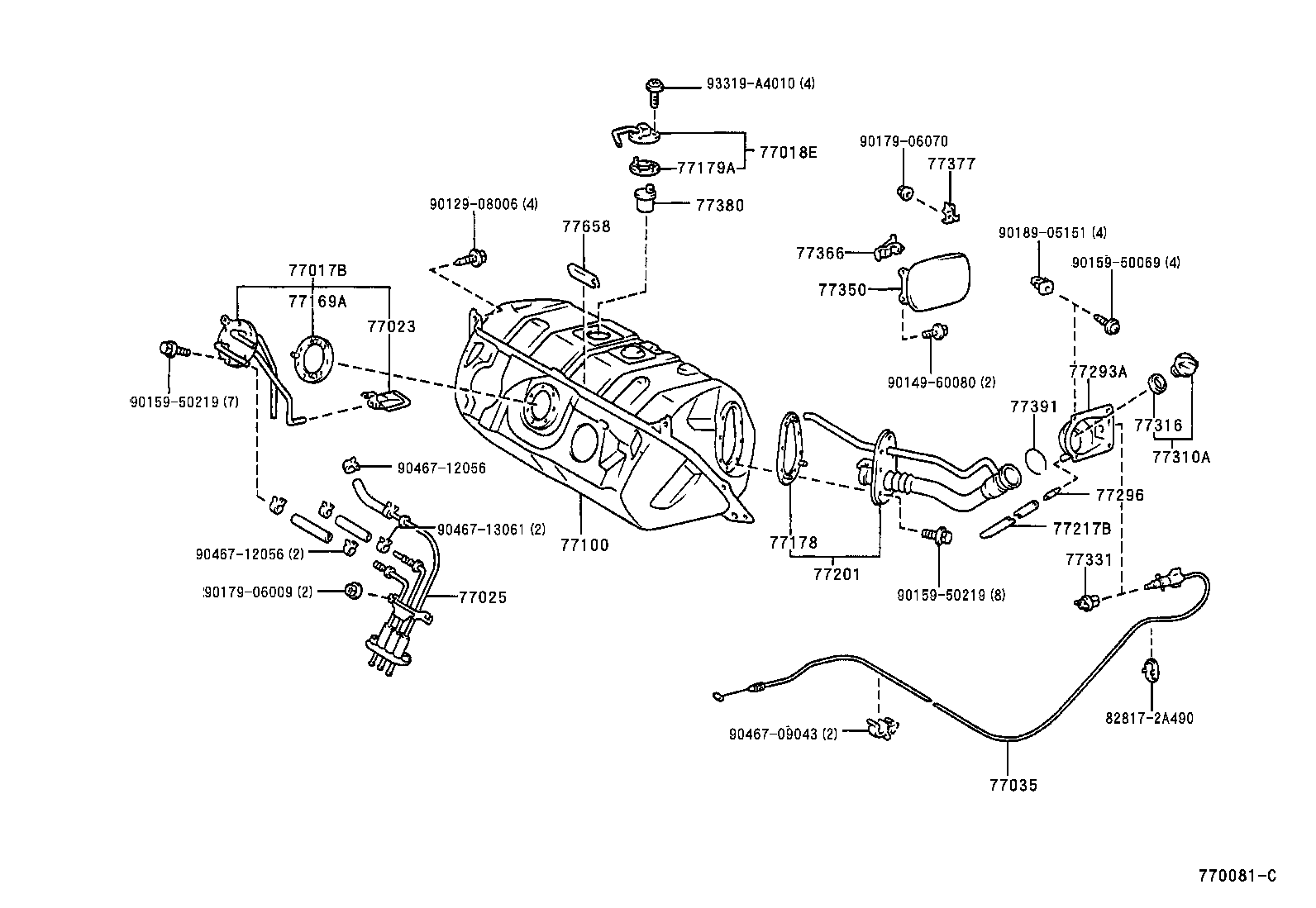

Fuel Tank & Tube
50 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 25737A | Fuel Tube, NO.1 |
| 77017B | Tube Sub-assy, Fuel Tank Vent |
| 77018E | Tube Sub-assy, Fuel Tank Evaporation Vent |
| 77023 | Filter Sub-assy, Fuel Suction Tube |
| 77025 | Tube Sub-assy, Fuel Main & Return, Rear |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77203A | Tube Sub-assy, Fuel Suction |
| 77204B | Hose, Fuel(FOR FUEL RETURN) |
| 77217B | Hose, Fuel Tank Inlet |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77251B | Tube, Fuel Main |
| 77252A | Tube, Fuel Main, NO.2 |
| 77255D | Tube, Fuel Return |
| 77259C | Hose, Fuel |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77262B | Tube, Fuel Tank TO Canister, NO.2 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77284A | Protector, Fuel Tube, NO.3 |
| 77285B | Clamp, Fuel Tube W/Grommet, NO.1 |
| 77285C | Clamp, Fuel Tube, NO.1 (FOR FRONT FUEL MAIN) |
| 77286B | Clamp, Fuel Tube W/Grommet, NO.2 |
| 77287 | Support, Tank TO Canister Tube, NO.1 |
| 77289A | Clamp, Fuel Tube W/Grommet, NO.3 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77293A | Shield, Fuel Tank Filler Pipe, NO.3 |
| 77296 | Plate, Fuel Tube Grommet Support |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77331 | Bracket, Fuel Lid Lock Control |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77411D | Support, Fuel Tube Grommet, NO.2 |
| 77658 | Moulding, Fuel Tank Edge |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
| 77771 | Tank, Charcoal Canister |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
