Toyota Cresta

1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan

Discontinued model Data version 1998-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 14 illustrations

Illustrations

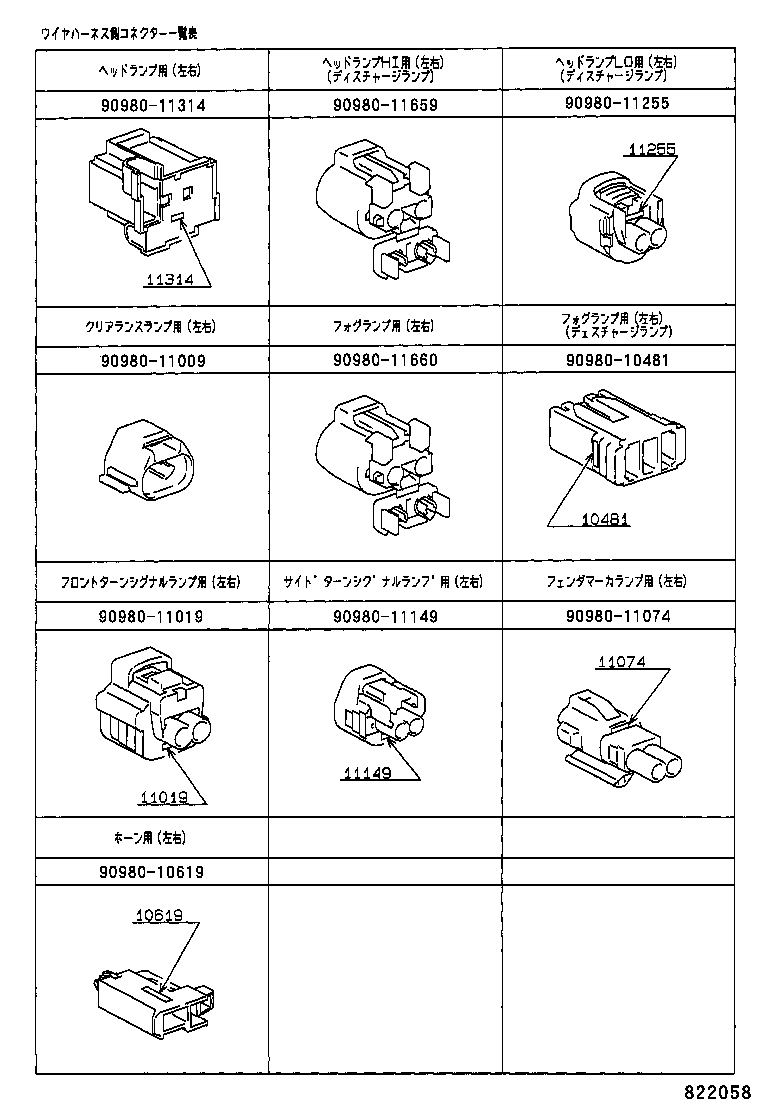

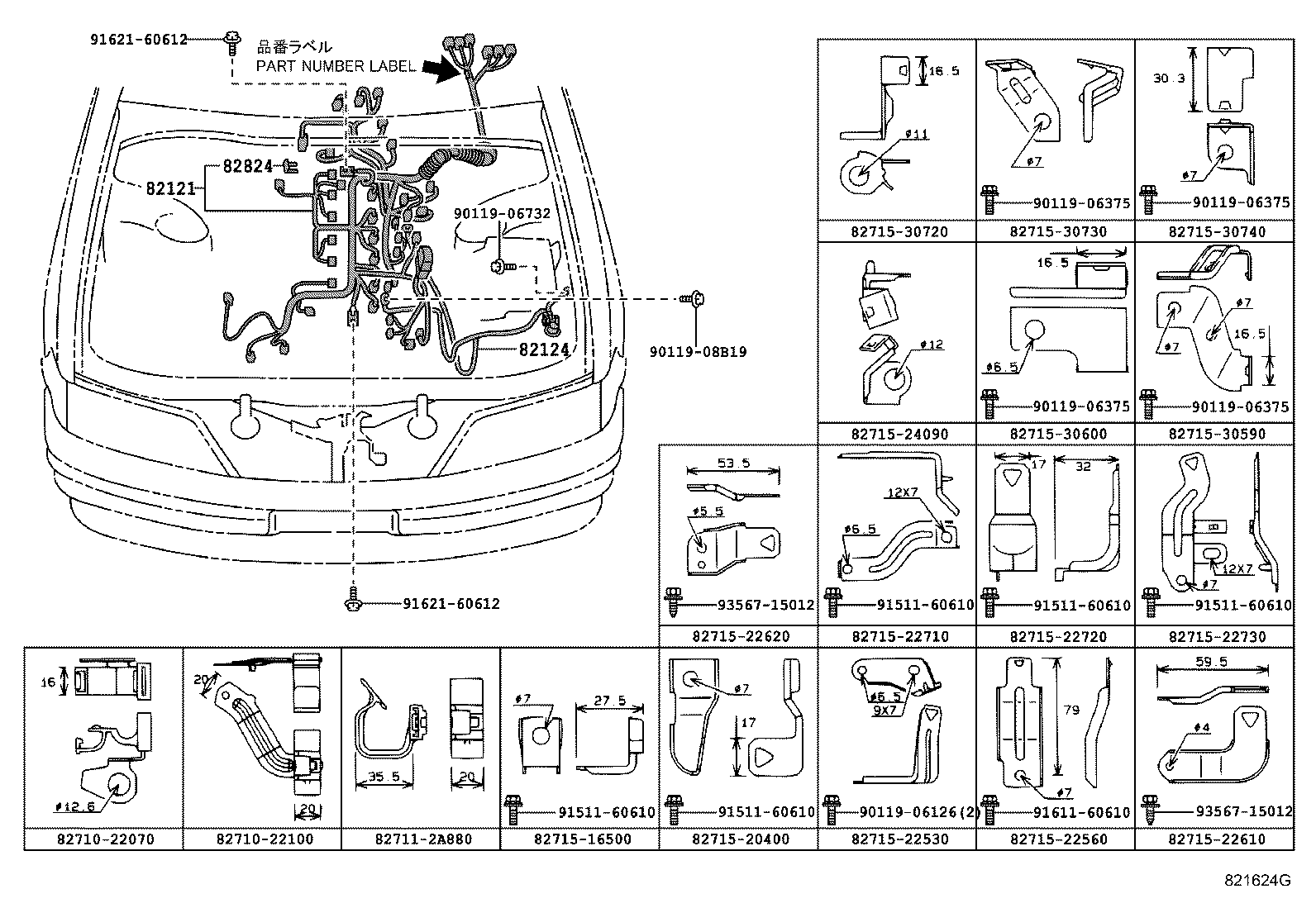

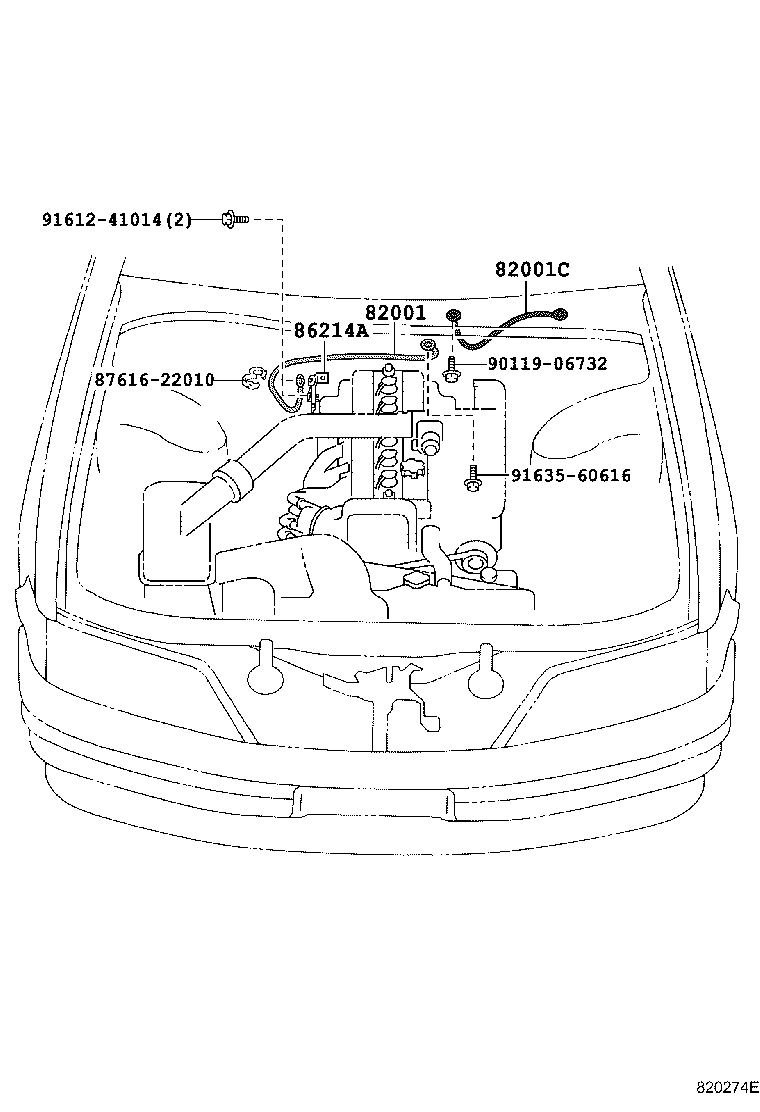

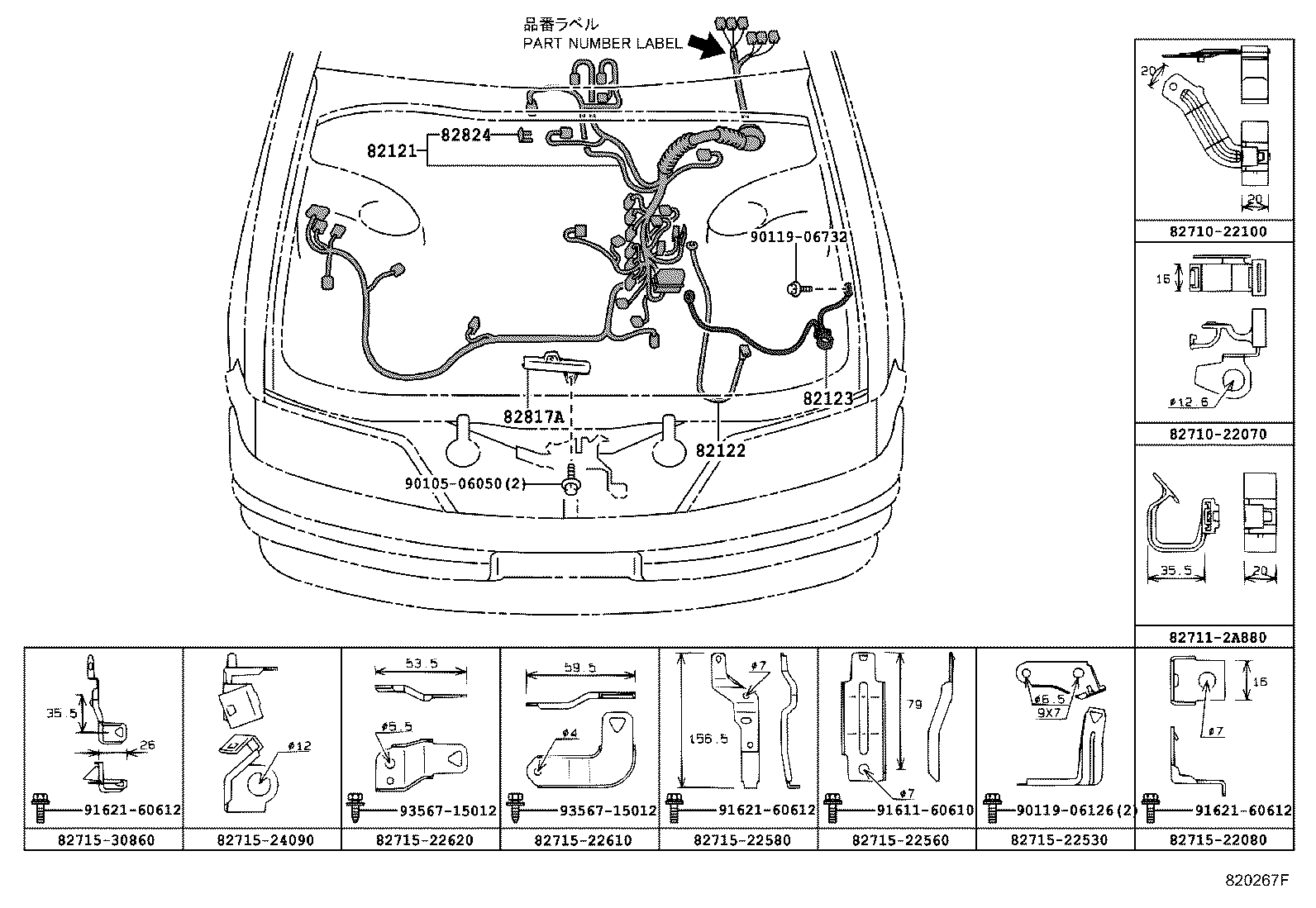

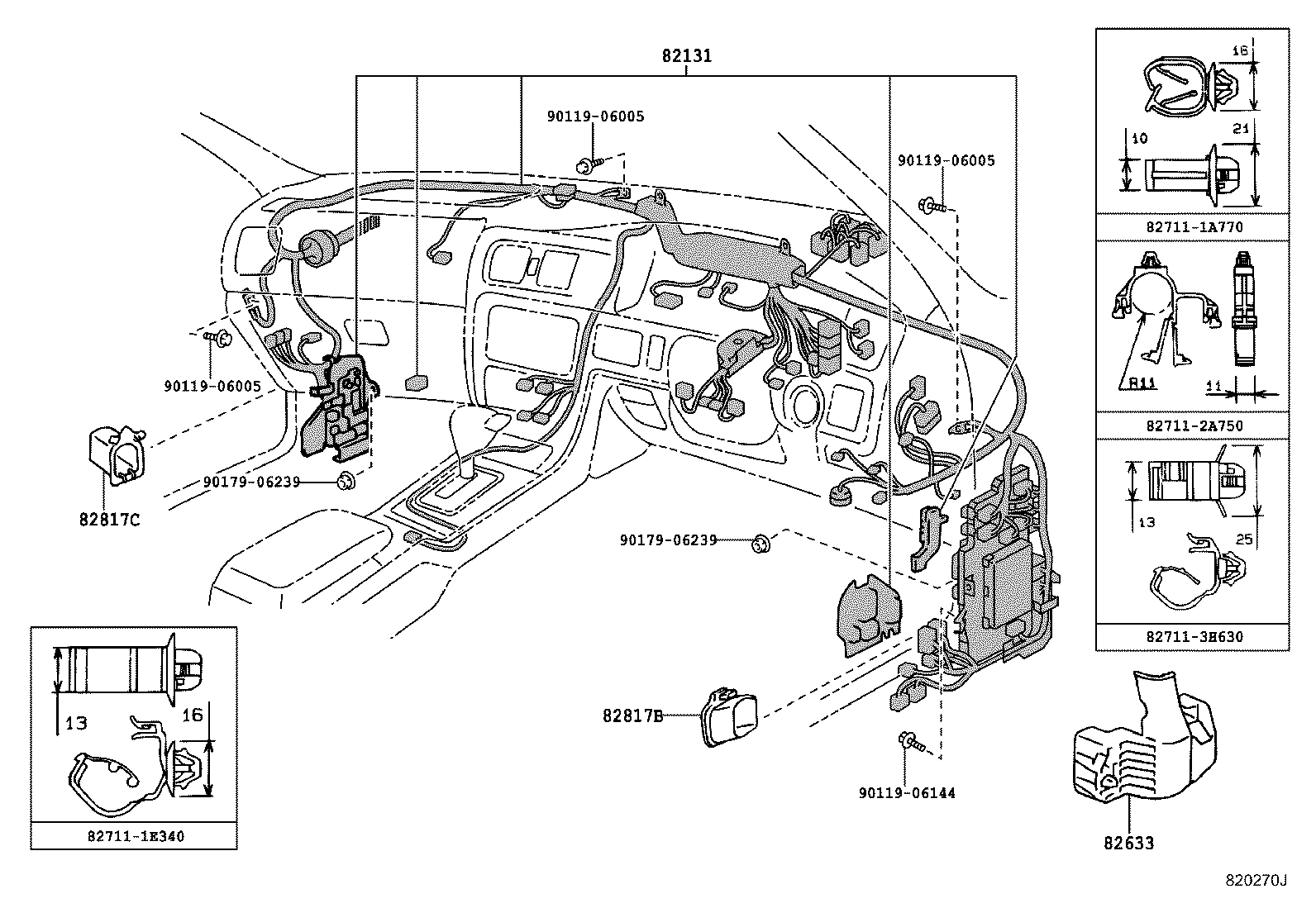

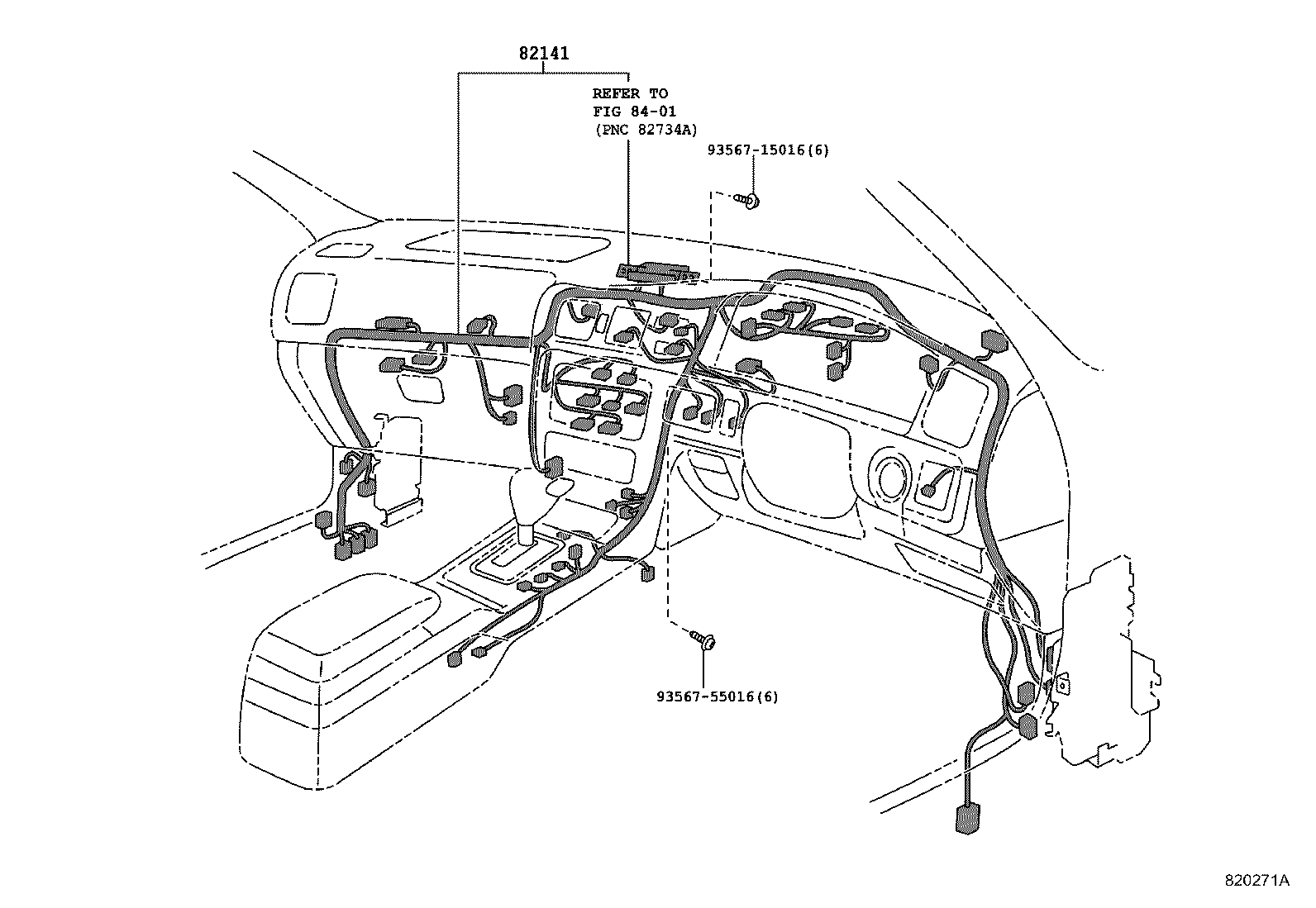

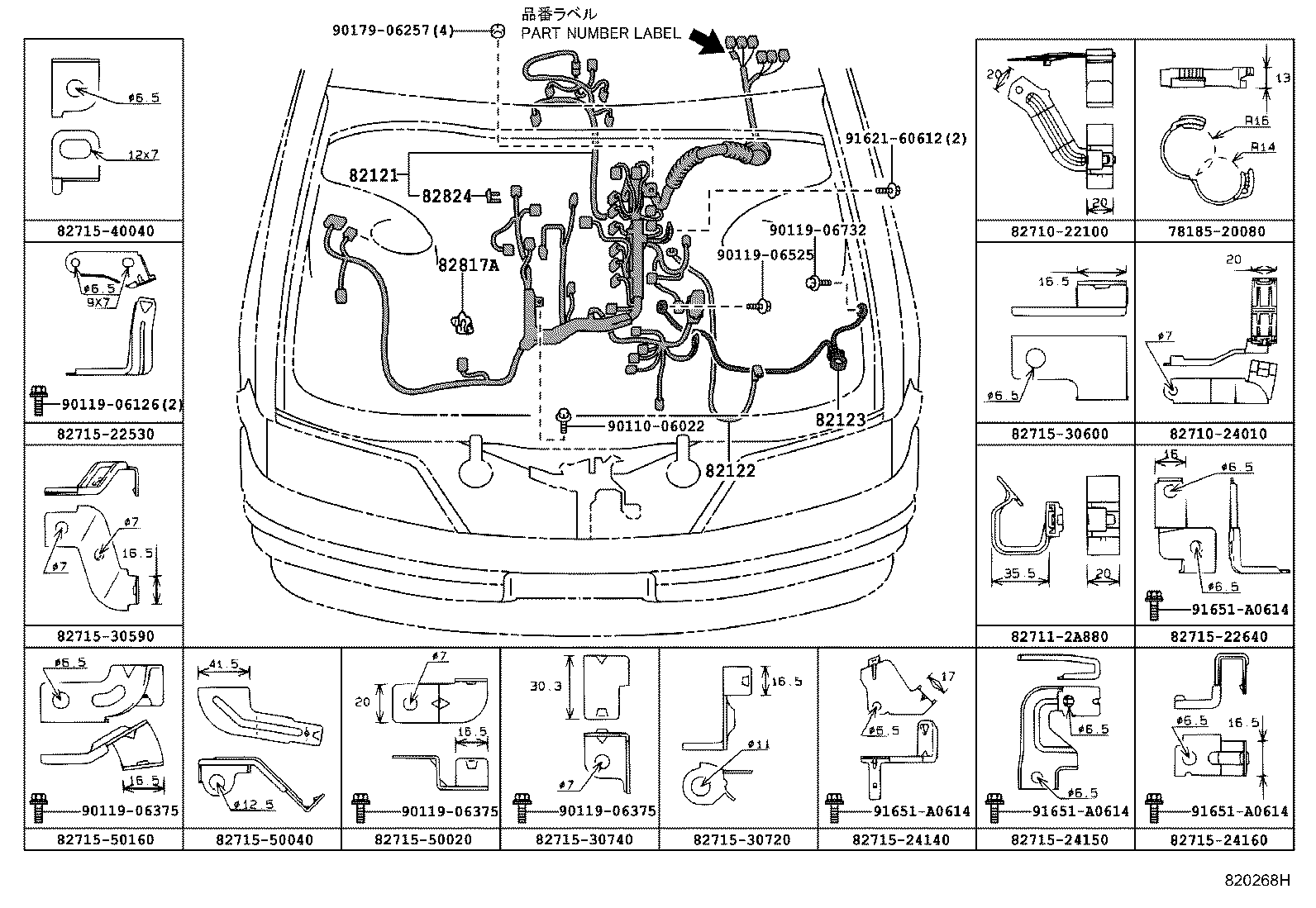

Figure 820265E 820265E 1996-09 → 1998-08 Figure 821623A 821623A 1998-08 → — Figure 820266I 820266I 1996-09 → — Figure 820267F 820267F 1996-09 → 1998-08 Figure 821624G 821624G 1998-08 → — Figure 820268H 820268H 1996-09 → — Figure 820313E 820313E 1996-09 → — Figure 820270J 820270J 1996-09 → — Figure 820271A 820271A 1996-09 → — Figure 820272A 820272A 1996-09 → — Figure 820314B 820314B 1996-09 → — Figure 820274E 820274E 1996-09 → — Figure 820383B 820383B 1996-09 → — Figure 822058 822058 1996-09 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82046A Wire Sub-assy, Body Ground, NO.1

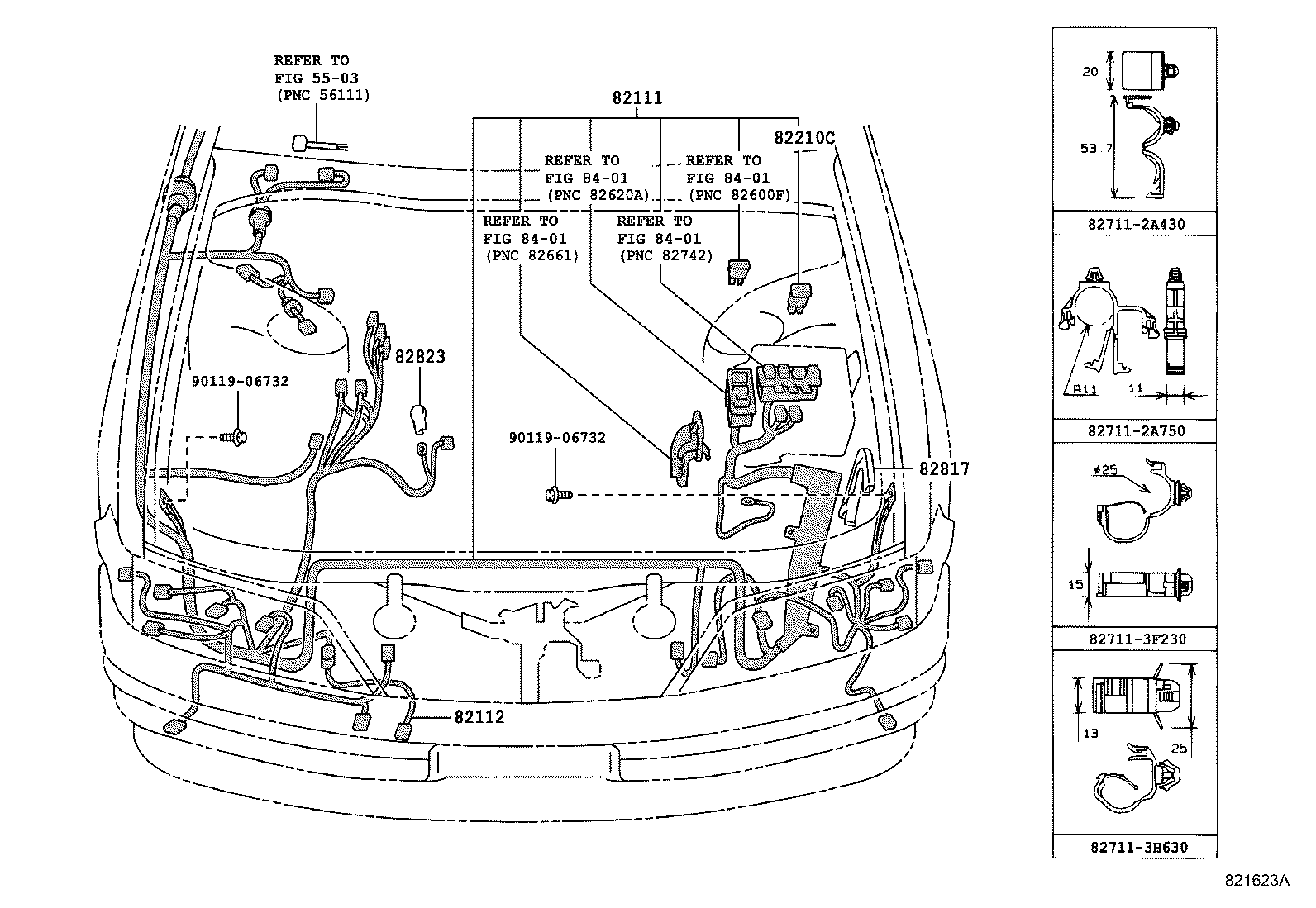

82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2

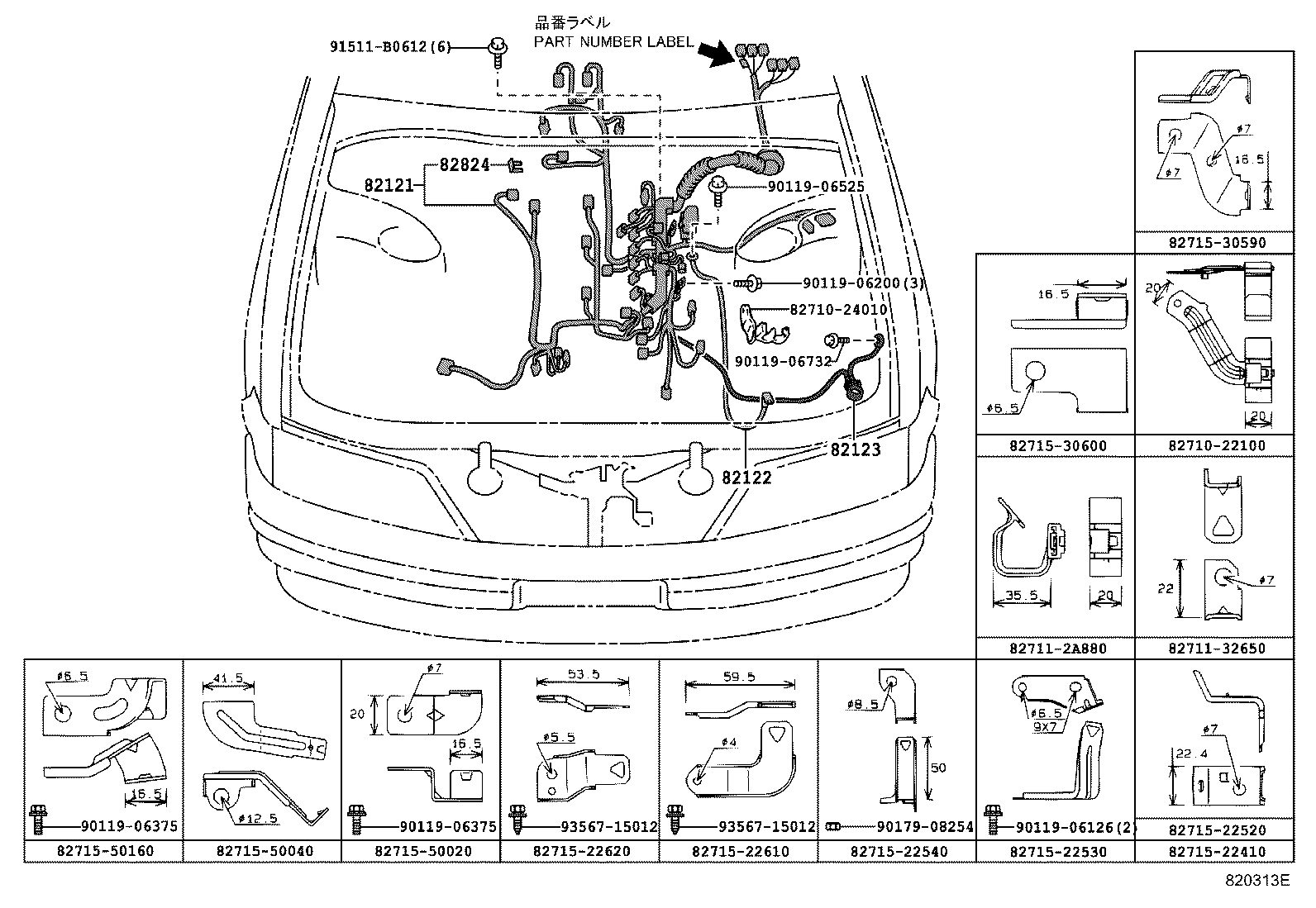

82121 Wire, Engine

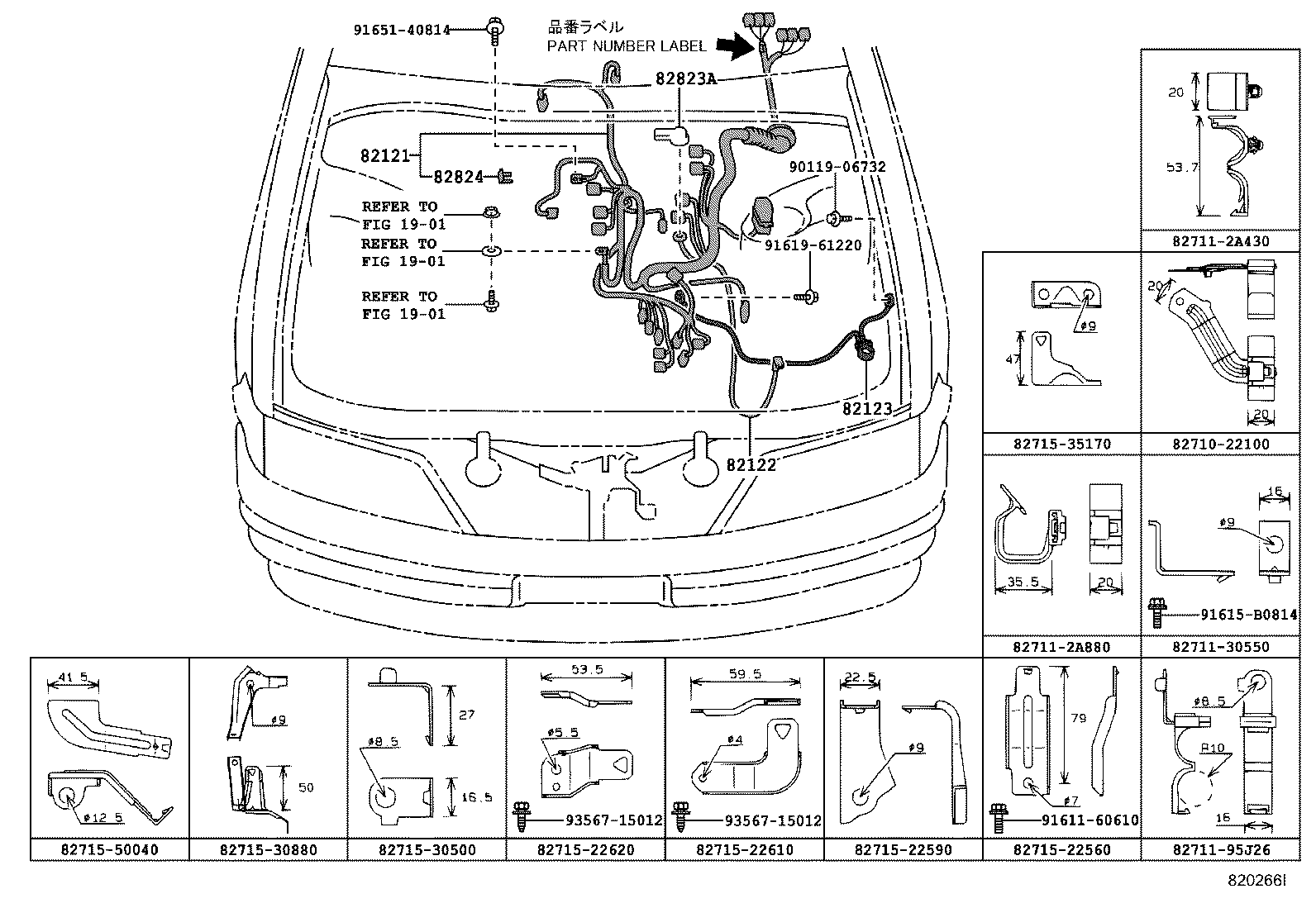

82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH

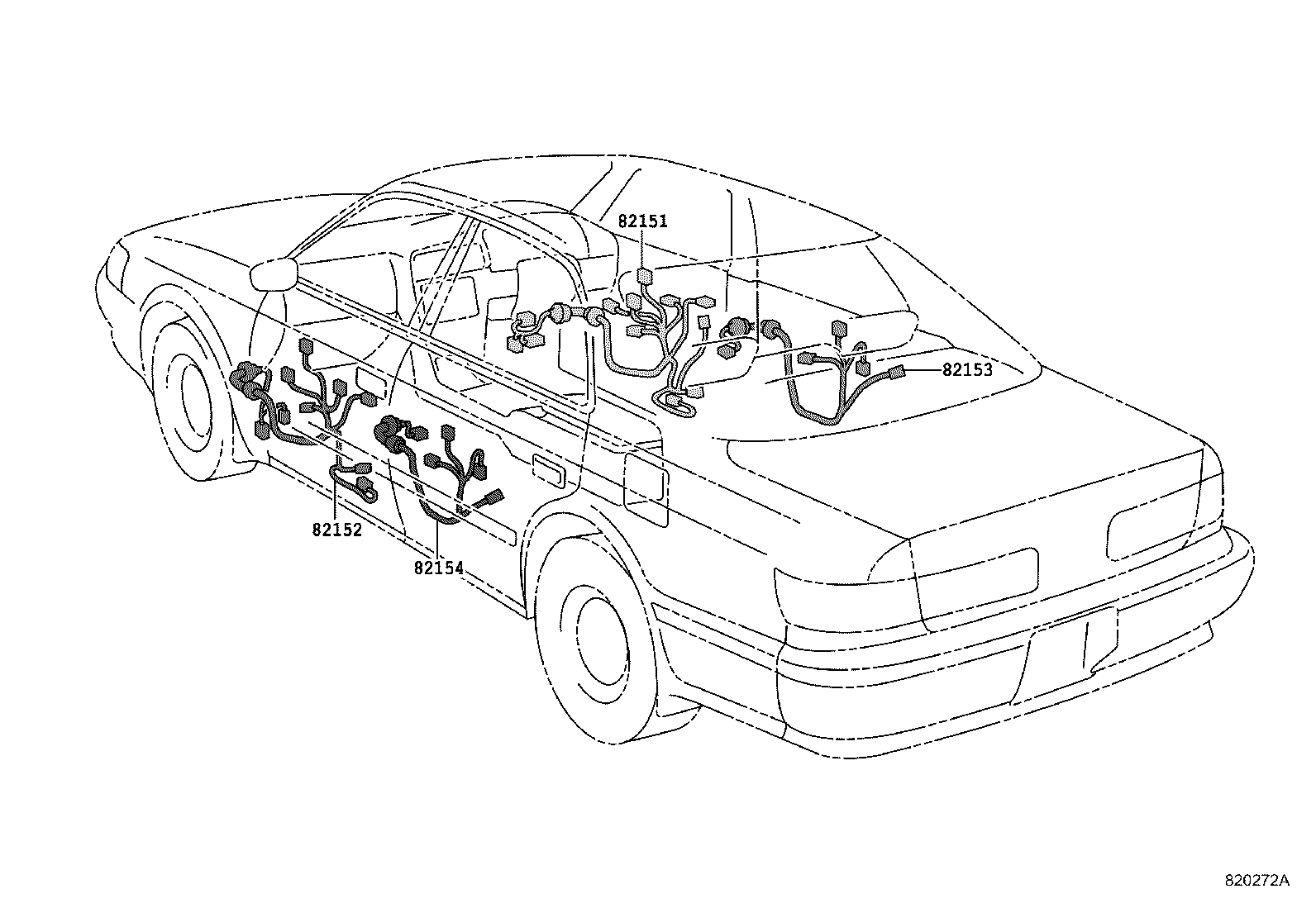

82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

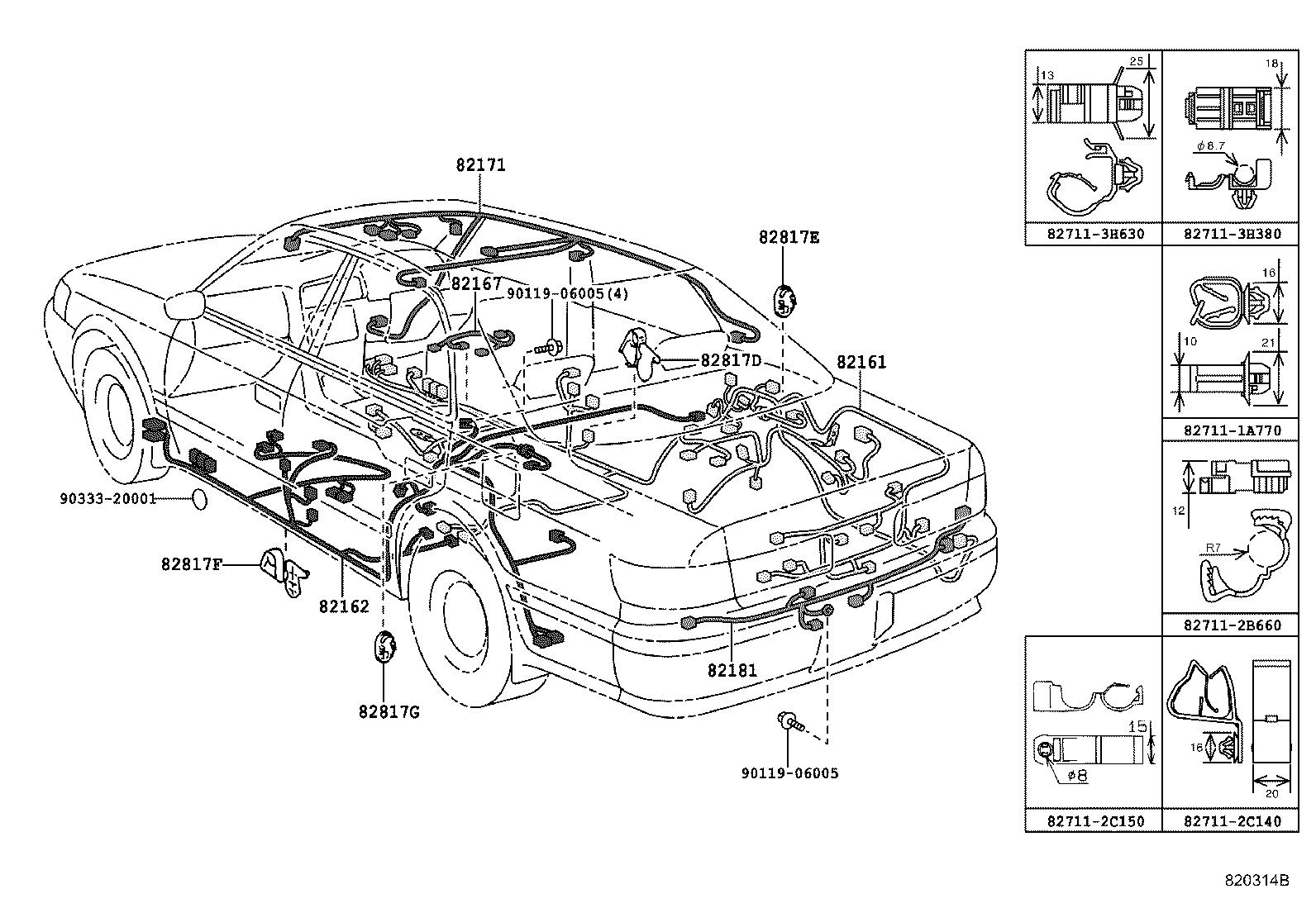

82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82210C Fusible Link
82633 Holder, Front Pillar Block, RH
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82823 Cap, Terminal, NO.1
82823A Cap, Terminal, NO.2
82824 Connector, Wiring Harness
86214A Bracket, Radio Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
