Toyota Cresta
1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan
Discontinued model
Data version 1998-08
Meter
43 part groups · 11 illustrations
Part groups
| PNC | Description |
|---|---|

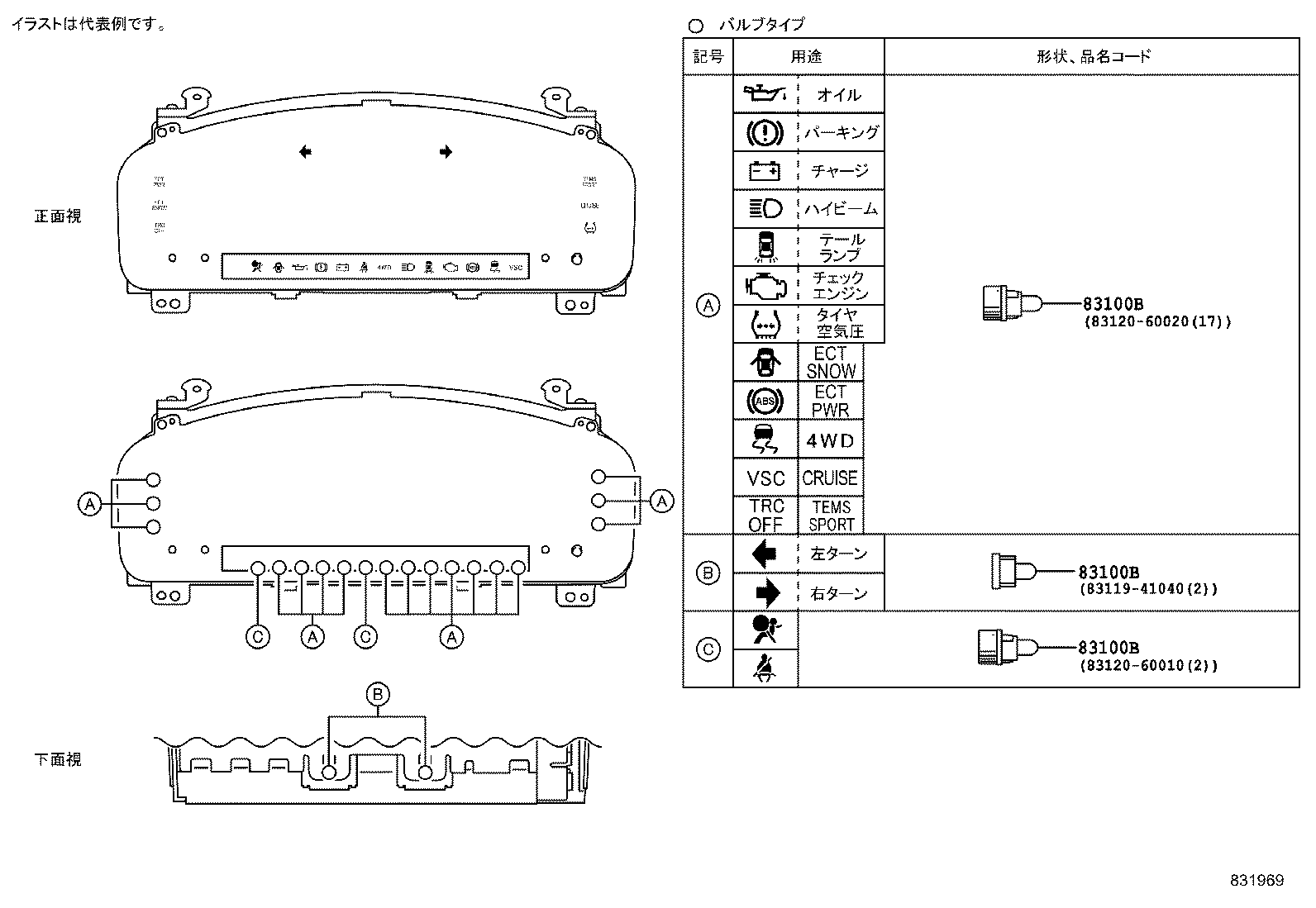

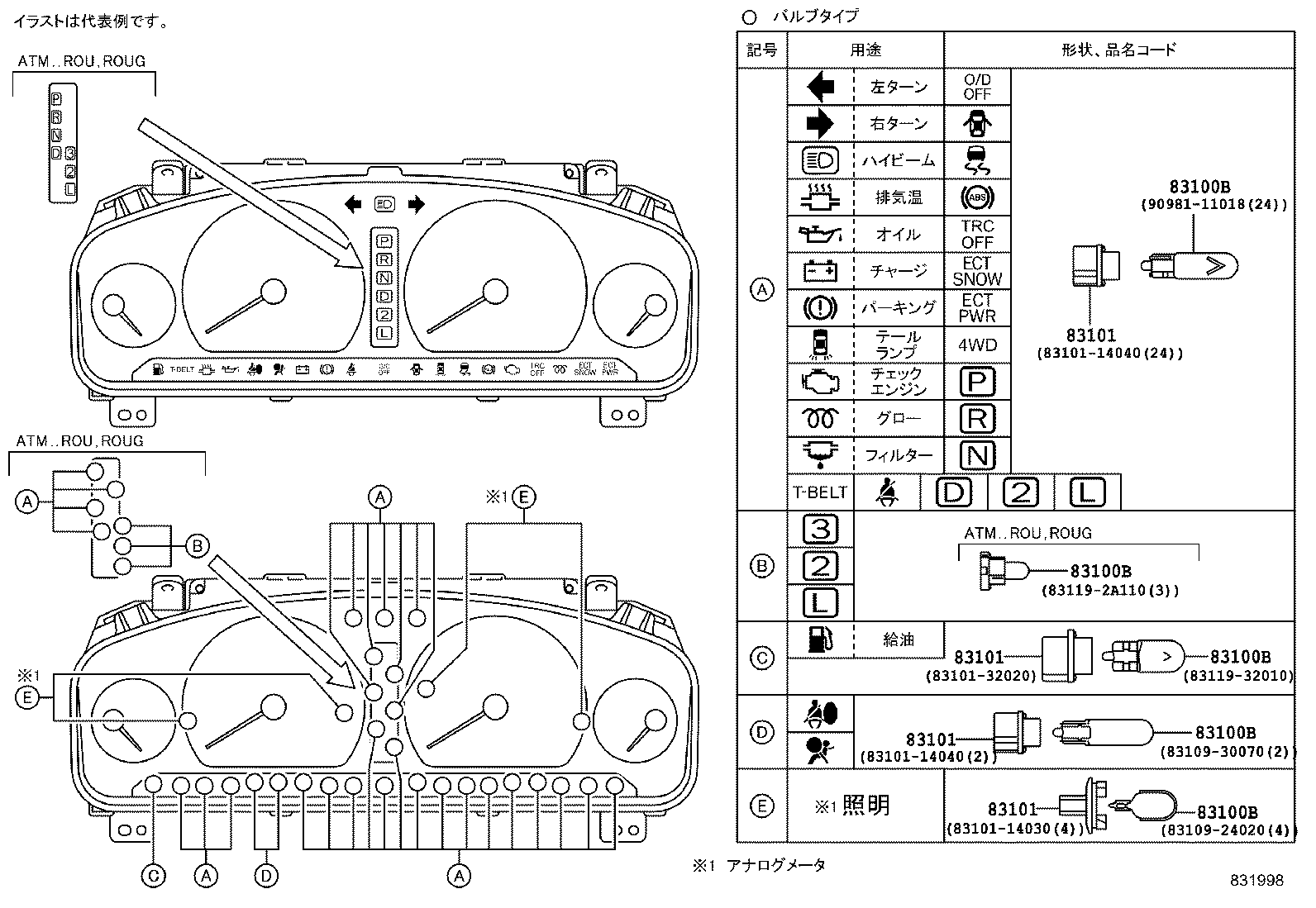

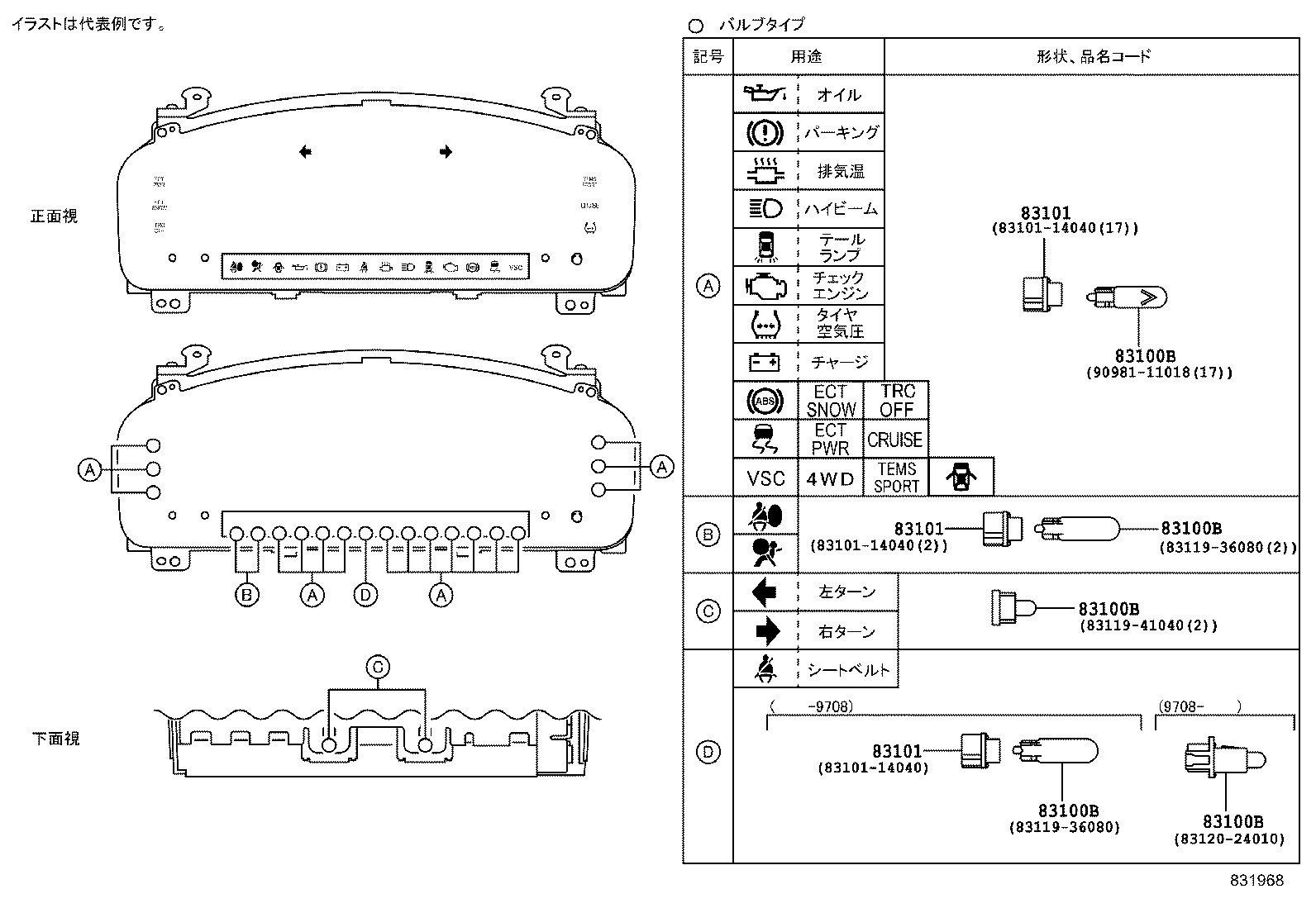

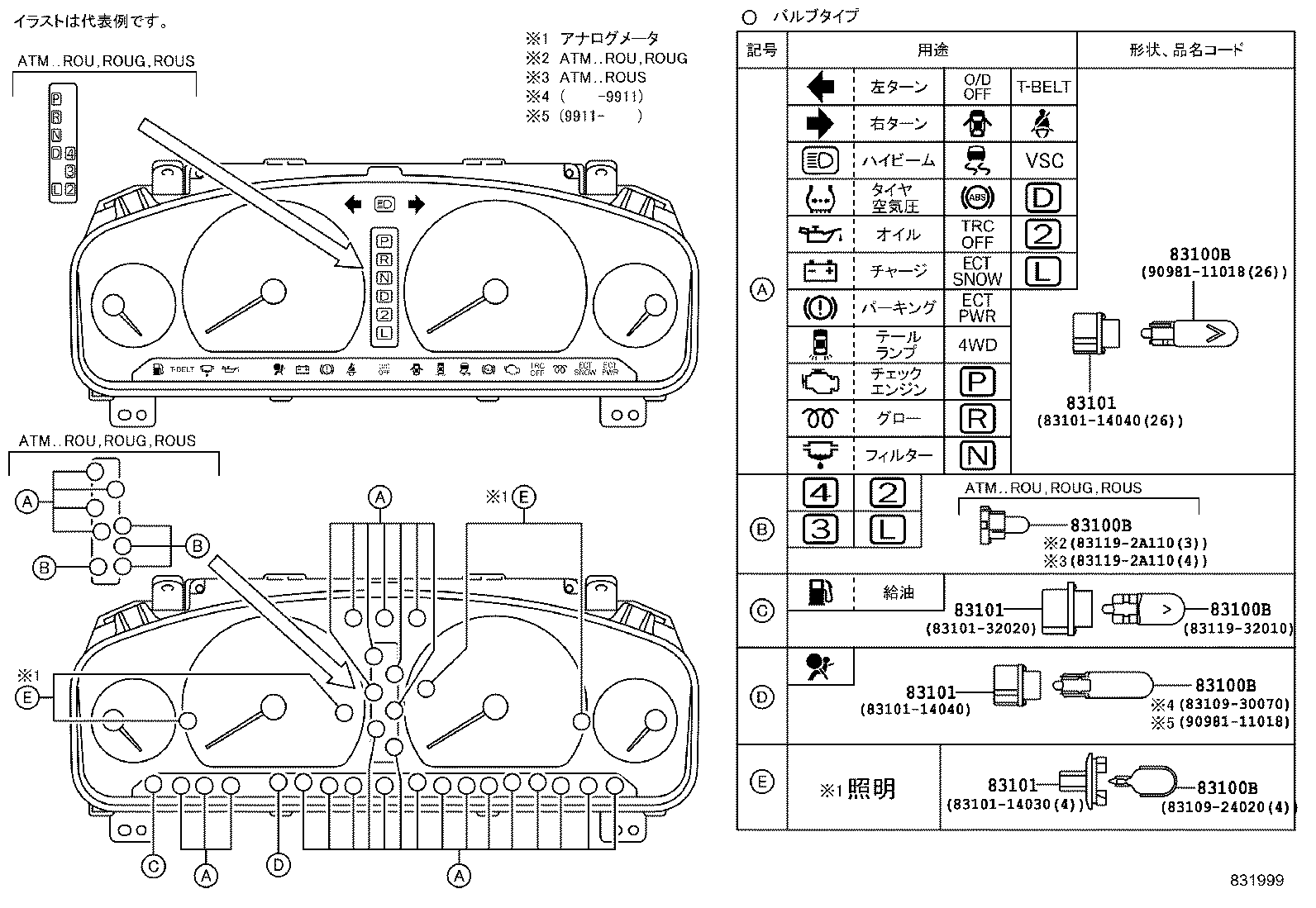

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |

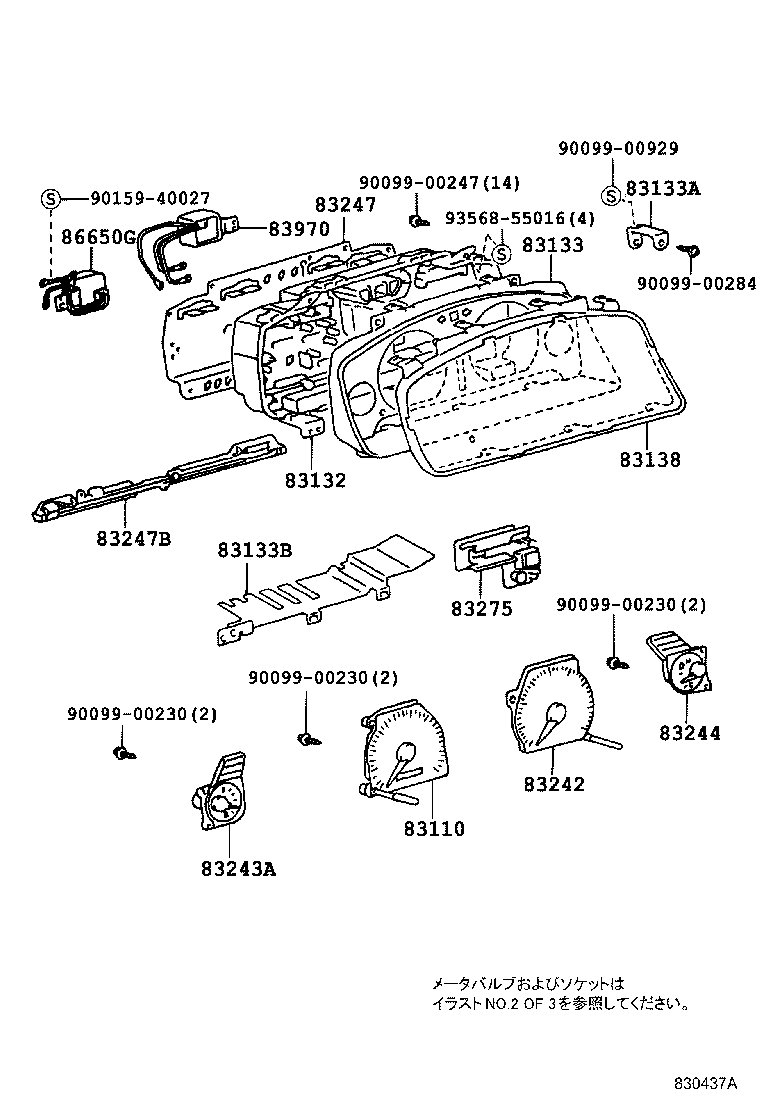

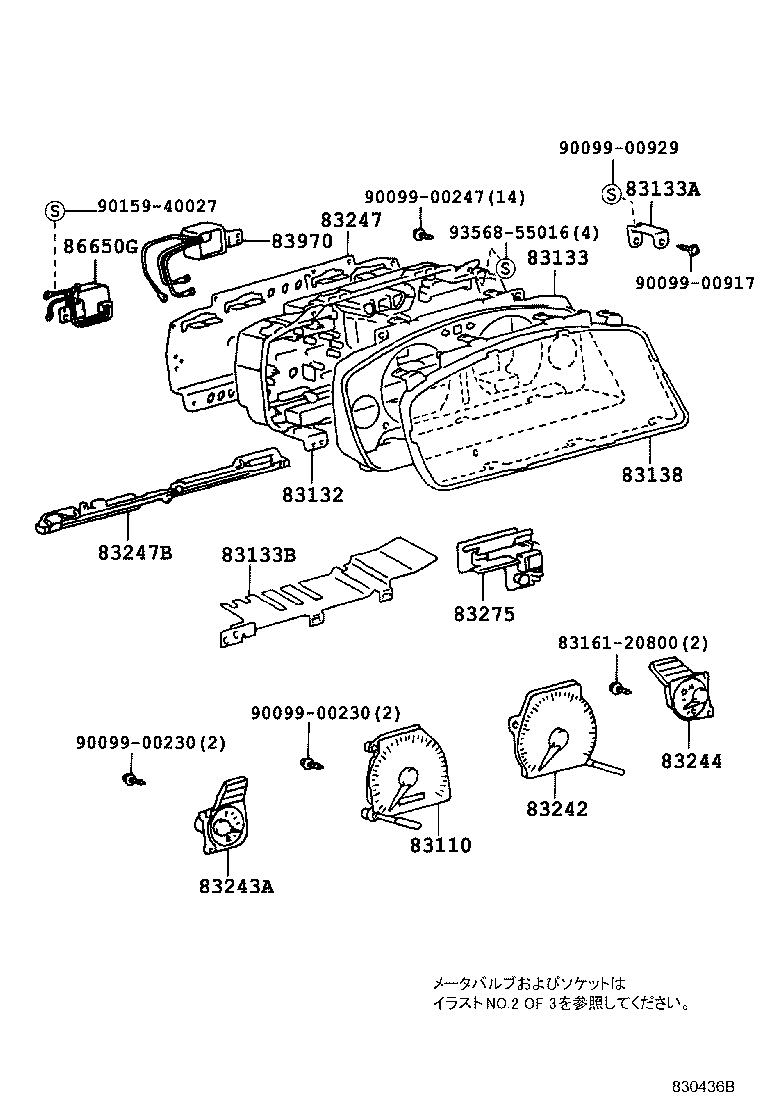

| 83110 | Speedometer Assy |
| 83129 | Wire, Meter |
| 83129C | Wire, Combination Meter |

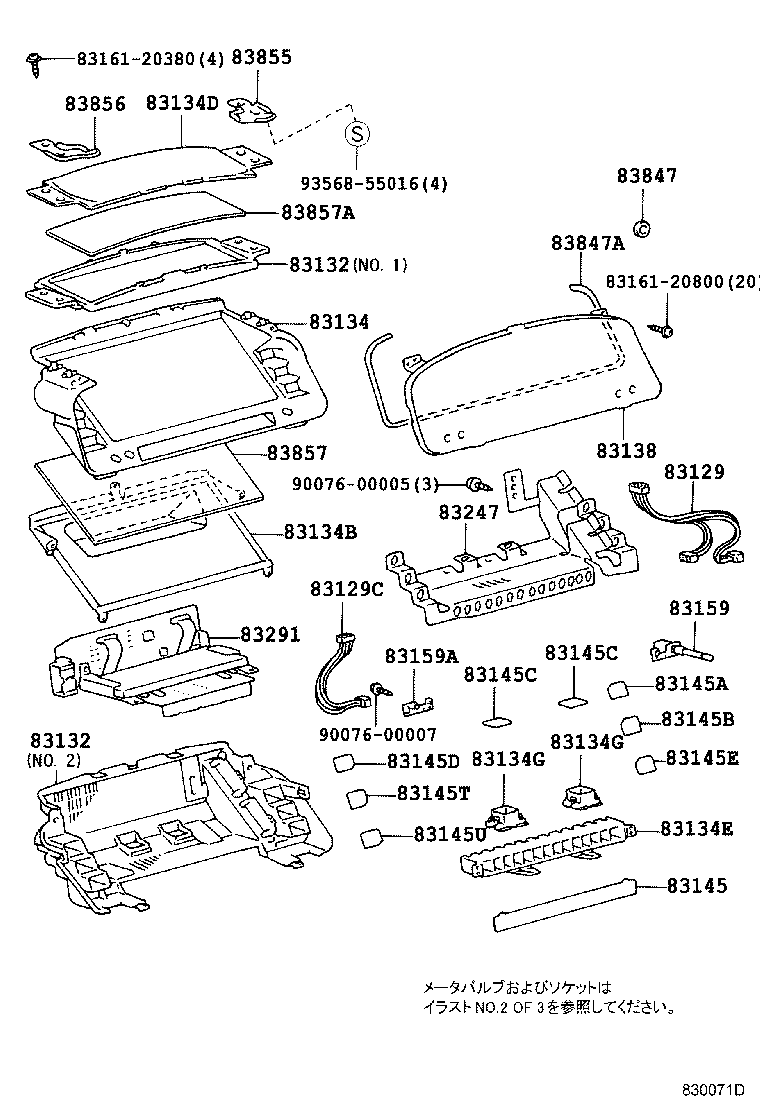

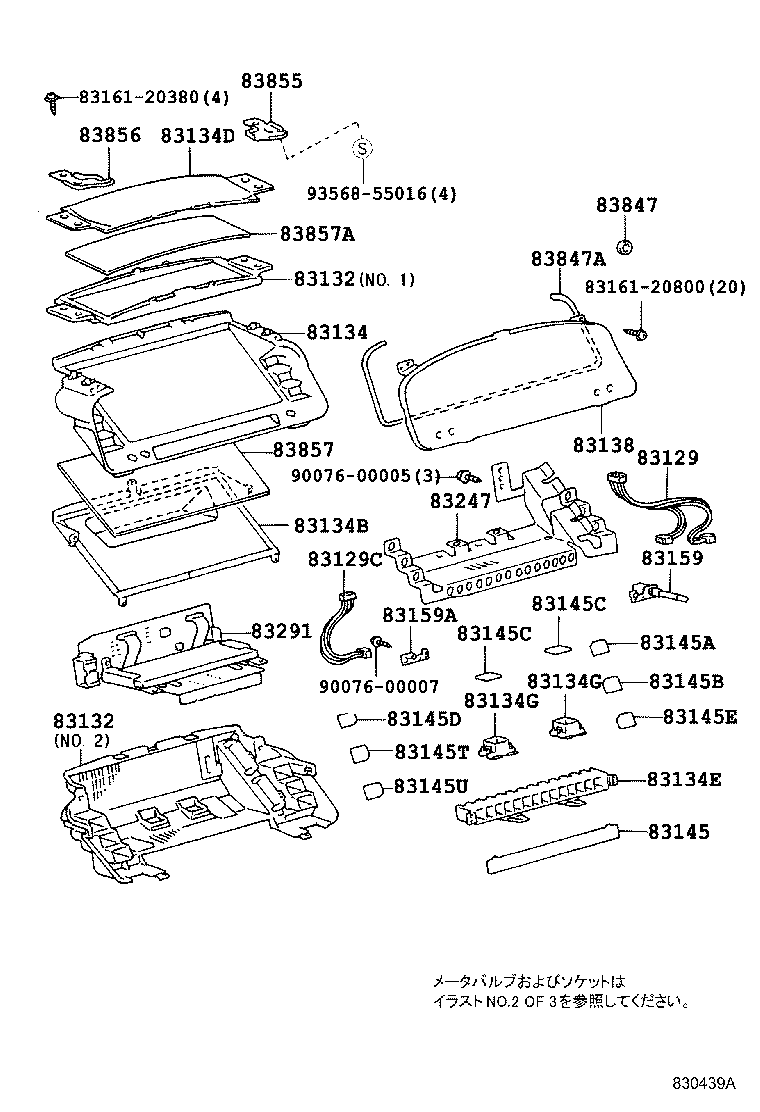

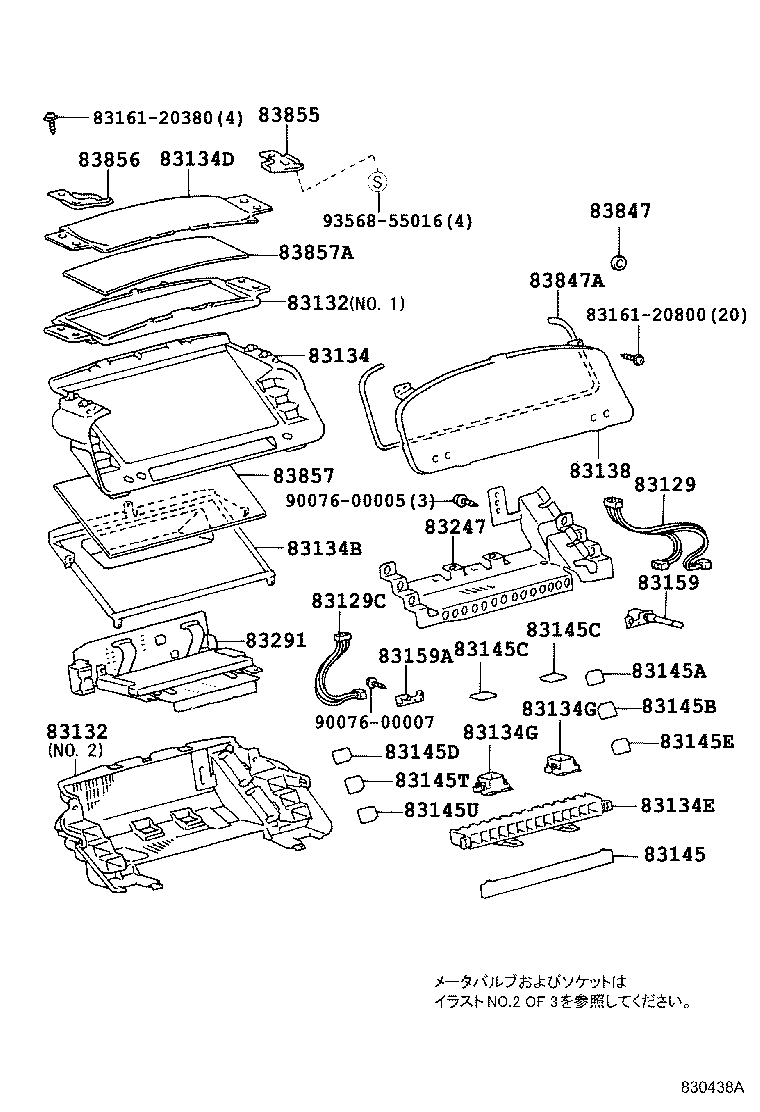

| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83133B | Plate, Combination Meter, NO.3 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83134B | Cover, Combination Meter, NO.2 |
| 83134D | Cover, Combination Meter, NO.3 |
| 83134E | Cover, Combination Meter, NO.4 |
| 83134G | Cover, Combination Meter |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83145A | Lens, Meter, NO.2 |
| 83145B | Lens, Meter, NO.3 |
| 83145C | Lens, Meter, NO.4 |
| 83145D | Lens, Meter, NO.5 |
| 83145E | Lens, Meter, NO.6 |
| 83145T | Lens, Meter, NO.8 |
| 83145U | Lens, Meter, NO.9 |
| 83159 | Switch, Meter, NO.1 |
| 83159A | Switch, Meter, NO.2 |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83275 | Plate,Computer Meter Circuit NO.1 |
| 83291 | Computer, Combination Meter |
| 83847 | Cushion, Combination Speedometer, NO.1 |
| 83847A | Cushion, Combination Speedmeter |
| 83855 | Bracket, Combination Meter, NO.1 |
| 83856 | Bracket, Combination Meter, NO.2 |
| 83857 | Reflector, Combination Meter, NO.1 |
| 83857A | Reflector, Combination Meter |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
