Toyota Cresta

1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan

Discontinued model Data version 1998-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Traction Control

14 part groups · 2 illustrations

Illustrations

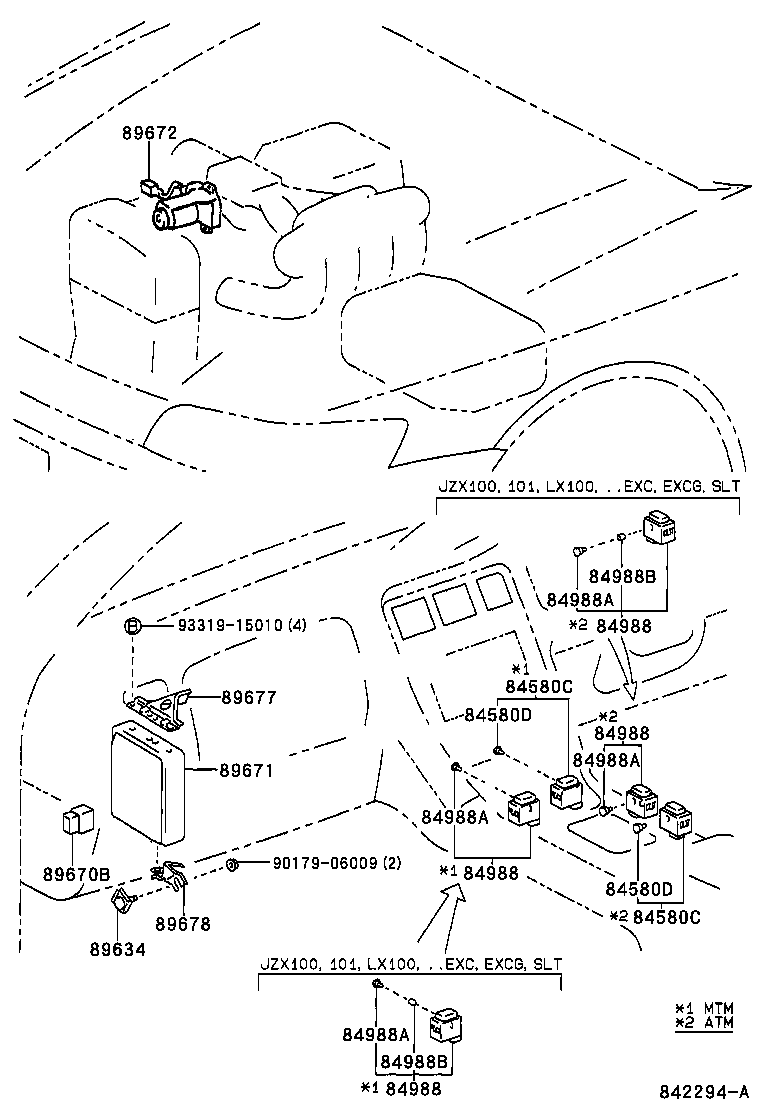

Figure 840383C 840383C 1996-09 → 1998-08 Figure 842294A 842294A 1998-08 → —

Part groups

PNCDescription
84580C Switch Assy, Throttle Position
84580D Bulb, Throttle Position Switch
84580H Cap, Throttle Position Switch Bulb
84988 Switch, Traction Control
84988A Bulb, Traction Control Switch
84988B Cap, Traction Control Swich Bulb
89632 Motor, Traction Throttle Valve
89634 Bracket, Traction Control Computer
89637 Sensor, Oil Pressure
89670B Relay, Throttle Control
89671 Computer, Throttle Control
89672 Motor, Throttle Control
89677 Bracket, Throttle Control Computer, NO.1
89678 Bracket, Throttle Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
