Toyota Cresta
1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan
Discontinued model
Data version 1998-08

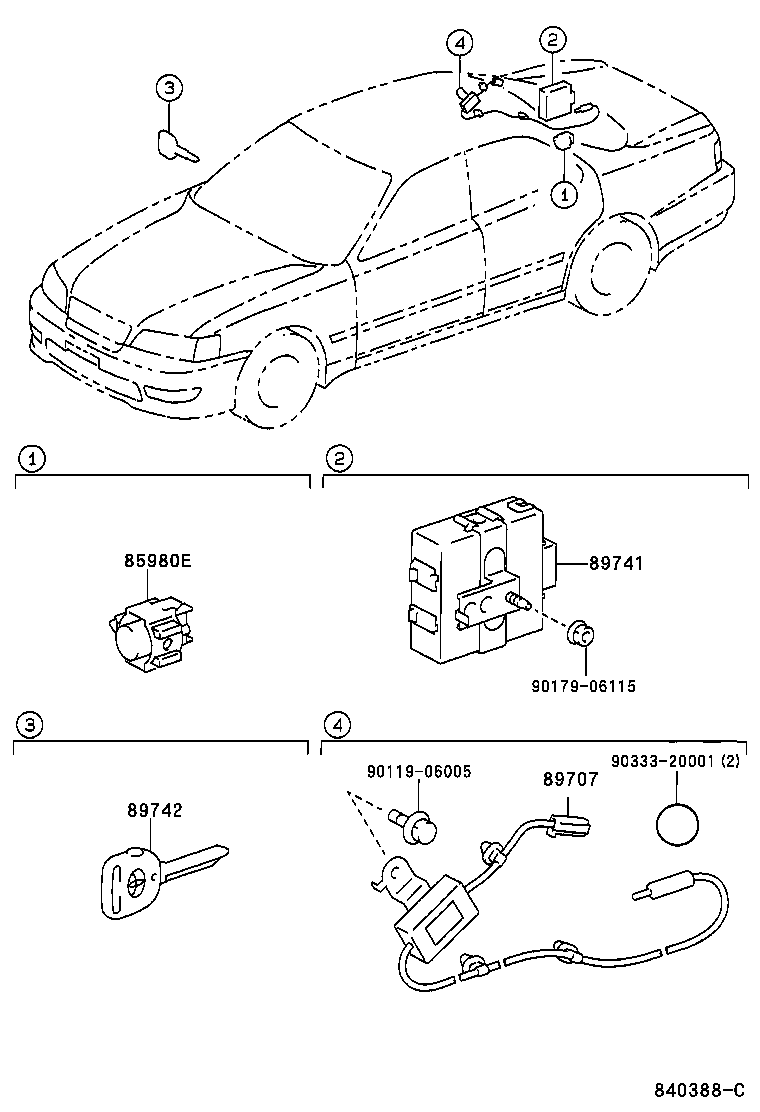

Wireless Door Lock
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85980E | Relay Assy, Door Control |
| 89071 | Module Set, Transmitter Sub-assy, Door Control |
| 89706 | Battery Set, Transmitter |
| 89707 | Cord Sub-assy, Wireless Door Lock |
| 89708 | Cylinder Set, Wireless Door Lock |
| 89741 | Receiver, Door Control |
| 89742 | Transmitter, Door Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
