Toyota Cresta
1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan
Discontinued model
Data version 1998-08
Telephone & Mayday
19 part groups · 3 illustrations

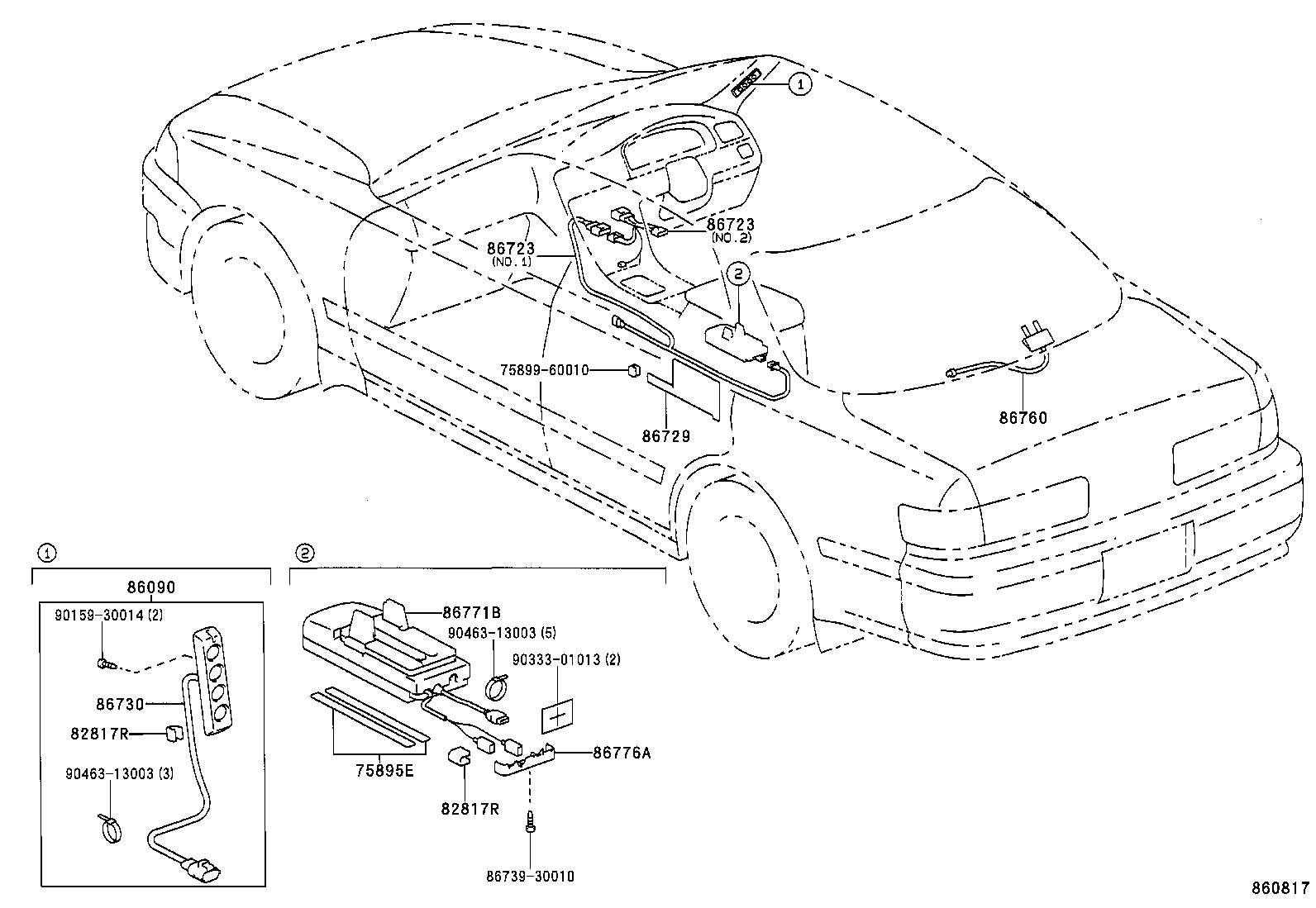

Part groups
| PNC | Description |
|---|---|
| 75895E | Tape, Moulding, NO.1 |
| 82817R | Protector, Wiring Harness, NO.16 |
| 86090 | Telephone Assy |
| 86702 | Bracket Set, Telephone |
| 86714 | Controller, Telephone |
| 86722 | Cradle, Mobilephone |
| 86723 | Wire, Mobilephone |
| 86724 | Guide, Curl Cord |
| 86729 | Bracket, Mobilephone |
| 86730 | Microphone Assy, Telephone |
| 86760 | Antenna Assy, Telephone |
| 86771B | Charger, Portablephone Battery |
| 86773 | Wire, Portablephone |
| 86774 | Charger, Portablephone AC |
| 86775A | Handset, Portablephone |
| 86776 | Battery, Portablephone-s |
| 86776A | Cover, Telephone Wire |
| 86777 | Battery, Mayday |
| 86779 | Strap, Portablephone |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
