Toyota Cresta

1996-09 → 2001-06 · chassis GX10#,JZX10#,LX100 · catalogue 313180 · Japan

Discontinued model Data version 1998-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

20 part groups · 9 illustrations

Illustrations

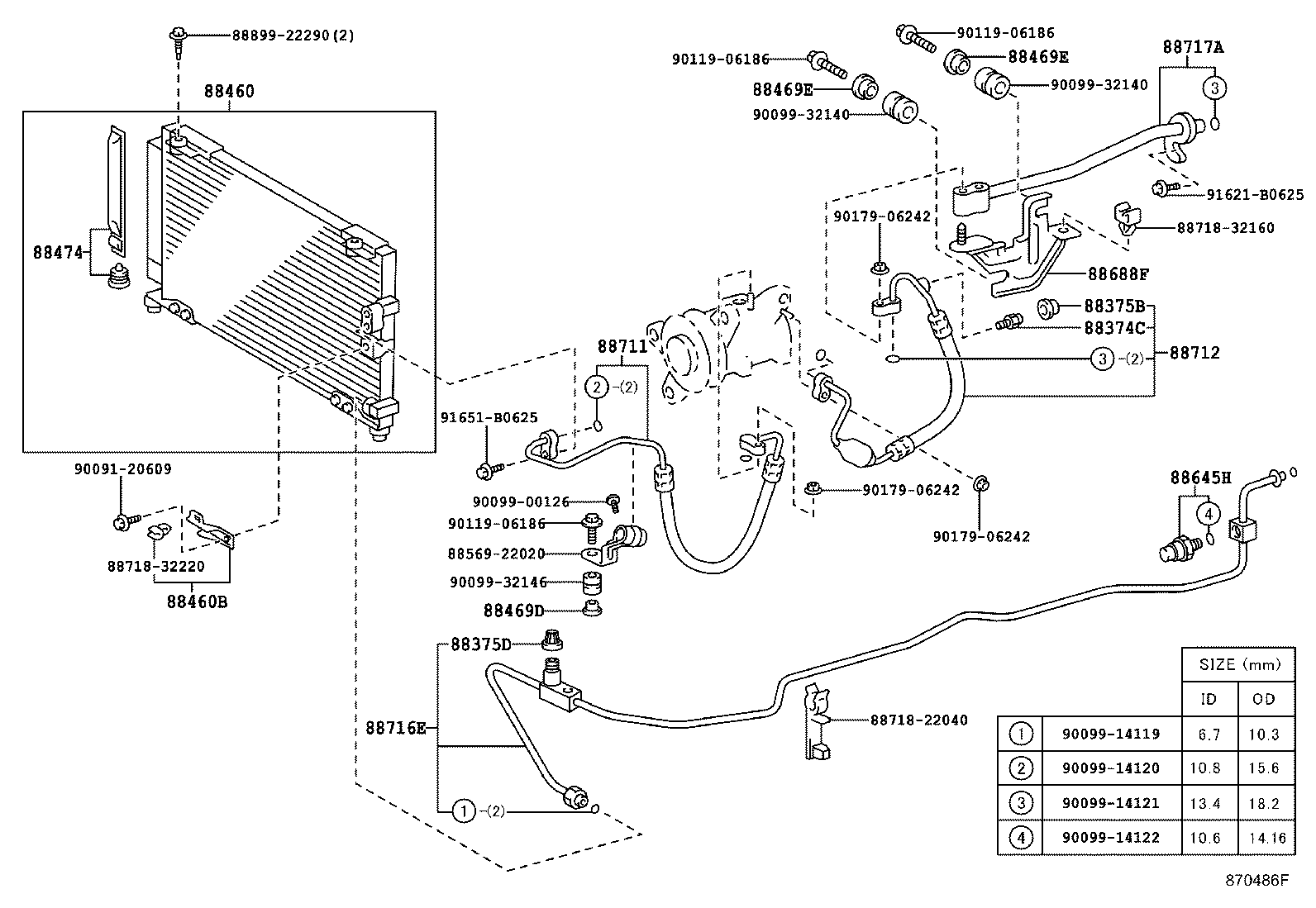

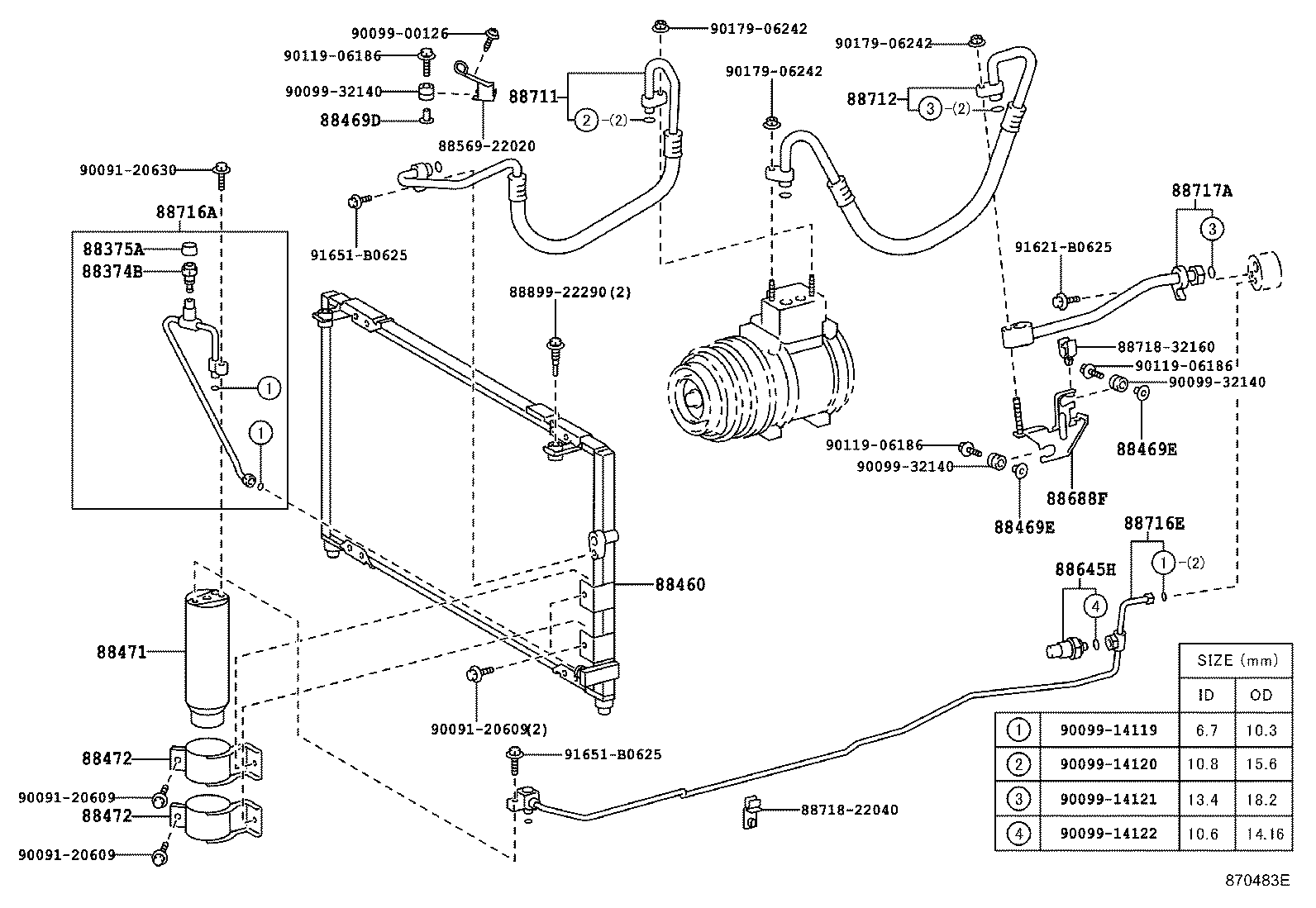

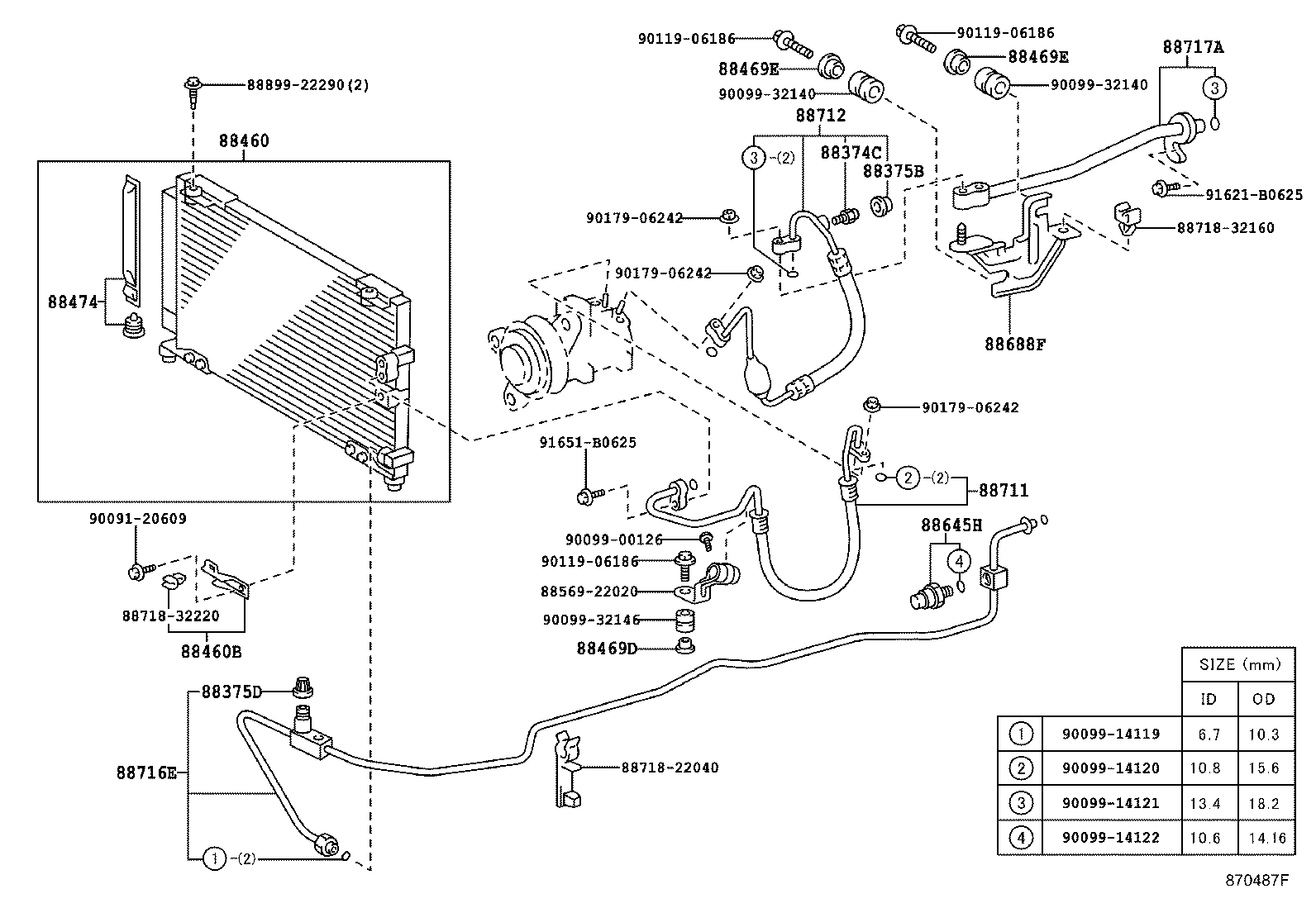

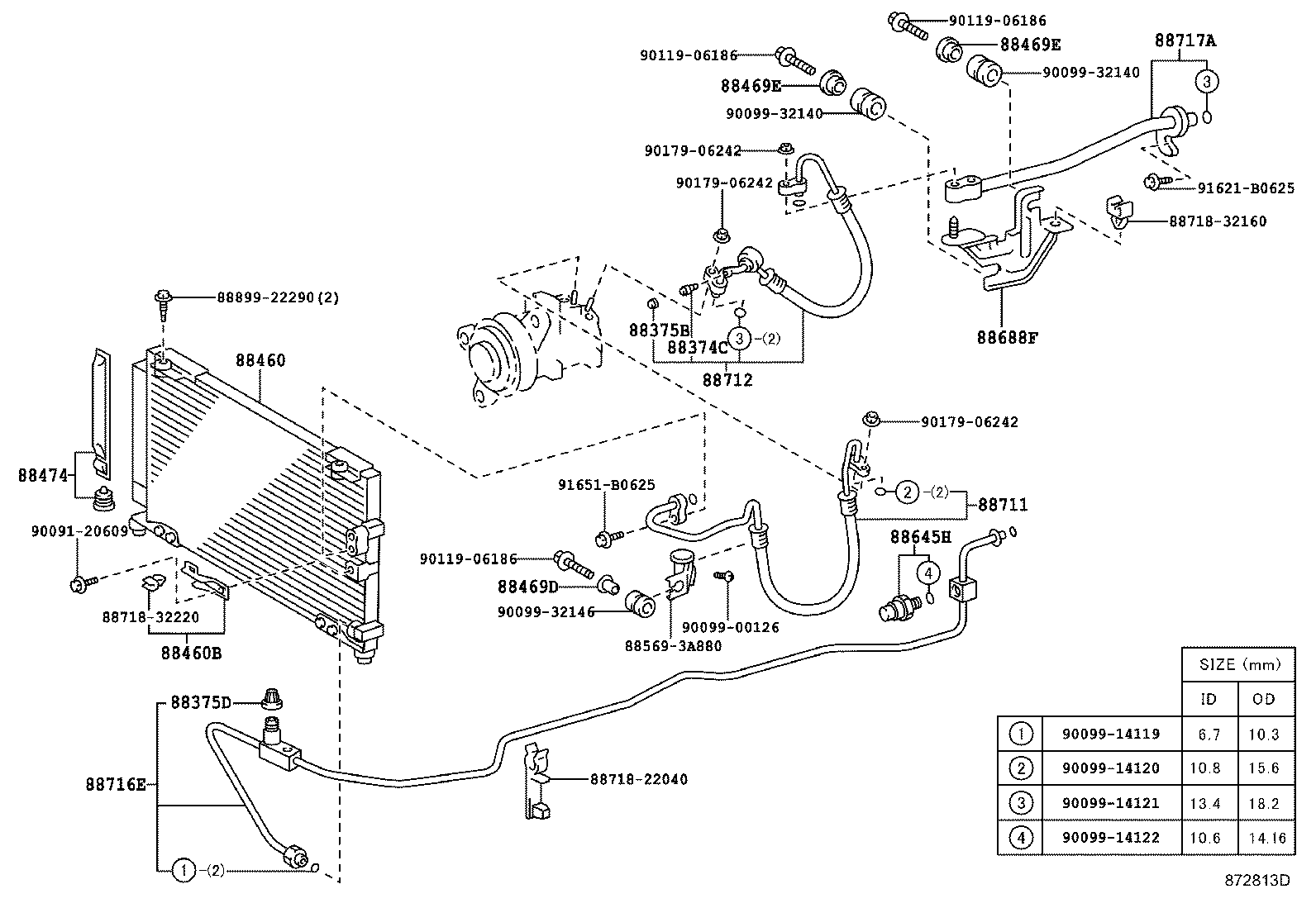

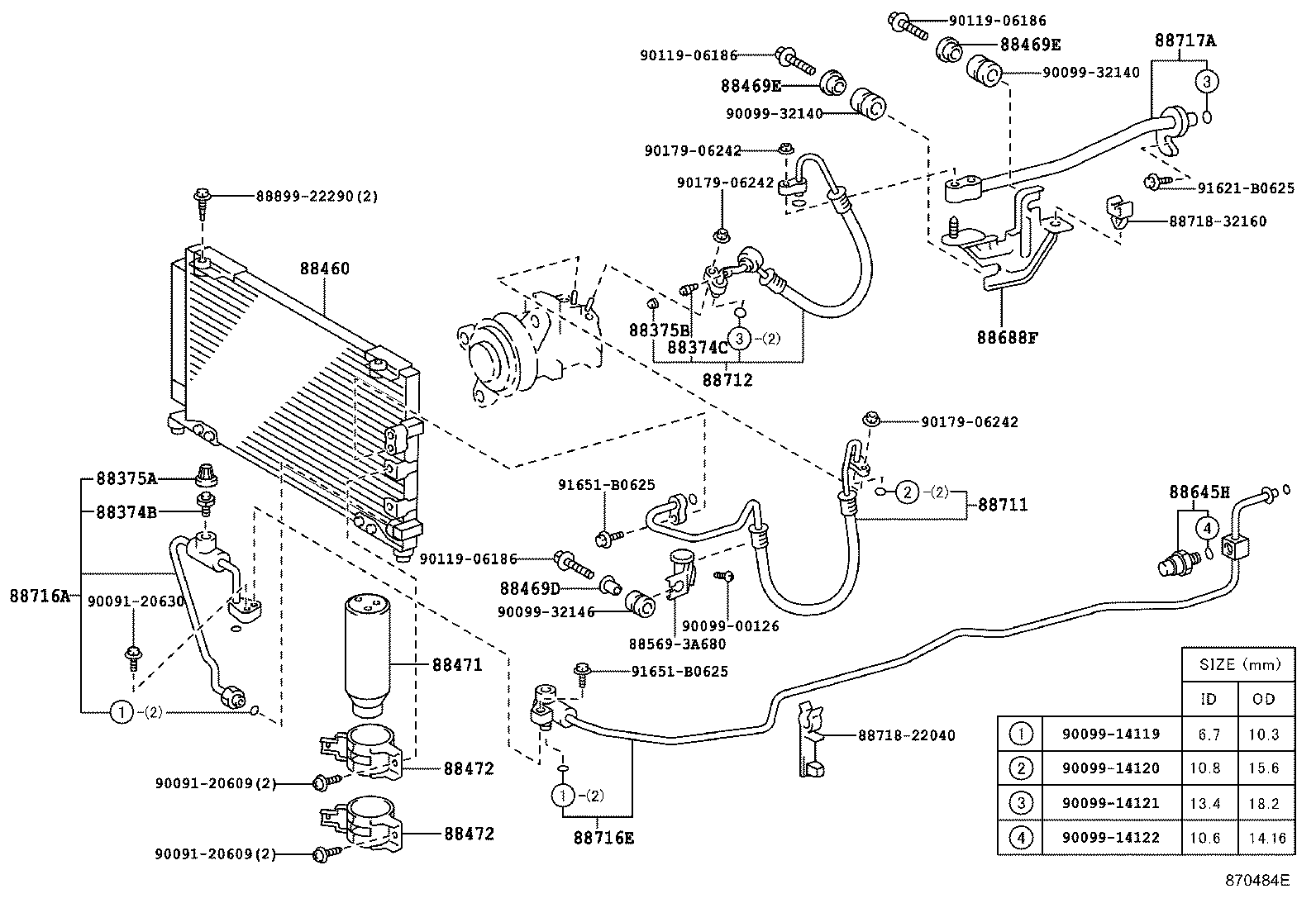

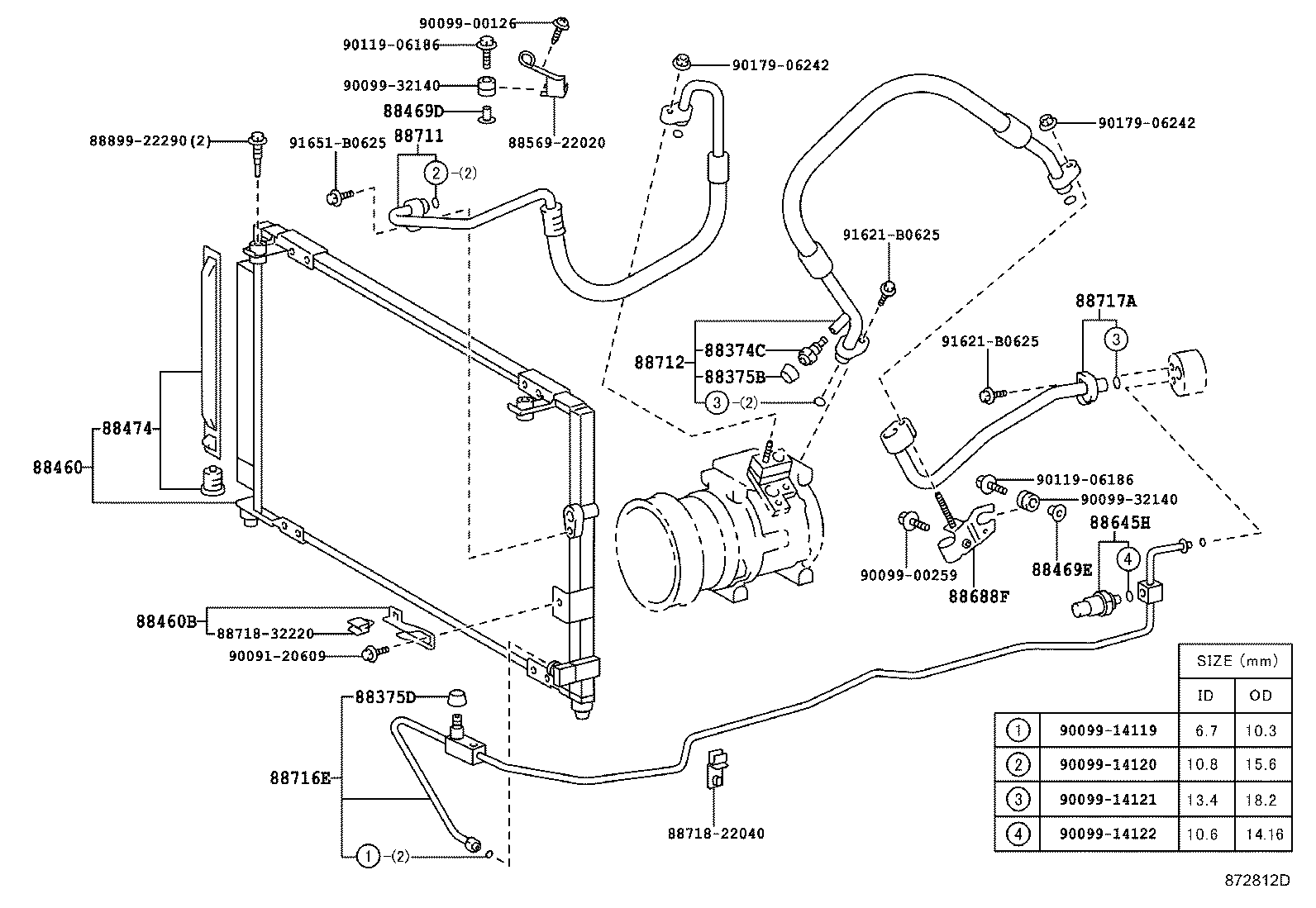

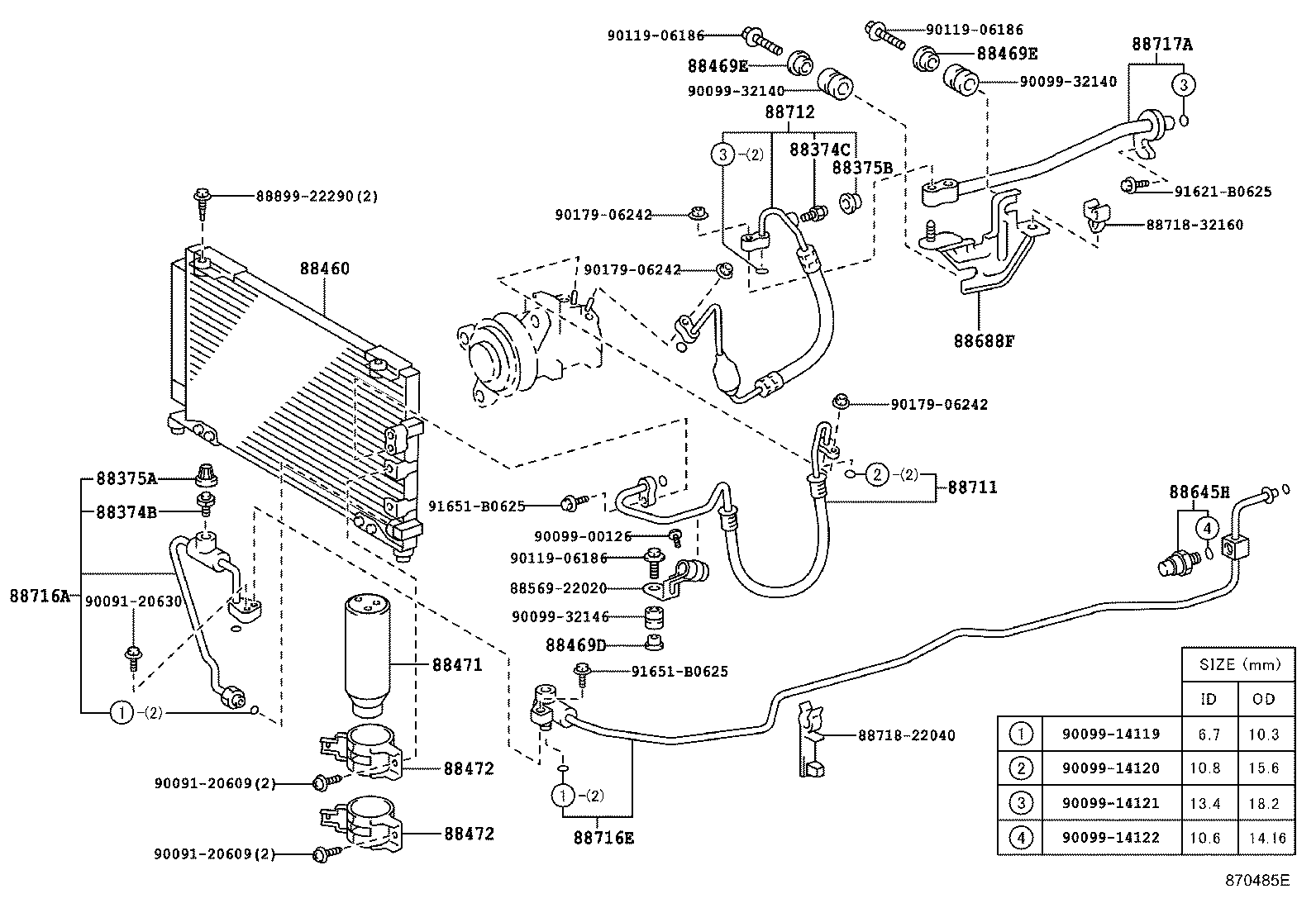

Figure 870482E 870482E 1996-09 → — Figure 870483E 870483E 1996-09 → 1998-08 Figure 872812D 872812D 1998-08 → — Figure 870484E 870484E 1996-09 → 1998-08 Figure 872813D 872813D 1998-08 → — Figure 870485E 870485E 1996-09 → 1998-08 Figure 872814D 872814D 1998-08 → — Figure 870486F 870486F 1996-09 → — Figure 870487F 870487F 1996-09 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88460B Bracket, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88469E Collar, Condenser Bracket, NO.2
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88688E Bracket, Cooler Refrigerant Hose, NO.1
88688F Bracket, Cooler Refrigerant Hose, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
