Toyota Verossa

2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

34 part groups · 3 illustrations

Illustrations

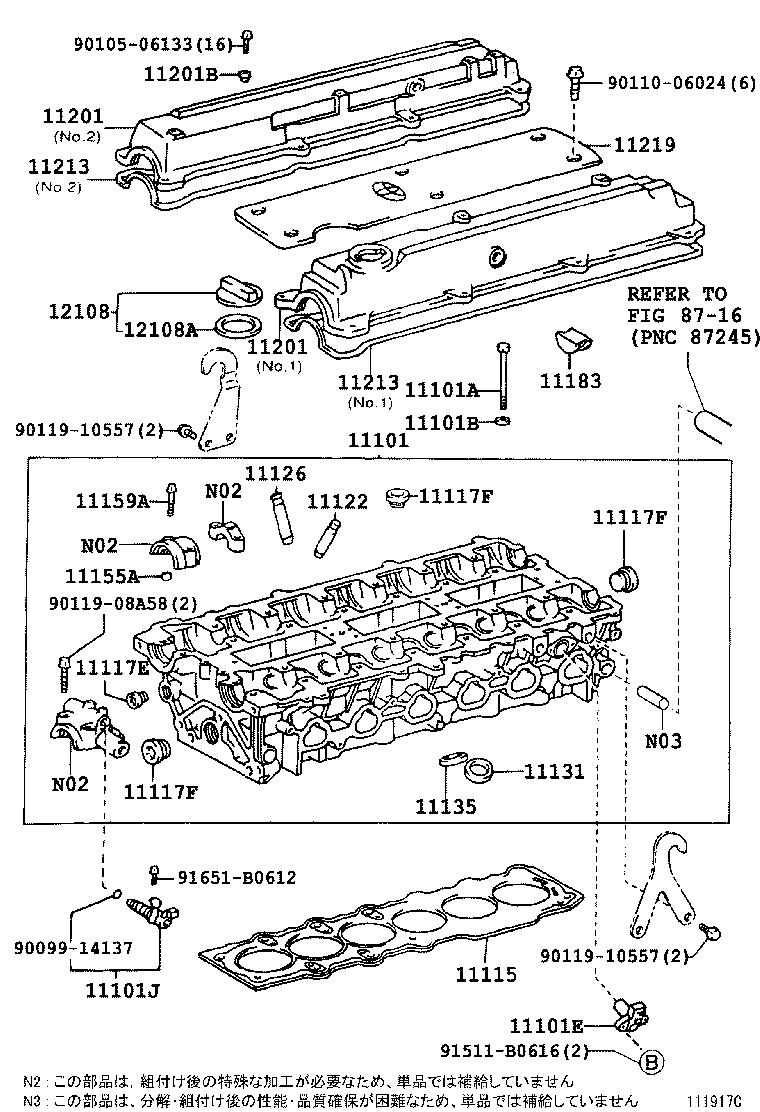

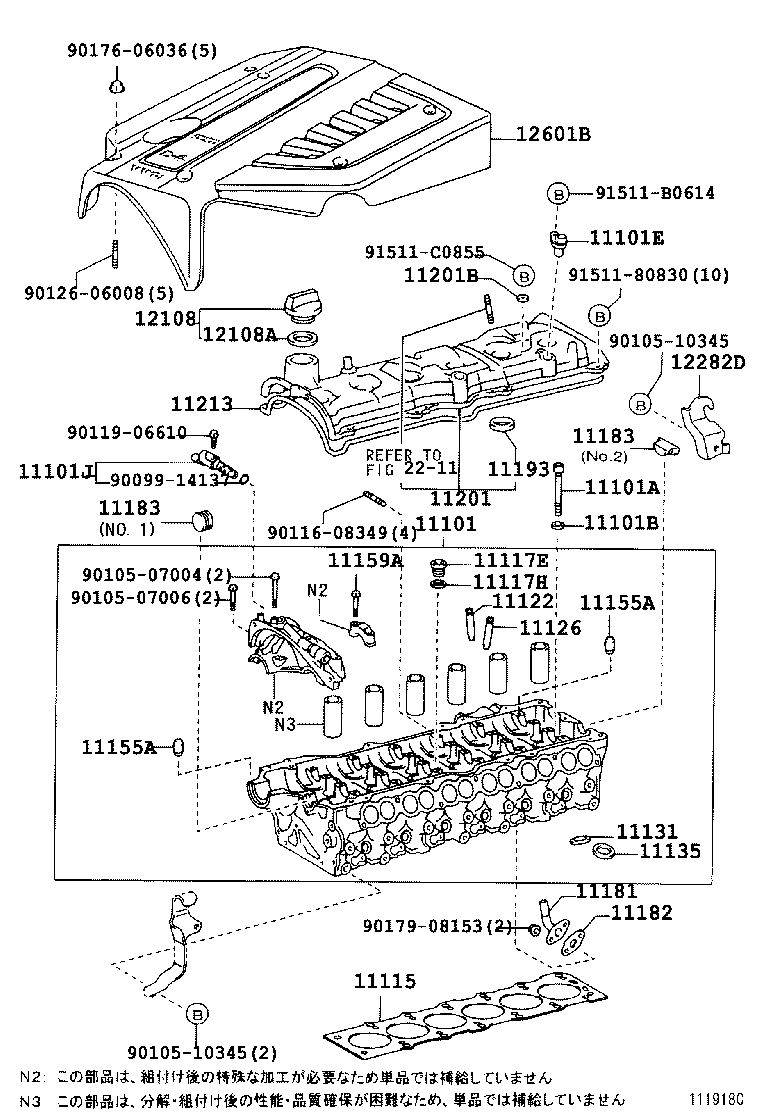

Figure 111883G 111883G 2001-06 → — Figure 111917C 111917C 2001-06 → 2004-04 Figure 111918C 111918C 2001-06 → 2004-04

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101A Bolt(FOR CYLINDER HEAD SET)
11101B Washer, Plate(FOR CYLINDER HEAD SET)
11101D Bolt, Stud(FOR WATER OUTLET)
11101E Sensor, Cam Position
11101J Valve Assy, Camshaft Timing Oil Control
11115 Gasket, Cylinder Head
11116A Plug, Tight, NO.1
11117E Plug, W/Head Straight Screw, NO.1
11117F Plug, W/Head Straight Screw, NO.2
11117H Gasket(FOR WATER HOLE)
11118A Plug, Straight, NO.1
11122 Bush, Intake Valve Guide
11126 Bush, Exhaust Valve Guide
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11155A Pin, Ring W/Head
11159A Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11183 Plug, Semicircular
11191A Gasket(FOR SPARK PLUG TUBE)
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11201B Washer, Seal(FOR CYLINDER HEAD COVER)
11213 Gasket, Cylinder Head Cover
11219 Cover, Cylinder Head, NO.3
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
12281A Hanger, Engine, NO.1
12282D Hanger, Engine, NO.2
12601B Cover Sub-assy, Engine, NO.1
12631A Bracket, Engine Cover
15330A Ring, O(FOR CAM TIMING OIL CONTROL VALVE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
