Toyota Verossa
2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan
Discontinued model
Data version 2005-01
Cylinder Block

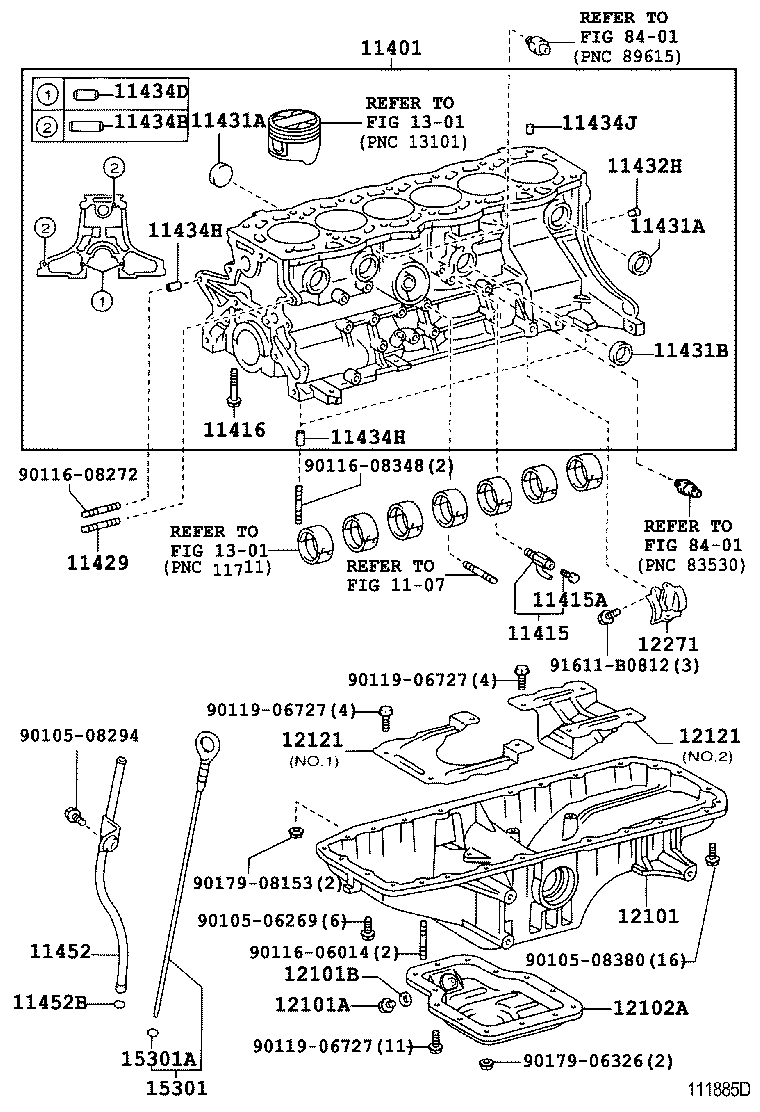

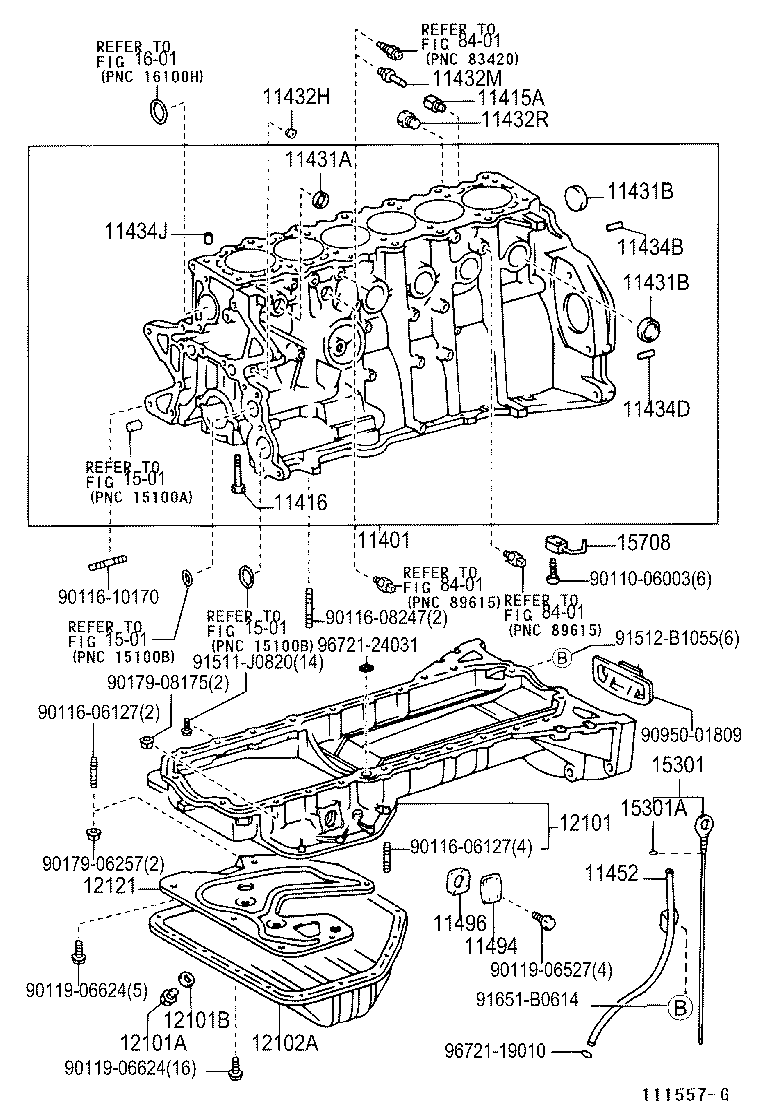

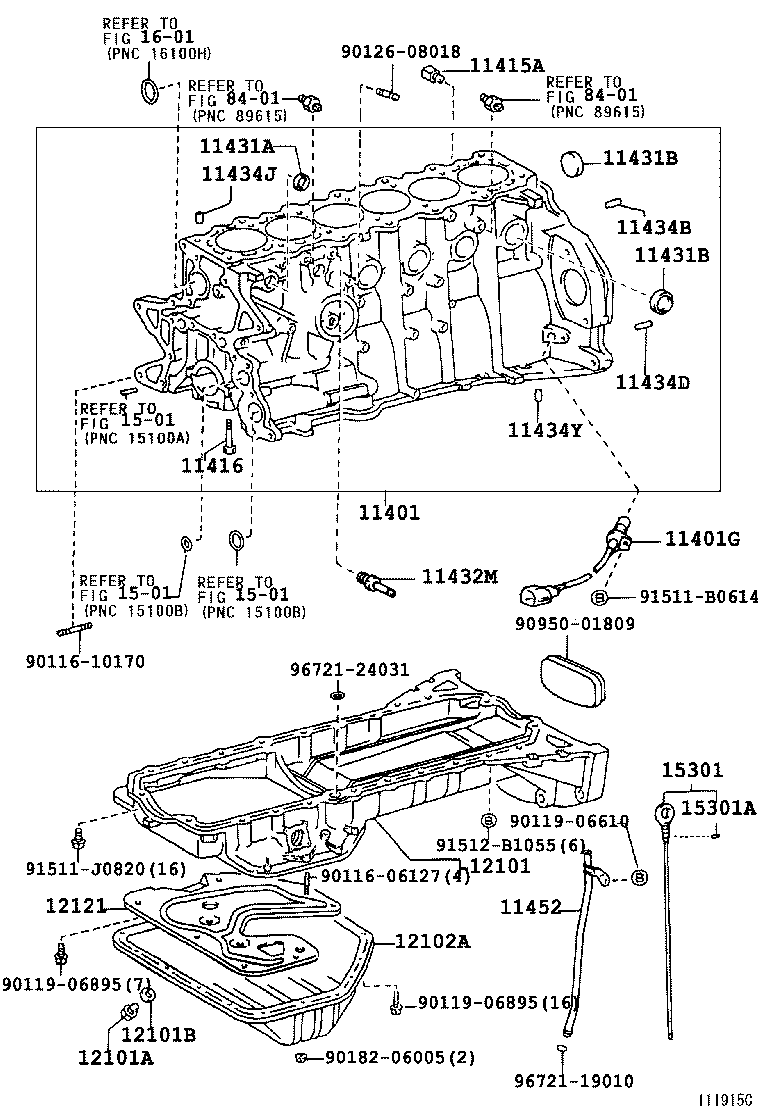

31 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11401 | Block Sub-assy, Cylinder |
| 11401G | Sensor, Crank Position |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11421 | Bolt, Stud(FOR OIL PAN) |
| 11429 | Bolt, Stud(FOR ALTERNATOR BRACKET) |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11432H | Plug, W/Head Taper Screw, NO.5 |
| 11432M | Union(FOR CYLINDER BLOCK) |
| 11432R | Plug, W/Head Straight Screw, NO.1(FOR CYLINDER BLOCK) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434H | Pin, Ring (FOR TIMING BELT COVER SET) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 11452C | Union(FOR OIL LEVEL GAGE GUIDE) |
| 11494 | Plate, Oil Hole Cover |
| 11496 | Gasket, Oil Hole Cover Plate |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12102A | Pan Sub-assy, Oil, NO.2 |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 12271 | Screen, Oil Separator |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15708 | Nozzle Sub-assy, Oil, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
