Toyota Verossa

2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

6 part groups · 3 illustrations

Illustrations

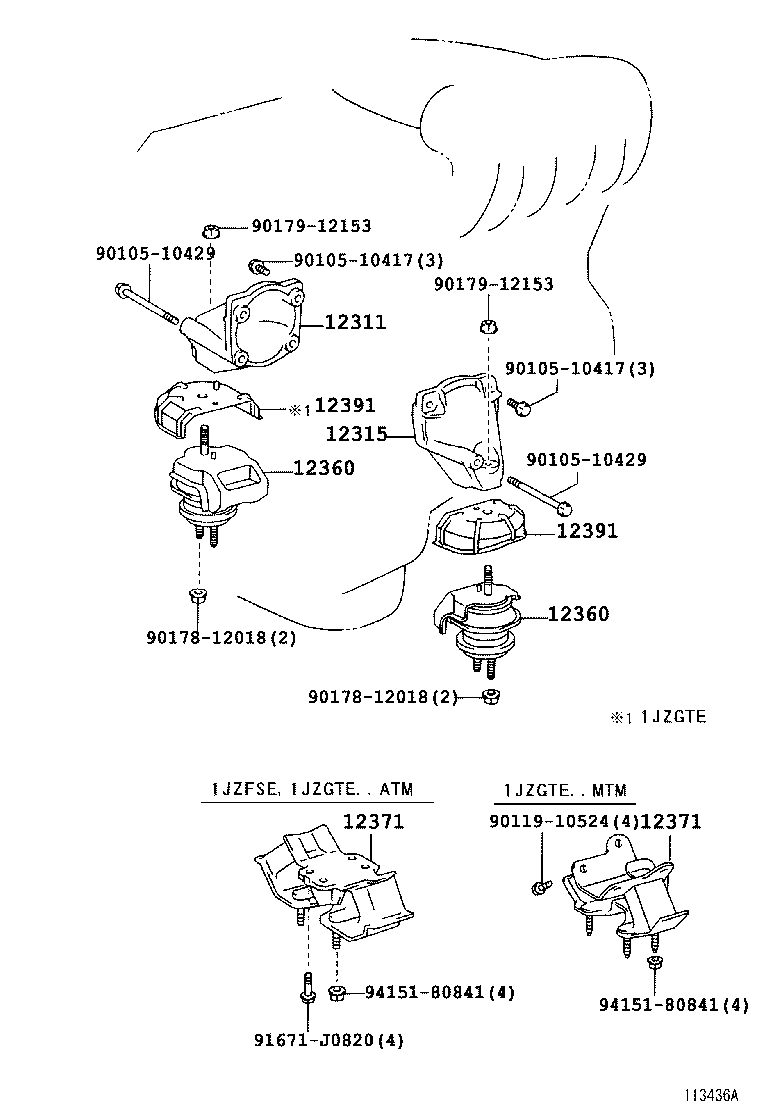

Figure 111881D 111881D 2001-06 → — Figure 111193A 111193A 2001-06 → — Figure 113436A 113436A 2001-06 → 2004-04

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12321 Bracket, Engine Mounting, Rear, NO.1
12360 Insulator Assy, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12391 Insulator, Engine Mounting Front, Heat, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
