Toyota Verossa
2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan
Discontinued model
Data version 2005-01

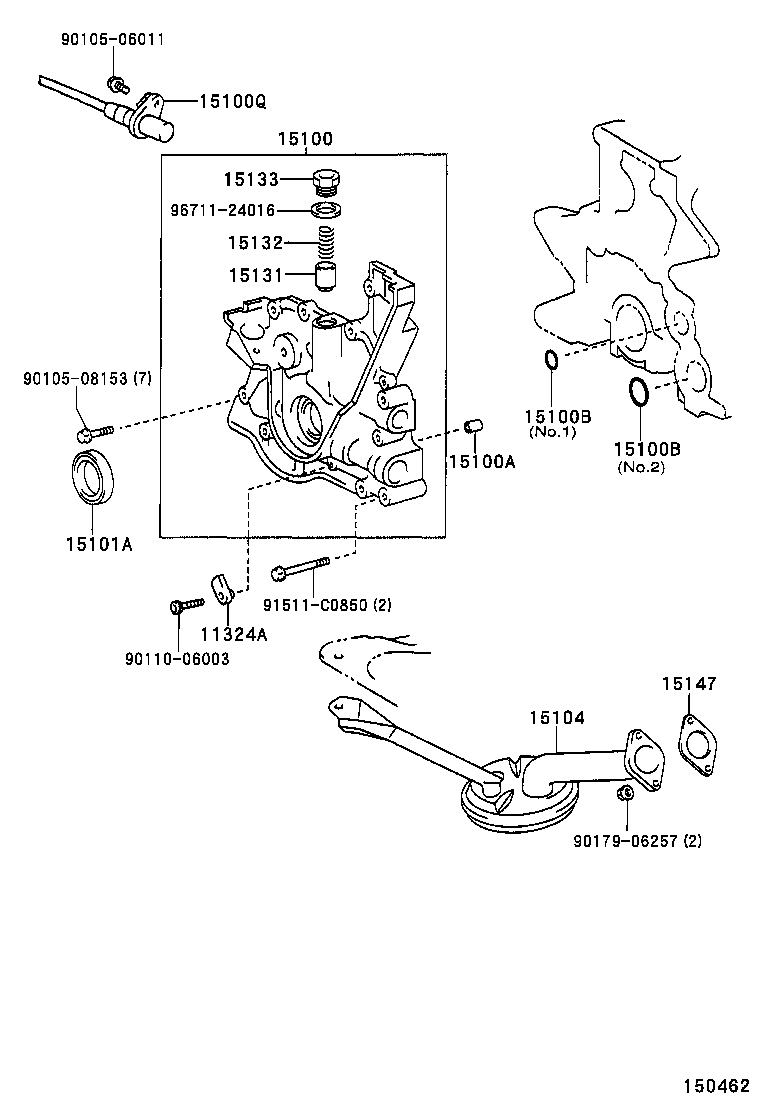

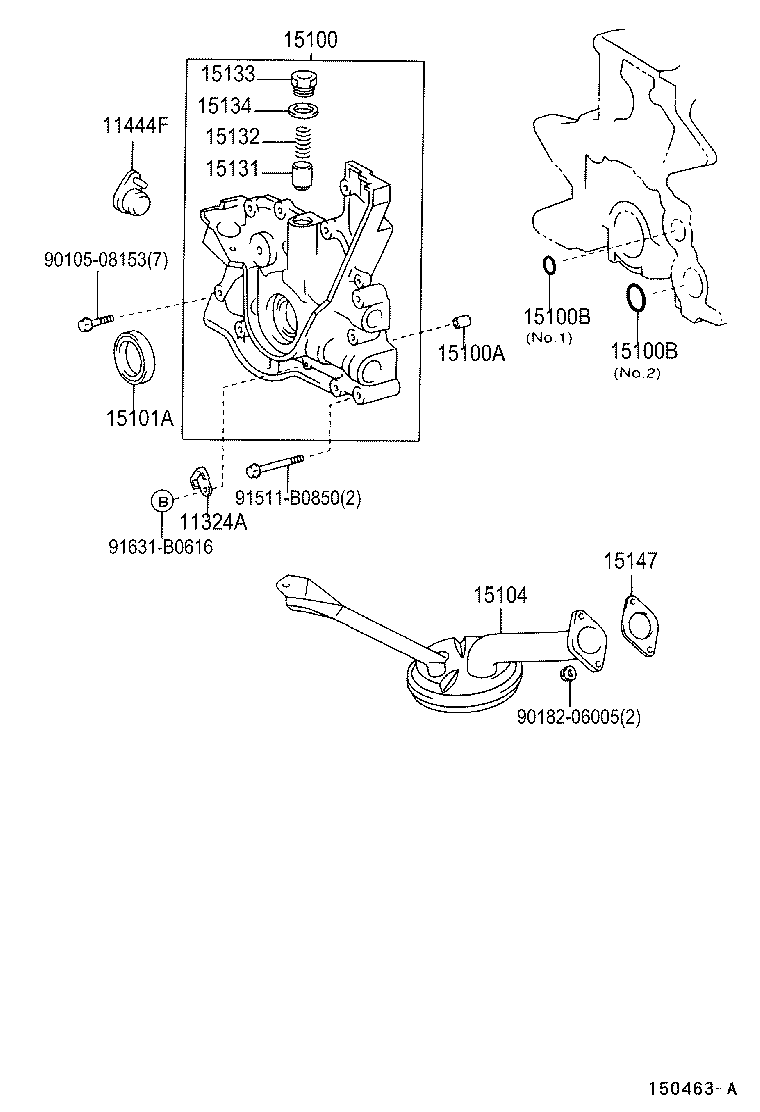

Engine Oil Pump
14 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11324A | Plate, Timing Belt |
| 11444F | Plug, Hole(FOR OIL PUMP) |
| 15100 | Pump Assy, Oil |
| 15100A | Pin, Ring(FOR OIL PUMP SET) |
| 15100B | Ring, O(FOR OIL PUMP) |
| 15100E | Pin, Straight (FOR OIL PUMP SET) |
| 15100Q | Sensor, Crank Position |
| 15101A | Seal(FOR CRANKSHAFT) |
| 15104 | Strainer Sub-assy, Oil |
| 15131 | Valve, Oil Pump Relief |
| 15132 | Spring, Oil Pump Relief Valve |
| 15133 | Plug, Oil Pump Relief Valve |
| 15134 | Gasket, Oil Pump Relief Valve |
| 15147 | Gasket, Oil Strainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
