Toyota Verossa

2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan

Discontinued model Data version 2005-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Filter

5 part groups · 3 illustrations

Illustrations

150047 2001-06 → —

150280 2001-06 → —

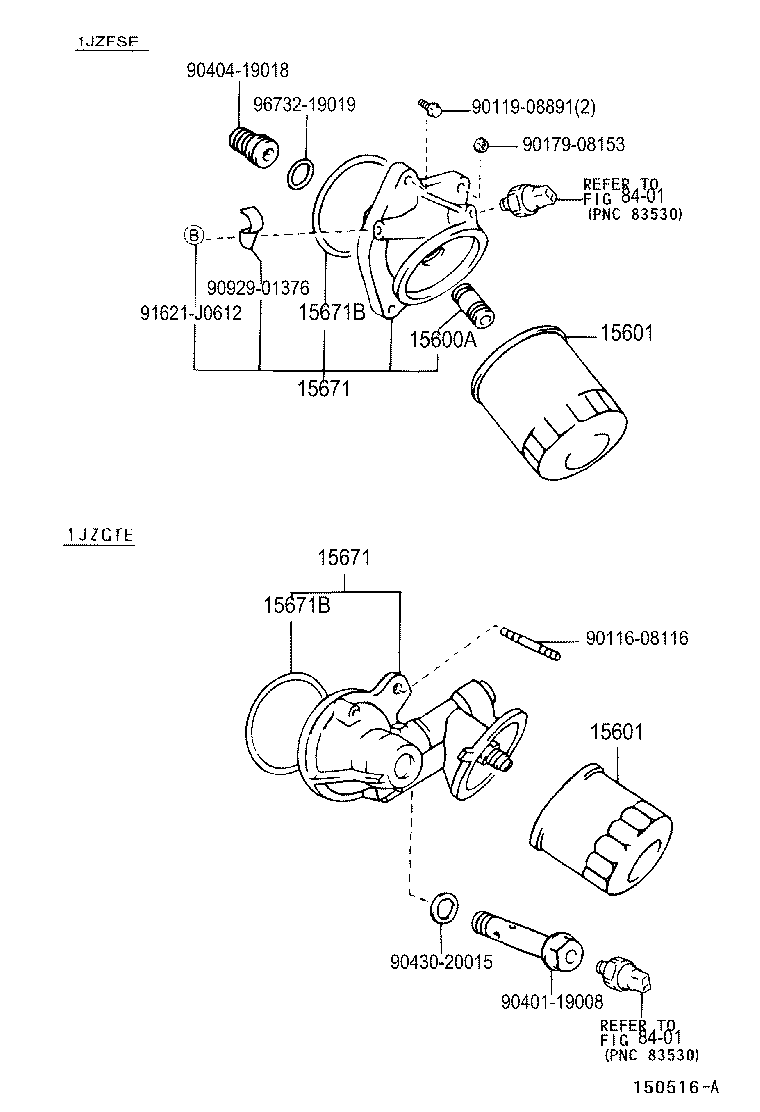

Figure 150516A

150516A 2001-06 → 2004-04

Part groups

PNC	Description
15600A	Union(FOR OIL FILTER)
15601	Filter Sub-assy, Oil
15671	Bracket, Oil Filter
15671B	Gasket, Oil Filter Bracket
15690B	Valve Assy, Oil Cooler Relief

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
