Toyota Verossa

2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Cooler

6 part groups · 3 illustrations

Illustrations

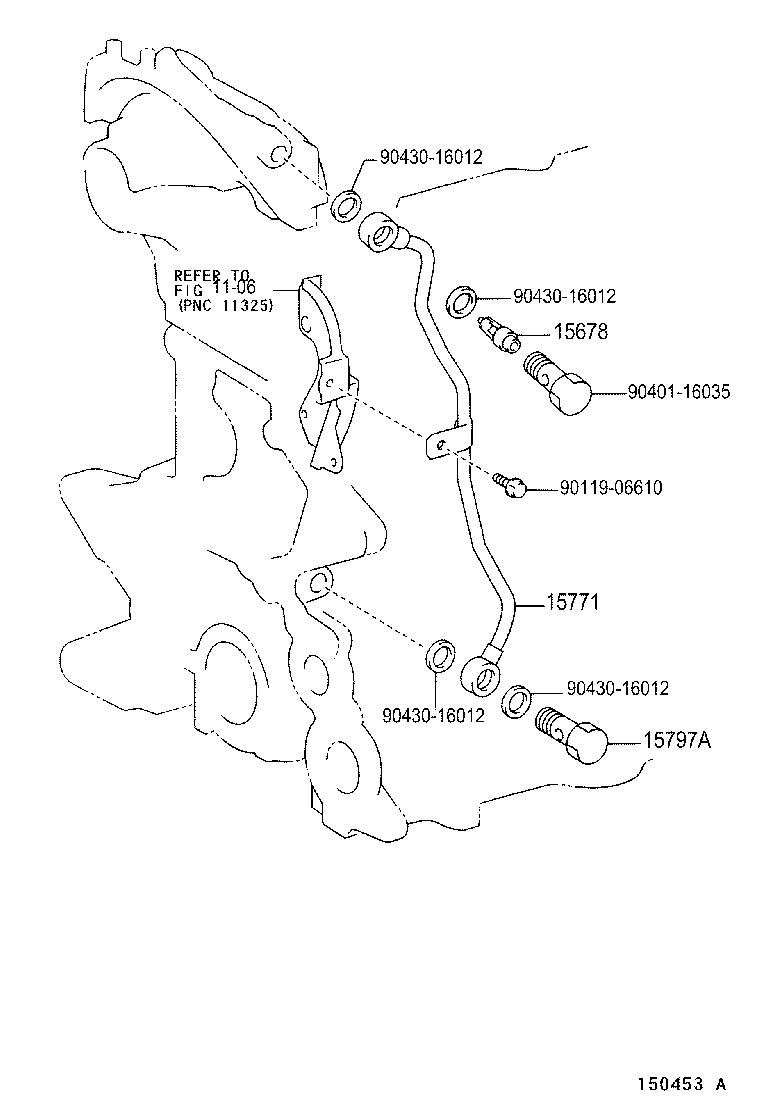

Figure 150270C 150270C 2001-06 → — Figure 150371 150371 2001-06 → 2004-04 Figure 150453A 150453A 2001-06 → 2004-04

Part groups

PNCDescription
15678 Filter, Oil Control Valve
15690 Valve Assy, Oil Cooler Relief
15710 Cooler Assy, Oil
15710B Ring, O(FOR OIL COOLER)
15771 Pipe, Oil, NO.1
15797A Bolt, Oil Check Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
