Toyota Verossa

2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 5 illustrations

Illustrations

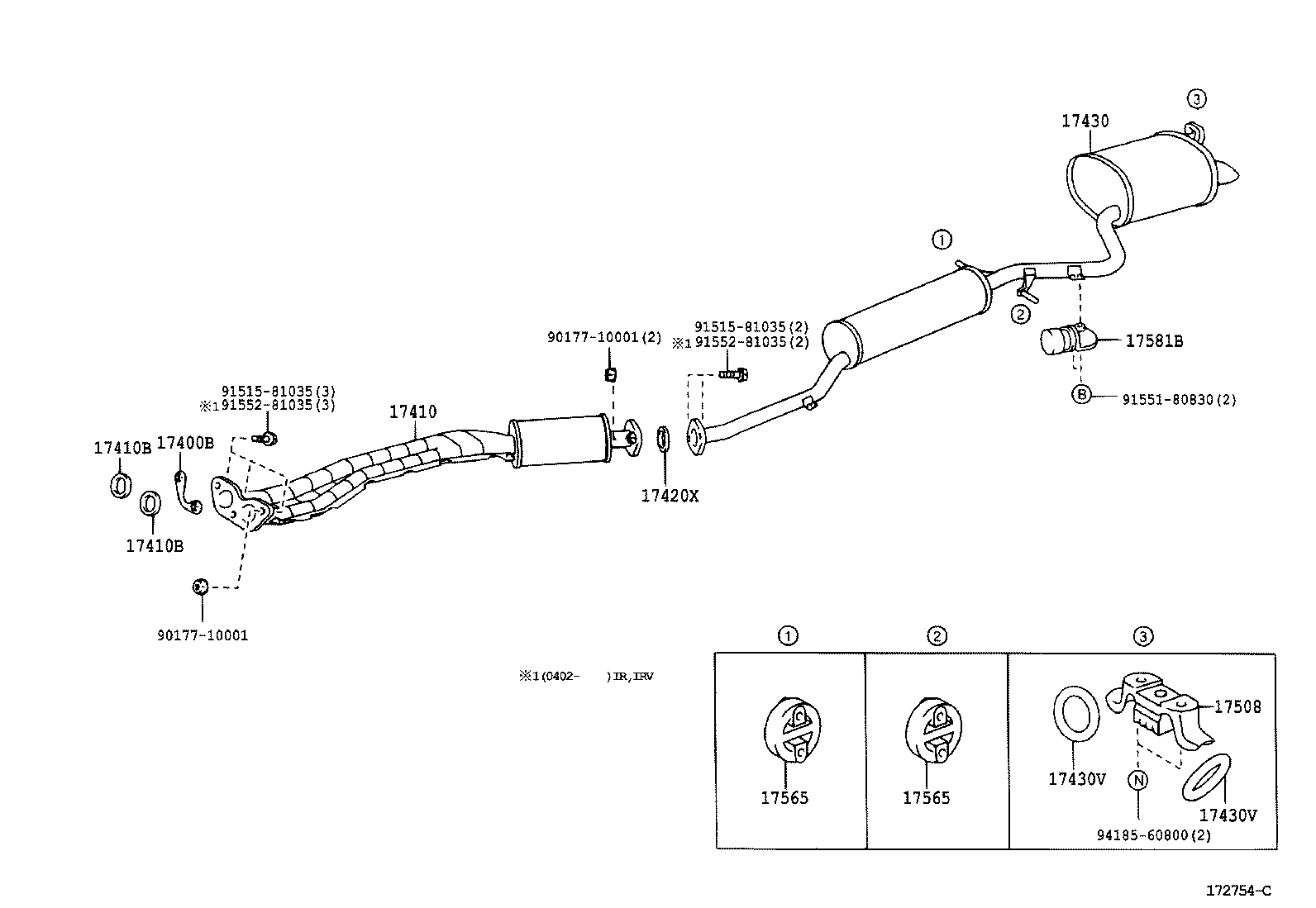

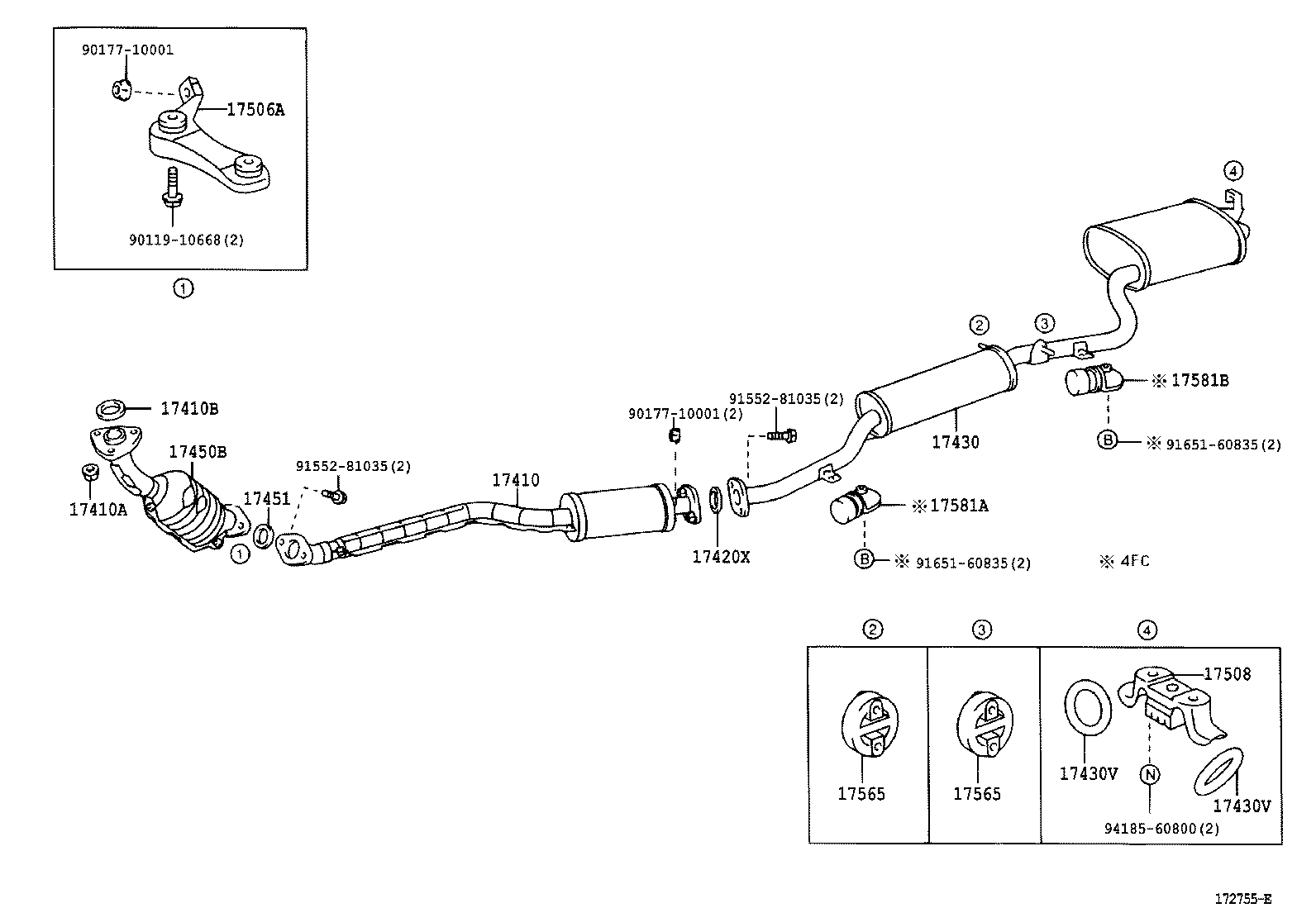

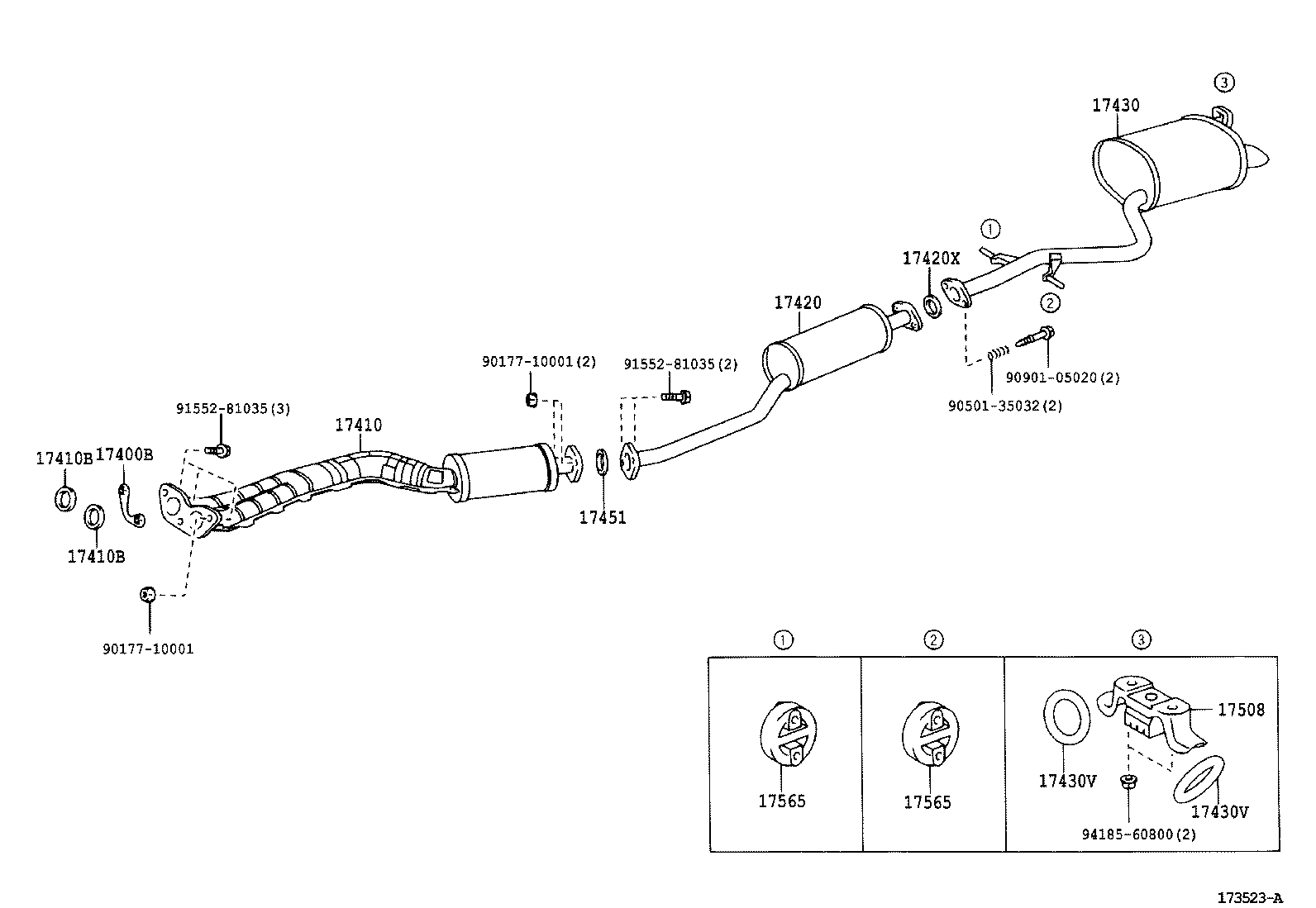

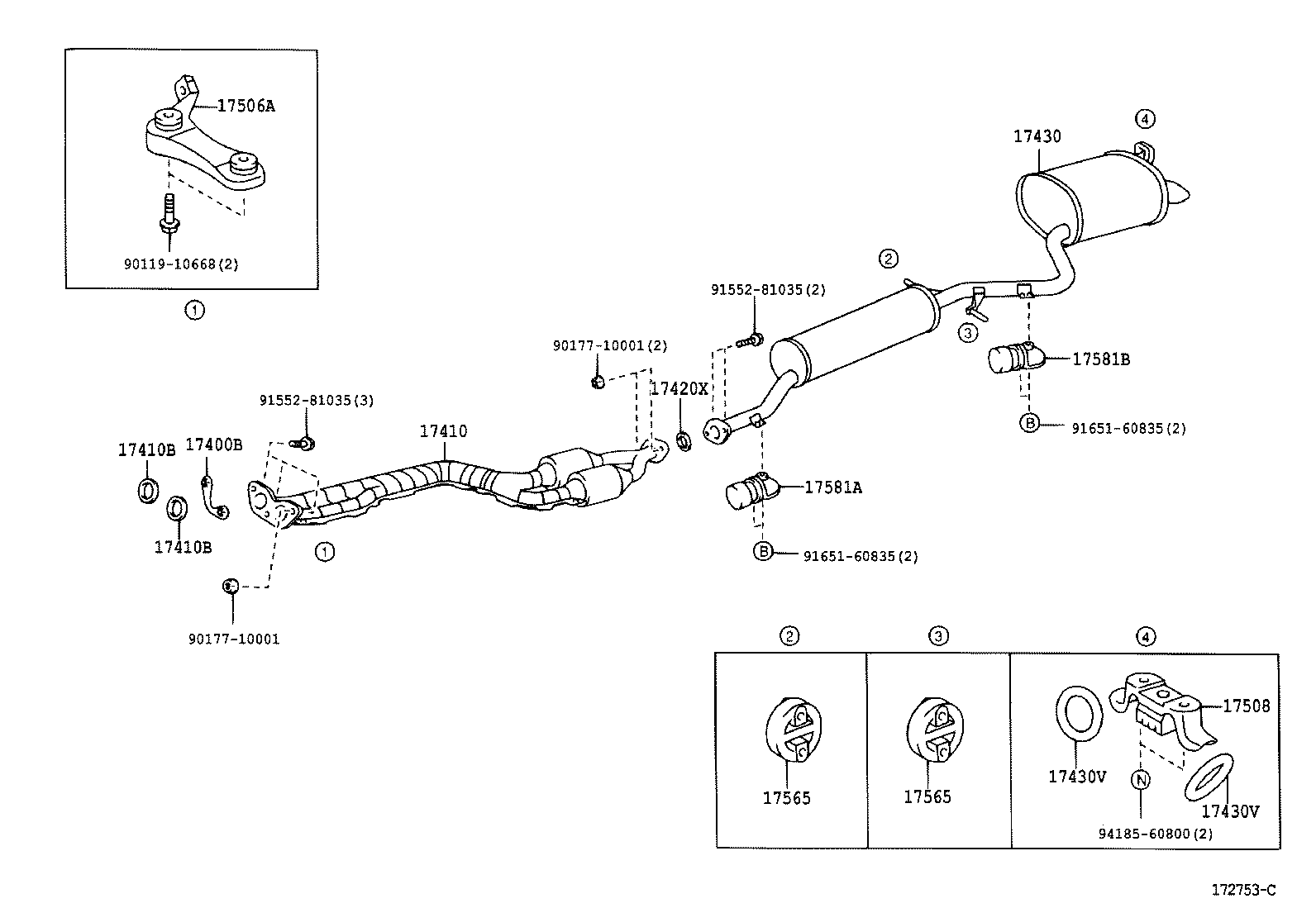

Figure 172752C 172752C 2001-06 → 2002-09 Figure 173523A 173523A 2002-09 → — Figure 172754C 172754C 2001-06 → — Figure 172753C 172753C 2001-06 → — Figure 172755E 172755E 2001-06 → —

Part groups

PNCDescription
17400B Retainer, Exhaust Pipe
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17430V Bolt OR Ring, Exhaust Tailpipe (FOR REAR)
17450B Pipe Assy, Exhaust, Front NO.2
17451 Gasket, Exhaust Pipe
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17565 Support, Exhaust Pipe, NO.5
17581A Damper, Exhaust Pipe
17581B Damper, Exhaust Pipe, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
