Toyota Verossa

2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

36 part groups · 3 illustrations

Illustrations

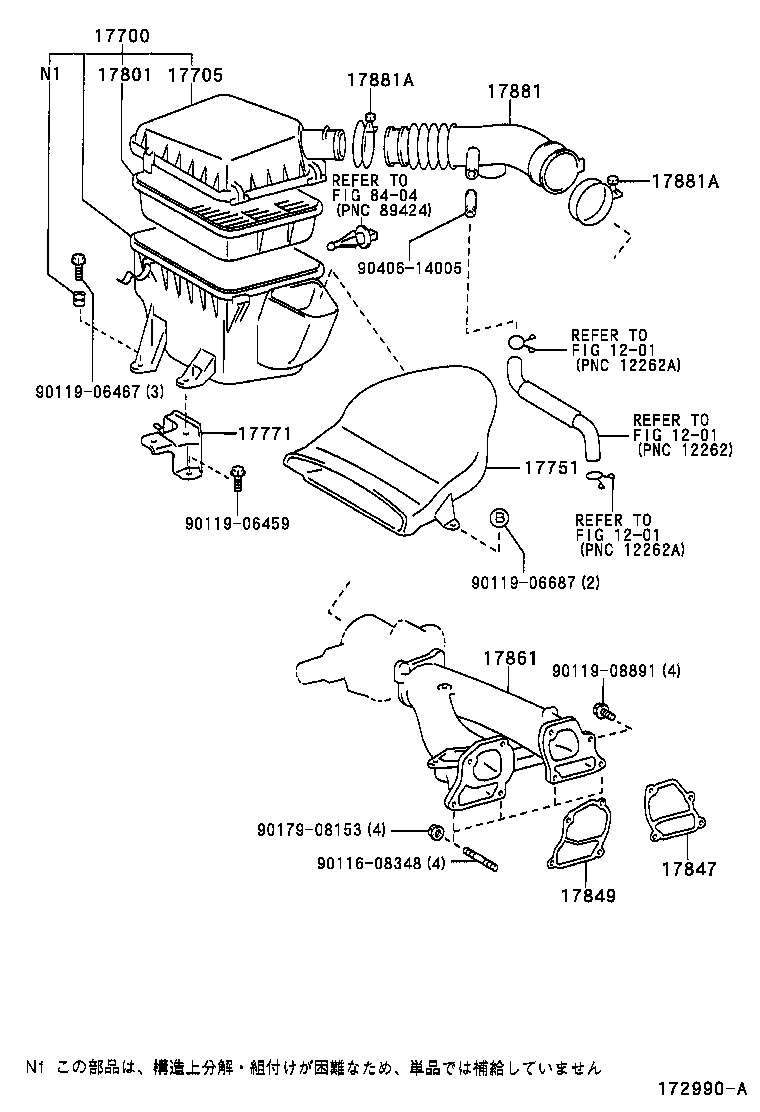

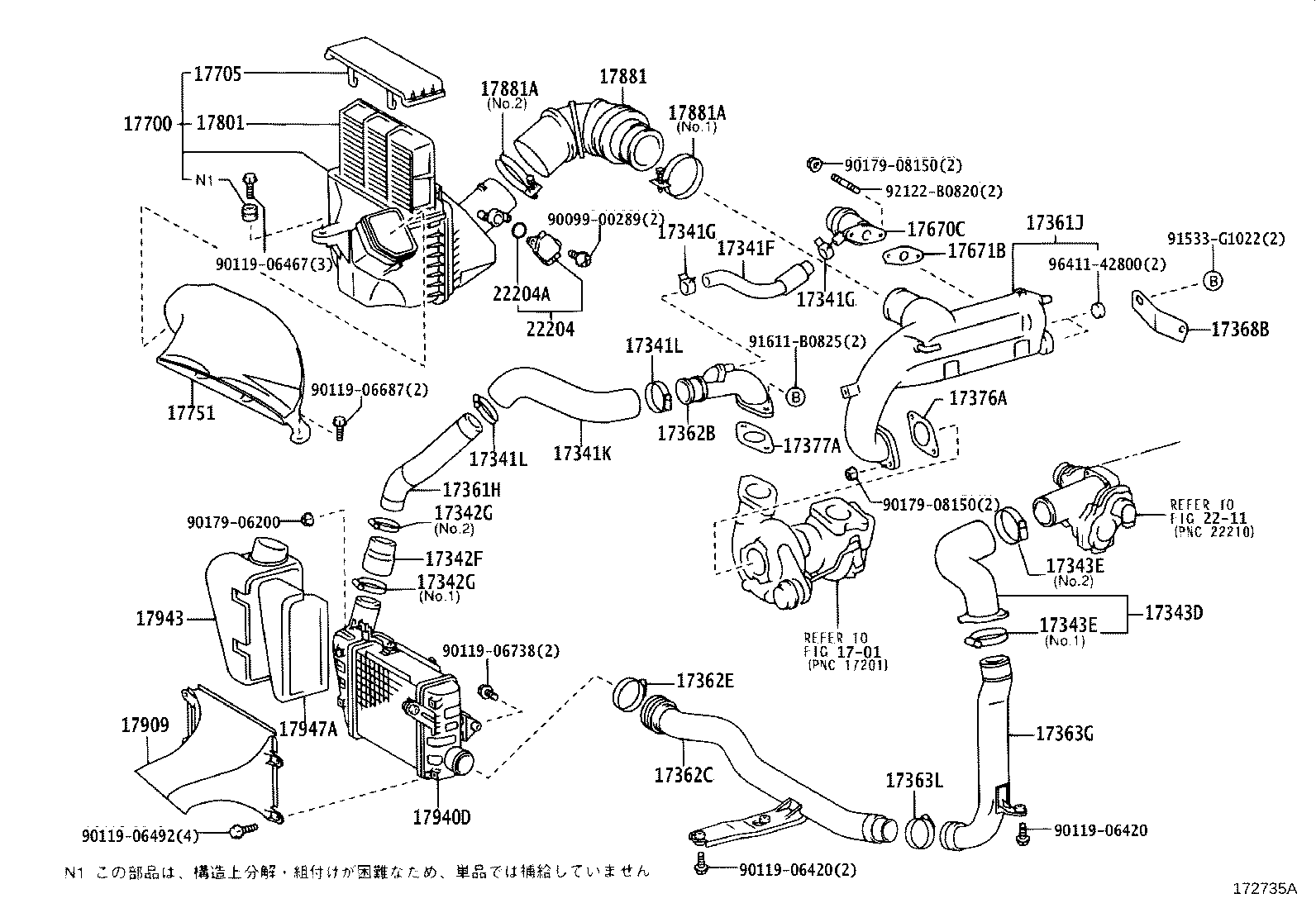

Figure 172723C 172723C 2001-06 → — Figure 172735A 172735A 2001-06 → 2004-04 Figure 172990A 172990A 2001-06 → 2004-04

Part groups

PNCDescription
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17341L Clamp, Hose
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17361H Tube, Air(FOR SUPERCHARGER)
17361J Tube, Air, NO.1
17362B Tube, Air, NO.2
17362C Tube, Air, NO.2
17362E Clamp, NO.2(FOR AIR TUBE, NO.2)
17363G Tube, Air, NO.3
17363L Clamp, NO.3(FOR AIR TUBE, NO.3)
17368B Support, Air Tube
17376A Gasket, Air Tube
17377A Gasket, Air Tube, NO.2
17670C Valve Assy, Air By-pass
17671B Gasket, Air By-pass Valve
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17751 Inlet, Air Cleaner, NO.1
17771 Bracket, Air Cleaner Inlet Duct
17801 Element Sub-assy, Air Cleaner Filter
17847 Gasket, Intake Air Connector, NO.2
17849 Gasket, Intake Air Connector
17861 Connector, Intake Air
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17909 Duct Sub-assy, Intercooler Cooling Air
17940D Intercooler Assy
17943 Protector, Intercooler
17947A Plate, Intercooler
22204 Meter Sub-assy, Intake Air Flow
22204A Ring, O(FOR INTAKE AIR FLOW METER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
