Toyota Verossa
2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan
Discontinued model
Data version 2005-01

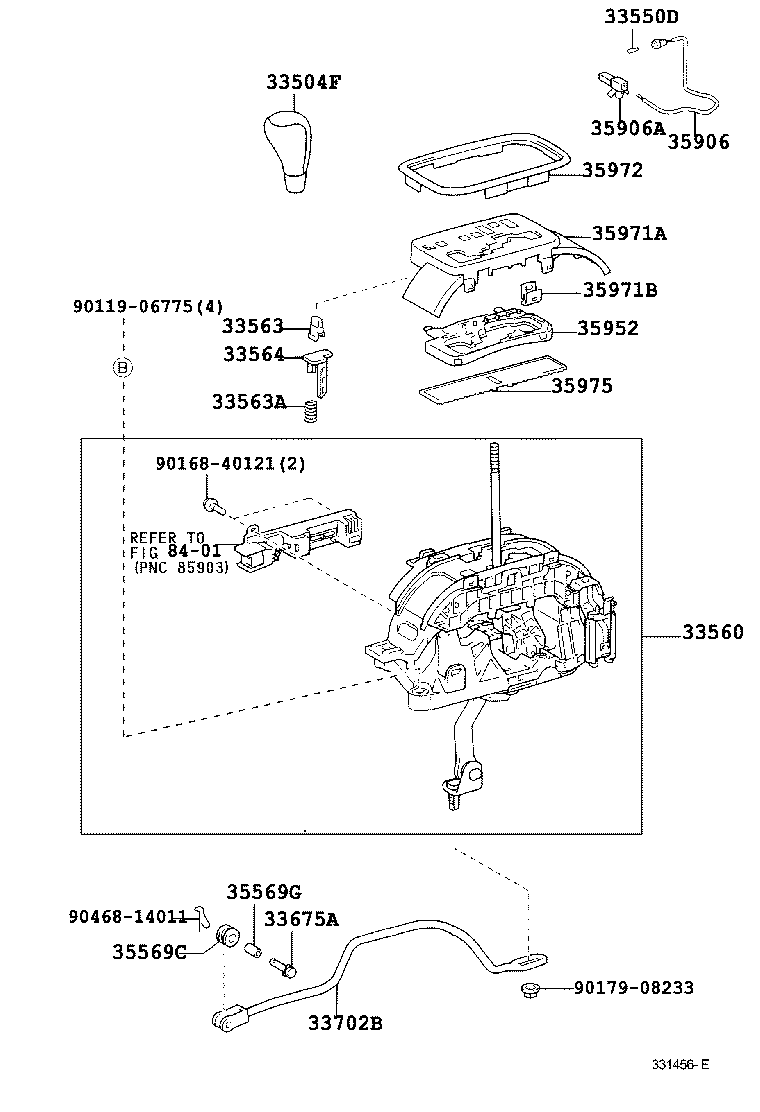

Shift Lever & Retainer
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33504F | Knob Sub-assy, Shift Lever |
| 33506F | Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT) |
| 33506W | Plug, Breather (FOR SHIFT LEVER RETAINER) |
| 33530F | Lever Assy, Shift (FOR FLOOR SHIFT) |
| 33548F | Bush, NO.1, Shift Lever (FOR FLOOR SHIFT) |
| 33550D | Bulb, Position Indicator Lamp |
| 33555B | Boot, Shift & Select Lever |
| 33555G | Boot, Shift & Select Lever, NO.3 |
| 33556F | Seat, Transmission Shift Lever Ball |
| 33556K | Ring, O, N0.1 (FOR TRANSMISSION SHIFT LEVER BALL SEAT) |
| 33560 | Unit Assy, Shift Lock Control |
| 33563 | Button, Shift Lock Release |
| 33563A | Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON) |
| 33564 | Link, Shift Lock Release, NO.1 |
| 33565 | Plate, Control Shift Lever Retainer |
| 33584B | Gasket, Control Shift Lever Retainer, NO.2 |
| 33584F | Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT) |
| 33675A | Pin, W/Hole (FOR TRANSMISSION CONTROL ROD) |
| 33702B | Rod Sub-assy, Gear Shifting, NO.1 (FOR FLOOR SHIFT) |
| 35569C | Grommet (FOR TRANSMISSION CONTROL ROD) |
| 35569G | Bush (FOR TRANSMISSION CONTROL ROD) |
| 35906 | Wire Sub-assy, Indicator Lamp |
| 35906A | Housing, Connector Male (FOR INDICATOR LAMP WIRE) |
| 35952 | Lens, Position Indicator |
| 35971A | Housing, Position Indicator, Upper |
| 35971B | Clip, Bezel |
| 35972 | Cover, Position Indicator Housing |
| 35975 | Cover, Slide (FOR POSITION INDICATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
