Toyota Verossa
2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan
Discontinued model
Data version 2005-01

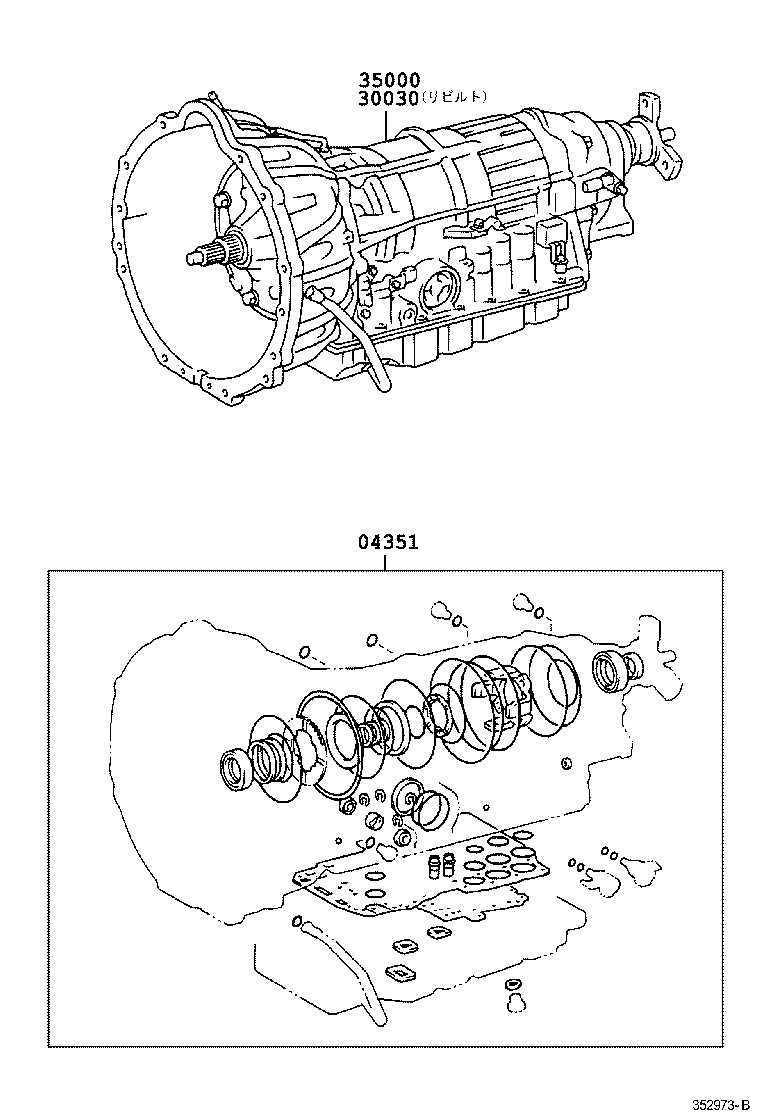

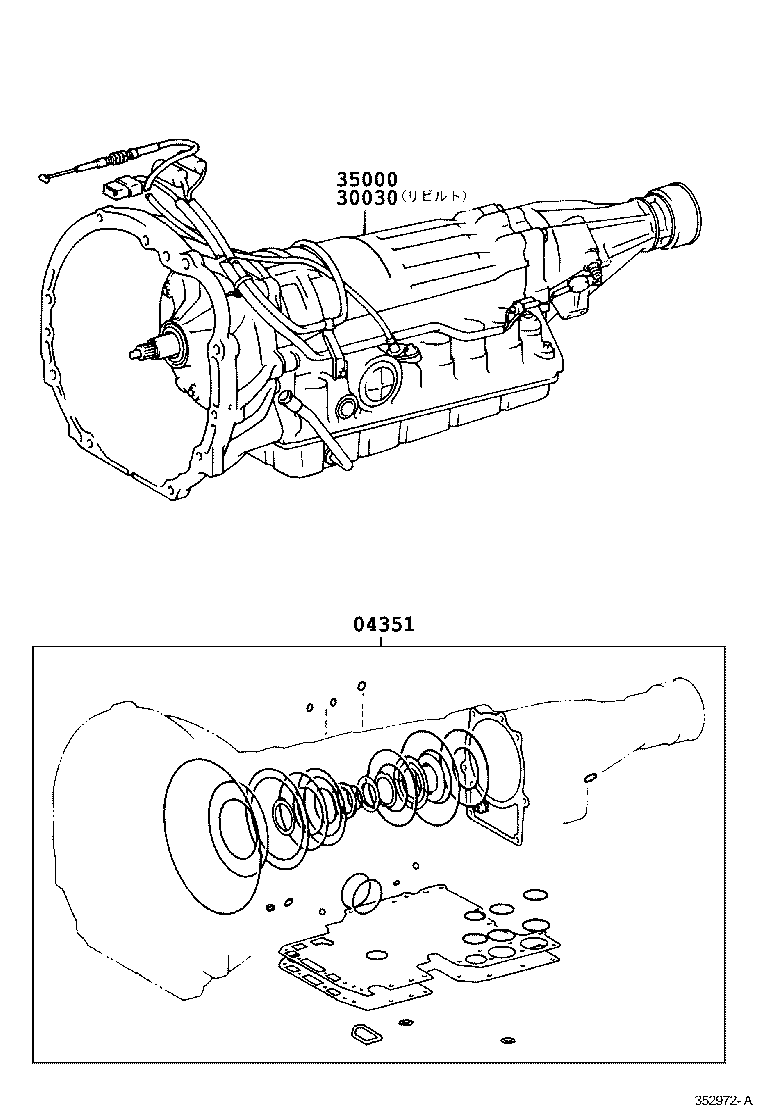

Transaxle OR Transmission Assy & Gasket Kit (ATM)
5 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04351 | Gasket Kit, Automatic Transmission Overhaul |
| 30030 | Transmission Assy, Rebuilt |

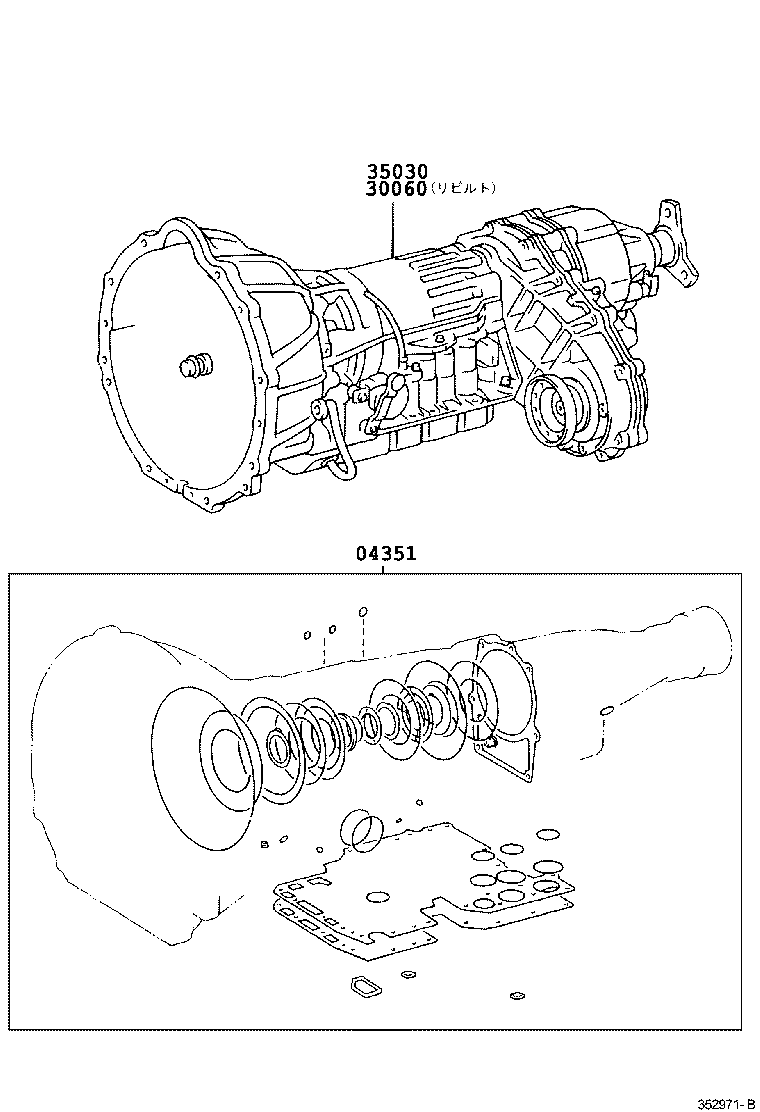

| 30060 | Transmission Assy, W/Transfer, Rebuilt |
| 35000 | Transmission Assy, Automatic |
| 35030 | Transmission Assy, Automatic W/Transfer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
