Toyota Verossa
2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan
Discontinued model
Data version 2005-01

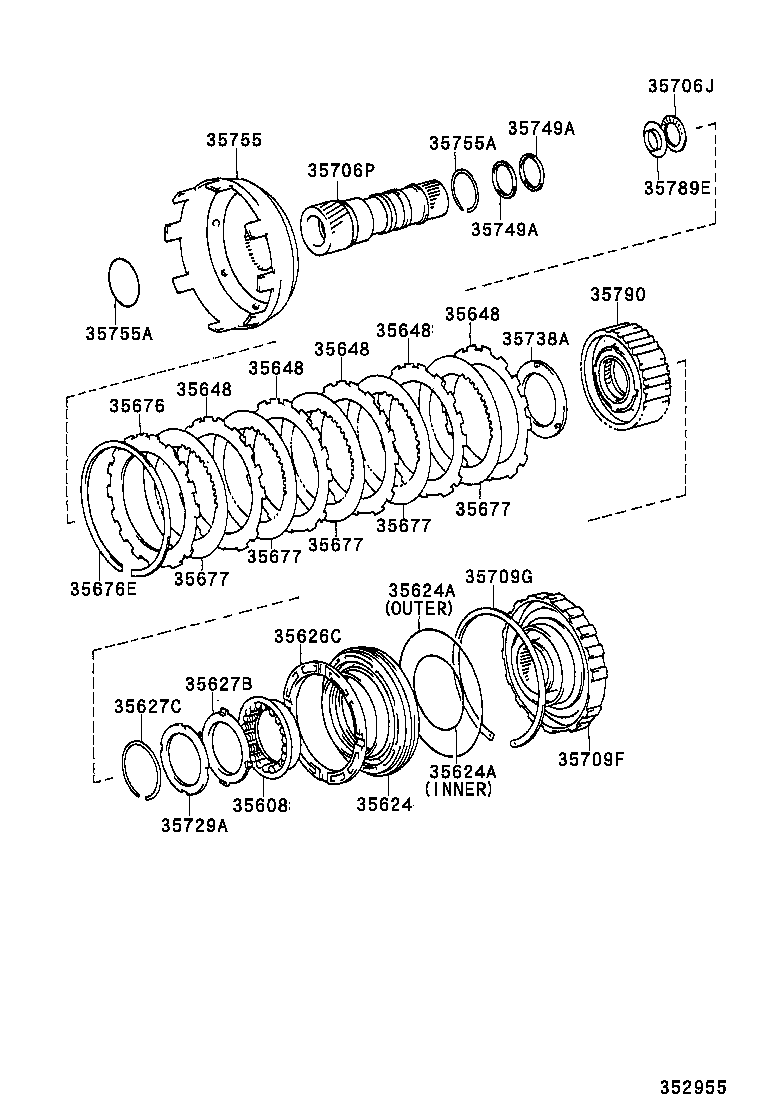

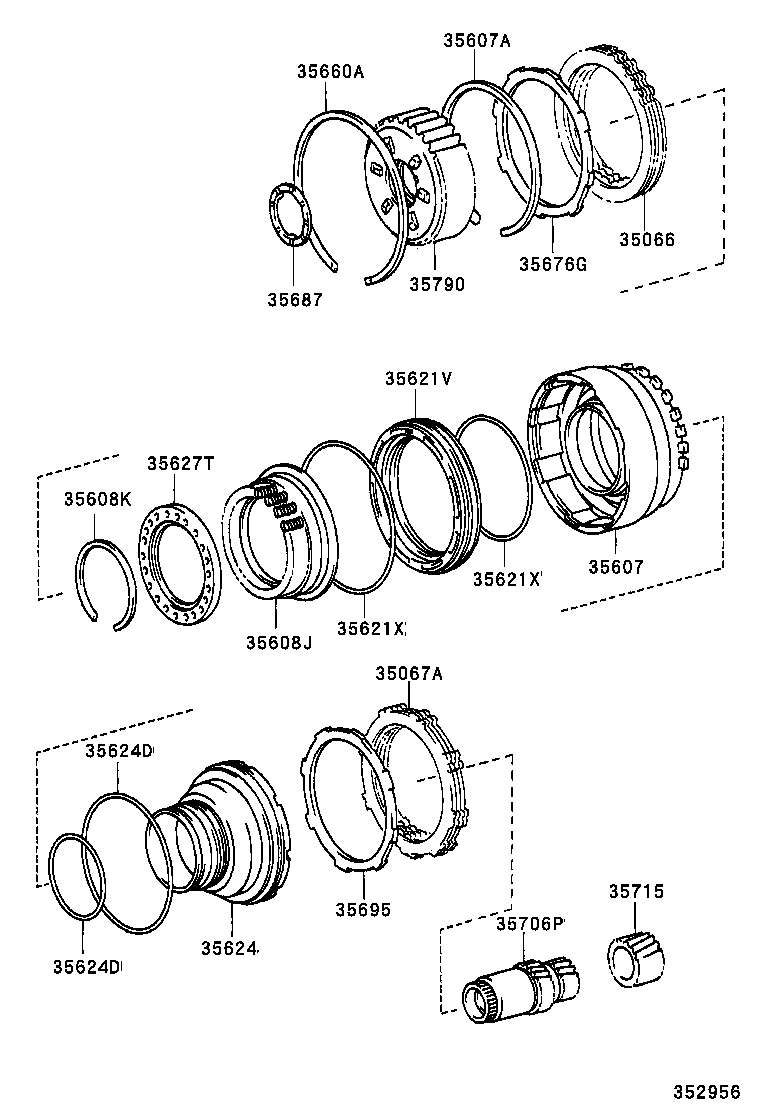

Center Support & Planetary Sun Gear (ATM)
57 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 35066 | Disc Set, 2ND Brake |
| 35067A | Disc Set, 3RD Brake, NO.2 |
| 35607 | Drum Sub-assy, Brake, NO.1 & NO.2 |
| 35607A | Ring, Snap, NO.1 (FOR BRAKE DRUM) |
| 35608 | Spring Sub-assy, 2ND Brake Piston Return |
| 35608J | Spring Sub-assy, Brake Piston Return |
| 35608K | Ring, Snap (FOR BRAKE PISTON RETURN SPRING) |
| 35620D | Ring (FOR BRAKE) |
| 35620U | Ring (FOR REAR BRAKE) |
| 35621 | Piston, Brake, NO.1 |
| 35621A | Ring, O (FOR BRAKE PISTON OUTER) |
| 35621B | Ring, O (FOR BRAKE PISTON INNER) |
| 35621E | Piston, Brake (FOR REAR BRAKE) |
| 35621S | Ring (FOR REAR BRAKE PISTON OUTER) |
| 35621T | Ring (FOR REAR BRAKE PISTON INNER) |
| 35621V | Piston, Brake, NO.1 |
| 35621X | Ring, O (FOR BRAKE PISTON NO.1) |
| 35624 | Piston, 2ND Brake |
| 35624A | Ring, O (FOR 2ND BRAKE PISTON) |
| 35624D | Ring, O (FOR BRAKE PISTON NO.4) |
| 35626C | Sleeve, 2ND Brake Piston |
| 35627A | Ring, Shaft Snap (FOR BRAKE RETURN SPRING SEAT) |
| 35627B | Seat, 2ND Brake Piston Return Spring |
| 35627C | Ring, Shaft Snap(FOR 2ND BRAKE PISTON RETURN SPRING SEAT) |
| 35627E | Ring, Shaft Snap (FOR REAR BRAKE RETURN SPRING SEAT) |
| 35627T | Seat, Brake Return Spring |
| 35634E | Plate, Clutch (FOR BRAKE) |
| 35634F | Plate, Clutch (FOR REAR BRAKE) |
| 35648 | Plate, Clutch (FOR 2ND BRAKE) |
| 35660A | Ring, Snap, NO.2 (FOR BRAKE DRUM) |
| 35675F | Flange, Clutch (FOR BRAKE) |
| 35676 | Flange, Brake (FOR 2ND BRAKE) |
| 35676E | Ring, Hole Snap (FOR 2ND BRAKE) |
| 35676G | Flange, Brake, NO.1 |
| 35677 | Disc, Clutch (FOR 2ND BRAKE) |
| 35677D | Disc, Clutch (FOR REAR BRAKE) |
| 35677E | Disc, Clutch (FOR REAR BRAKE) |
| 35687 | Washer, Clutch Drum Thrust, NO.3 |
| 35695 | Plate, Brake, NO.5 |
| 35706H | Gear Sub-assy, Planetary Sun |
| 35706J | Bearing, Thrust Needle Roller (FOR PLANETARY SUN GEAR) |
| 35706P | Gear Sub-assy, Front Planetary Sun |
| 35706R | Ring, Shaft Snap (FOR PLANETARY SUN GEAR) |
| 35706S | Race, Thrust Bearing (FOR PLANETARY SUN GEAR FRONT) |
| 35706T | Race, Thrust Bearing (FOR PLANETARY SUN GEAR REAR) |
| 35709 | Support Sub-assy, Center |
| 35709C | Ring, Oil Seal (FOR CENTER SUPPORT) |
| 35709F | Drum Sub-assy, 2ND Brake |
| 35709G | Ring, Hole Snap (FOR 2ND BRAKE DRUM) |
| 35715 | Gear, RR Planetary Sun |
| 35729A | Washer, Planetary Carrier Thrust, NO.4 |
| 35738A | Washer, 1 Way Clutch Thrust, NO.1 |
| 35749A | Ring, Sun Gear Shaft Oil Seal |
| 35755 | Drum, Sun Gear Input |
| 35755A | Ring, Shaft Snap (FOR SUN GEAR INPUT DRUM) |
| 35789E | Race, Thrust Bearing (FOR PLANETARY SUN GEAR) |
| 35790 | Clutch Assy, 1 Way |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
