Toyota Verossa
2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan
Discontinued model
Data version 2005-01

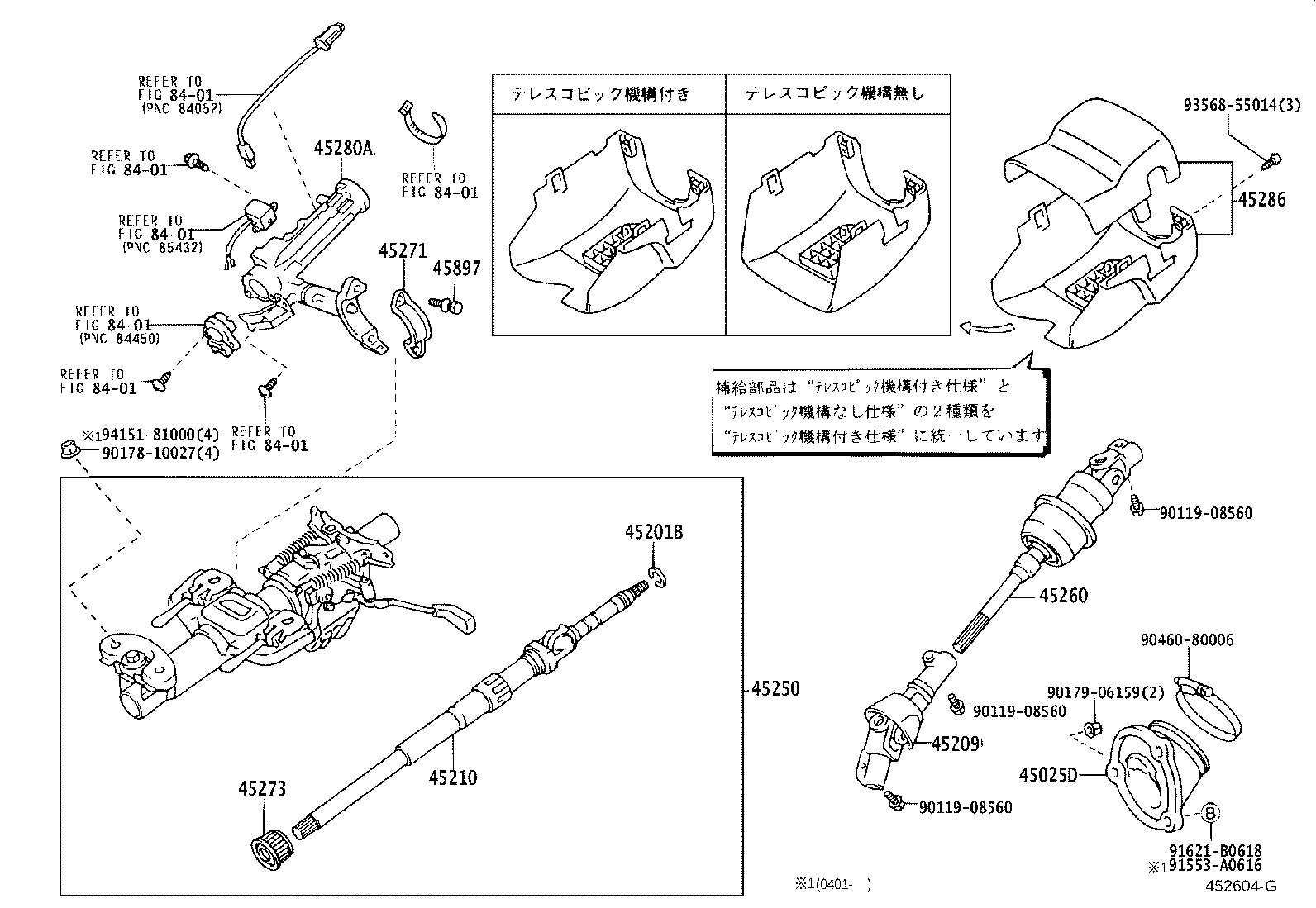

Steering Column & Shaft
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 45025D | Cover Sub-assy, Steering Column Hole, NO.1 |
| 45201B | Ring, Shaft Snap(FOR STEERING MAIN SHAFT) |
| 45209 | Yoke Sub-assy, Steering Sliding |
| 45210 | Shaft Assy, Steering Main |
| 45250 | Column Assy, Steering |
| 45260 | Shaft Assy, Steering Intermediate, NO.2 |
| 45271 | Clamp, Steering Column, Upper |
| 45273 | Bush, Steering Main Shaft |
| 45280A | Bracket Assy, Steering Column, Upper |
| 45286 | Cover, Steering Column |
| 45897 | Bolt, Steering Lock Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
