Toyota Verossa

2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

15 part groups · 4 illustrations

Illustrations

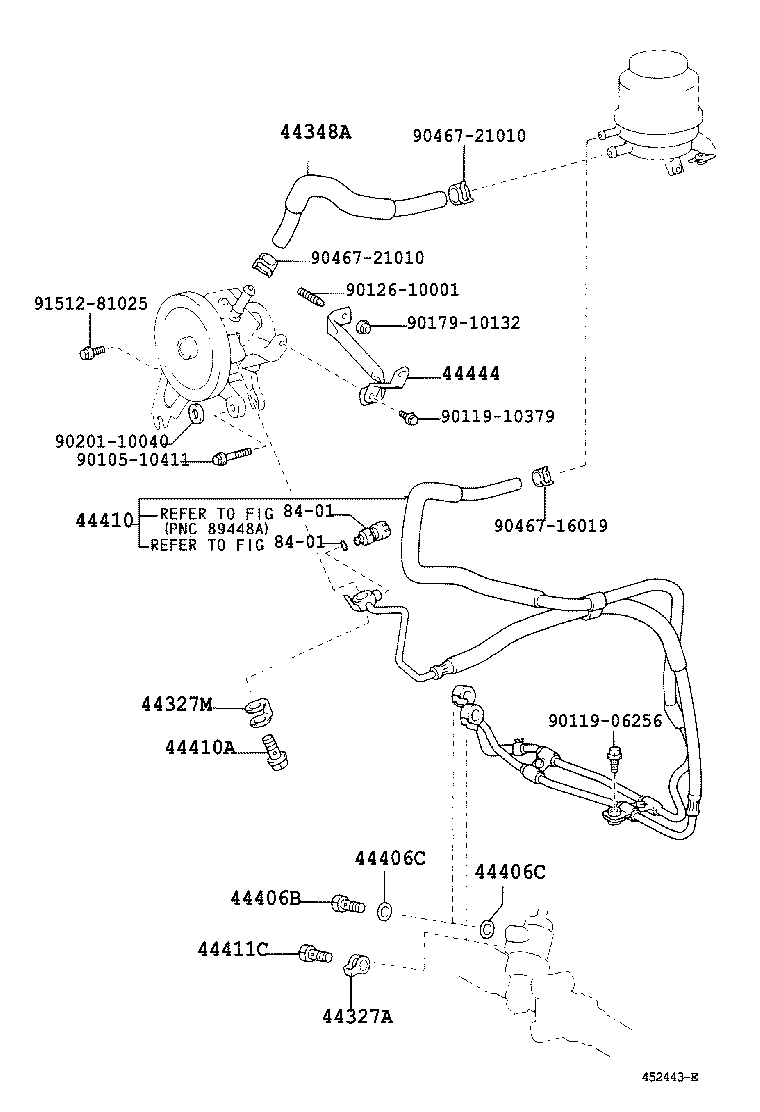

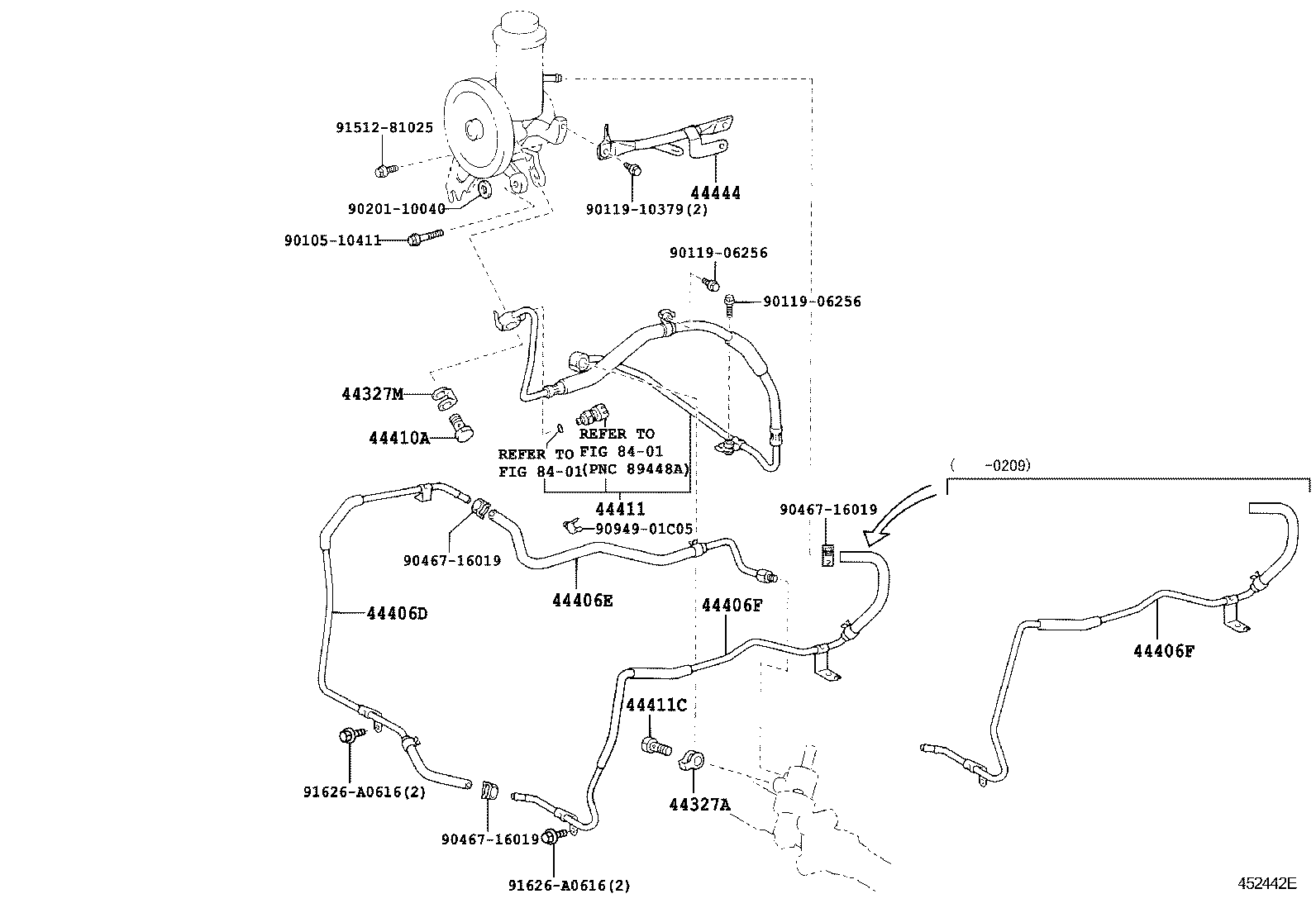

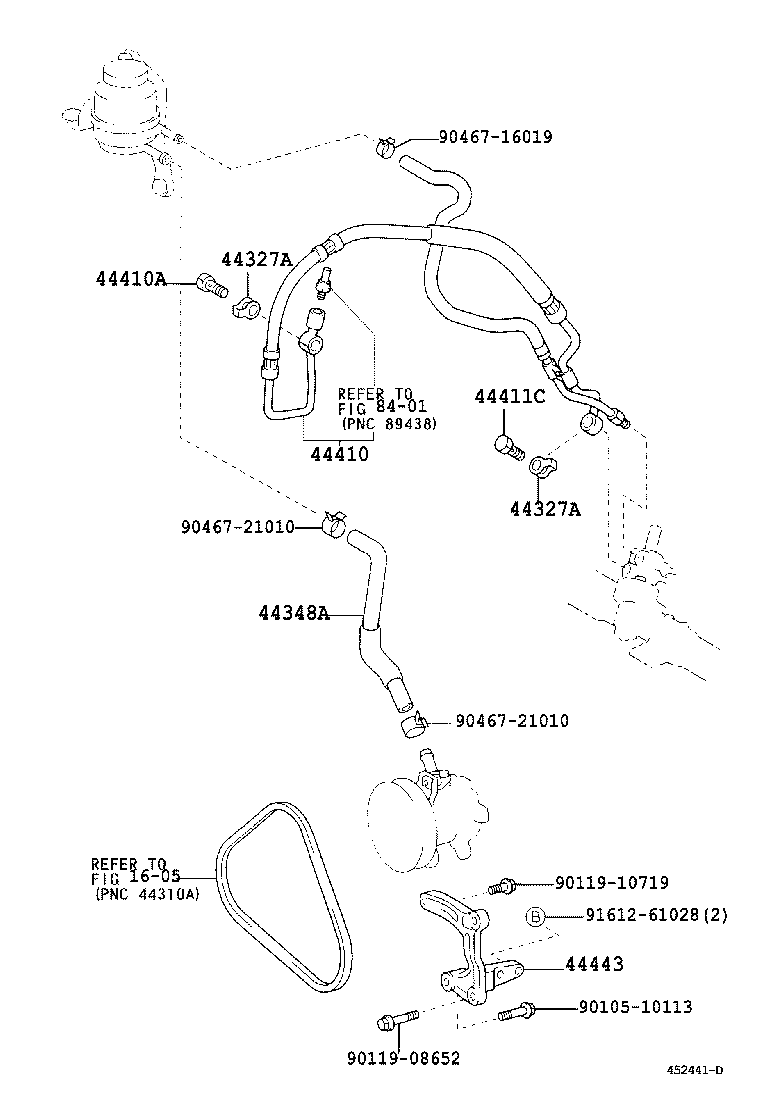

Figure 452440D 452440D 2001-06 → — Figure 452441D 452441D 2001-06 → — Figure 452442G 452442G 2001-06 → — Figure 452443E 452443E 2001-06 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44327M Gasket, Pressure Port, NO.2
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44406B Bolt, Union(FOR RETURN TUBE)
44406C Gasket(FOR RETURN TUBE)
44406D Tube Sub-assy, Return, NO.1
44406E Tube Sub-assy, Return, NO.2
44406F Tube Sub-assy, Return, NO.3
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44443 Bracket, Pump
44444 Stay, Pump, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
