Toyota Verossa
2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan
Discontinued model
Data version 2005-01

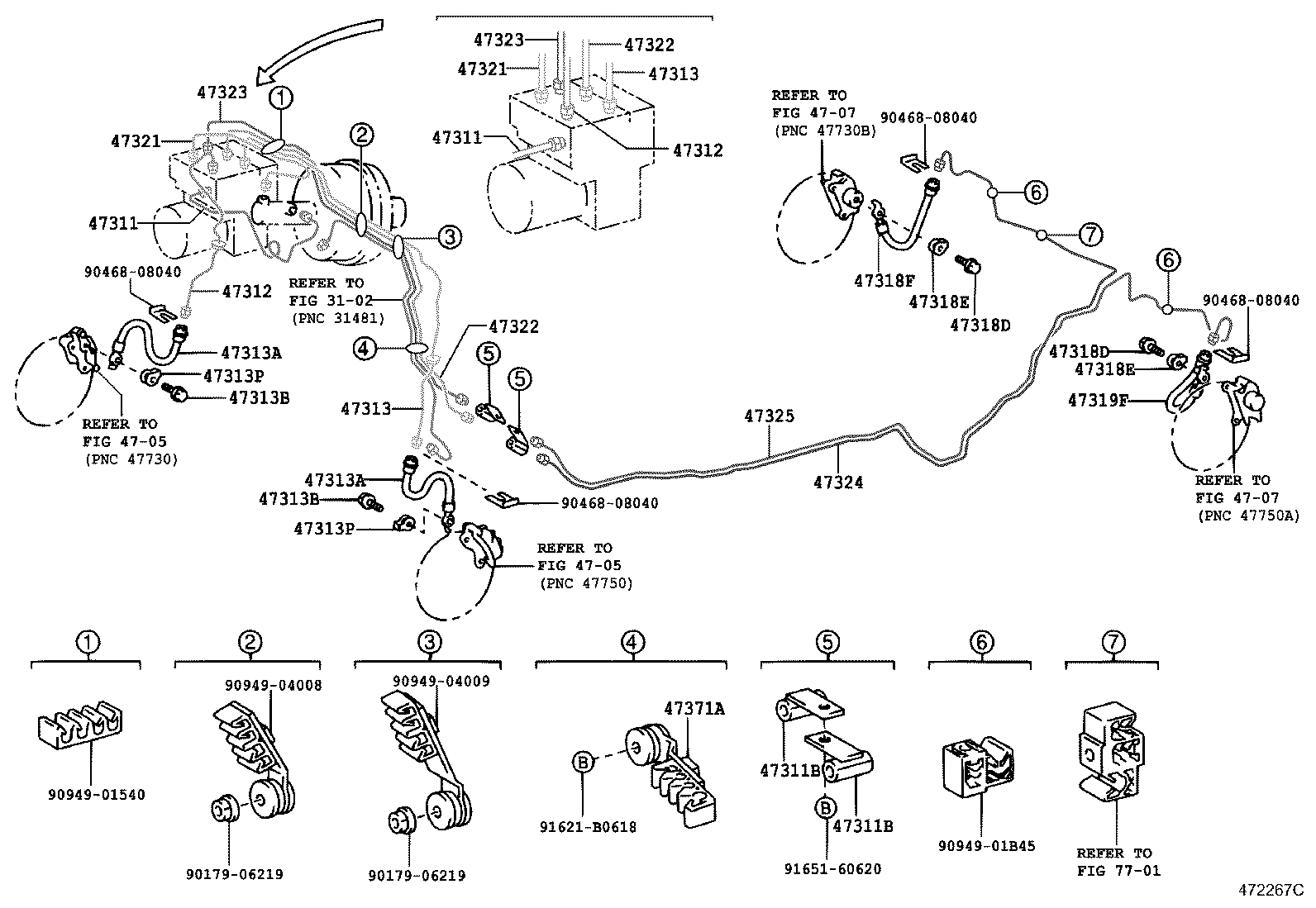

Brake Tube & Clamp
24 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44510 | Actuator Assy, Brake |
| 44540 | Actuator Assy, Abs & Traction |
| 44545D | Holder, Brake Actuator Bolt |
| 44546A | Cushion, Brake Actuator Bolt |
| 44571 | Hose, Brake Actuator |
| 44590 | Bracket Assy, Brake Actuator |
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47318D | Bolt, Union(FOR REAR FLEXIBLE HOSE) |
| 47318E | Gasket(FOR REAR FLEXIBLE HOSE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |
| 47323 | Tube, Rear Brake, NO.3 |
| 47324 | Tube, Rear Brake, NO.4 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47547G | Plug, Bleeder(FOR BRAKE TRACTION ACTUATOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
