Toyota Verossa

2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

23 part groups · 3 illustrations

Illustrations

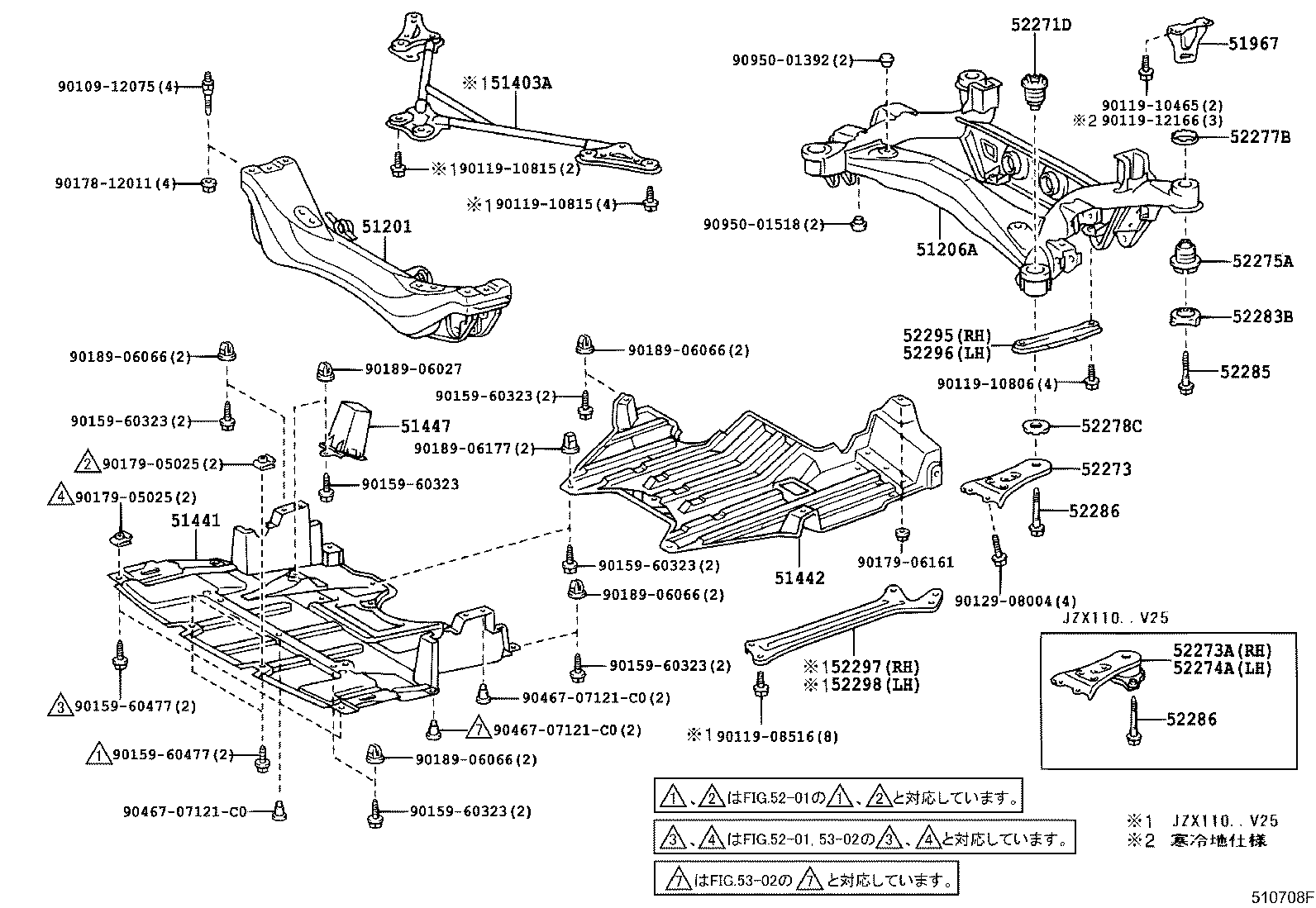

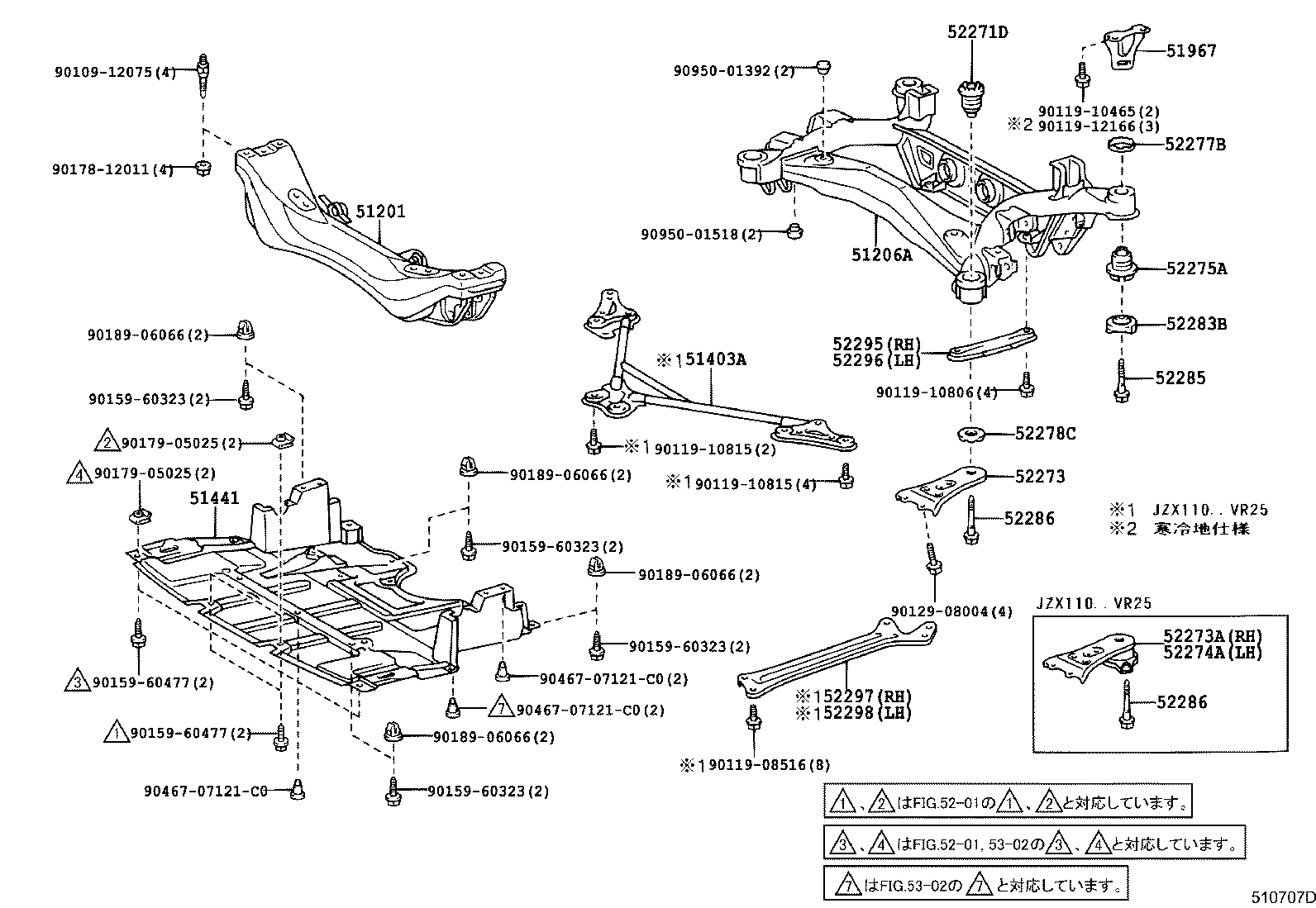

Figure 510617E 510617E 2001-06 → — Figure 510707D 510707D 2001-06 → — Figure 510708F 510708F 2001-06 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51202C Crossmember Sub-assy, Front Suspension, Lower
51206A Member Sub-assy, Rear Suspension
51229C Plate, Suspension Member Set
51403A Brace Sub-assy, Front Suspension Member, RH
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51447 Guide, Engine Under Cover Air
51967 Hook, Transport, Rear
52271D Cushion, Rear Suspension Member Body Mounting, Front
52273 Stopper, Rear Suspension Member, Lower
52273A Stopper, Rear Suspension Member, Lower RH
52274A Stopper, Rear Suspension Member, Lower LH
52275A Cushion, Rear Suspension Member Body Mounting, Rear
52277B Stopper, Rear Suspension Member, Rear Upper
52278C Stopper, Rear Suspension Member, Rear Lower
52283B Stopper, Differential Support Member, Lower
52285 Bolt, Differential Support Member Mounting, NO.1
52286 Bolt, Differential Support Member Mounting, NO.2
52295 Brace, Rear Suspension Member, RH
52296 Brace, Rear Suspension Member, LH
52297 Brace, Rear Suspension Member, Rear Lower RH
52298 Brace, Rear Suspension Member, Rear Lower LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
