Toyota Verossa
2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan
Discontinued model
Data version 2005-01
Instrument Panel & Glove Compartment

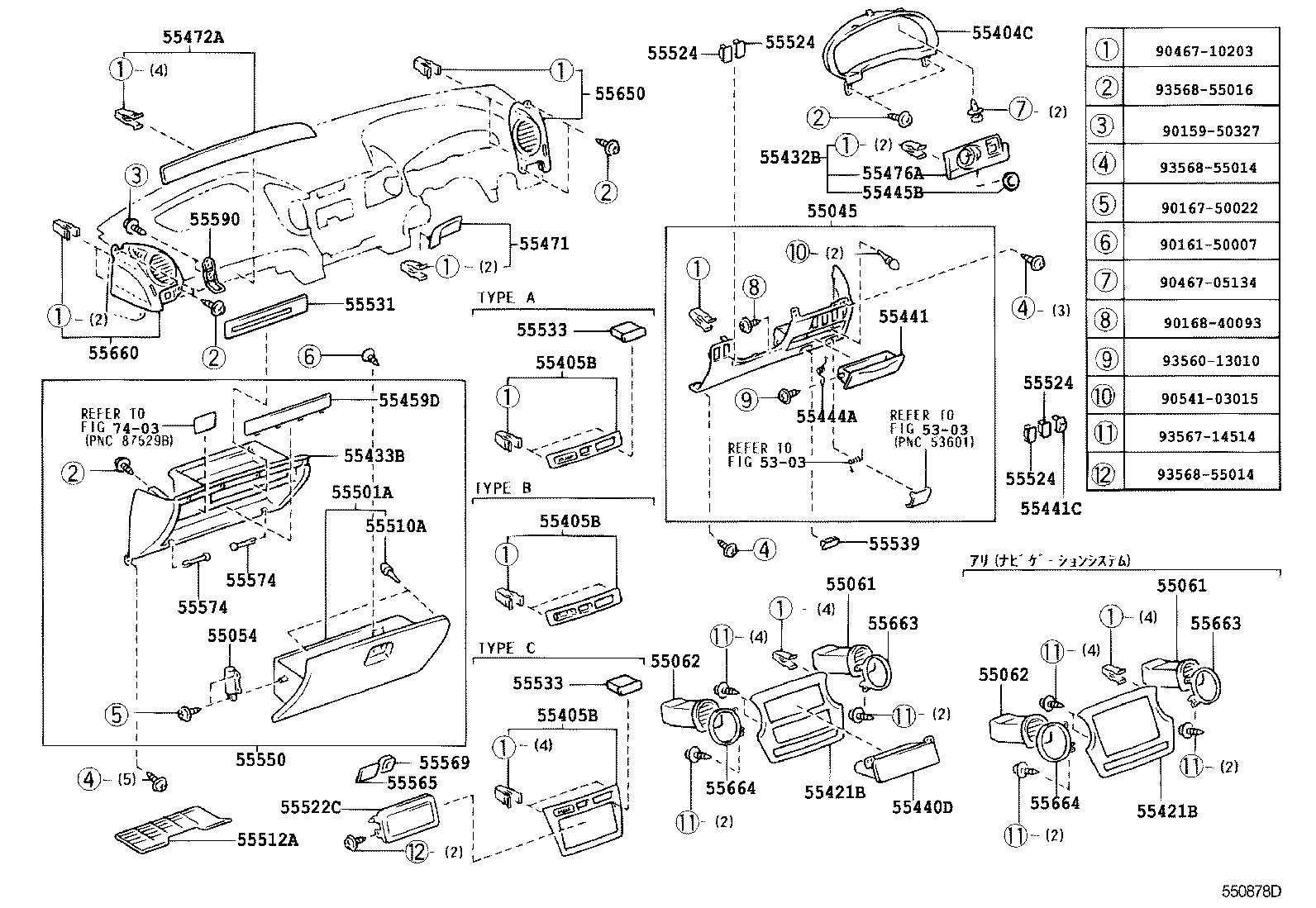

49 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55061 | Register Sub-assy, Instrument Panel, NO.1 |
| 55062 | Register Sub-assy, Instrument Panel, N0.2 |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55328 | Pin, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349D | Cover, Instrument Panel Brace, Outer NO.2 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55421B | Panel, Instrument Cluster Finish, Upper |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433B | Panel, Instrument Panel Finish, Lower NO.2 |
| 55435A | Panel, Instrument Panel Finish, End RH |
| 55440D | Box Assy, Instrument Panel |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55444A | Spring, Instrument Panel Box |
| 55445B | Plate, Instrument Panel Finish |
| 55459D | Cover, Instrument, Lower LH |
| 55471 | Moulding, Instrument Cluster, NO.1 |
| 55472A | Moulding, Instrument Cluster, NO.2 |
| 55476A | Garnish, Instrument Cluster Finish Panel, NO.3 |
| 55501A | Door Sub-assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55512A | Plate, Glove Compartment |
| 55522C | Cover, Radio Receiver Opening |
| 55524 | Cover, Switch Bace Hole |
| 55531 | Panel, Glove Compartment |
| 55533 | Cover, Auto Clock Hole |
| 55539 | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55565 | Handle, Glove Compartment Door Lock |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55590 | Plate Assy, Grove Compartment Door Lock Striker |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55663 | Bezel, Instrument Panel Register, Center RH |
| 55664 | Bezel, Instrument Panel Register, Center LH |
| 55950A | Nozzle Assy, Defroster |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 55990A | Nozzle Assy, Defroster, Lower |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
