Toyota Verossa

2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

16 part groups · 2 illustrations

Illustrations

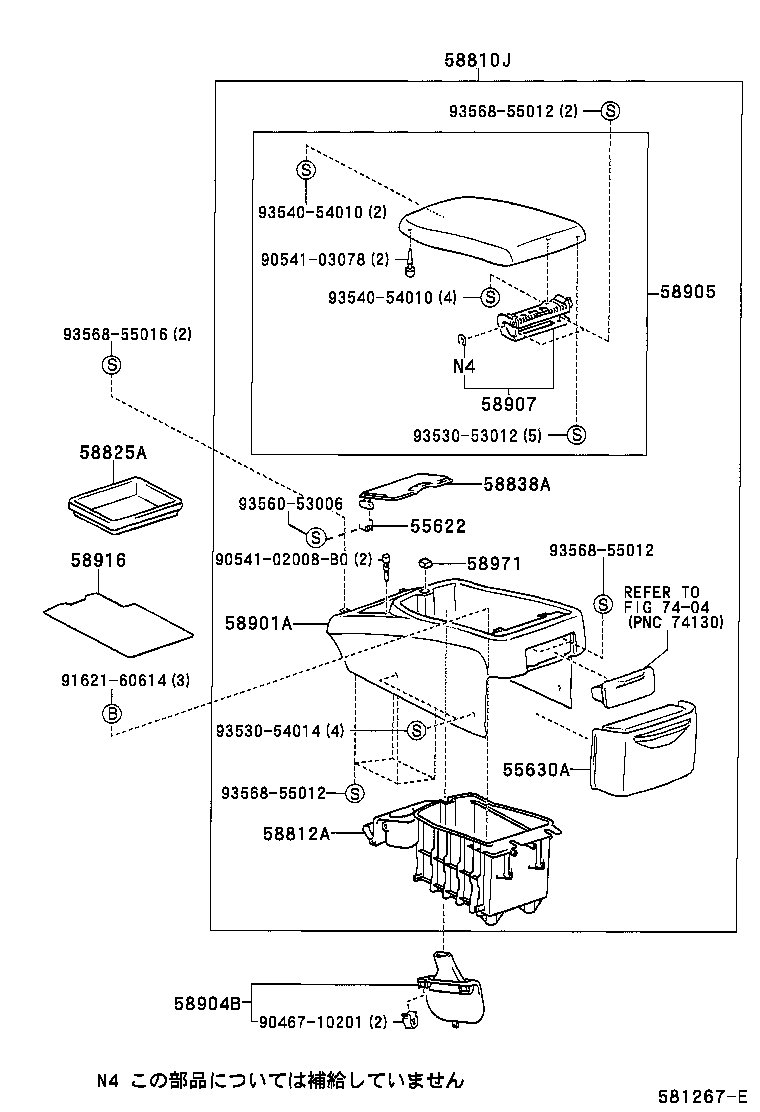

Figure 581420B 581420B 2001-06 → — Figure 581267E 581267E 2001-06 → —

Part groups

PNCDescription
55434H Panel, Instrument Panel Finish, Lower Center
55622 Spring, Instr Panel Cup Holder, NO.1
55630A Holder, Rear Console Box, Cup
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58810J Box Assy, Console
58812A Box, Console, Lower
58825A Pocket, Console Box
58838A Door, Console Cup Holder Box
58901A Box Sub-assy, Console, Rear
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58916 Mat, Box Bottom
58971 Lock, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
