Toyota Verossa
2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan
Discontinued model
Data version 2005-01
Fuel Tank & Tube

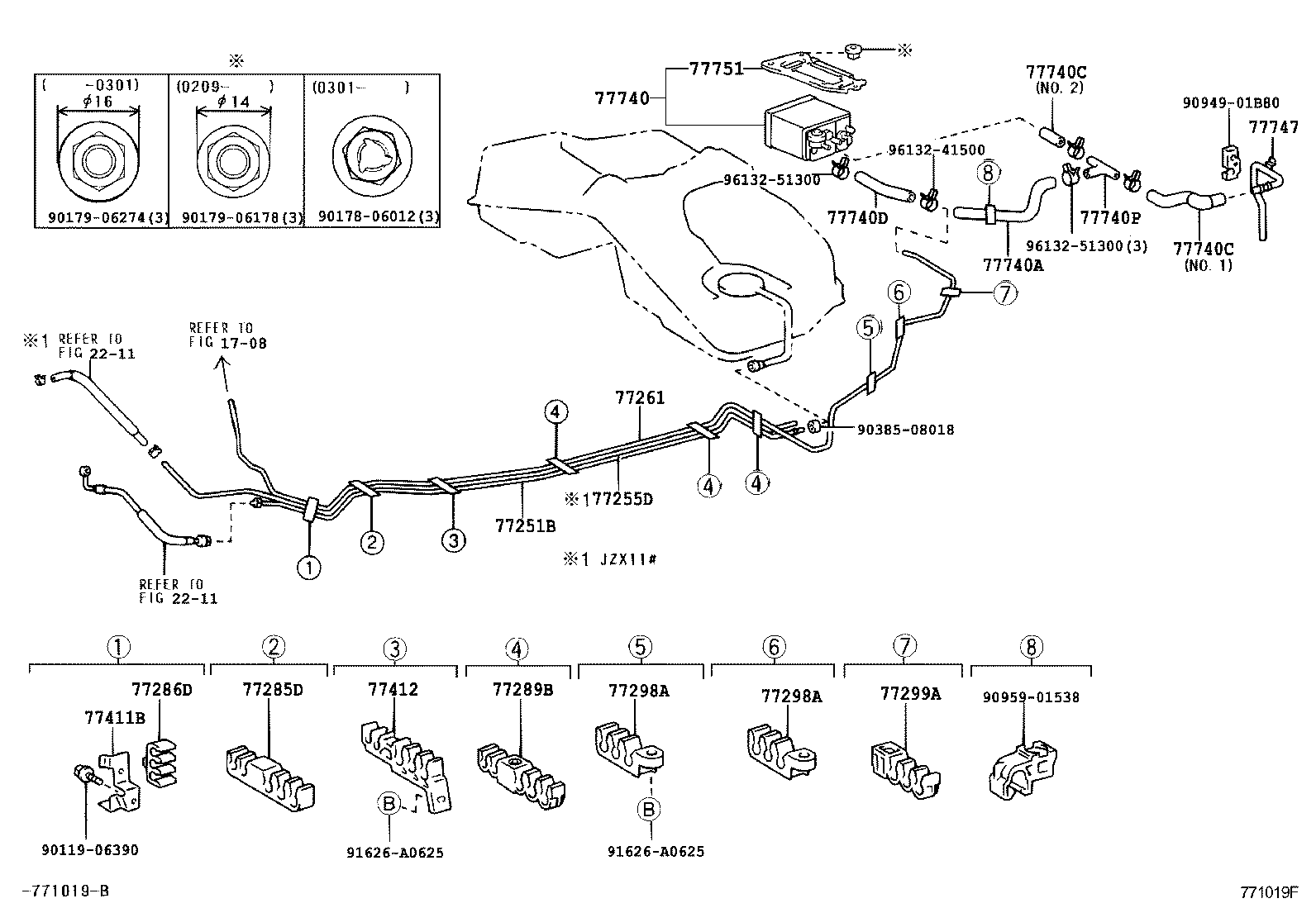

56 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77035A | Clamp (FOR FUEL LID LOCK CONTROL CABLE) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77175 | Support, Fuel Suction, NO.2 |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77229C | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77245D | Tube, Fuel Tank Return Vent |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77255D | Tube, Fuel Return |
| 77261 | Tube Sub-assy, Fuel Emission |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77285D | Clamp, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77331 | Bracket, Fuel Lid Lock Control |
| 77340A | Valve Assy, Fuel Cut Off W/Tube |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77411B | Support, Fuel Tube Grommet, NO.1 |
| 77412 | Support, Fuel Tube Grommet, NO.2 |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77606C | Protector, Fuel Tank, NO.2 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77656B | Cushion, Fuel Tank, NO.6 |
| 77681A | Seat, Fuel Tank Band |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77740D | Hose, Fuel, NO.4(FOR CHARCOAL CANISTER) |
| 77740P | Way, 3(FOR CHARCOAL CANISTER) |
| 77747 | Pipe, Charcoal Canister, NO.1 |
| 77751 | Bracket, Charcoal Canister Base |
| 77785 | Harness, Fuel Pump |
