Toyota Verossa
2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan
Discontinued model
Data version 2005-01
Heating & Air Conditioning - Control & Air Duct
18 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

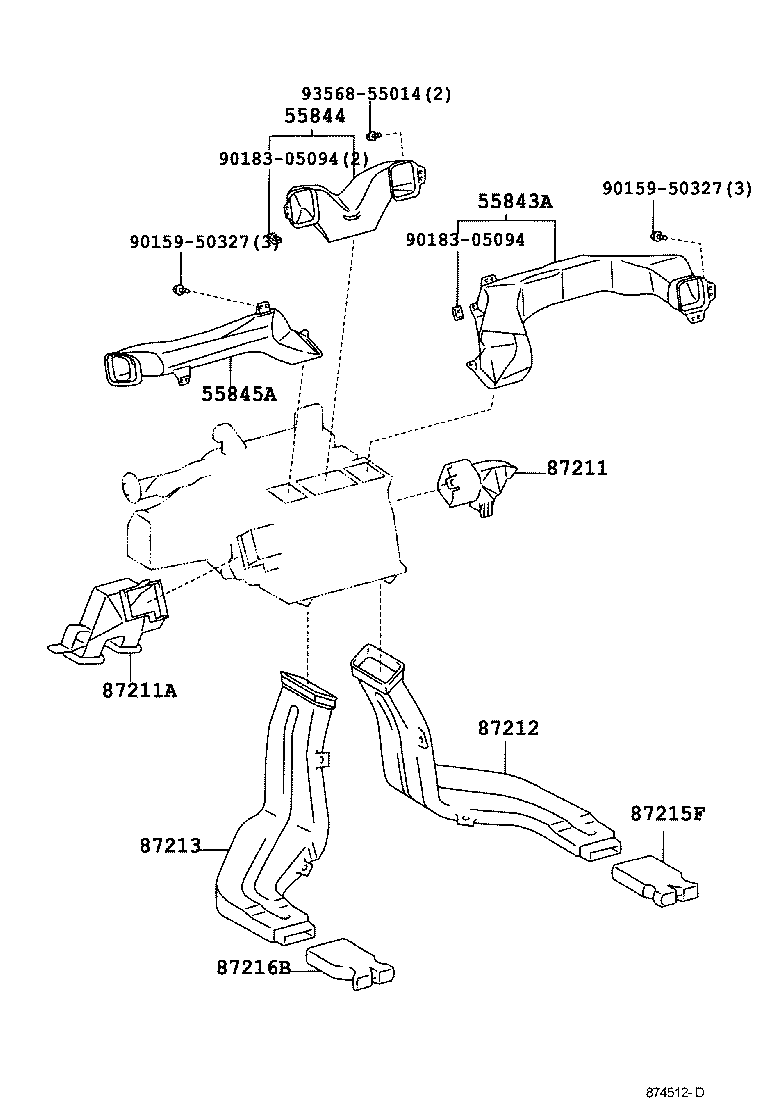

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845A | Duct, Heater TO Register, NO.3 |

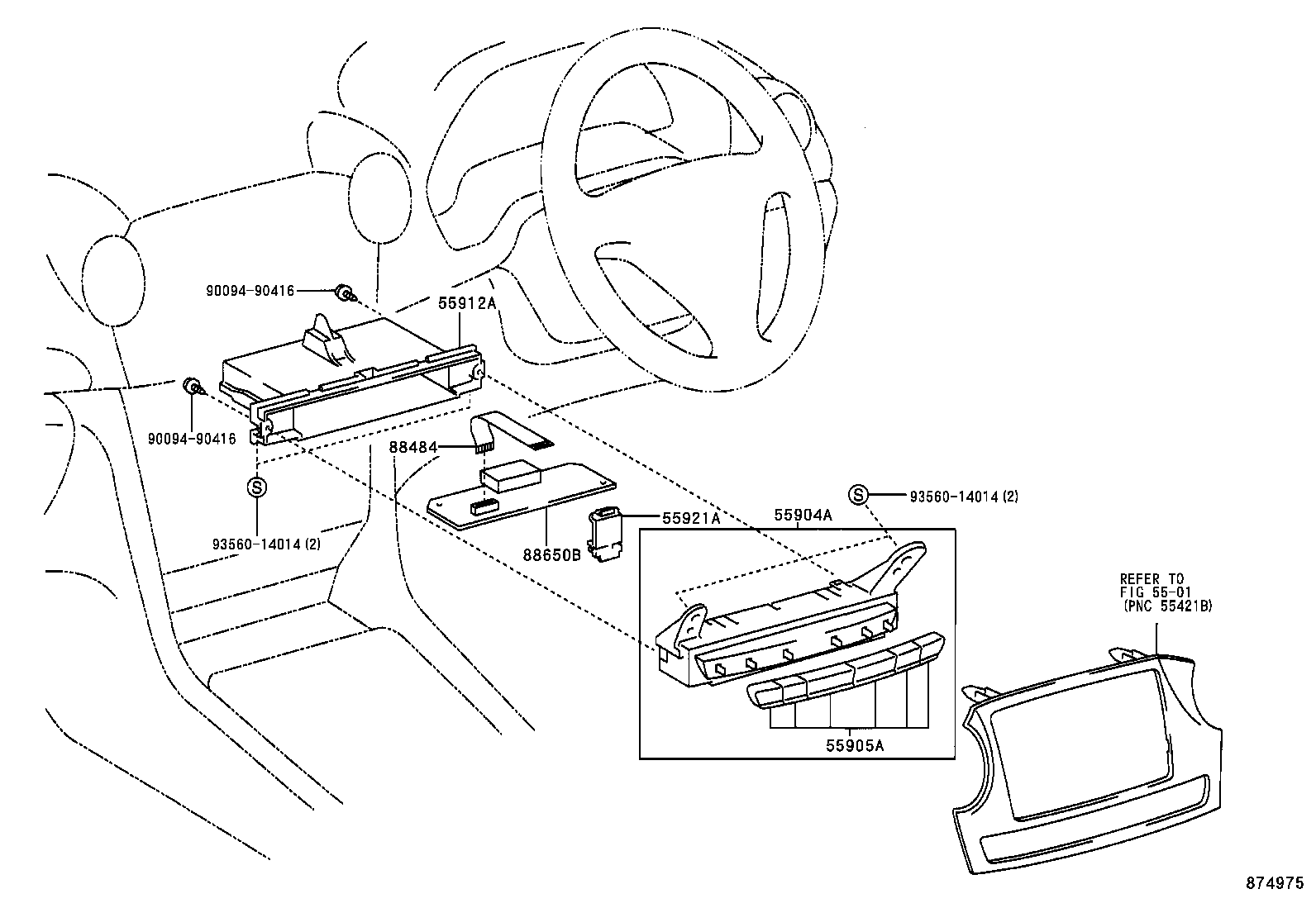

| 55904A | Housing Sub-assy, Heater Control |
| 55905A | Knob, Heater Control |
| 55912A | Housing, Heater Control |
| 55921A | Retainer, Heater Control |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |
| 87215F | Duct, Air, Rear NO.3 |
| 87216B | Duct, Air, Rear NO.4 |
| 88484 | Wire, Cooler, NO.1 |

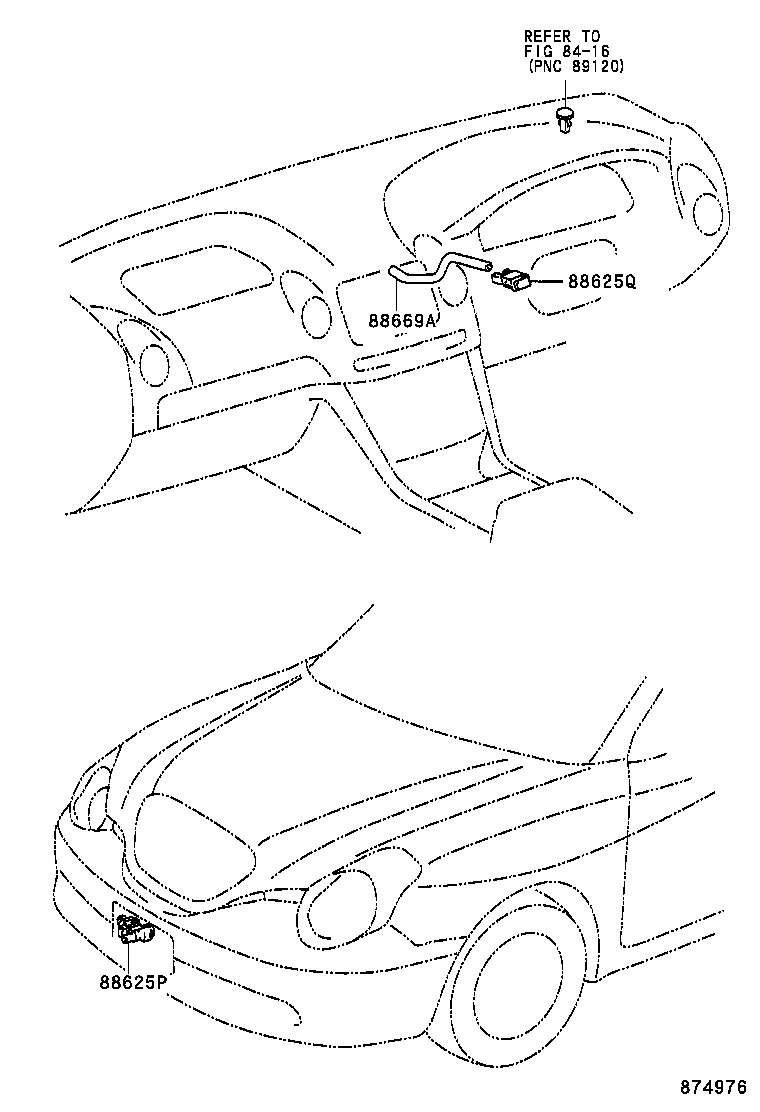

| 88625P | Thermistor, Cooler (AMBIENT TEMP. SENSOR) |
| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88650B | Amplifier Assy, Airconditioner |
| 88669A | Hose (FOR COOLER THERMISTOR) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
