Toyota Verossa

2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan

Discontinued model Data version 2005-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 3 illustrations

Illustrations

875617 2001-06 → —

874970 2001-06 → —

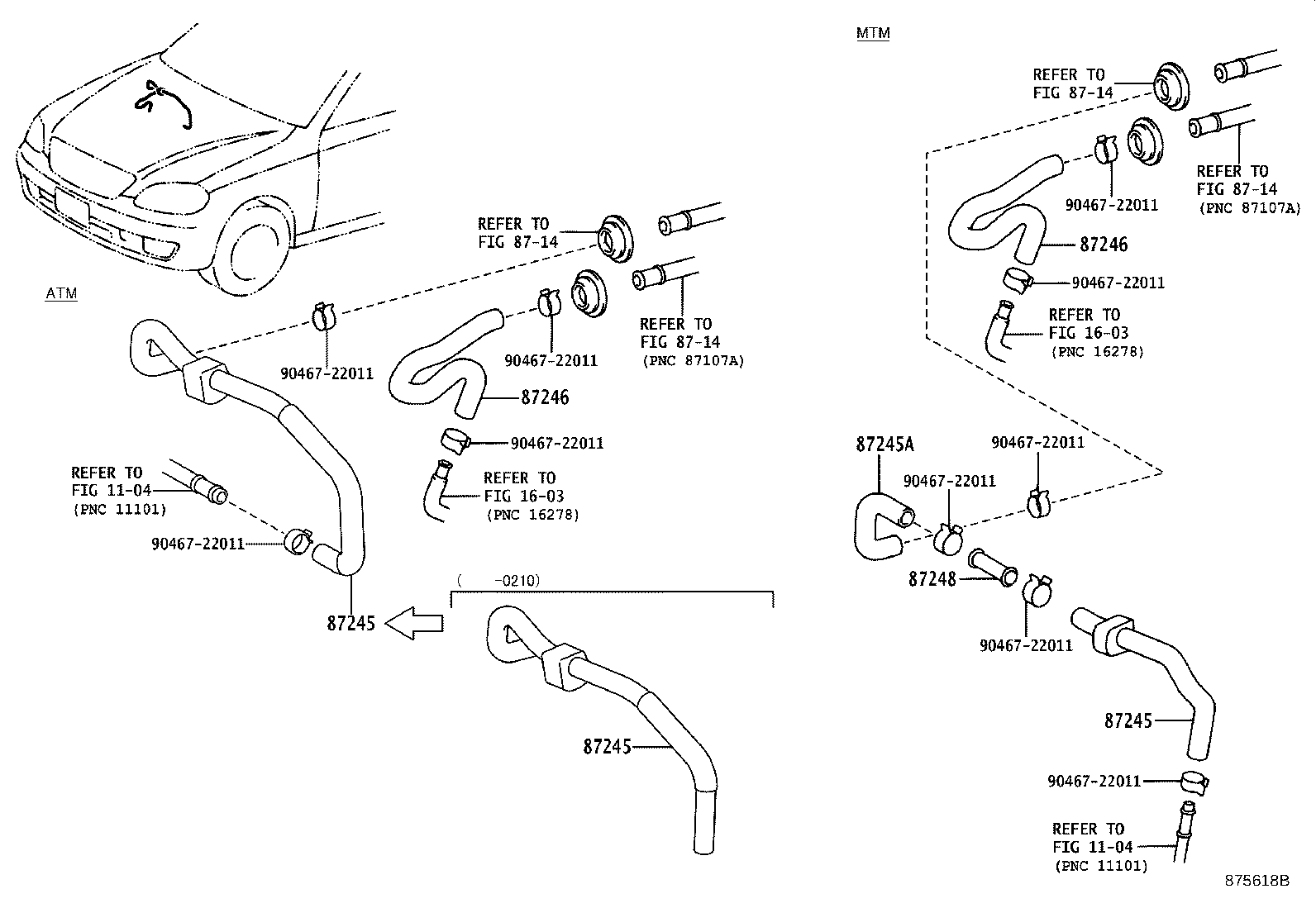

Figure 875618B

875618B 2001-06 → —

Part groups

PNC	Description
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87246	Hose, Heater Water, Outlet
87248	Pipe Sub-assy, Water

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
