Toyota Verossa

2001-06 → 2004-04 · chassis GX11#,JZX110 · catalogue 313190 · Japan

Discontinued model Data version 2005-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

7 part groups · 3 illustrations

Illustrations

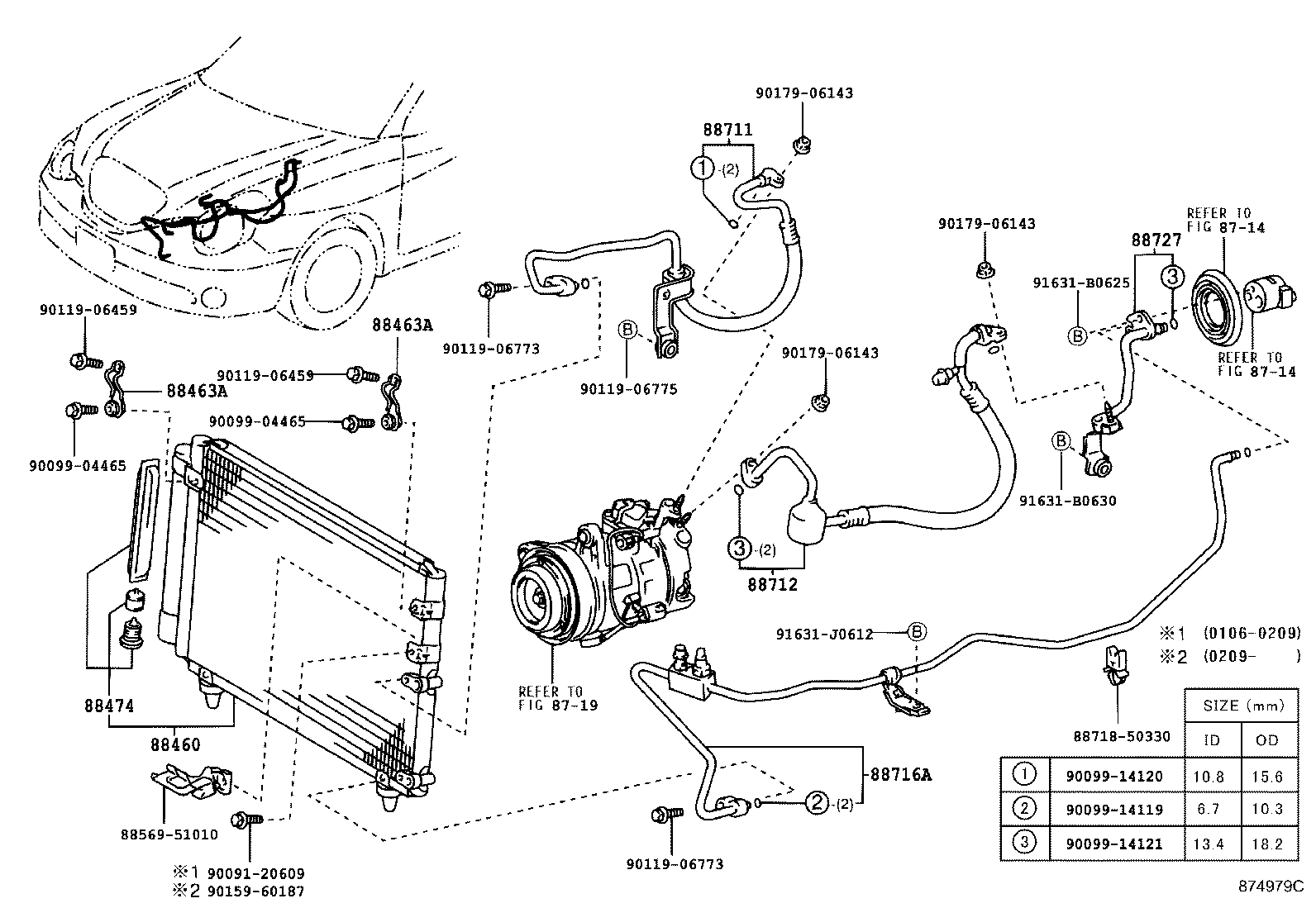

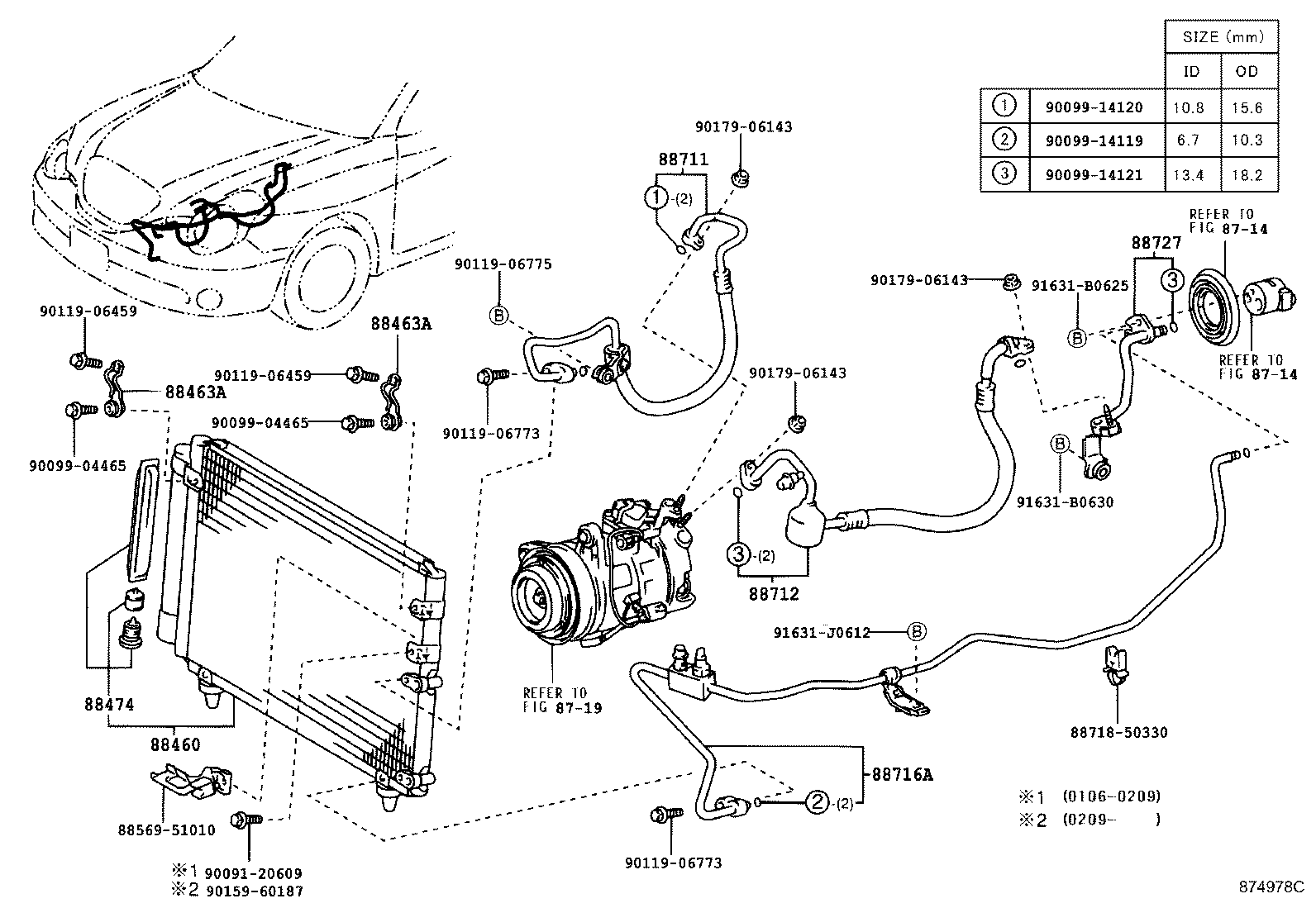

Figure 874977D 874977D 2001-06 → — Figure 874978C 874978C 2001-06 → — Figure 874979C 874979C 2001-06 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88463A Bracket, Cooler Condenser, NO.2
88474 Dryer, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88727 Tube, Suction, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
