Toyota Soarer
1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan
Discontinued model
Data version 1986-06
Camshaft & Valve

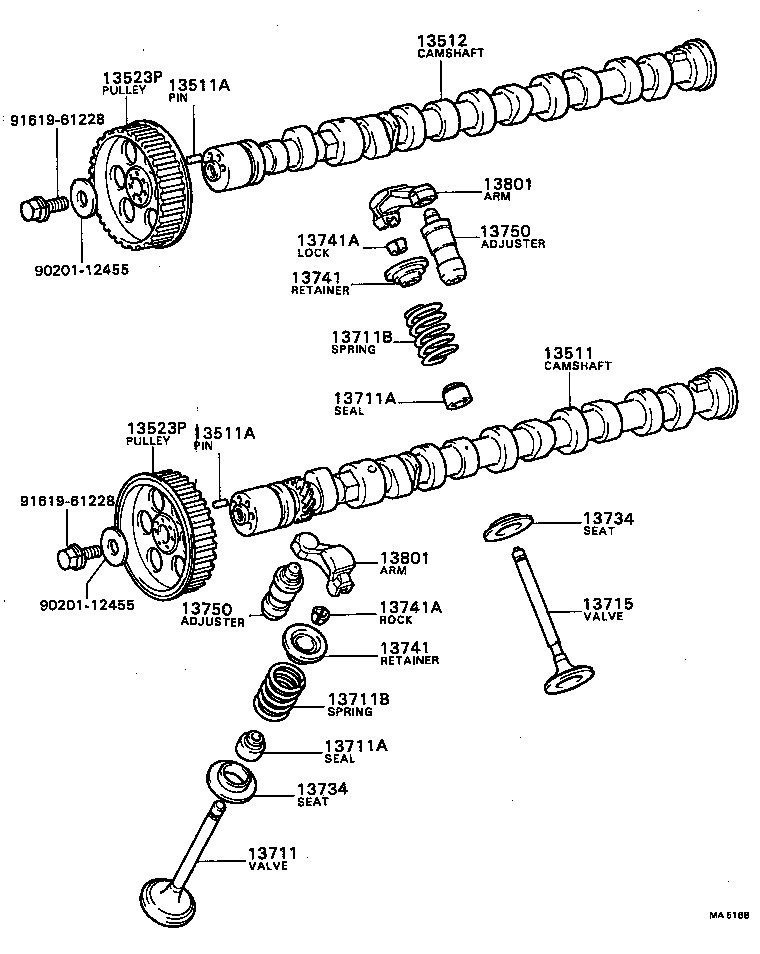

36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 13511 | Camshaft |
| 13511A | Pin, Straight(FOR CAMSHAFT KNOCK) |
| 13512 | Camshaft, NO.2 |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13523P | Pulley, Camshaft Timing |
| 13576 | Bolt, Camshaft Timing Gear |
| 13577 | Plate, Lock |
| 13579 | Washer, Camshaft Timing Gear Bolt |
| 13711 | Valve, Intake |
| 13711A | Seal OR Ring, O(FOR VALVE STEM OIL) |
| 13711B | Spring, Compression(FOR INNER) |
| 13711C | Spring, Compression(FOR OUTER) |
| 13711D | Washer, Plate(FOR VALVE SPRING SEAT) |
| 13715 | Valve, Exhaust |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13750 | Adjuster Assy, Valve Lash |
| 13751 | Lifter, Valve |
| 13751D | Pad, Valve Adjusting |
| 13801 | Arm Sub-assy, Valve Rocker, NO.1 |
| 13801A | Bush, Bimetal Formed(FOR ROCKER ARM) |
| 13801B | Nut, Hexagon(FOR VALVE ADJUSTING) |
| 13801C | Screw, Valve Adjusting |
| 13801D | Spring, Compression(FOR ROCKER ARM) |
| 13901 | Shaft Sub-assy, Valve Rocker, NO.1 |
| 13901C | Spring, Retainer(FOR VALVE ROCKER SHAFT) |
| 13902 | Shaft Sub-assy, Valve Rocker, NO.2 |
| 13951 | Support, Valve Rocker, NO.1 |
| 13951B | Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK) |
| 13952 | Support, Valve Rocker, NO.2 |
| 13953 | Support, Valve Rocker, NO.3 |
| 13954 | Support, Valve Rocker, NO.4 |
| 13955 | Support, Valve Rocker, NO.5 |
| 15707 | Pipe Sub-assy, Oil |
| 15707A | Bolt, Union(FOR OIL PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
