Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

28 part groups · 15 illustrations

Illustrations

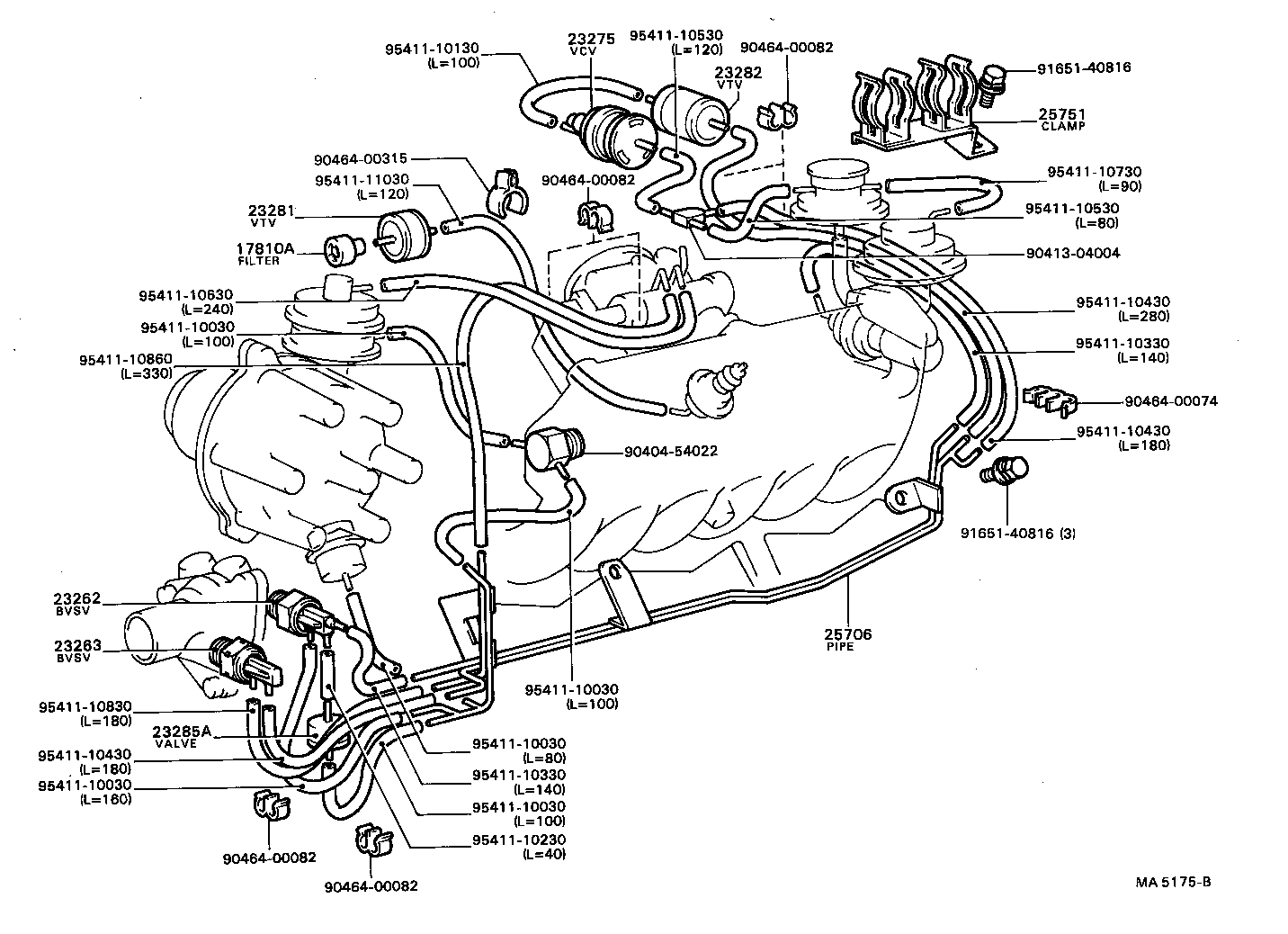

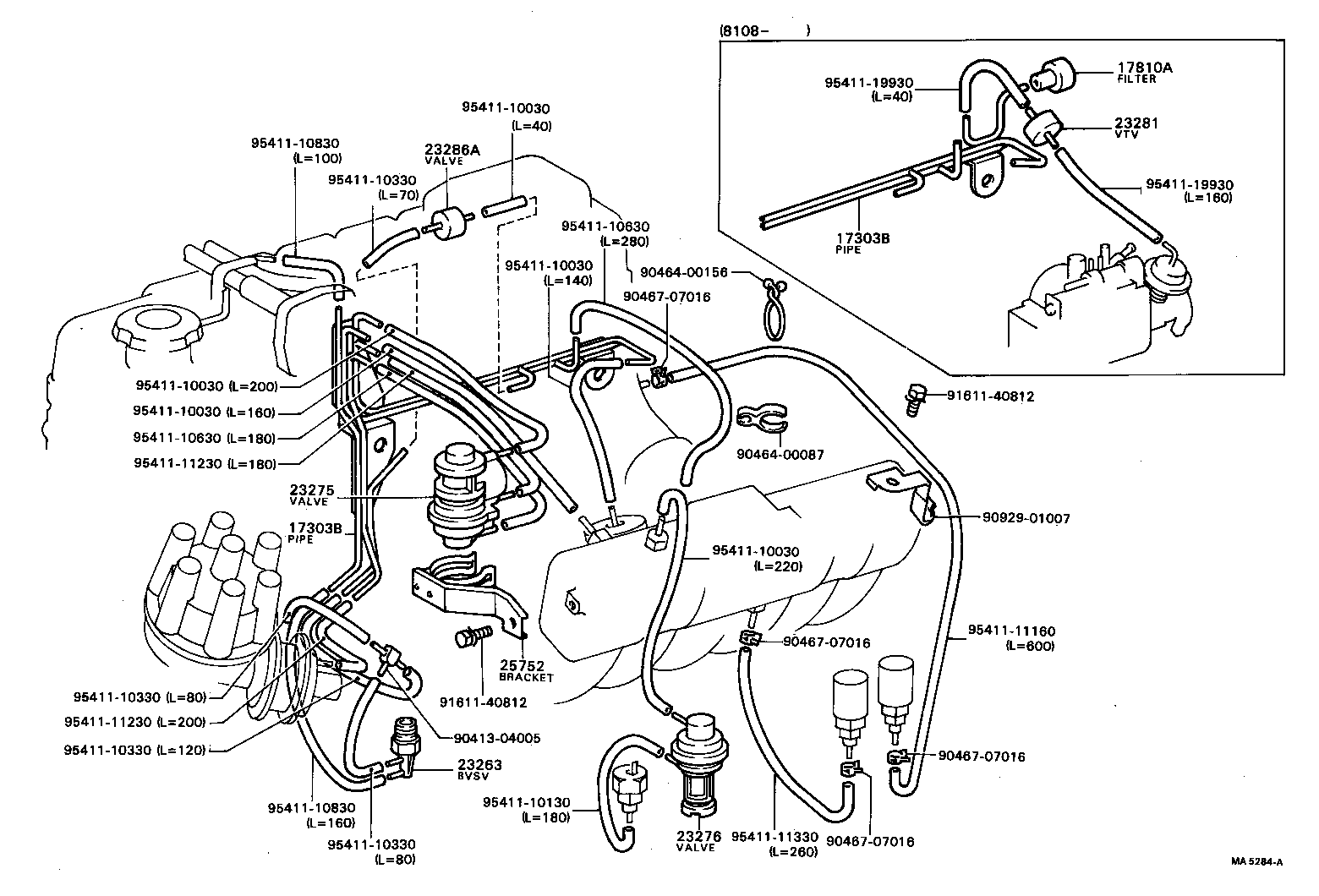

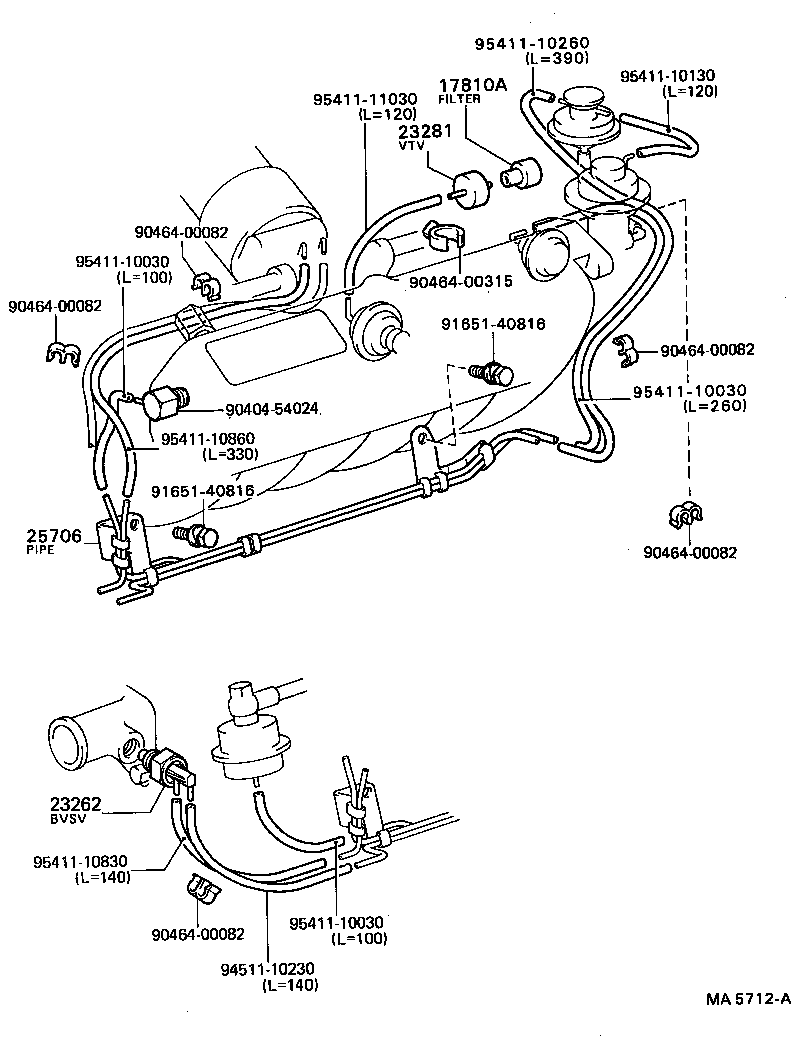

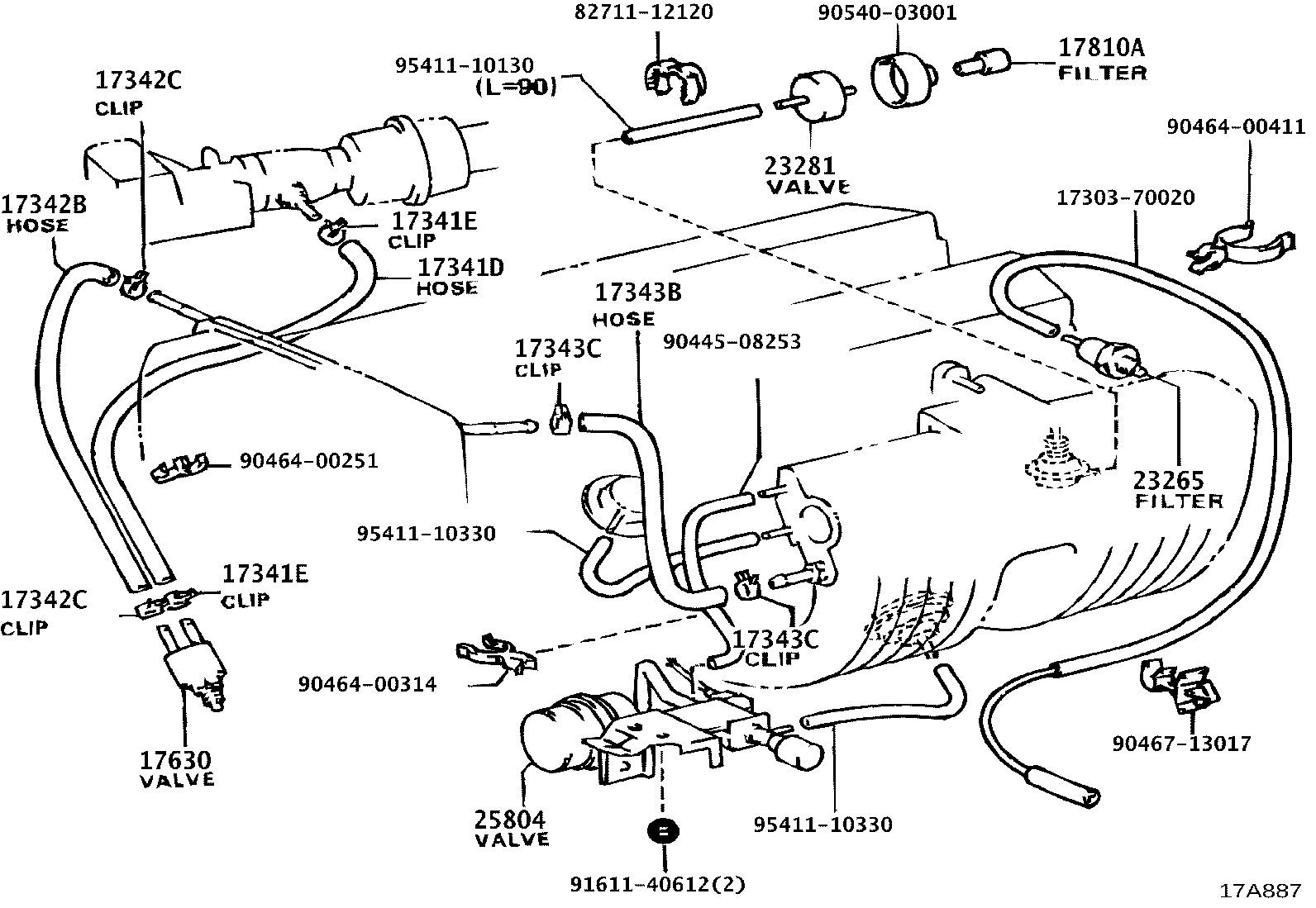

Figure MA9500 MA9500 1981-02 → — Figure MA4492B MA4492B 1981-02 → 1982-08 Figure MA5923C MA5923C 1982-08 → 1985-01 Figure MA8119B MA8119B 1985-01 → — Figure MA4490B MA4490B 1981-02 → 1985-01 Figure MA5964C MA5964C 1983-02 → 1985-01 Figure 17A887 17A887 1985-01 → — Figure MA9500 MA9500 1981-02 → — Figure MA5284A MA5284A 1981-07 → 1983-02 Figure MA6504B MA6504B 1983-02 → — Figure MA5175B MA5175B 1981-02 → 1982-03 Figure MA5175B MA5175B 1982-03 → 1983-02 Figure MA5712A MA5712A 1982-03 → 1983-02 Figure MA6514B MA6514B 1983-02 → — Figure MA5174A MA5174A 1981-02 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17341D Hose, NO.1(FOR IDLE-UP)
17341E Clip, NO.1(FOR IDLE-UP HOSE)
17342B Hose, NO.2(FOR IDLE-UP)
17342C Clip, NO.2(FOR IDLE-UP HOSE)
17343B Hose, NO.3(FOR IDLE-UP)
17343C Clip, NO.3(FOR IDLE-UP HOSE)
17344C Hose, NO.4(FOR IDLE-UP)
17344D Clip, NO.4(FOR IDLE-UP HOSE)
17345B Hose, NO.5(FOR IDLE-UP)
17345C Clip, NO.5(FOR IDLE-UP HOSE)
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
17810A Filter Assy, Air
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23275 Valve, Vacuum Control, NO.1
23276 Valve, Vacuum Control, NO.2
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23286A Valve, Check, NO.2
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25719 Tank, Vacuum Surge
25751 Clamp, Vacuum Control Valve, NO.1
25752 Clamp, Vacuum Control Valve, NO.2
25804 Valve Set, Vacuum Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
