Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

20 part groups · 6 illustrations

Illustrations

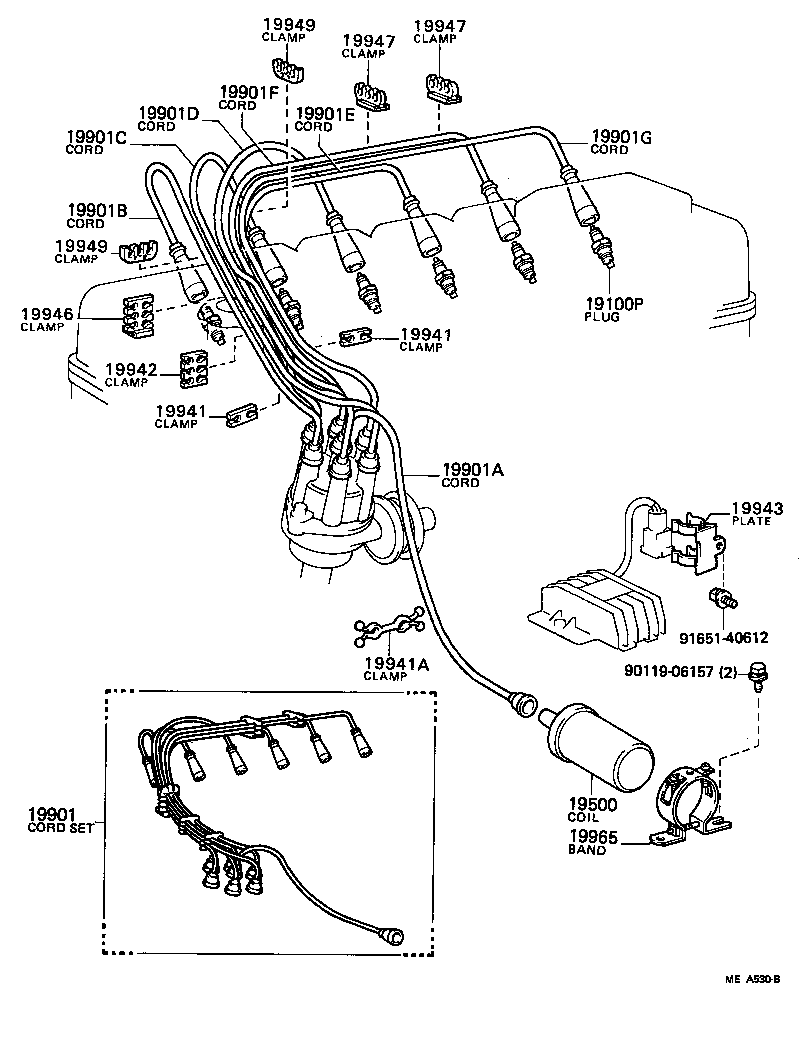

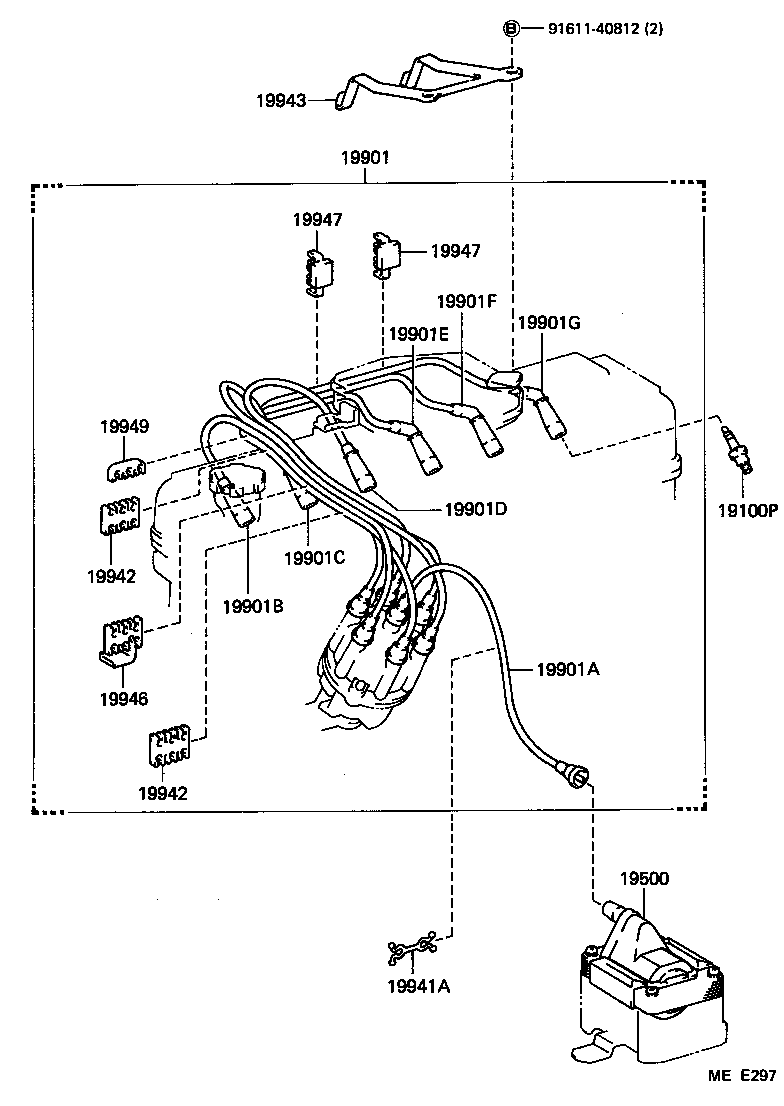

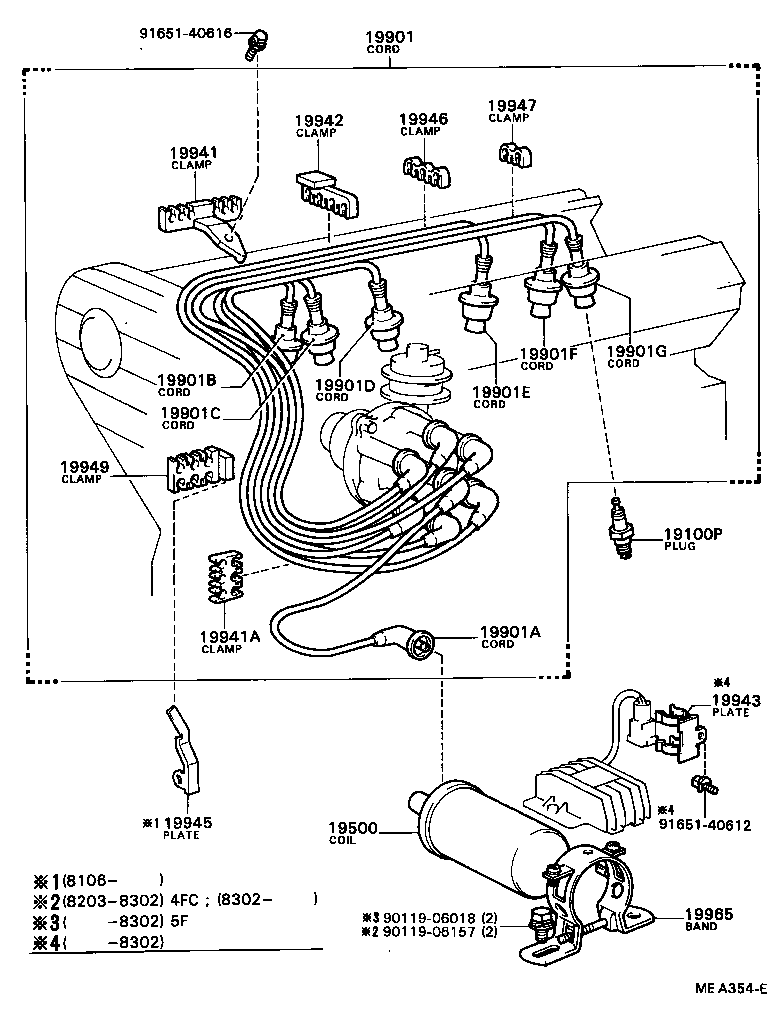

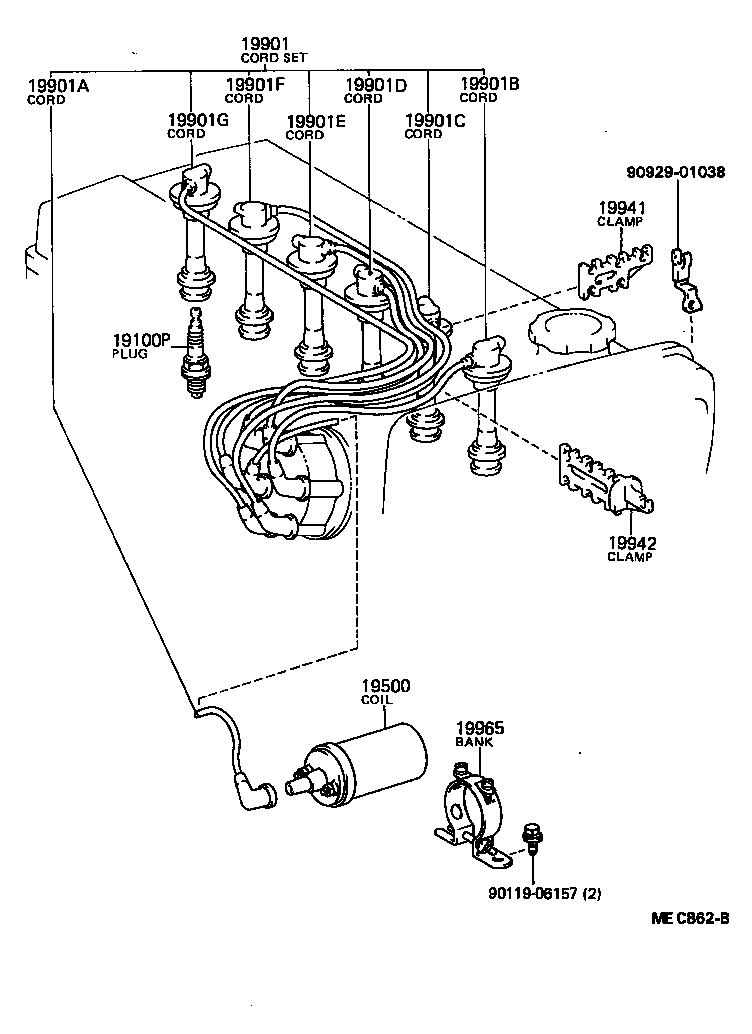

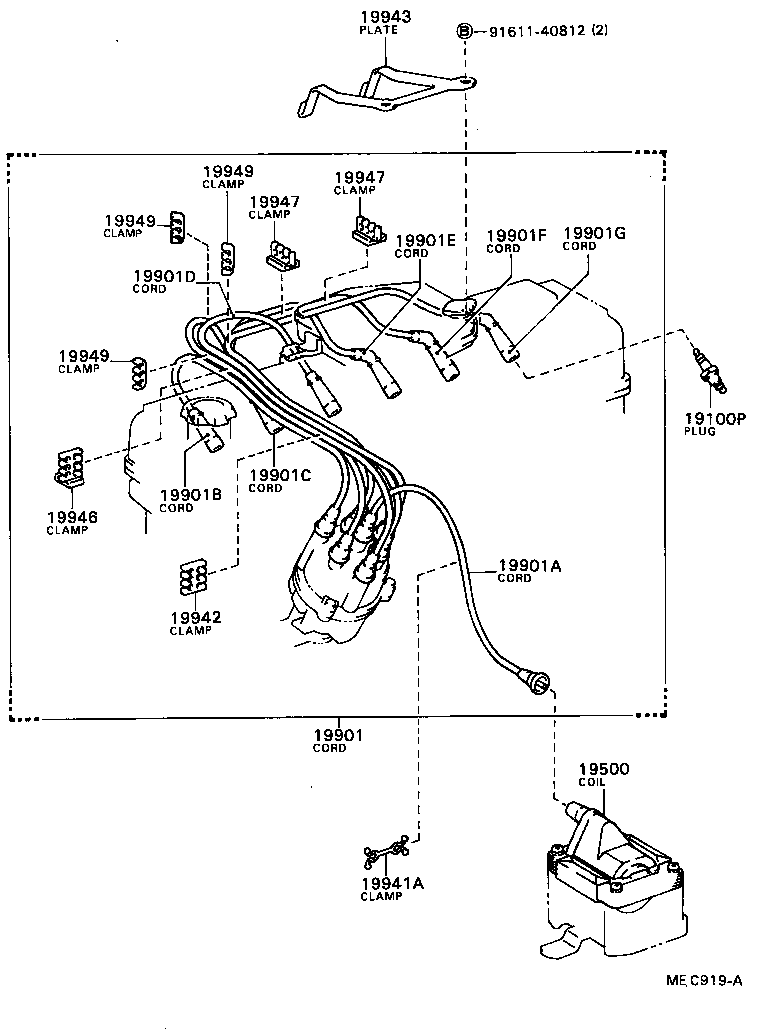

Figure ME8620C ME8620C 1981-02 → — Figure MEC862B MEC862B 1983-02 → — Figure MEA530B MEA530B 1981-07 → 1983-02 Figure MEC919A MEC919A 1983-02 → 1983-08 Figure MEE297 MEE297 1983-08 → — Figure MEA354E MEA354E 1981-02 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19730 Resistor, Ignition Coil
19901 Cord Set, Coil & Spark, W/Resistive
19901A Cord, Coil Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19901F Cord, Spark Plug Resistive, NO.5
19901G Cord, Spark Plug Resistive, NO.6
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
19942 Clamp, Resistive Cord, NO.2
19943 Plate, Resistive Cord Clamp Support NO.1
19945 Plate, Resistive Cord Clamp Support, NO.3
19946 Clamp, Resistive Cord, NO.3
19947 Clamp, Resistive Cord, NO.4
19949 Clamp, Resistive Cord, NO.5
19965 Band, Ignition Coil, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
