Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Distributor

26 part groups · 10 illustrations

Illustrations

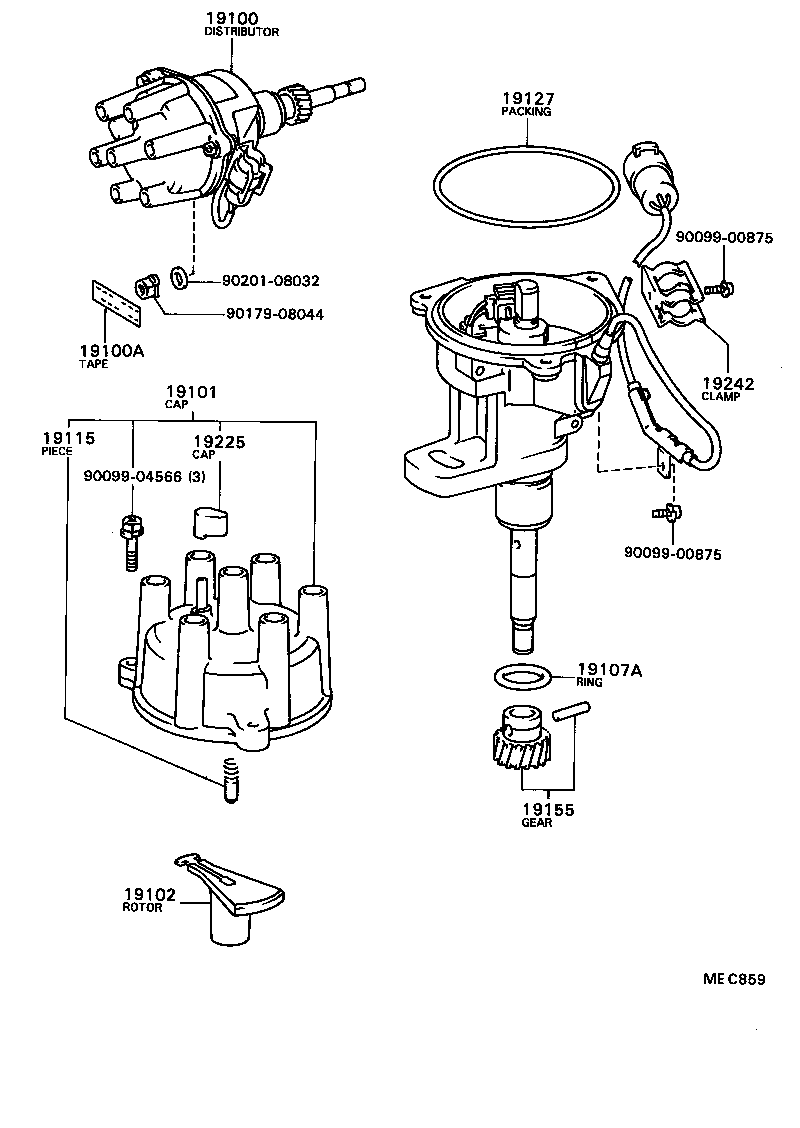

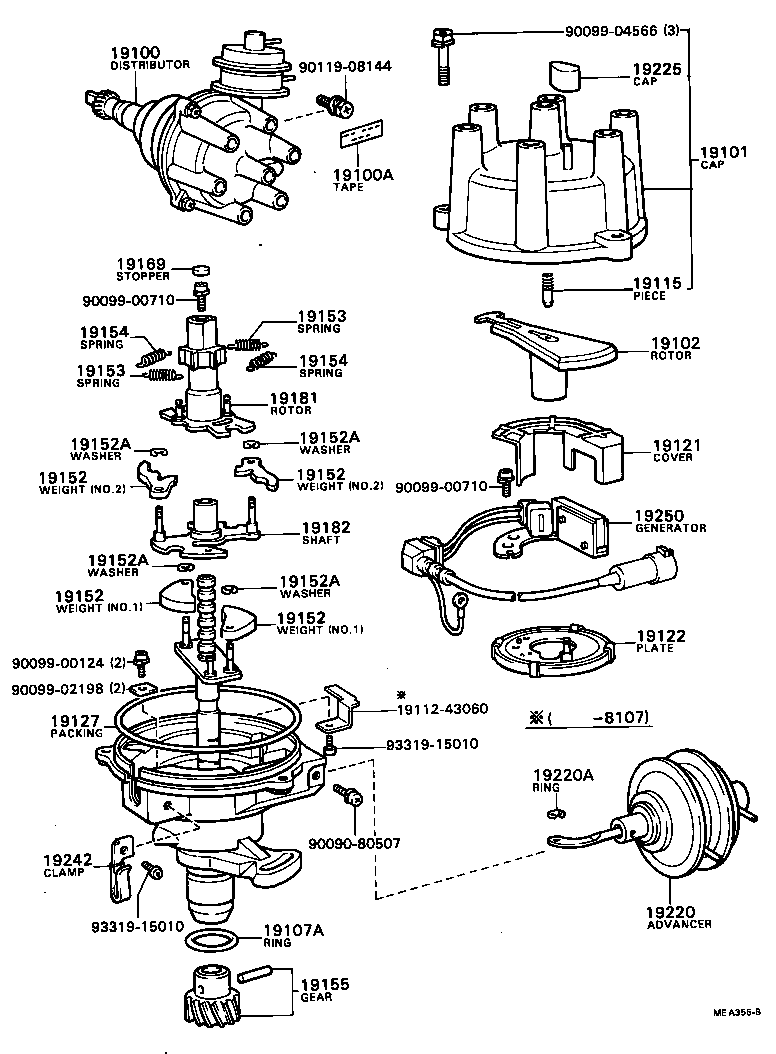

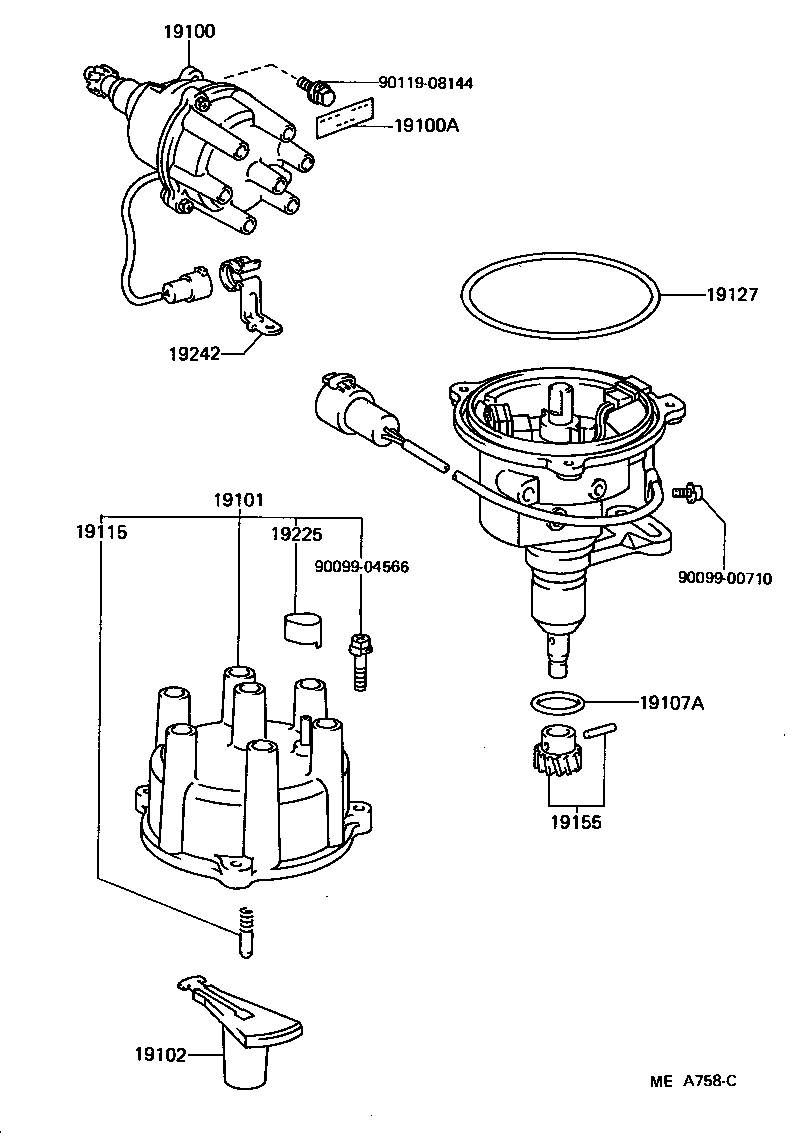

Figure ME8621C ME8621C 1981-02 → 1983-02 Figure MEA607A MEA607A 1983-02 → 1985-01 Figure MED322 MED322 1985-01 → — Figure MEC859 MEC859 1983-02 → — Figure MEA531C MEA531C 1981-07 → 1983-02 Figure MEC855 MEC855 1983-02 → — Figure MEA355B MEA355B 1981-02 → 1982-03 Figure MEA355B MEA355B 1982-03 → 1983-02 Figure MEA758C MEA758C 1982-03 → 1983-02 Figure MEA758C MEA758C 1983-02 → —

Part groups

PNCDescription
19100 Distributor Assy
19100A Tape, Sealing
19101 Cap Sub-assy, Distributor
19102 Rotor Sub-assy, Distributor
19105 Governor Sub-assy
19107A Ring, O, Distributor Housing
19115 Piece, Distributor Cap, Center
19121 Cover, Dust Proof
19122 Plate, Stationary, Distributor
19127 Packing, Dust Proof
19151 Shaft, Governor
19152 Weight, Governor
19152A Ring, Snap(FOR GOVERNOR WEIGHT)
19152B Weight, Governor, NO.2
19153 Spring, Governor, A
19154 Spring, Governor, B
19155 Gear, Spiral, Distributor
19169 Stopper, Cam Grease
19181 Rotor, Distributor, Signal
19182 Shaft, Distributor, Driving
19220 Advancer Assy, Vacuum, Distributor
19220A Ring, Snap(FOR DISTRIBUTOR VACUUM ADVANCER)
19225 Cap, Rubber
19242 Clamp, Cord
19250 Generator Assy, Signal
19905 Clamp Sub-assy, Distributor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
