Toyota Soarer
1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan
Discontinued model
Data version 1986-06

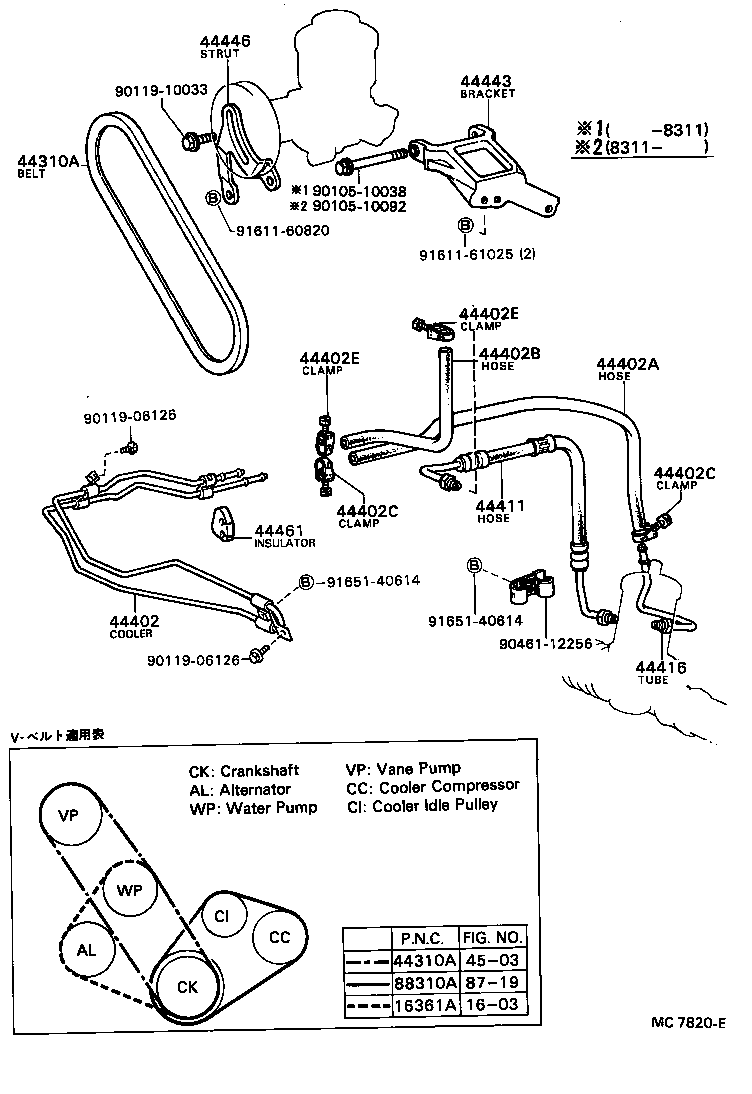

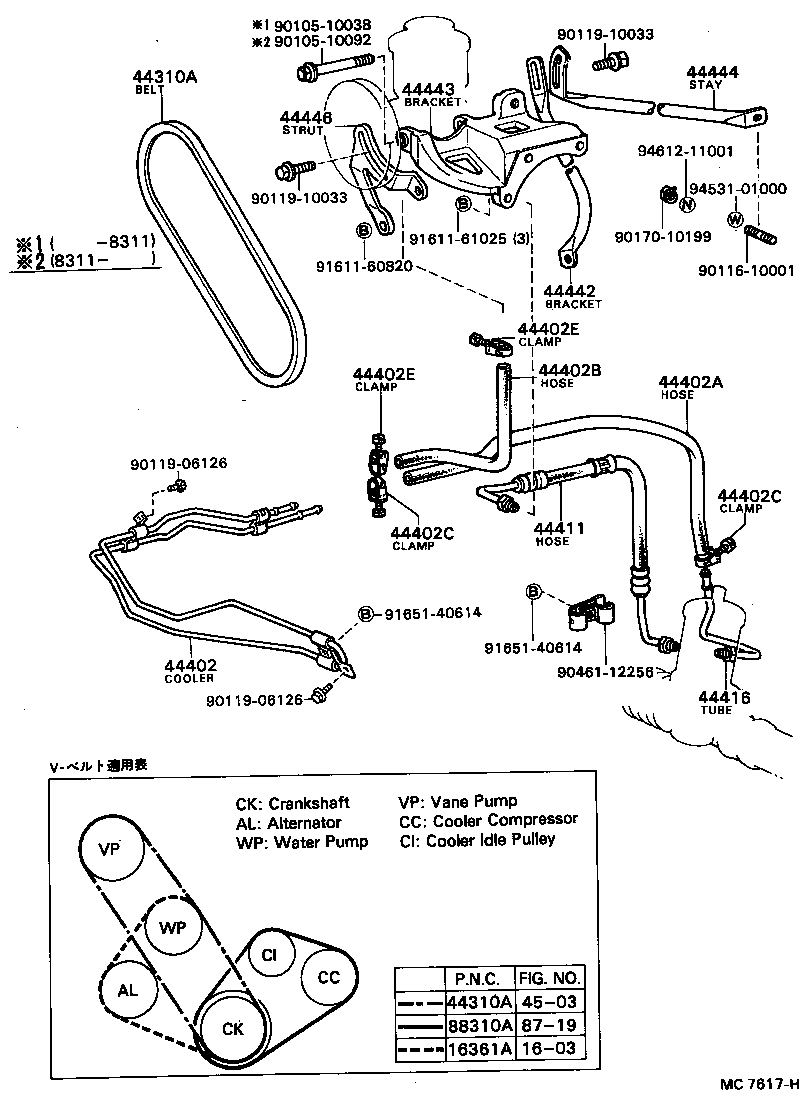

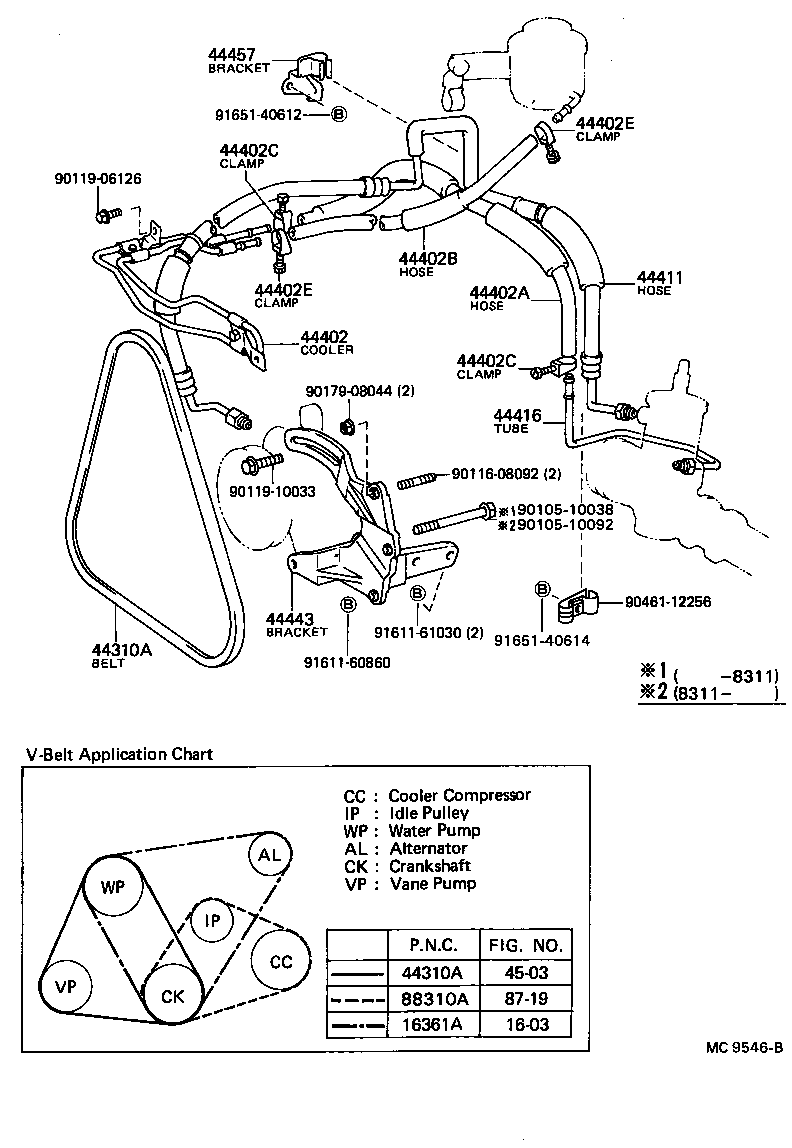

Power Steering Tube
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44402 | Cooler Sub-assy, Power Steering Oil, NO.1 |
| 44402A | Hose, Power Steering Oil Cooler Inlet |
| 44402B | Hose, Power Steering Oil Cooler Outlet |
| 44402C | Clamp, Power Steering Oil Cooler Inlet Hose |
| 44402E | Clamp, Power Steering Oil Cooler Outlet Hose |
| 44411 | Hose, Pressure Feed |
| 44416 | Tube, Return(FOR STEERING GEAR OUTLET) |
| 44441 | Bracket, Pump, Front |
| 44442 | Bracket, Pump, Rear |
| 44443 | Bracket, Pump |
| 44444 | Stay, Pump, Rear |
| 44446 | Strut, Adjusting |
| 44461 | Insulator, Tube Refrigerant |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
