Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

13 part groups · 3 illustrations

Illustrations

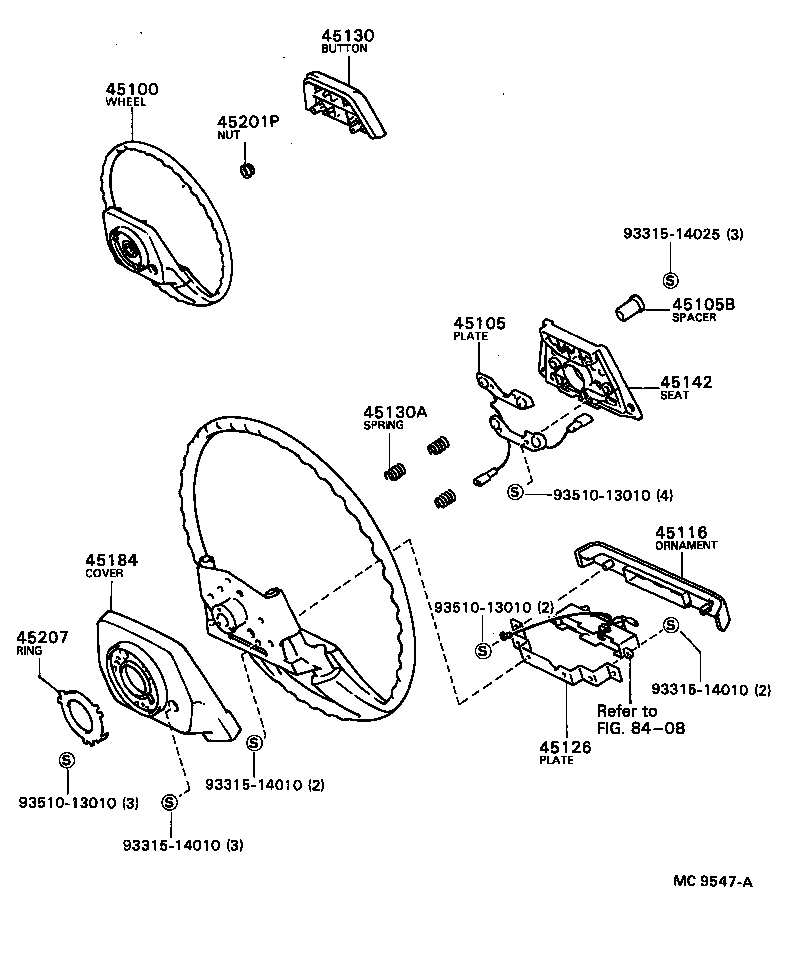

Figure MC9565B MC9565B 1981-02 → 1983-02 Figure MC9565B MC9565B 1983-02 → — Figure MC9547A MC9547A 1983-02 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45116 Ornament, Steering Wheel, NO.1
45125 Mark, Steering Wheel Pad
45126 Plate, Steering Wheel Pad Set
45130 Button Assy, Horn
45130A Spring, Compression(FOR HORN BUTTON)
45142 Seat, Horn Button Contact, NO.1
45142D Cushion(FOR HORN BUTTON CONTACT SEAT)
45184 Cover, Steering Wheel Boss, Lower
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
