Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

34 part groups · 8 illustrations

Illustrations

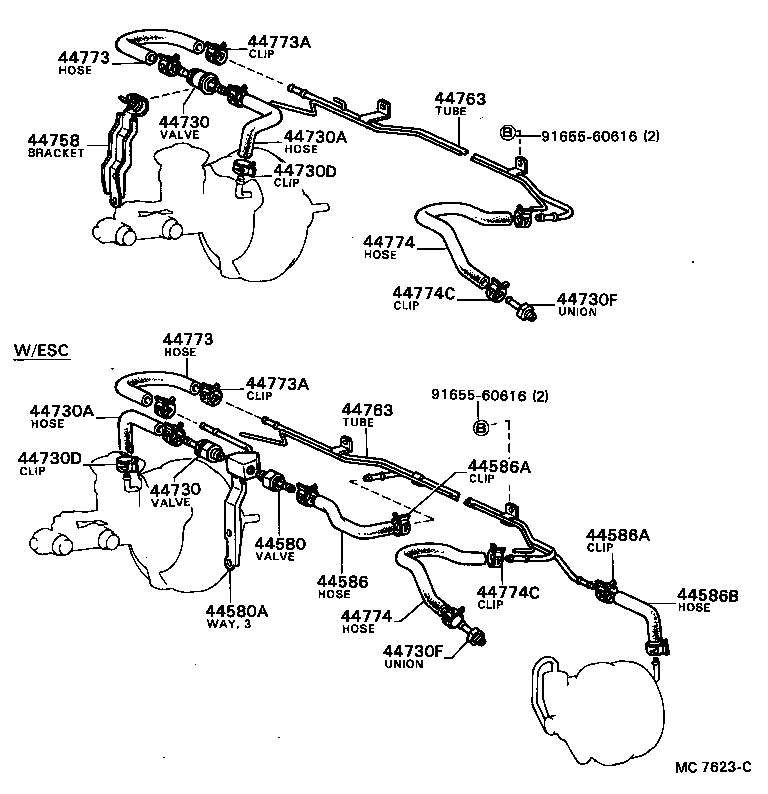

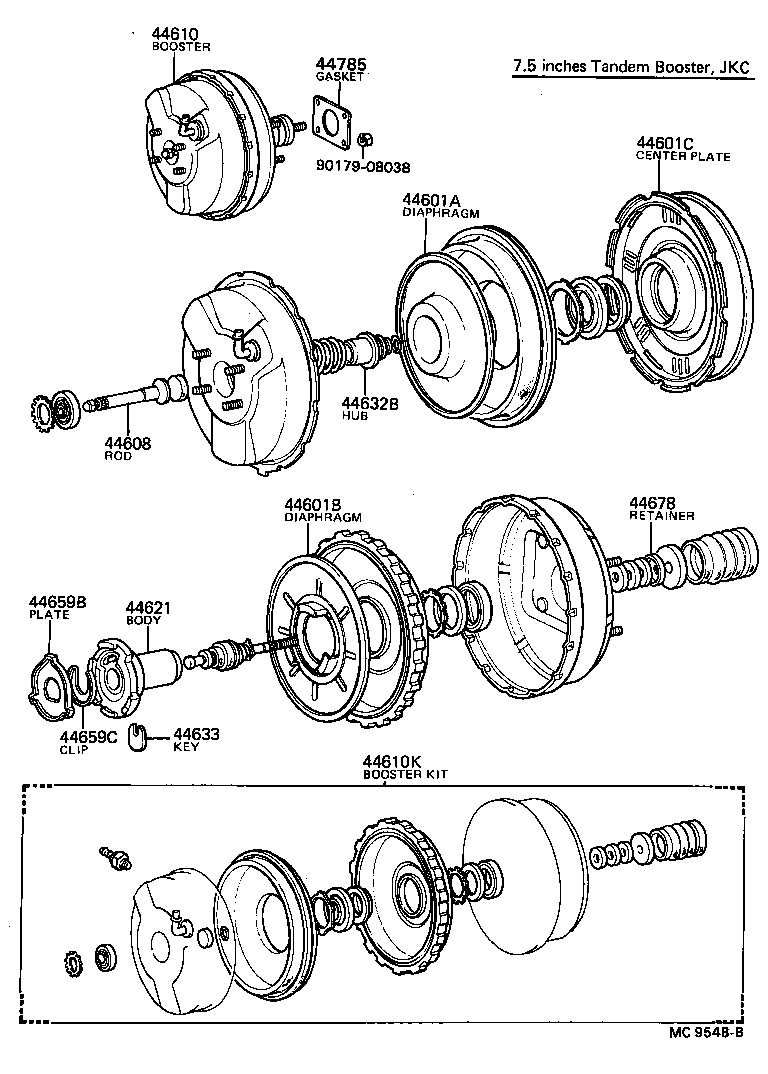

Figure MC6879A MC6879A 1981-02 → 1983-02 Figure MC6879A MC6879A 1983-02 → 1984-01 Figure MC6879A MC6879A 1984-01 → — Figure MC9548B MC9548B 1983-02 → 1984-01 Figure MC9548B MC9548B 1984-01 → — Figure MC7822B MC7822B 1981-02 → — Figure MC9549A MC9549A 1981-02 → — Figure MC7623C MC7623C 1981-02 → —

Part groups

PNCDescription
44580 Valve Assy, Actuator Check
44580A Way, 3, Actuator Vacuum
44586 Hose, Actuator Vacuum, NO.1
44586A Clip(FOR ACTUATOR VACUUM HOSE)
44586B Hose, Actuator Vacuum, NO.2
44601A Diaphragm Plate Sub-assy, Booster, Front
44601B Diaphragm Plate Sub-assy, Booster, Rear
44601C Center Plate Sub-assy, Booster
44605 Plate & Seal Sub-assy, Booster
44608 Push Rod Sub-assy, Booster
44610 Booster Assy, Brake
44610J Way, 2(FOR BRAKE BOOSTER)
44610K Booster Kit, Brake
44621 Body, Booster Valve
44632B Hub, Booster Reaction Disk
44633 Key, Booster Valve Plunger
44642 Piston, Brake Booster
44645 Retainer, Booster Push Rod Seal
44659B Plate, Booster Retainer
44659C Clip, Booster
44678 Retainer, Booster Air Cleaner
44708 Insulator Sub-assy, Brake Booster Heat
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730A Hose, Vacuum, NO.1
44730D Clip(FOR VACUUM HOSE, NO.1)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44758 Bracket, Vacuum Check Valve
44763 Tube, Booster Vacuum
44773 Hose, Vacuum, NO.2
44773A Clip, NO.1(FOR VACUUM HOSE, NO.2)
44774 Hose, Union TO Connector Tube
44774C Clip(FOR UNION TO CONNECTOR TUBE HOSE)
44785 Gasket, Brake Booster
44797 Bracket, Heat Insulator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
