Toyota Soarer

1981-02 → 1985-12 · chassis GZ10,MZ1# · catalogue 321110 · Japan

Discontinued model Data version 1986-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

22 part groups · 2 illustrations

Illustrations

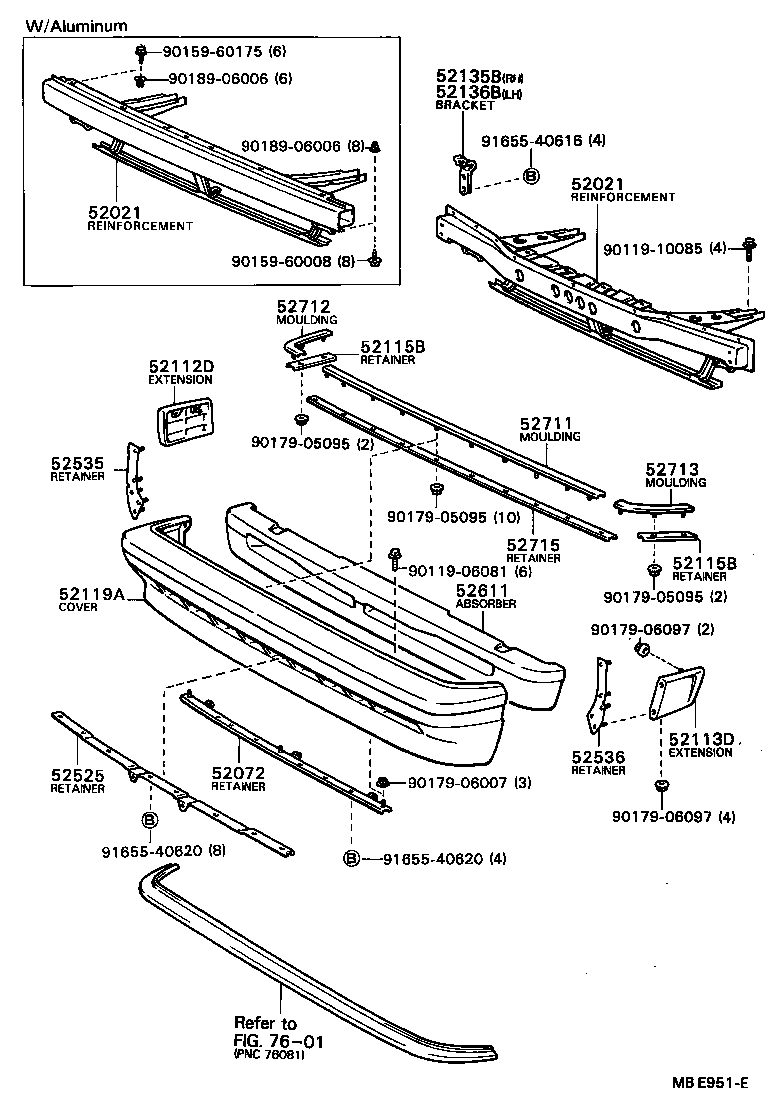

Figure MBC397E MBC397E 1981-02 → 1983-02 Figure MBE951E MBE951E 1983-02 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52072 Retainer Sub-assy, Front Bumper, Lower
52112C Extension, Front Bumper
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52115B Retainer, Front Bumper Extension, NO.1
52117C Retainer, Front Bumper Extension, NO.2
52119A Cover, Front Bumper
52135B Bracket, Front Bumper, NO.1 RH
52136B Bracket, Front Bumper, NO.1 LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52525B Retainer, Front Bumper, Lower Side RH
52526B Retainer, Front Bumper, Lower Side LH
52527A Retainer, Front Bumper, Lower Center NO.2
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713 Plug, Front Bumper Moulding
52715 Retainer, Front Bumper Moulding, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
